heater resistor wiring question

Reply Subscribe

Thread Tools

Search this Thread

Mar 24, 2018 | 10:58 PM

#21

1968SafariYellow

Heel & Toe

Joined: Aug 2015

Posts: 20

Likes: 1

Quote:

Originally Posted by 1968SafariYellow

Wilcox- this is a great diagram. Can you tell me what the "low Blo" switch would be called so I can search and purchase it? My wiring diagram says "console climate mode switch"

Also, do you know where the heater resistor conn goes inside the car on an AC 68 car? I don't see it anywhere on the heater box.

Thanks!!!!

BUMP!!! I am still trying to figure out the "heater resistor conn" wire. I am thinking that AC cars don't use it? Has an orange blue and yellow wire with a white/clear female 3 prong connection. I have a heater resistor connection on my AC wiring harness in the engine compartment.

Mar 25, 2018 | 11:31 AM

#22

Staylor63

Burning Brakes

Joined: Oct 2015

Posts: 1,088

Likes: 98

From: Roselle Illinois

Wires

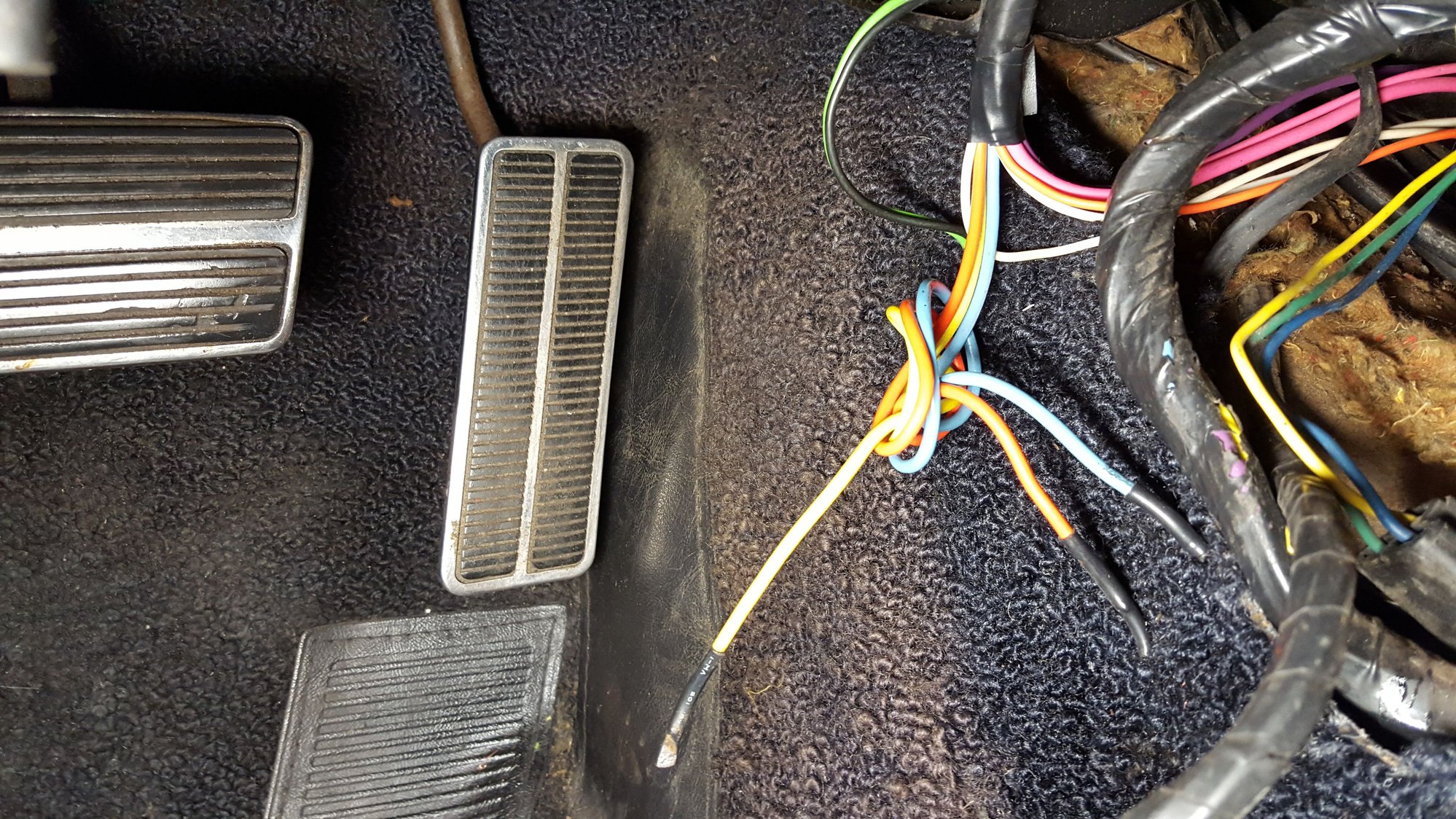

I think you are right....i have a 68 with a.c. and those 3 wires are tied up and sealed (from the factory I think)

Mar 25, 2018 | 02:13 PM

#23

2mnyvets

Racer

Joined: Jul 2015

Posts: 396

Likes: 101

From: Lehigh Valley Pennsylvania

Look at one of my previous posts where i went into detail on what each component does, how it worked and what color wire went where. It is going to make your life easy if it is an ac car. I wrote it because I really struggled to get my system working.

https://www.corvetteforum.com/forums...scription.html

Last edited by 2mnyvets; Mar 25, 2018 at 02:43 PM. Reason: added link
