72 wiper mechanism interference
Thread Starter
Advanced
Joined: Apr 2010
Posts: 65
Likes: 1
From: Fayetteville Arkansas
72 wiper mechanism interference
Well I ran my wiper motor for the first time tonight. The original wiper motor that was on the car when I got it didn't work and was the wrong year anyway, so I changed it out for a rebuilt one.
Motor runs fine and all, however the big problem that I am having now is when the motor turns, the passenger side "arm" is hitting the back of the windshield wiper arm stop bracket.
I have attached a very brief 2 second video showing it in action. Any Ideas?
Scott
Motor runs fine and all, however the big problem that I am having now is when the motor turns, the passenger side "arm" is hitting the back of the windshield wiper arm stop bracket.
I have attached a very brief 2 second video showing it in action. Any Ideas?Scott
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Hi Scott-
The only way for that to happen is for the lever from the transmission to the bell crank to be bent or the stop bracket is bent or the bell crank with pivot is bent..
It's kind of hard to tell since it only cycles one time in the video.
I have good used transmissions if you want one to test with email me at support@willcoxcorvette.com
Ernie
The only way for that to happen is for the lever from the transmission to the bell crank to be bent or the stop bracket is bent or the bell crank with pivot is bent..
It's kind of hard to tell since it only cycles one time in the video.
I have good used transmissions if you want one to test with email me at support@willcoxcorvette.com
Ernie
Thread Starter
Advanced
Joined: Apr 2010
Posts: 65
Likes: 1
From: Fayetteville Arkansas
Hi Scott-
The only way for that to happen is for the lever from the transmission to the bell crank to be bent or the stop bracket is bent or the bell crank with pivot is bent..
It's kind of hard to tell since it only cycles one time in the video.
I have good used transmissions if you want one to test with email me at support@willcoxcorvette.com
Ernie
The only way for that to happen is for the lever from the transmission to the bell crank to be bent or the stop bracket is bent or the bell crank with pivot is bent..
It's kind of hard to tell since it only cycles one time in the video.
I have good used transmissions if you want one to test with email me at support@willcoxcorvette.com
Ernie
Scott
Thread Starter
Advanced
Joined: Apr 2010
Posts: 65
Likes: 1
From: Fayetteville Arkansas
Hi Scott,
Here are 2 pictures from my 71.
Both the wiper motor and wiper mechanism are the original.
Maybe you'll be able to spot something on your installation.
Is the wiper motor properly 'seated' on the firewall?…...is the nose extending into the wiper bay far enough?
???
Regards,
Alan
Here are 2 pictures from my 71.
Both the wiper motor and wiper mechanism are the original.
Maybe you'll be able to spot something on your installation.
Is the wiper motor properly 'seated' on the firewall?…...is the nose extending into the wiper bay far enough?
???
Regards,
Alan
Great pictures as always! I have seen many of yours while searching throughout the forum for answers before posting. Always so clean and clear.
The wiper motor looks good as compared to yours. I think the passenger side transmission linkage may be a little straighter on mine. Yours looks more curved and that may be my problem. Also when I look at your adjustment on the pivot for the transmission arm, it looks like yours is slid all the way over to the opposite side that mine is, leading me to believe that if I had more bend, my adjustment would look closer to yours.
Scott
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
You didn't tell me this...
And I think this is the problem Scott... 1968-1972 were different than 1973-1982. The rear ball for the right hand pivot arm is closer to the firewall and the length is different. I tried to watch the video again but I think the only way is to verify this is to post a picture...
I'll check and give you some measurements that should confirm this.
Ernie
Last edited by Willcox Corvette; Feb 22, 2016 at 01:59 PM.
Thread Starter
Advanced
Joined: Apr 2010
Posts: 65
Likes: 1
From: Fayetteville Arkansas
I thought I had mentioned that. Although I do think mine looks a lot like the one Alan posted. If the ball is jutting out further towards the windshield than it should that would make it hit. Looking forward to those measurements!
Scott
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,853
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15

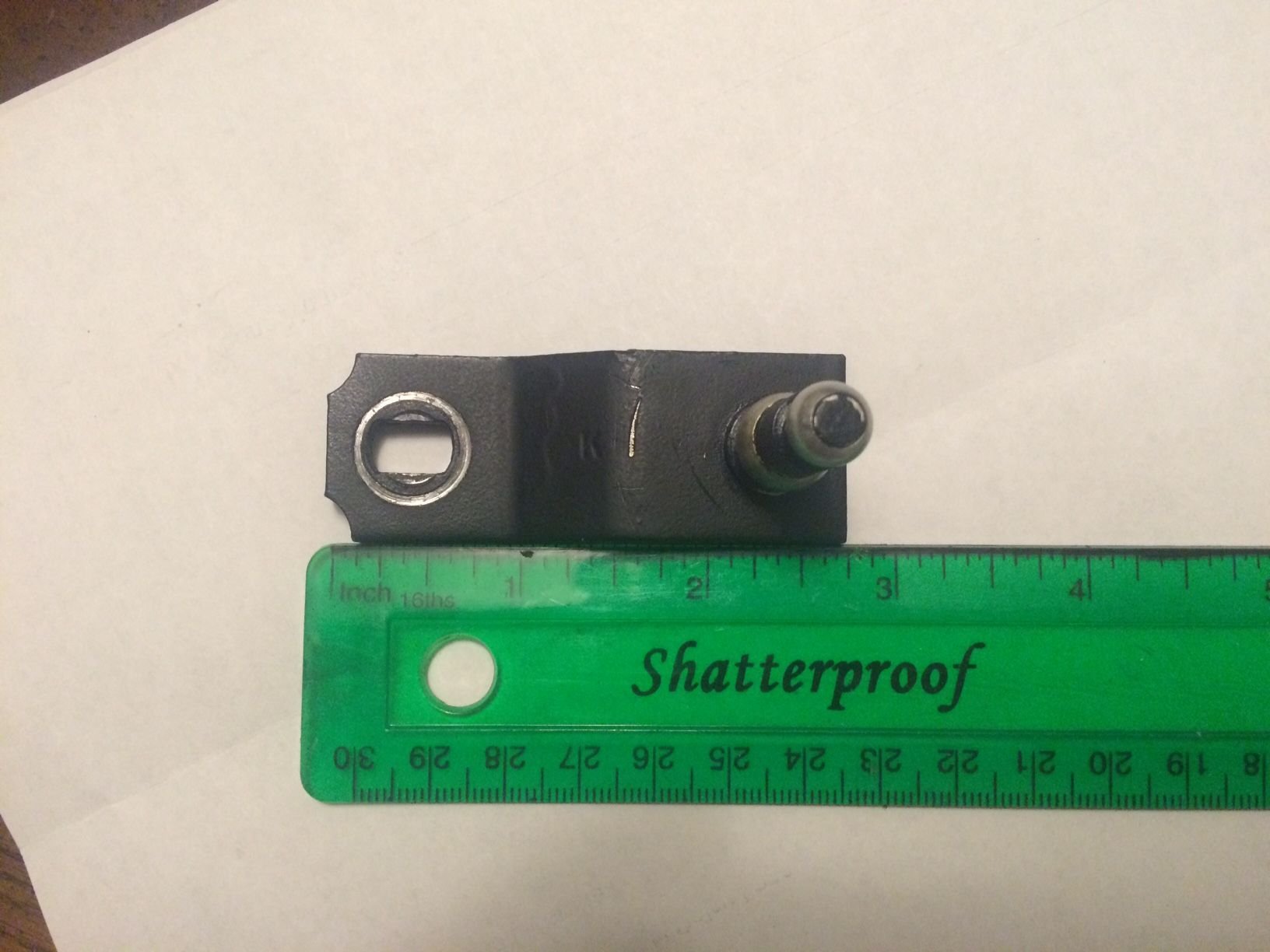

There are three main differences... one you can check quick by the width.. the other is that the stud is 1/8" longer and also closer to the firewall due to the difference in the bend... I do believe this might be your issue. The passenger side rod comes very very close to the bracket on a car with everything correct.
Check it and see when you have time.. post back.
Check it and see when you have time.. post back.
