Hello everybody!
I found some rust in the tipical birdcage connection... Year 1969
It's not so bad but I want to fix it and stop the rust.
For do this I thought to work from inside trailing arms connection and from the top. I don't want to take the body off but I tought to lift just the rear of the body, just 10-15 inches... For do that I plan to disconnect the 8 bolds, bumpers, pedals and something else but it should be easier than disconnect everything and take the body off.
I adopted this way when I made body lift in my Jeep (lifting rear and front separately) , but I don't know if it's possible with the Corvette...
What do you think? Any experience like this?
Thanks a lot
Filippo
I found some rust in the tipical birdcage connection... Year 1969
It's not so bad but I want to fix it and stop the rust.
For do this I thought to work from inside trailing arms connection and from the top. I don't want to take the body off but I tought to lift just the rear of the body, just 10-15 inches... For do that I plan to disconnect the 8 bolds, bumpers, pedals and something else but it should be easier than disconnect everything and take the body off.
I adopted this way when I made body lift in my Jeep (lifting rear and front separately) , but I don't know if it's possible with the Corvette...
What do you think? Any experience like this?
Thanks a lot
Filippo
Team Owner
Joined: Sep 2006
Posts: 31,170
Likes: 4,248
From: Westminster Maryland
Hi filippo,
I certainly understand your desire to not want to let things get out of hand.
But, I don't see how you can "just lift the rear of the body, just 10" to 15" ".
In order for ANY part of the body to be lifted off the frame, the body really must come 'straight up'. You might raise just the front or rear a couple of inches but not that far.
Lifting the body straight up will give you access to any part of the frame and the lower parts of the hinge and lock pillars and rocker channels that you find necessary to do your repairs.
You'll have to decide how to support the body in it's raised position while you work on it and the frame.
There are threads about the means folks use to lift the body and how they support it. What they do often depends on the space they have, their budget for 'equipment', and their skills.
Seeing some pictures of the rust you're facing may help folks give you some suggestions on how to proceed.
Regards,
Alan
I certainly understand your desire to not want to let things get out of hand.
But, I don't see how you can "just lift the rear of the body, just 10" to 15" ".
In order for ANY part of the body to be lifted off the frame, the body really must come 'straight up'. You might raise just the front or rear a couple of inches but not that far.
Lifting the body straight up will give you access to any part of the frame and the lower parts of the hinge and lock pillars and rocker channels that you find necessary to do your repairs.
You'll have to decide how to support the body in it's raised position while you work on it and the frame.
There are threads about the means folks use to lift the body and how they support it. What they do often depends on the space they have, their budget for 'equipment', and their skills.
Seeing some pictures of the rust you're facing may help folks give you some suggestions on how to proceed.
Regards,
Alan
Last edited by Alan 71; Jun 17, 2016 at 08:27 AM.
Team Owner
Joined: Sep 2006
Posts: 31,170
Likes: 4,248
From: Westminster Maryland
Hi filippo,

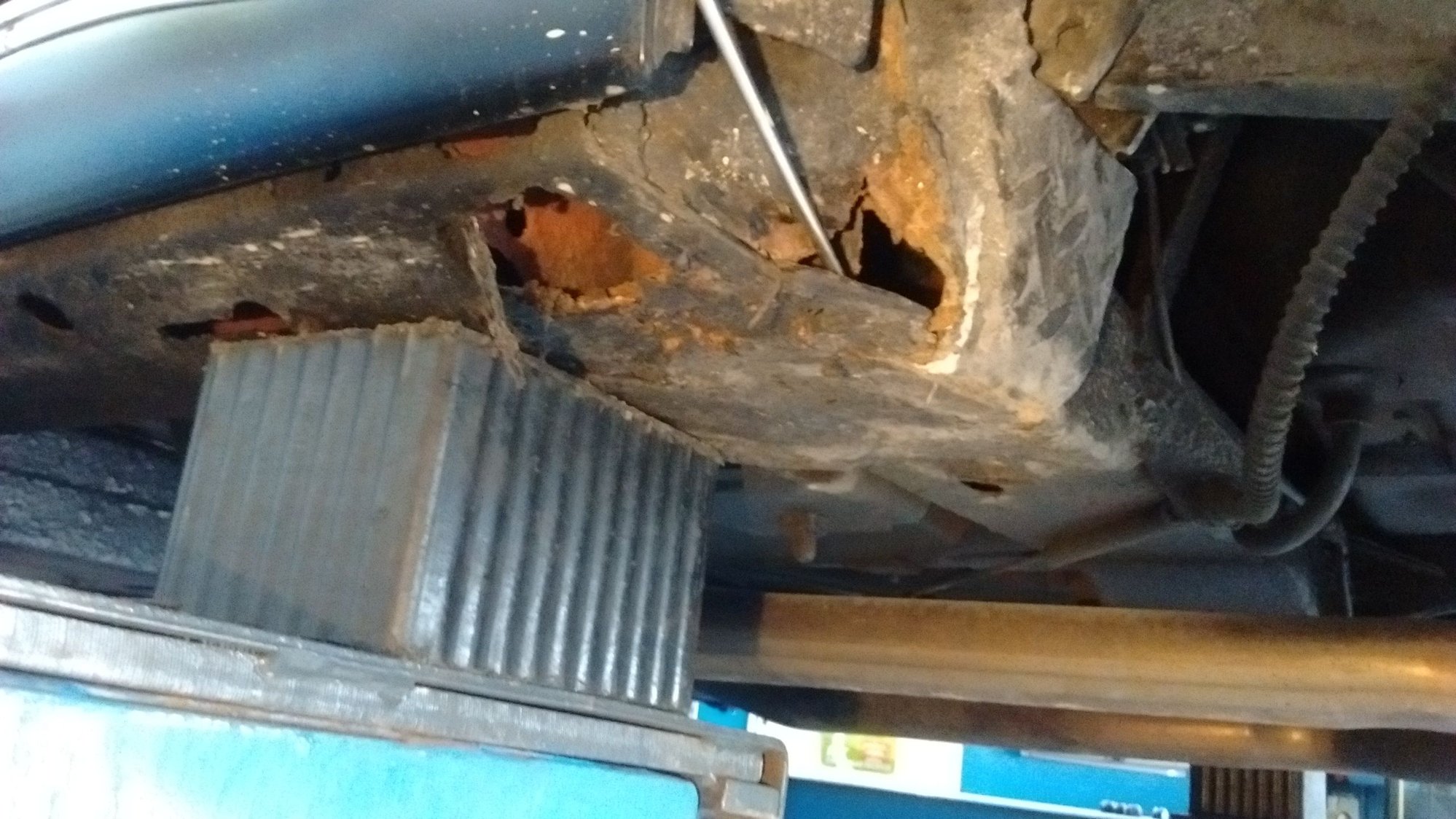

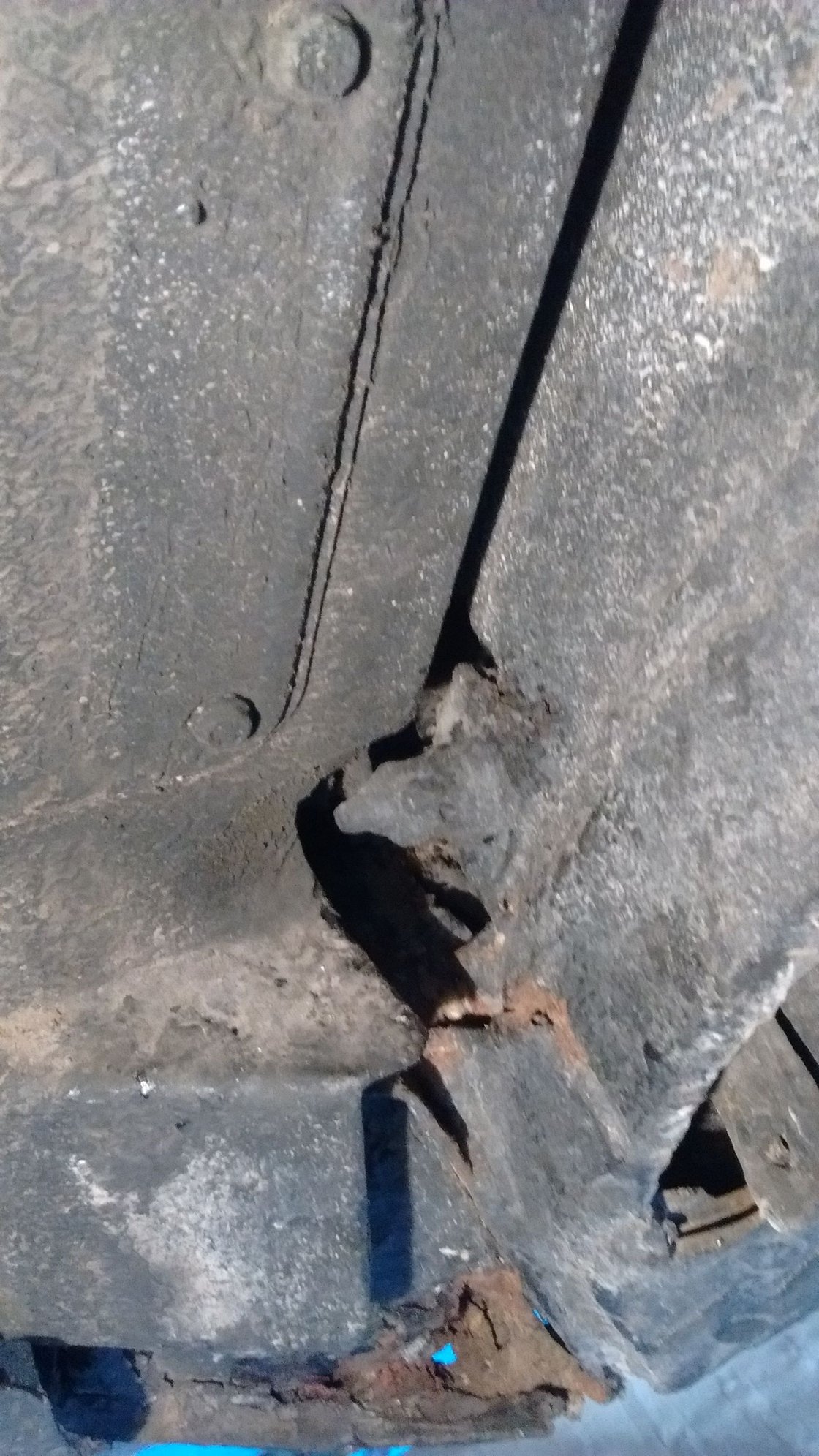

From the pictures it appears you have some very serious rust issues to deal with.
There are folks with much more experience dealing with rusty frames and birdcages than I, but I can't imagine doing these repairs in a first class manner without having the body completely clear of the frame.
I'm sure there will continue to be more opinions and suggestions as members see your posts and photos.
I believe you have a good bit of work in front of you!
Regards,
Alan
From the pictures it appears you have some very serious rust issues to deal with.
There are folks with much more experience dealing with rusty frames and birdcages than I, but I can't imagine doing these repairs in a first class manner without having the body completely clear of the frame.
I'm sure there will continue to be more opinions and suggestions as members see your posts and photos.
I believe you have a good bit of work in front of you!
Regards,
Alan
Le Mans Master
Joined: Aug 2005
Posts: 6,513
Likes: 1,948
From: Temple Terrace Florida
Frame
Looks like someone already tried to fix the frame by welding in some diamond plate. Before you go further, I would do a thorough inspection of the bird cage to see if there is extensive rust there. How does the rest of the frame look? Good luck. Jerry
Race Director
Joined: Mar 2003
Posts: 11,608
Likes: 780
From: Eustis ( Area 51 Bat Cave ) Fl
The cat I got my 454 from did a body off in the apt parking lot, no kidding but he only lifted the body just enough to service stuff, a few inches, no rust repairs.
When tommy pulled my body I do not believe that trying to do one end will even work you would still have to disconnect all it would take to just lift the full body and my 69 had a rusted out # 3 bird cage body mount tommy also fixed, ( pictures in my bats build thread )
I guess you have to decide if you dig the car and plan to keep it and use it enough to get your money back, if so then bite the bullet and pull the body, you really can't fix it correctly with the body on...
Sorry to be such a buzz kill....
When tommy pulled my body I do not believe that trying to do one end will even work you would still have to disconnect all it would take to just lift the full body and my 69 had a rusted out # 3 bird cage body mount tommy also fixed, ( pictures in my bats build thread )
I guess you have to decide if you dig the car and plan to keep it and use it enough to get your money back, if so then bite the bullet and pull the body, you really can't fix it correctly with the body on...
Sorry to be such a buzz kill....
Last edited by The13Bats; Jun 17, 2016 at 06:44 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Drifting
Joined: Sep 2007
Posts: 1,572
Likes: 51
From: Wichita Kansas
I would think by lifting the rear only you risk damaging or breaking the front end bond to body. There is no support in the body forward of the fife wall and the bond in that are is weak. Flexing in that area is what causes forward door gaps to change. Side to side lift a few inches may not be a problem idk.
Race Director
Joined: Mar 2003
Posts: 11,608
Likes: 780
From: Eustis ( Area 51 Bat Cave ) Fl
sorry,My wife pushed me to hire this last chassis swap on our 69 tommy said, oh, I can do that in a week or less, 9 months and counting later it took me threatening to get law and osha involved for him to allow me to even come get my car unfinished.
It depends on how fast you work, the damage that needs repair the cash flow,
I really do not know a good baseline...didn't that one shop do it in 48 hours some here are into weeks others into years...I guess how long is more up to you.
Last edited by The13Bats; Jun 17, 2016 at 09:26 PM.
Drifting
Joined: Jan 2014
Posts: 1,866
Likes: 140
From: Sadieville Kentucky
Wes
Team Owner
Joined: Sep 2006
Posts: 31,170
Likes: 4,248
From: Westminster Maryland
Hi m,
I think getting the body up and off the chassis is really the most straight forward part of the rust situation facing you. Have you taken a look to see if the rust seen in the pictures you posted has progressed in to the birdcage rocker channel above body mount #3?
It appears to me that it will take someone with very good welding skills to do the repair and the decision will need to be made to have him fabricate the steel he needs or buy the frame repair sections that will be needed that are available from some of the Corvette parts vendors.
I don't think you'll have the information necessary to decide how to proceed until the body is off the frame and you can assess the full extent of the frame rust damage.
Regards,
Alan
I think getting the body up and off the chassis is really the most straight forward part of the rust situation facing you. Have you taken a look to see if the rust seen in the pictures you posted has progressed in to the birdcage rocker channel above body mount #3?
It appears to me that it will take someone with very good welding skills to do the repair and the decision will need to be made to have him fabricate the steel he needs or buy the frame repair sections that will be needed that are available from some of the Corvette parts vendors.
I don't think you'll have the information necessary to decide how to proceed until the body is off the frame and you can assess the full extent of the frame rust damage.
Regards,
Alan
Drifting
Joined: Jan 2014
Posts: 1,866
Likes: 140
From: Sadieville Kentucky
Hello everybody!
I found some rust in the tipical birdcage connection... Year 1969
It's not so bad but I want to fix it and stop the rust.
For do this I thought to work from inside trailing arms connection and from the top. I don't want to take the body off but I tought to lift just the rear of the body, just 10-15 inches... For do that I plan to disconnect the 8 bolds, bumpers, pedals and something else but it should be easier than disconnect everything and take the body off.
I adopted this way when I made body lift in my Jeep (lifting rear and front separately) , but I don't know if it's possible with the Corvette...
What do you think? Any experience like this?
Thanks a lot
Filippo
I found some rust in the tipical birdcage connection... Year 1969
It's not so bad but I want to fix it and stop the rust.
For do this I thought to work from inside trailing arms connection and from the top. I don't want to take the body off but I tought to lift just the rear of the body, just 10-15 inches... For do that I plan to disconnect the 8 bolds, bumpers, pedals and something else but it should be easier than disconnect everything and take the body off.
I adopted this way when I made body lift in my Jeep (lifting rear and front separately) , but I don't know if it's possible with the Corvette...
What do you think? Any experience like this?
Thanks a lot
Filippo
You definitely need to lift body off .there are repair kits to fix these rusty places .That area is critical .
Wes

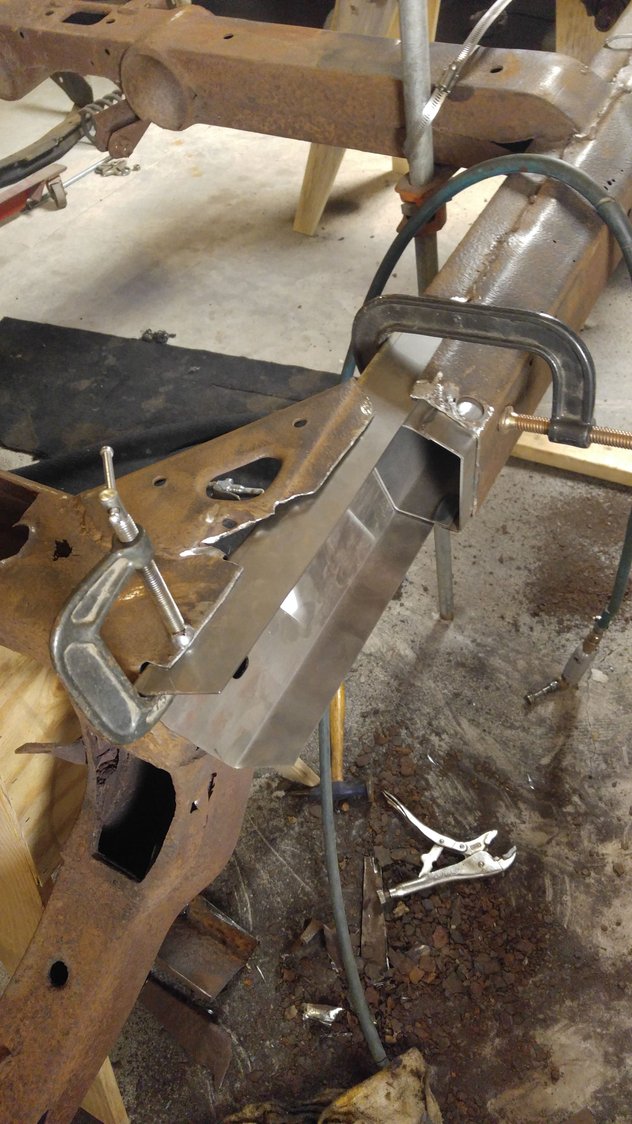

Repair kit

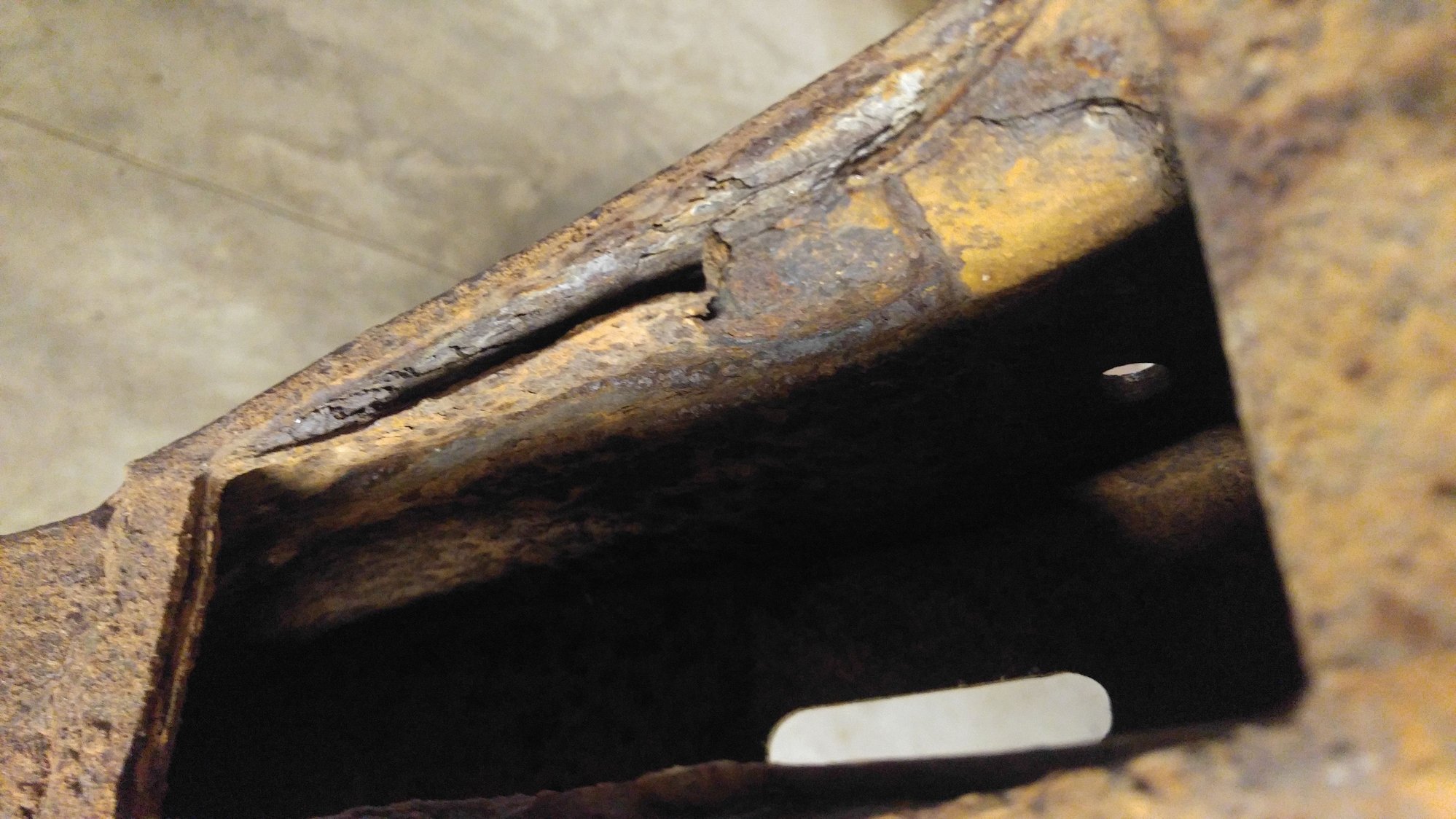

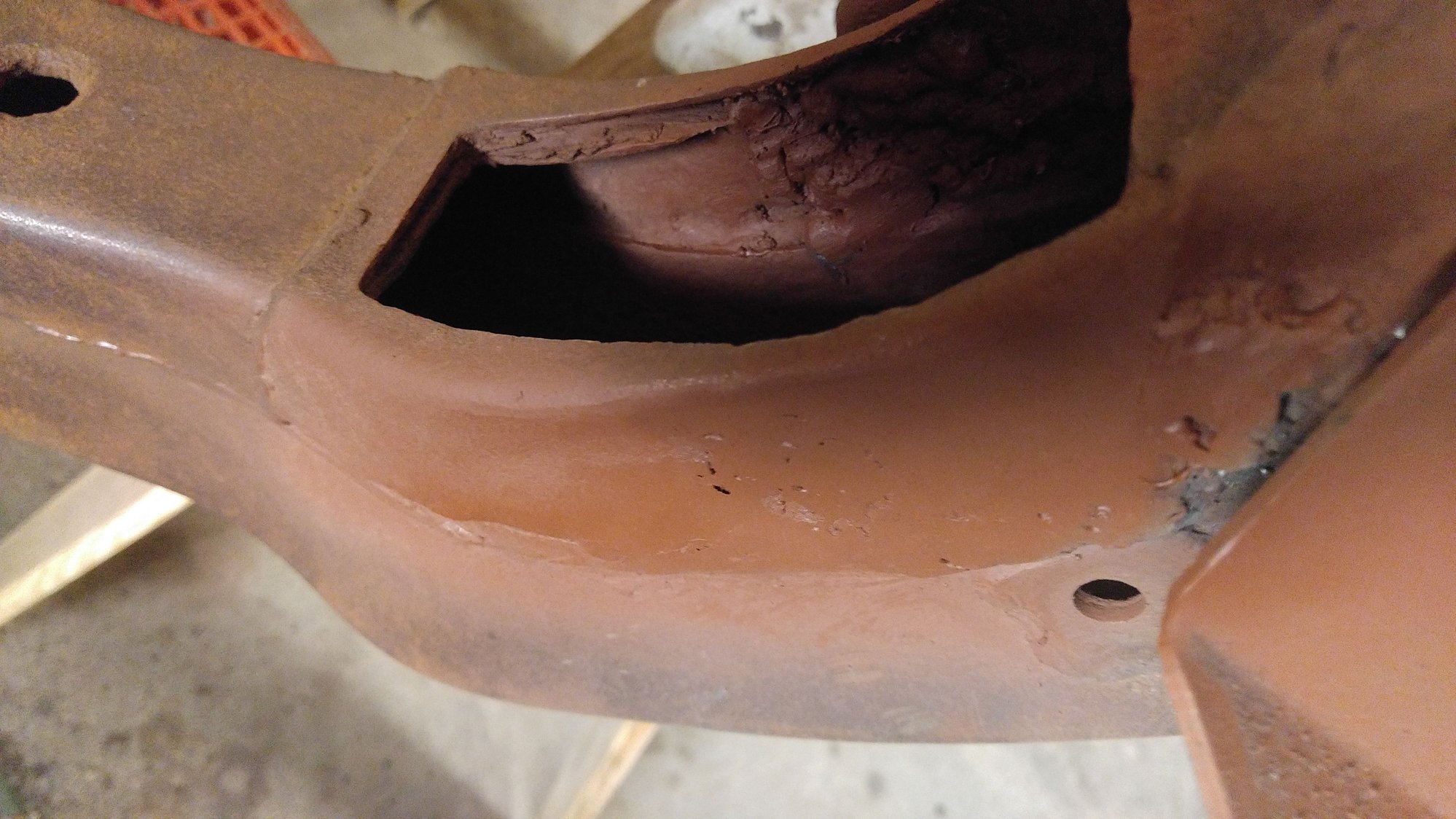

Where trailing arm goes in
This outside doubler cost $70
Burning Brakes
Joined: Feb 2009
Posts: 780
Likes: 1
From: Shelby NC

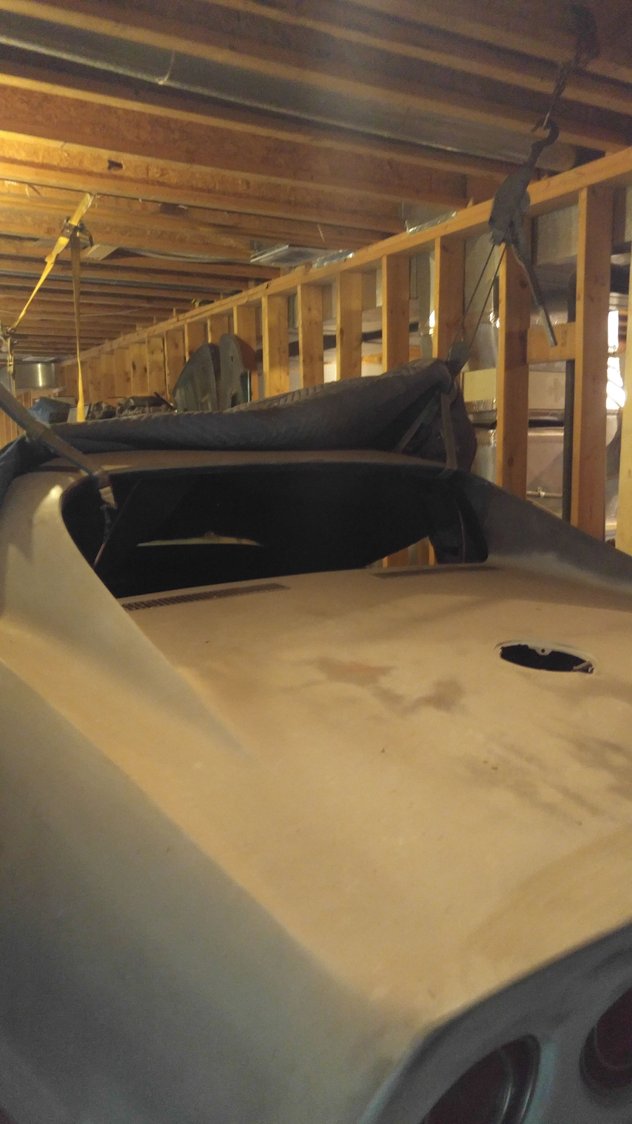

Just pulled one on a 69 car...did not have the rust issues, I had to replace fuel lines and then clean up the frame without taking it apart suspension wise but I couldn't see how to do it other than pulling it straight up. The rear was so tight against the rear body shell I don't see how up could lift the rear enough to do any repair like you apparently need to. I would seriously consider stripping the frame bare and cleaning it and see what you have to work with. It's work for sure....but aren't these labor of love projects...LOL!
Thread Starter
Heel & Toe
Joined: Mar 2016
Posts: 17
Likes: 0
Thanks anyone for the answers. I'm going to lift the body... I'm not so worried about the amount of work, plugs, connections and whatever are not a huge number, but about the body lifting :I saw so different way on internet and I'm worried to take it bad and damage.
Maybe the best way is by hsnd with some people... How much could be the body weight?
Thanks again
Maybe the best way is by hsnd with some people... How much could be the body weight?
Thanks again
Drifting
Joined: Jan 2014
Posts: 1,866
Likes: 140
From: Sadieville Kentucky
Thanks anyone for the answers. I'm going to lift the body... I'm not so worried about the amount of work, plugs, connections and whatever are not a huge number, but about the body lifting :I saw so different way on internet and I'm worried to take it bad and damage.
Maybe the best way is by hsnd with some people... How much could be the body weight?
Thanks again
Maybe the best way is by hsnd with some people... How much could be the body weight?
Thanks again

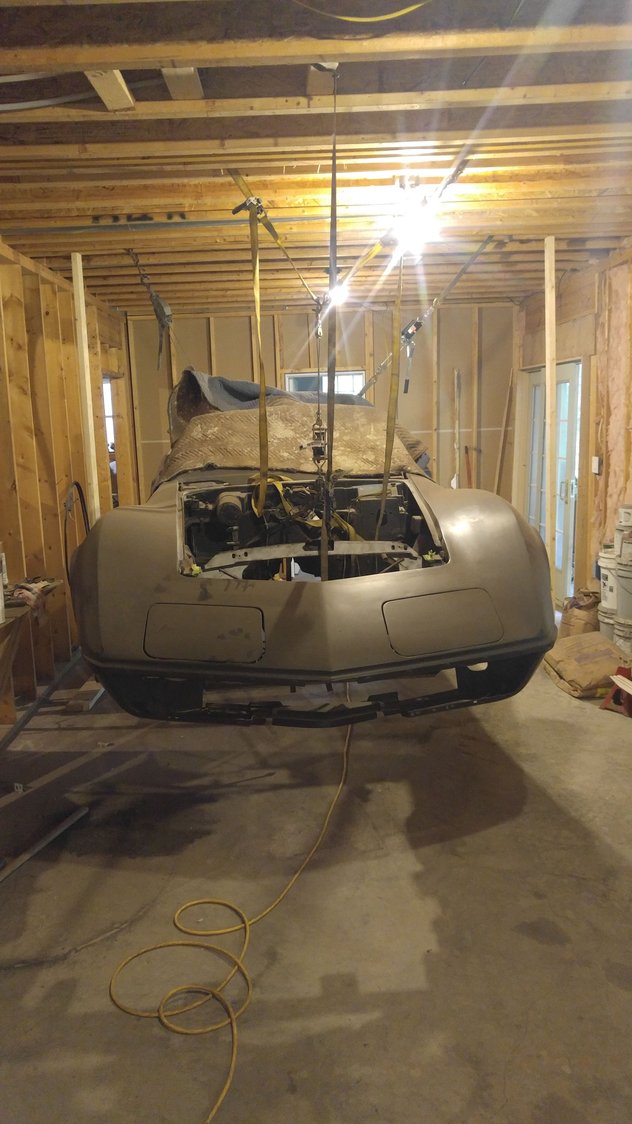

I dont have any help so this is what I do I would guess weighs 475 lbs
Team Owner
Joined: Sep 2006
Posts: 31,170
Likes: 4,248
From: Westminster Maryland
Hi M,
The weight of the body really depends on how much of it is disassembled.
A completely empty 68-72 body…. one with the bumpers and brackets removed, complete interior removal, empty door shells, and even no glass, STILL weights 'about' 750 pounds. So it's likely you'll be lifting a good deal more than that.
Most people who lift it by 'hand' say having about 6 'lifters' is necessary to be safe, and it's best to have another person or 2 on hand to guide them, move the chassis out of position, and move the dolly you're going to put the body on into place.
It's not a difficult job but does take some planning and muscle.
Regards,
Alan
The weight of the body really depends on how much of it is disassembled.
A completely empty 68-72 body…. one with the bumpers and brackets removed, complete interior removal, empty door shells, and even no glass, STILL weights 'about' 750 pounds. So it's likely you'll be lifting a good deal more than that.
Most people who lift it by 'hand' say having about 6 'lifters' is necessary to be safe, and it's best to have another person or 2 on hand to guide them, move the chassis out of position, and move the dolly you're going to put the body on into place.
It's not a difficult job but does take some planning and muscle.
Regards,
Alan
Last edited by Alan 71; Jun 20, 2016 at 08:38 AM.
