Fuse Panel Loose?

Hi Guys,After checking for high speed blower issue I found my main fuse panel was loose! (by your left foot)The bolt through the center is tight
Is there suppose to be a filler plate on both sides of the fire wall or am I missing something?
cheers Dave NZ

Jan 22, 2017 | 08:11 AM

Easy Mike

Team Owner

Joined: Jun 2000

Posts: 38,923

Likes: 1,482

From: Southbound

Cruise-In II Veteran

Model year? There is a metal tapping plate on the engine side of the firewall under the hood. Inside the car, the fuse block usually bolts through the firewall into the tapping plate in the upper right and lower left corners of the fuse block.

Jan 22, 2017 | 10:26 AM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,285

Likes: 4,375

From: Westminster Maryland

Hi Dave,
Here's a photo of what may be the plate that Mike describes.
It's on my 71 so I'm not sure how similar it might be to the one used on your car.
Regards,
Alan

This photo is taken looking in through the side grill on the left side.
You can see one of the rivets used to attach the plate to the firewall.

Last edited by Alan 71; Jan 22, 2017 at 11:33 AM.

Jan 22, 2017 | 02:50 PM

20mercury

Safety Car

Joined: May 2008

Posts: 3,753

Likes: 721

From: Lafayette Louisiana

One piece of info for you,....

One piece of info for you, on my 68, my fuse block was loose too even after checking the holddown bolts. Found out one of the plastic support corners was broken off. So I installed another used fuse block that was all good. Took lot of notes, and swapped the wires over one by one. Getting the metal tabs on the end of the wires out of the broken fuse box was a hassle to say the least. I tried a small screwdriver and also made a release tool out of a piece of sheet metal, ha! Finally got it all done, tough spot to work, but foul language and unique persistence that all C3 owners acquire got it done!!

Hope this is not your problem, and you get off easier, but worth a check. Good luck and hope this helps.

Jan 23, 2017 | 04:52 AM

nz corvette

Thread Starter

Instructor

Joined: Nov 2012

Posts: 182

Likes: 14

From: Rangiora,New Zealand

Hi Team,Thanks for the replies, Alan, your picture is worth a thousand words.
The problem was the fuse block on the inside was not attached to the fire wall or the plate on the other side(thanks Easy Mike) making it very loose,I reattached it and sealed the engine compartment side and now its all good.
In the process of moving wires etc I found a spare! Any suggestions what it is?
Almost forgot again!! 1977

Many thanks Cheers Dave NZ

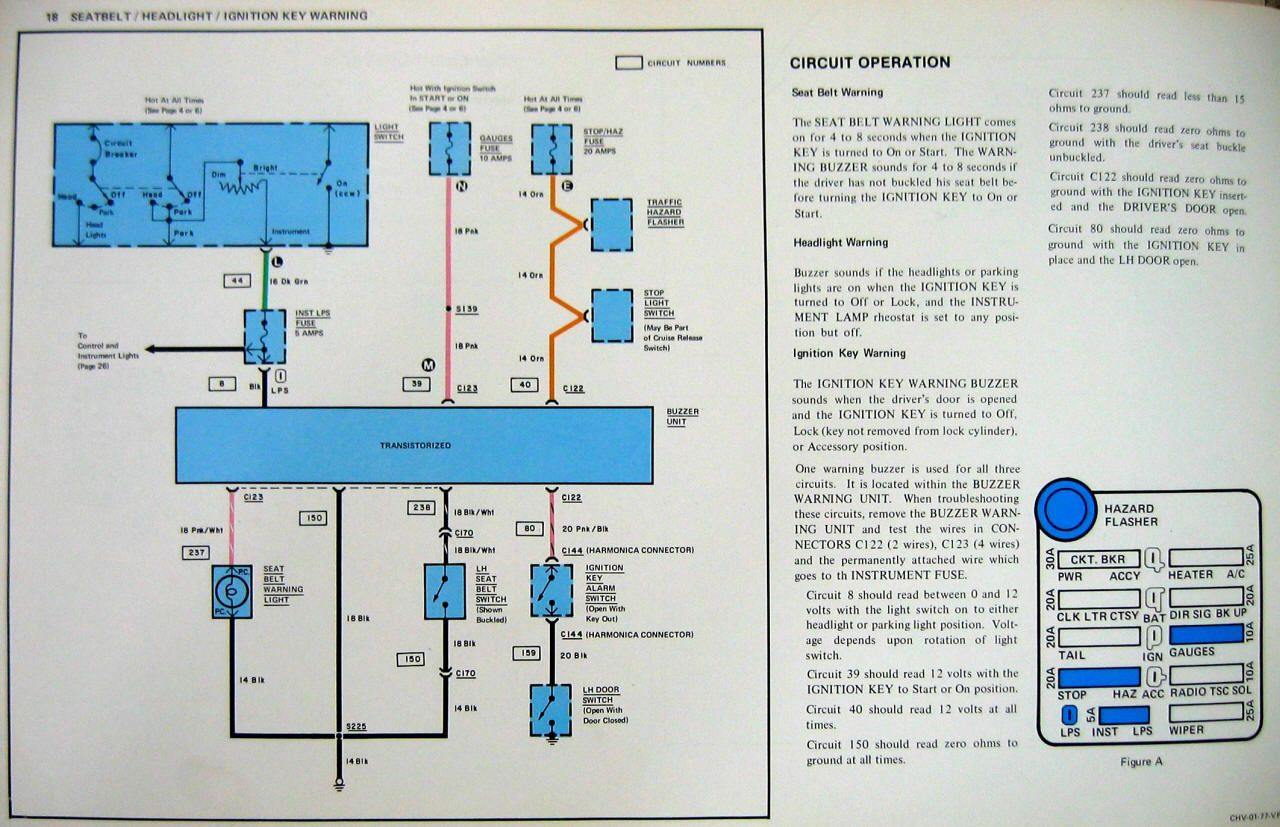

Attached Images

Last edited by nz corvette; Jan 23, 2017 at 04:59 AM.

Jan 23, 2017 | 06:37 AM

cooper9811

Pro

Joined: Oct 2009

Posts: 664

Likes: 89

From: Marysville Ohio

I may get this wrong, but that looks like the harness connector for a clutch safety switch - The one that only gets used if you have a standard transmission.
