Default '81 Iron diff swap

I'm going to be swapping and Iron diff into my 81 as my Dana diff wasn't worth rebuilding. I have a diff out of a 72 (I think) that will be going in once I sort out a few issues with it.
What issues am i likely to come across with this?
I have the correct half shafts, strut rod bracket, and adjustable strut rods for this diff, any thing else I'll need?
I get mixed info about the drive shaft. best I can say is it may need to be shortened. I have the factory 4 speed. Can anyone that has done this with this transmission tell me if it needs to be shortened or not?

Going from a 2.72 rear to a 3.36 rear should be fun.
Antz81 is offline
Old 08-19-2017, 10:54 AM
  #2
Illegal Vette
CF Senior Member

Member Since: Apr 2014
Location: Lyons Colorado
Posts: 401
Liked 17 Times in 16 Posts
Default

Originally Posted by Antz81 View Post
I'm going to be swapping and Iron diff into my 81 as my Dana diff wasn't worth rebuilding. I have a diff out of a 72 (I think) that will be going in once I sort out a few issues with it.
What issues am i likely to come across with this?
I have the correct half shafts, strut rod bracket, and adjustable strut rods for this diff, any thing else I'll need?
I get mixed info about the drive shaft. best I can say is it may need to be shortened. I have the factory 4 speed. Can anyone that has done this with this transmission tell me if it needs to be shortened or not?

Going from a 2.72 rear to a 3.36 rear should be fun.
I did this swap on my '82 and had to modify the front differential mounting bracket, it was about 3/8 of an inch long and didn't line up with the mounting hole on the crossmember. I also had to modify my exhaust where it runs under the differential because there were clearance issues there. I'm happy with the results.
Illegal Vette is offline
The following users liked this post: Illegal Vette
Antz81 (08-19-2017)
Old 08-20-2017, 10:51 AM
  #3
Kid Vette
CF Senior Member

Kid Vette's Avatar

Member Since: Jun 2003
Location: Niles, MI
Posts: 2,636
Liked 147 Times in 91 Posts
Default

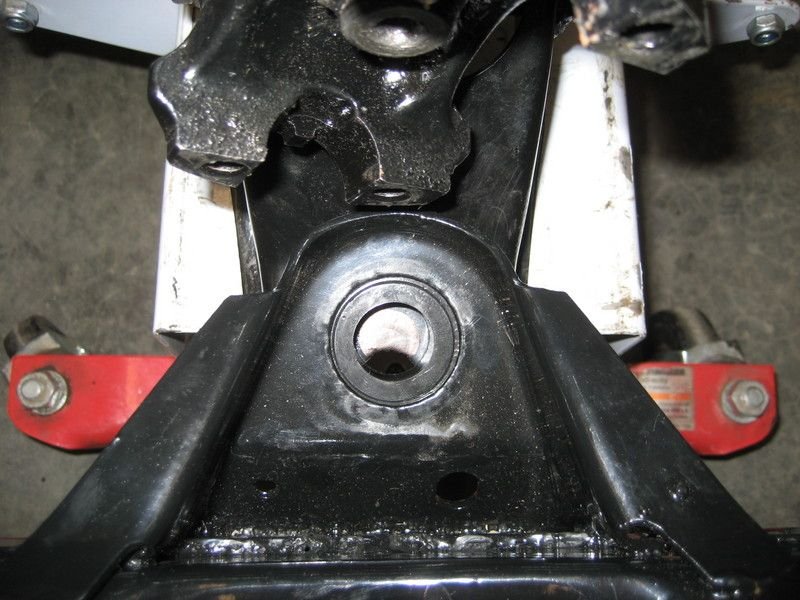

Here's the problem you'll run into.











Kid Vette is offline
Old 08-20-2017, 10:56 AM
  #4
Kid Vette
CF Senior Member

Kid Vette's Avatar

Member Since: Jun 2003
Location: Niles, MI
Posts: 2,636
Liked 147 Times in 91 Posts
Default

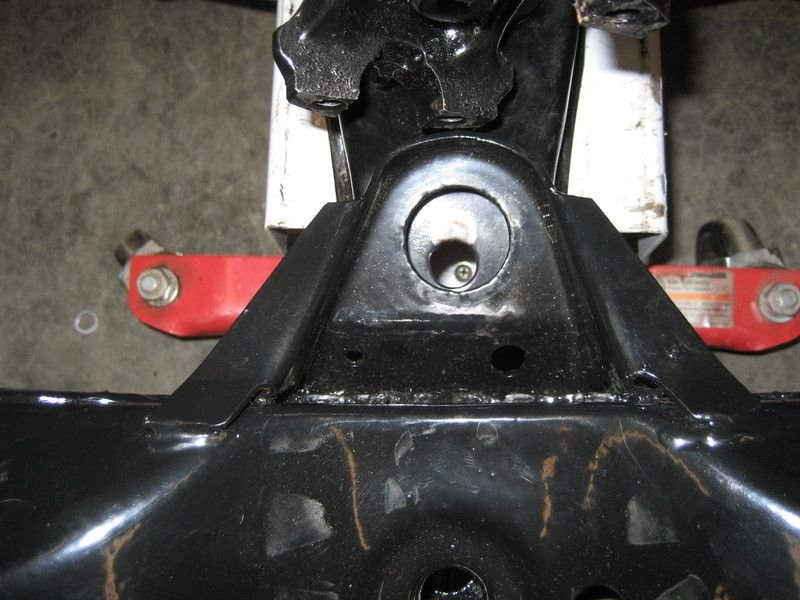

And here's why.







The pencil line on the Dana 44 diff (above the pinion mount hole) is the top of the Eaton pinion mount hole.

Last edited by Kid Vette; 12-07-2017 at 10:22 PM.
Kid Vette is offline
Old 08-20-2017, 11:20 AM
  #5
Kid Vette
CF Senior Member

Kid Vette's Avatar

Member Since: Jun 2003
Location: Niles, MI
Posts: 2,636
Liked 147 Times in 91 Posts
Default

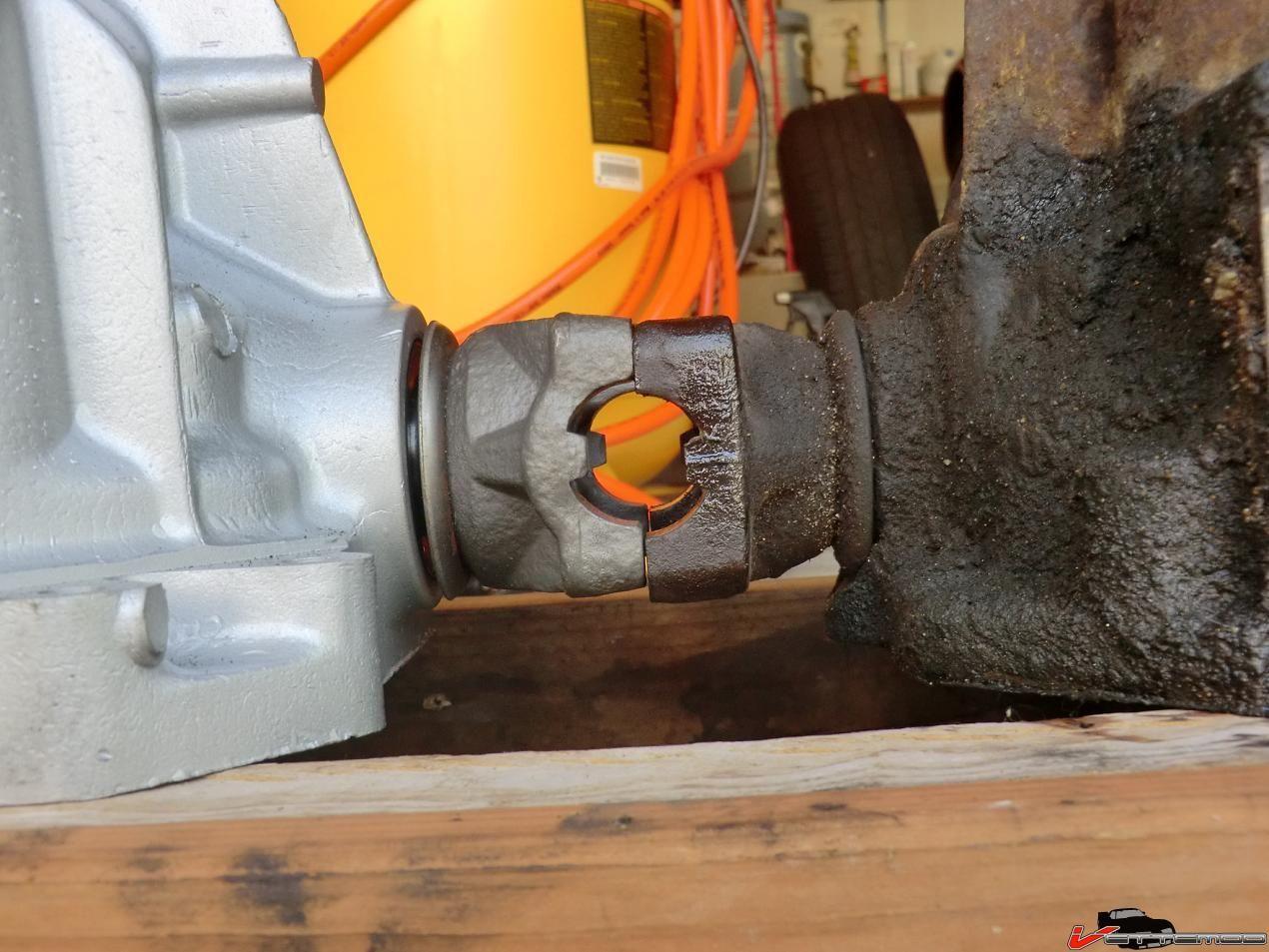

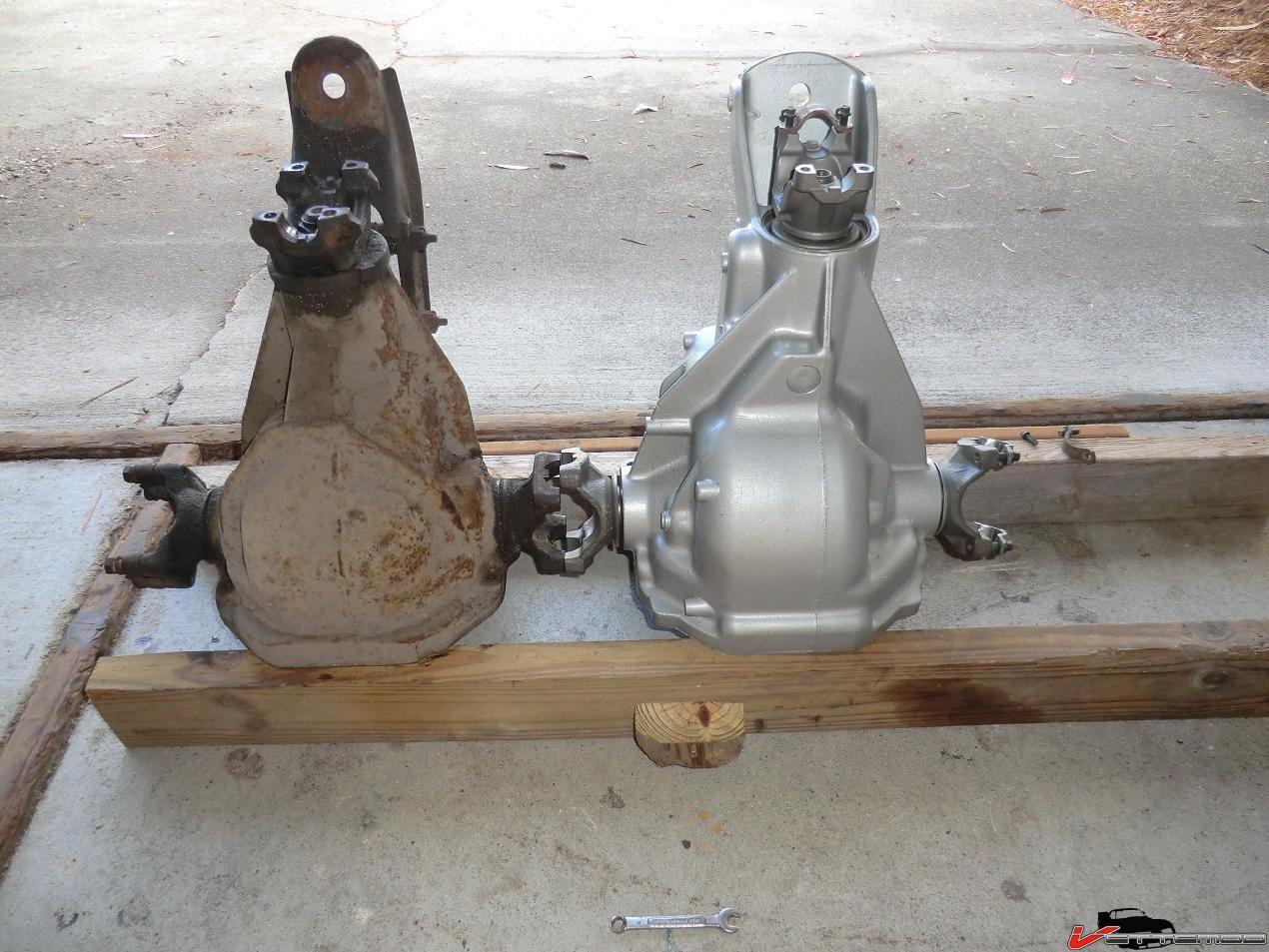

And as you can see from the pics, you'll need a longer driveshaft.
Kid Vette is offline
The following users liked this post: Kid Vette
Illegal Vette (08-20-2017)
Old 08-20-2017, 11:56 AM
  #6
Illegal Vette
CF Senior Member

Member Since: Apr 2014
Location: Lyons Colorado
Posts: 401
Liked 17 Times in 16 Posts
Default

Originally Posted by Kid Vette View Post
And as you can see from the pics, you'll need a longer driveshaft.
Good info, I had a new driveshaft made when I swapped mine and kind of forgot.
Illegal Vette is offline
Old 08-20-2017, 12:41 PM
  #7
Antz81
CF Senior Member
Thread Starter

Member Since: Jun 2016
Location: Auckland
Posts: 489
Liked 69 Times in 65 Posts
Default

Originally Posted by Kid Vette View Post
And as you can see from the pics, you'll need a longer driveshaft.
thanks. I'd always heard shorter, but i can see that was clearly wrong.
any idea on how much longer?

Last edited by Antz81; 08-20-2017 at 12:43 PM.
Antz81 is offline
Old 12-07-2017, 01:01 AM
  #8
Antz81
CF Senior Member
Thread Starter

Member Since: Jun 2016
Location: Auckland
Posts: 489
Liked 69 Times in 65 Posts
Default

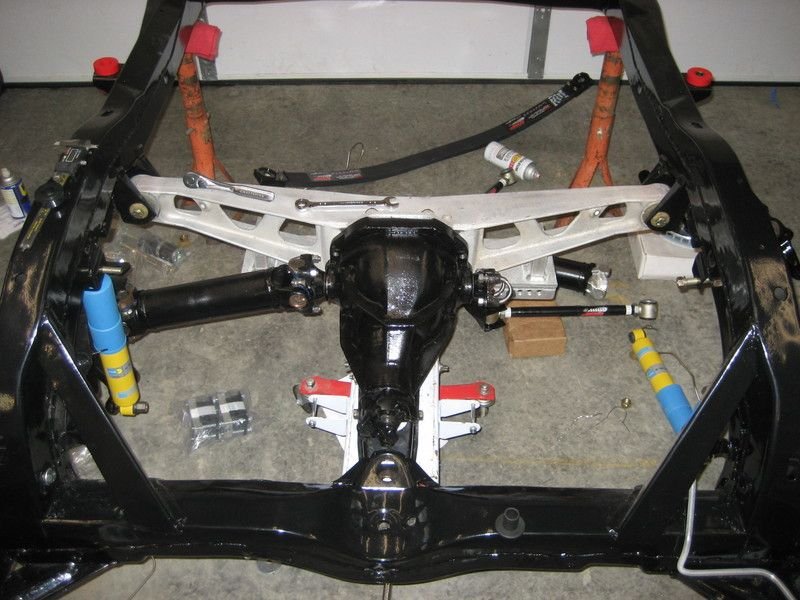

It's been a while, but I finally got the diff in today. Didn't have any issues with the front mount, it bolted straight up. Driveshaft length seems fine too, just need to swap from a 1310 u-joint to a 1330 at the diff end.
Antz81 is offline
Old 12-07-2017, 08:40 AM
  #9
GTR1999
Tech Contributor

GTR1999's Avatar

Member Since: Aug 1999
Location: New Haven CT
Posts: 11,267
Liked 304 Times in 223 Posts
Default

They do vary from one car to another, some require bracket or DS mods others do not. Good job on the diff you built, it is more detailed and fit then what you would get with a common build.
GTR1999 is offline
Old 12-07-2017, 10:45 PM
  #10
Kid Vette
CF Senior Member

Kid Vette's Avatar

Member Since: Jun 2003
Location: Niles, MI
Posts: 2,636
Liked 147 Times in 91 Posts
Default

Originally Posted by Antz81 View Post
It's been a while, but I finally got the diff in today. Didn't have any issues with the front mount, it bolted straight up. Driveshaft length seems fine too, just need to swap from a 1310 u-joint to a 1330 at the diff end.
Would you please post pics? I have heard other people say they have done the swap without having issues with the pinion mount location or DS length. I'm curious what the difference is.
Kid Vette is offline
Old 12-09-2017, 02:31 PM
  #11
BlackC3vette
CF Senior Member

BlackC3vette's Avatar

Member Since: Jan 2012
Posts: 909
Liked 70 Times in 67 Posts
Default

Originally Posted by GTR1999 View Post
They do vary from one car to another, some require bracket or DS mods others do not. Good job on the diff you built, it is more detailed and fit then what you would get with a common build.
Any chance this iron diff is a direct swap into a 4 speed 80?
BlackC3vette is offline
Old 12-09-2017, 03:43 PM
  #12
GTR1999
Tech Contributor

GTR1999's Avatar

Member Since: Aug 1999
Location: New Haven CT
Posts: 11,267
Liked 304 Times in 223 Posts
Default

The job is pretty much a bolt in. The DS might need to be changed but other then that you get the parts from a donor pre 80, build them and install. Antony did a great job with this mod, I saw his work and it is dialed in well beyond a common rebuilt diff, no question.
GTR1999 is offline
Old 12-09-2017, 08:58 PM
  #13
BlackC3vette
CF Senior Member

BlackC3vette's Avatar

Member Since: Jan 2012
Posts: 909
Liked 70 Times in 67 Posts
Default

Originally Posted by GTR1999 View Post
The job is pretty much a bolt in. The DS might need to be changed but other then that you get the parts from a donor pre 80, build them and install. Antony did a great job with this mod, I saw his work and it is dialed in well beyond a common rebuilt diff, no question.
So a donor could be from 68 to 72?
BlackC3vette is offline
Old 12-10-2017, 04:21 PM
  #14
GTR1999
Tech Contributor

GTR1999's Avatar

Member Since: Aug 1999
Location: New Haven CT
Posts: 11,267
Liked 304 Times in 223 Posts
Default

You can use any 63-79 diff and IRS parts. The 73-79 are common and should be in the $300-$400 range out of the car, they are not worth more then that. Looking for a number matching earlier diff would cost more simply because of the numbers but the 73-79's are really not collectibles so more then $400 is pushing it. The 73-79's have the better spiders, posi cases, and housings. Look for a 308 from an automatic low HP car- which is just about all 74-79's.
GTR1999 is offline
Old 12-14-2017, 11:58 PM
  #15
Antz81
CF Senior Member
Thread Starter

Member Since: Jun 2016
Location: Auckland
Posts: 489
Liked 69 Times in 65 Posts
Default

It's all in now. Got very annoyed putting in the exhaust which was on piece from the headers. Not fun on jack stands. But was able to get it started today and take it for the first drive. Love driving this car. Seems a bit quieter now too. Sorry forgot to take pics before lowering it back to the ground.
Antz81 is offline
Old 12-24-2017, 10:56 AM
  #16
vince vette 2
CF Senior Member

vince vette 2's Avatar

Member Since: Dec 2017
Location: PA
Posts: 489
Liked 27 Times in 26 Posts
Default IRS and diff for $300 to $400?

Originally Posted by GTR1999 View Post
You can use any 63-79 diff and IRS parts. The 73-79 are common and should be in the $300-$400 range out of the car, they are not worth more then that. Looking for a number matching earlier diff would cost more simply because of the numbers but the 73-79's are really not collectibles so more then $400 is pushing it. The 73-79's have the better spiders, posi cases, and housings. Look for a 308 from an automatic low HP car- which is just about all 74-79's.
I may be looking at this replacement too for my '80. Concerning the cost I just want to be sure I got it right that max $400 would be for both the IRS and Diff. Thanks,
vince vette 2 is offline
Old 12-24-2017, 02:46 PM
  #17
GTR1999
Tech Contributor

GTR1999's Avatar

Member Since: Aug 1999
Location: New Haven CT
Posts: 11,267
Liked 304 Times in 223 Posts
Default

Originally Posted by vince vette 2 View Post
I may be looking at this replacement too for my '80. Concerning the cost I just want to be sure I got it right that max $400 would be for both the IRS and Diff. Thanks,
I was referring the to cost of a complete used differential out of a car. The other parts needed would cost more but there are plenty of used parts out there from 72-79 vettes. I know guys that part them out all the time, they make more money parting them out then trying to build and sell them. Typically used diff's need to be rebuilt so the $300-$400 price would be for the complete diff- cover and axles. Some out there ask a lot more so be careful of what you get and look them over good. Paying $300-$400 for a core that has a cracked posi, worn out axles, or ring gear damage is a mistake.
GTR1999 is offline
The following users liked this post: GTR1999
vince vette 2 (12-24-2017)
Old 12-24-2017, 04:58 PM
  #18
havesometo
CF Senior Member

havesometo's Avatar

Member Since: Dec 2012
Location: Meldrim Georgia
Posts: 1,376
Liked 57 Times in 56 Posts
Default

So the Batwing will bolt straight up to the older diff?
havesometo is offline
Old 12-24-2017, 05:01 PM
  #19
Antz81
CF Senior Member
Thread Starter

Member Since: Jun 2016
Location: Auckland
Posts: 489
Liked 69 Times in 65 Posts
Default

Originally Posted by havesometo View Post
So the Batwing will bolt straight up to the older diff?
Yes. Bolts straight up. But remember the batwing only has 6 bolt holes not the 8 that the older covers had. So I chose to ensure that the bolts I used were as long as possible going into the diff.
Antz81 is offline
The following users liked this post: Antz81
havesometo (12-24-2017)
