horn assembly
Hello guys.
To make a long story short i have a 78 vette that doesnt have tilt or telescopic column, i bought the car already completely gutted to fix windshield header. EVERYTHING and i mean everything was taken apart on interior, including the column. I have what they call the nova wheel. Ironically its the exact same wheel as my old camaros had, 4 post instead of three, internally, the horn assembly, like the actual horn button you press is missing the plate or whatever they use to spring the button back. Does anyone have a picture of the flex plate or spring/spring plate that keeps the horn pad up??
I cant find any decent pics to see what they use in these wheels. Thanks.
Also, i took one out of an old gm truck that i thought may work but it doesnt seem to bounce or spring properly. It has 3 holes and flexs when you press the horn down.
To make a long story short i have a 78 vette that doesnt have tilt or telescopic column, i bought the car already completely gutted to fix windshield header. EVERYTHING and i mean everything was taken apart on interior, including the column. I have what they call the nova wheel. Ironically its the exact same wheel as my old camaros had, 4 post instead of three, internally, the horn assembly, like the actual horn button you press is missing the plate or whatever they use to spring the button back. Does anyone have a picture of the flex plate or spring/spring plate that keeps the horn pad up??
I cant find any decent pics to see what they use in these wheels. Thanks.
Also, i took one out of an old gm truck that i thought may work but it doesnt seem to bounce or spring properly. It has 3 holes and flexs when you press the horn down.
Last edited by san; Sep 17, 2017 at 11:38 PM.
Race Director
Joined: May 2006
Posts: 18,735
Likes: 2,582
see if this is what you are looking for, you may want to consider purchasing an AIM to get your car back together.
https://willcoxcorvette.com/corvette...lescopic-75-82
https://willcoxcorvette.com/corvette...lescopic-75-82
Last edited by MelWff; Sep 18, 2017 at 12:44 PM.
Thread Starter
Instructor
Joined: Aug 2017
Posts: 140
Likes: 19
I got excited for a minute.. Thought you found a pic of part needed... But no, thats for tilt wheel, closest drawings i could find online where for an early monte carlo...but they are just 40 year old drawings , cant see much in way of fabricating anything. The car is already all back together, even horn assembly, i added a spring between cover and sterring bolt to lift it away. Would just like to see what belongs.
Race Director
Joined: May 2006
Posts: 18,735
Likes: 2,582
Advanced
Joined: Aug 2004
Posts: 94
Likes: 9
From: Houston Texas
Here's the link that helped me out. Remember when you install the horn contact brush you will need to trim off some of the little rod that fits on top of the spring that makes contact with the horn contact on top. If you don't it will be too long.
http://www.ecklerscorvette.com/diagr...w/index/id/94/
http://www.ecklerscorvette.com/diagr...w/index/id/94/
Last edited by svetter84; Sep 18, 2017 at 03:25 PM.
Thread Starter
Instructor
Joined: Aug 2017
Posts: 140
Likes: 19

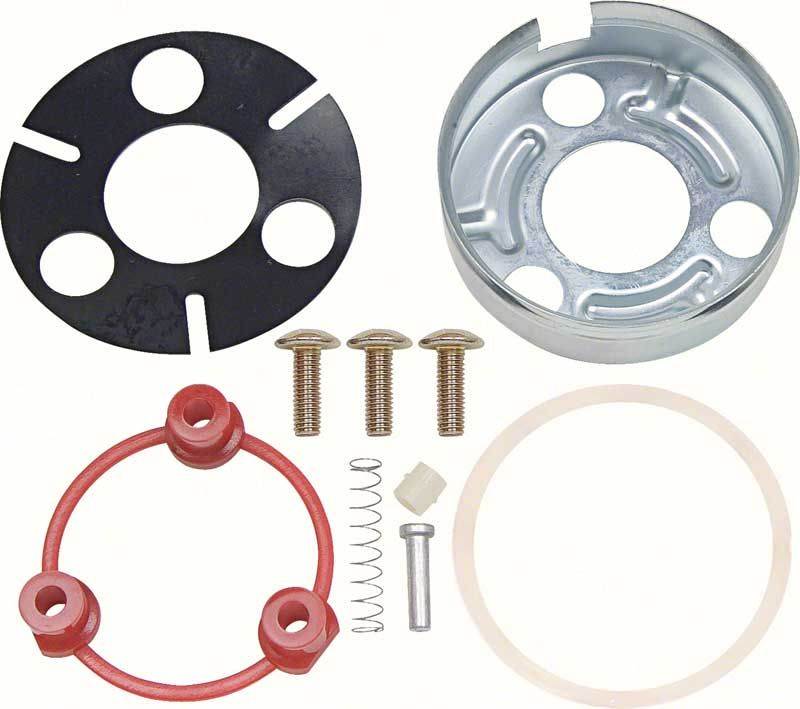

Here is the parts....from a z28 list. I have them all the same as mine....is it correct for a vette??
