Default Poly Diff Mount Order of Assembly
Can someone tell me the correct order of assembly in the pic below? Is the large donut the upper or lower bushing? Which washers go where? Thanks.

Neil B is offline
Reply Like
Old 11-08-2017, 11:41 PM
  #2
claysmoker
Race Director

claysmoker's Avatar

Member Since: Dec 2004
Location: PARADISE
Posts: 10,293
Received 58 Likes on 50 Posts
St. Jude Donor '09-'11-'12-'13-'14

Default
A lot of drawings here:

https://www.google.com/search?q=corv...w=1366&bih=637
claysmoker is online now
Reply Like
Old 11-08-2017, 11:54 PM
  #3
81vettski
Instructor

81vettski's Avatar

Member Since: Jan 2017
Location: New York
Posts: 107
Received 12 Likes on 11 Posts
Default
Don't know what year your car is but this is for an 81. I'll assume they're all the same. Large donut is the lower mount.
81vettski is offline
Reply Like
Old 11-09-2017, 12:04 AM
  #4
speedreed8
Melting Slicks

speedreed8's Avatar

Member Since: Oct 2006
Location: Texas
Posts: 2,384
Received 299 Likes on 202 Posts

Default
Be careful with using the washers in the kit. They are soft metal. I ended up using the original GM washers.
speedreed8 is offline
Reply Like
Old 11-09-2017, 12:11 AM
  #5
81vettski
Instructor

81vettski's Avatar

Member Since: Jan 2017
Location: New York
Posts: 107
Received 12 Likes on 11 Posts
Default
Will do as i will be installing mine shortly. i found a NOS upper cushion cause the 1 I received was so much smaller. Will take a look at the washers and maybe clean up the originals
81vettski is offline
Reply Like
Old 11-09-2017, 12:45 AM
  #6
Neil B
Drifting
Thread Starter

Neil B's Avatar

Member Since: Jun 2008
Posts: 1,565
Received 110 Likes on 85 Posts

Default
Originally Posted by claysmoker

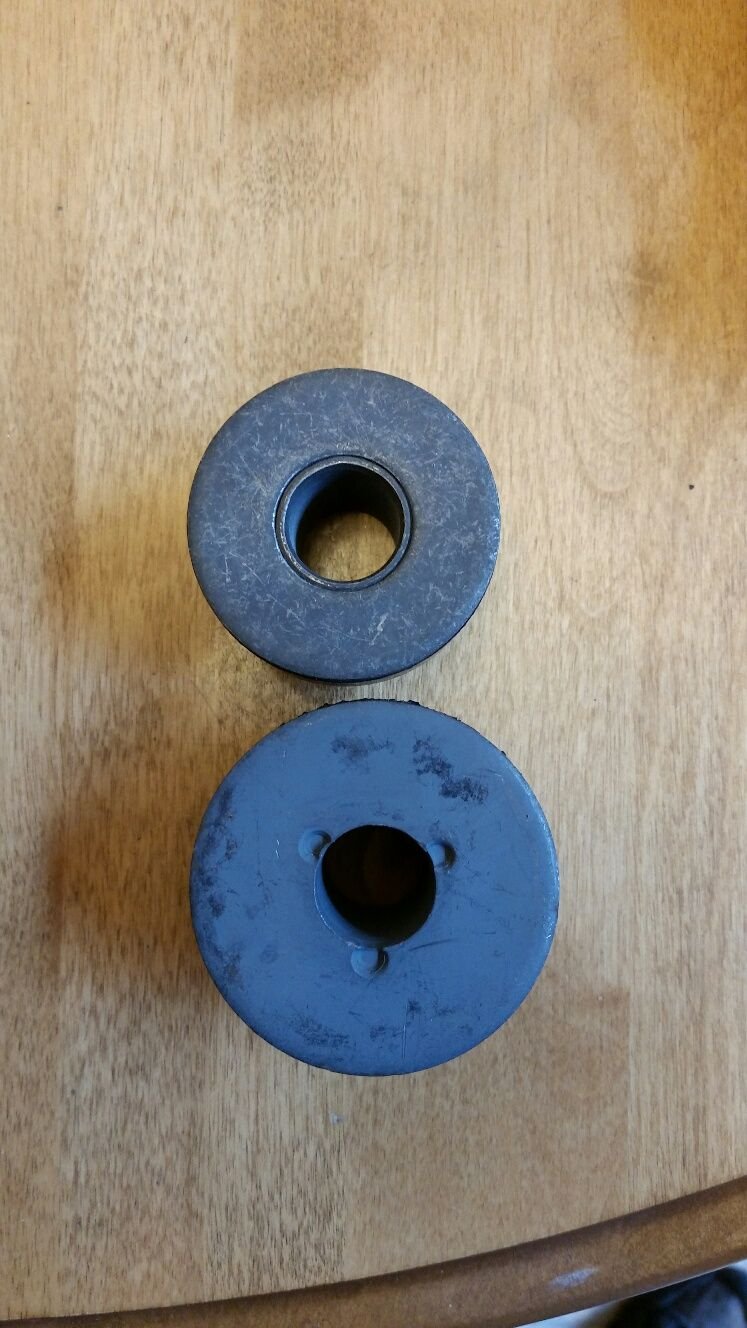

The pics online are not consistent.
Attached Images
Neil B is offline
Reply Like
Old 11-09-2017, 12:52 AM
  #7
Neil B
Drifting
Thread Starter

Neil B's Avatar

Member Since: Jun 2008
Posts: 1,565
Received 110 Likes on 85 Posts

Default
I assembled it like this. It seemed to fit the best that way.
Attached Images
Neil B is offline
Reply Like
