82 Radiator Seal Installation Help
Thread Starter
Drifting
Joined: Aug 2005
Posts: 1,443
Likes: 65
From: Wauconda IL
82 Radiator Seal Installation Help
All,
I'm trying to get an 82' core support and radiator installed in my 69' Coupe (for an EFI conversion).
I have the core support installed and I have new radiator seals but I do not know how these are supposed to attach for an 82.
There are 2 long seals and 2 short seals that came in the kit.
Does anyone either have a picture of an 82' with the radiator seal locations or perhaps a page from the 82' AIM that shows the correct placement?
Any information would be most appreciated.
Thank you!
Elm
I'm trying to get an 82' core support and radiator installed in my 69' Coupe (for an EFI conversion).
I have the core support installed and I have new radiator seals but I do not know how these are supposed to attach for an 82.
There are 2 long seals and 2 short seals that came in the kit.
Does anyone either have a picture of an 82' with the radiator seal locations or perhaps a page from the 82' AIM that shows the correct placement?
Any information would be most appreciated.
Thank you!
Elm
Last edited by ezobens; Mar 31, 2018 at 10:48 PM.
Safety Car
Joined: Nov 2005
Posts: 3,532
Likes: 1,185
From: Arizona - If you don’t know CFI, STOP proliferating the myths around it...
All,
I'm trying to get an 82' core support and radiator installed in my 69' Coupe (for an EFI conversion).
I have the core support installed and I have new radiator seals but I do not know how these are supposed to attach for an 82.
There are 2 long seals and 2 short seals that came in the kit.
Does anyone either have a picture of an 82' with the radiator seal locations or perhaps a page from the 82' AIM that shows the correct placement?
Any information would be most appreciated.
Thank you!
Elm
I'm trying to get an 82' core support and radiator installed in my 69' Coupe (for an EFI conversion).
I have the core support installed and I have new radiator seals but I do not know how these are supposed to attach for an 82.
There are 2 long seals and 2 short seals that came in the kit.
Does anyone either have a picture of an 82' with the radiator seal locations or perhaps a page from the 82' AIM that shows the correct placement?
Any information would be most appreciated.
Thank you!
Elm
Melting Slicks
Joined: Dec 2009
Posts: 3,232
Likes: 656
From: Thunder Bay

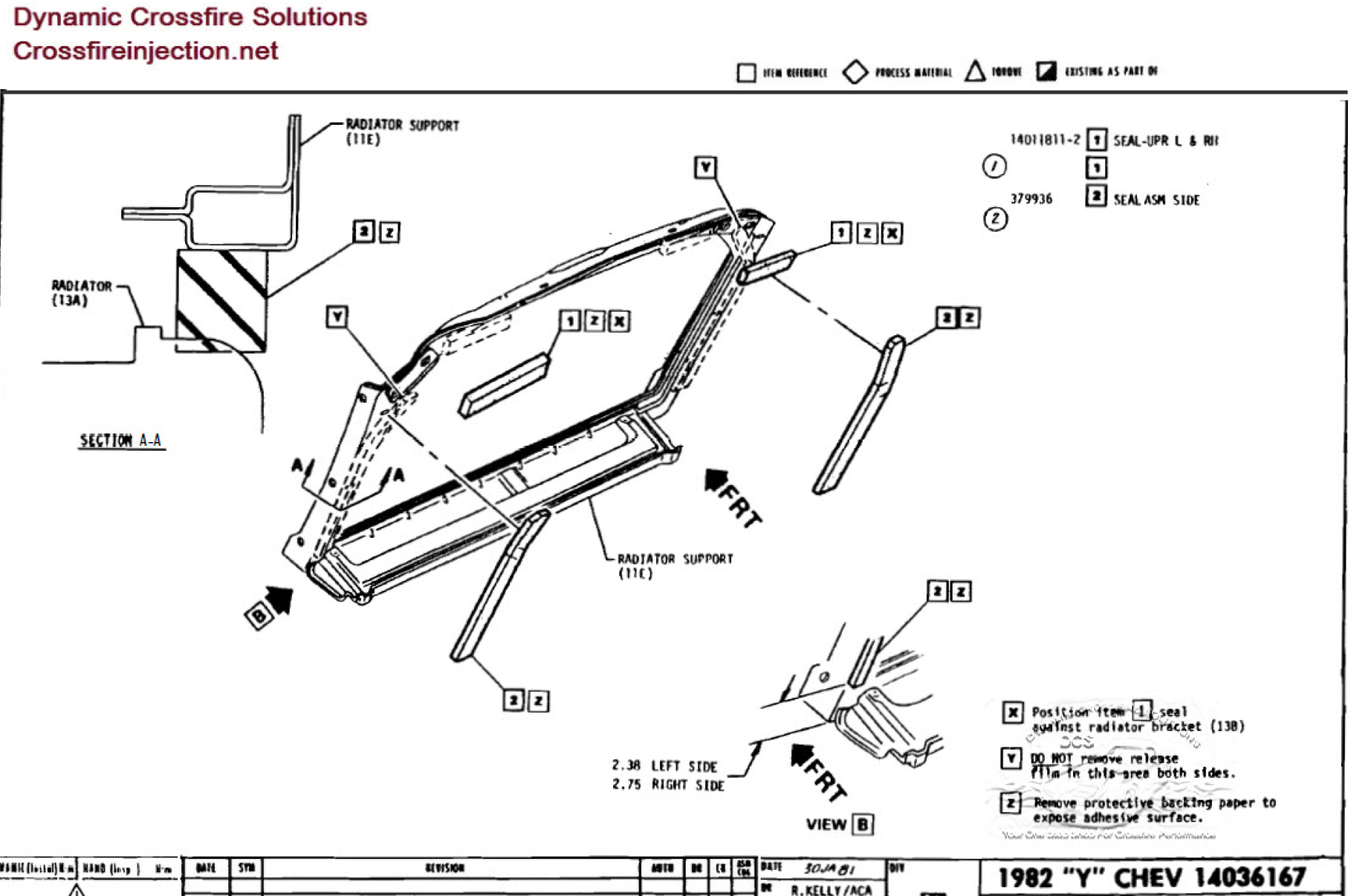

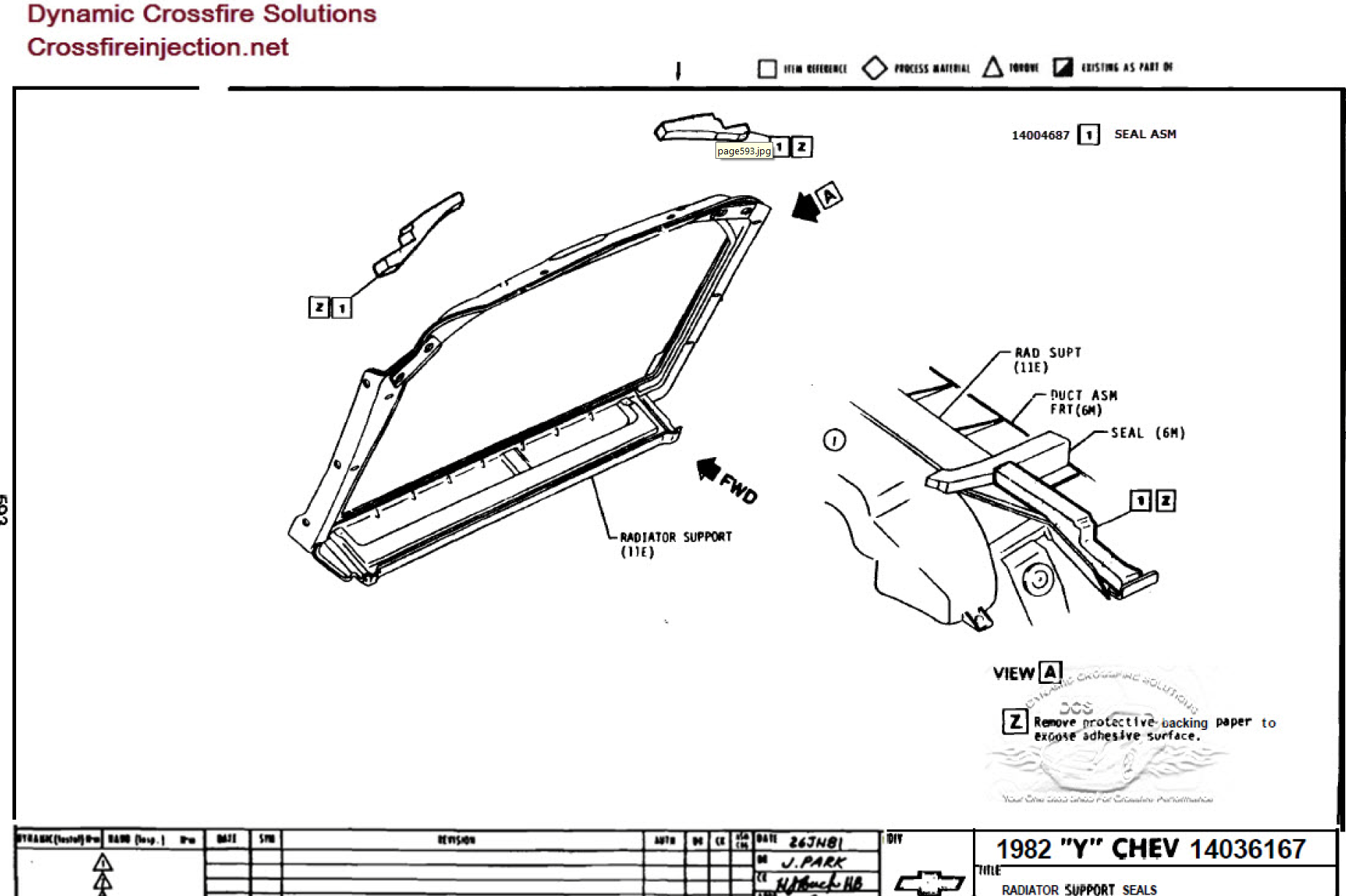

My radiator seals are long gone but I've never felt the need for them. Therefore I've never thought about where they are installed or what their purpose is. I always assumed they were there to ensure that all of the air being pulled by the fan finds its way through the radiator which says to me that they would be between the rad and the shroud. From the diagrams here though, it appears they go between the rad and the rad support. What is the purpose of that?
Race Director
Joined: Apr 2009
Posts: 19,294
Likes: 2,754
From: Charlotte NC
My radiator seals are long gone but I've never felt the need for them. Therefore I've never thought about where they are installed or what their purpose is. I always assumed they were there to ensure that all of the air being pulled by the fan finds its way through the radiator which says to me that they would be between the rad and the shroud. From the diagrams here though, it appears they go between the rad and the rad support. What is the purpose of that?
I know many people who do not care to put them in. Many of them do not have a heating issue ...whether it is at idle or going down the road. While others do have a problem.
But all of the components GM installed to provide the most air getting through the radiator were put there for a reason.
Now if you live in a cold climate...then it may not matter...but if you live in a hot climate... TRUST ME..all of the components GM installed...if installed... can help.
DUB
Thread Starter
Drifting
Joined: Aug 2005
Posts: 1,443
Likes: 65
From: Wauconda IL
Seals too thick?
OK, so I installed the new radiator seals per the AIM but how am I supposed to get the radiator in with the seals so thick?
The seals were from Dr. Rebuild so they should be correct but I don't see how I can wedge the radiator in place without collapsing the tanks (aluminum Radiator).
If you look at the attached photos, you will see how thick the side seals are in relation to the bottom cushions. These seals would need to be compressed quite a bit to get the radiator in.
Is there some sort of 'trick' to getting these in or do I need to cut these seals thinner?
Any advice would be most appreciated.
Thank you,
Elm
The seals were from Dr. Rebuild so they should be correct but I don't see how I can wedge the radiator in place without collapsing the tanks (aluminum Radiator).
If you look at the attached photos, you will see how thick the side seals are in relation to the bottom cushions. These seals would need to be compressed quite a bit to get the radiator in.
Is there some sort of 'trick' to getting these in or do I need to cut these seals thinner?
Any advice would be most appreciated.
Thank you,
Elm
Race Director
Joined: Apr 2009
Posts: 19,294
Likes: 2,754
From: Charlotte NC
It is hard to tell...but I think the vertical ones are not in the correct place and turned 90 degrees.
I do not use Dr. Rebuild seals so I do not know much about them and I can not tell if you had to apply your own adhesive or if these seals have an adhesive strip on them.
I would be more concerned that the aftermarket aluminum radiator will fit correctly and THEN deal with the modification to these foam seals.
DUB
I do not use Dr. Rebuild seals so I do not know much about them and I can not tell if you had to apply your own adhesive or if these seals have an adhesive strip on them.
I would be more concerned that the aftermarket aluminum radiator will fit correctly and THEN deal with the modification to these foam seals.
DUB
Thread Starter
Drifting
Joined: Aug 2005
Posts: 1,443
Likes: 65
From: Wauconda IL
It is hard to tell...but I think the vertical ones are not in the correct place and turned 90 degrees.
I do not use Dr. Rebuild seals so I do not know much about them and I can not tell if you had to apply your own adhesive or if these seals have an adhesive strip on them.
I would be more concerned that the aftermarket aluminum radiator will fit correctly and THEN deal with the modification to these foam seals.
DUB
I do not use Dr. Rebuild seals so I do not know much about them and I can not tell if you had to apply your own adhesive or if these seals have an adhesive strip on them.
I would be more concerned that the aftermarket aluminum radiator will fit correctly and THEN deal with the modification to these foam seals.
DUB
The seals on the other hand....
They come with the self-stick adhesive already in place so there really is no option to install them on the wrong edge.
Looks like I’ll be removing the core support and trial fit everything on the bench. Who would have though some foam strips could be such a big pain in my backside..
