1970 454 Auto Transmission

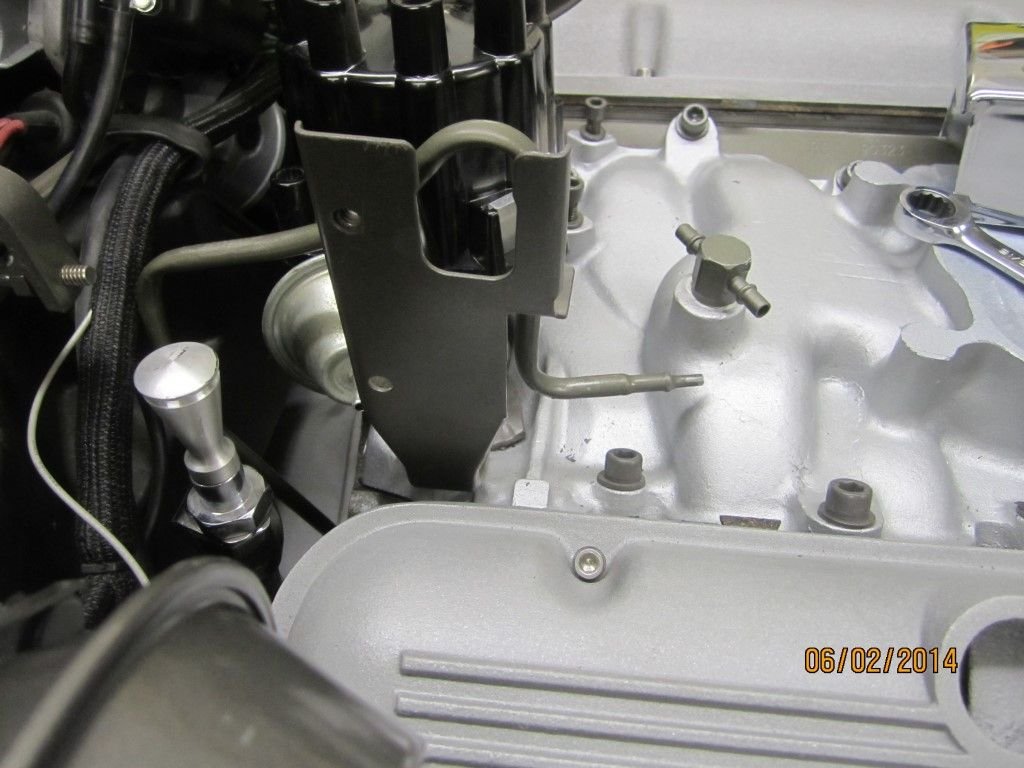

The only line I did not label when I removed the engine and auto transmission 2 years ago. I want to replace the rubber parts, so can any one identify it so I can order?

Kind regards
Paul
Attached Images
Reply
0
Old Apr 2, 2018 | 12:45 PM
Share
  #2
speedreed8's Avatar
speedreed8
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Oct 2006
Posts: 2,417
Likes: 336
From: Texas
Default
Vacuum modulator line from manifold to transmission
Reply
0
Old Apr 2, 2018 | 01:00 PM
Share
  #3
PBCloud's Avatar
PBCloud
Thread Starter
Racer
10 Year Member

Joined: Nov 2012
Posts: 367
Likes: 16
From: London
Default
Many thanks CF

Kind regards
Paul
Reply
0
Old Apr 2, 2018 | 01:27 PM
Share
  #4
USAFVeteran's Avatar
USAFVeteran
Racer

Joined: Apr 2016
Posts: 493
Likes: 65
Default
Originally Posted by PBCloud
Many thanks CF

Kind regards
Paul

I also concur, just had to do mine
Reply
0
Old Apr 2, 2018 | 01:35 PM
Share
  #5
Mooser's Avatar
Mooser
Race Director
10 Year Member

Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Default
Make sure you get proper vacuum hose and not just regular hose.

Check the ends on the steel line, should look vaguely like this



The rubber line down at the transmission has a 90 deg bend formed in it, can't really take a straight line and bend it as it will kink closed.





M
Reply
0
Old Apr 3, 2018 | 03:36 AM
Share
  #6
PBCloud's Avatar
PBCloud
Thread Starter
Racer
10 Year Member

Joined: Nov 2012
Posts: 367
Likes: 16
From: London
Default
Originally Posted by Mooser
Make sure you get proper vacuum hose and not just regular hose.

Check the ends on the steel line, should look vaguely like this



The rubber line down at the transmission has a 90 deg bend formed in it, can't really take a straight line and bend it as it will kink closed.





M
Many thanks Guys.
Reply
0
Old Apr 3, 2018 | 03:37 AM
Share
  #7
PBCloud's Avatar
PBCloud
Thread Starter
Racer
10 Year Member

Joined: Nov 2012
Posts: 367
Likes: 16
From: London
Default
That is very clear many thanks for your responses.

Kind regards
Paul
Reply
0
Old Apr 3, 2018 | 10:27 AM
Share
  #8
imariver's Avatar
imariver
Drifting
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2008
Posts: 1,873
Likes: 27
From: Sonora CA
Default
Speaking of vacuum modulator lines . . . .
Is there any purpose for the top end of the steel line to be reduced in size, (two times) like it is?
Reply
