Post your dyno numbers and mods thread!
Thread Starter
Burning Brakes
Joined: Mar 2016
Posts: 1,008
Likes: 163
Post your dyno numbers and mods thread!
Hey everyone, if this thread already exists somewhere feel free to direct me to it. I did some searching and didn't find one that was specific to the C3.
With that said, post up your C3 Corvette's dyno numbers! Let's try to keep the information accurate by following this format:
Horsepower/Torque @ RPM:
Engine specs: (displacement, heads, intake, cam, power adders, etc...)
Transmission: (Th400, T-10, T-56, 700r4, etc...)
Type of Dyno: (Dynojet, mustang, etc...)
Elevation: (Density altitude)
Any other relevant info:
Please keep this to DYNO PROVEN NUMBERS ONLY! No "well my combo is about the same as my buddies who made 9,000 hp". This is to give people a fairly accurate idea of what different combinations will make, so let's not muddy the waters with estimates please.
Ready....GO
With that said, post up your C3 Corvette's dyno numbers! Let's try to keep the information accurate by following this format:
Horsepower/Torque @ RPM:
Engine specs: (displacement, heads, intake, cam, power adders, etc...)
Transmission: (Th400, T-10, T-56, 700r4, etc...)
Type of Dyno: (Dynojet, mustang, etc...)
Elevation: (Density altitude)
Any other relevant info:
Please keep this to DYNO PROVEN NUMBERS ONLY! No "well my combo is about the same as my buddies who made 9,000 hp". This is to give people a fairly accurate idea of what different combinations will make, so let's not muddy the waters with estimates please.
Ready....GO
Le Mans Master
Joined: Mar 2001
Posts: 5,738
Likes: 644
From: Lincoln, CA

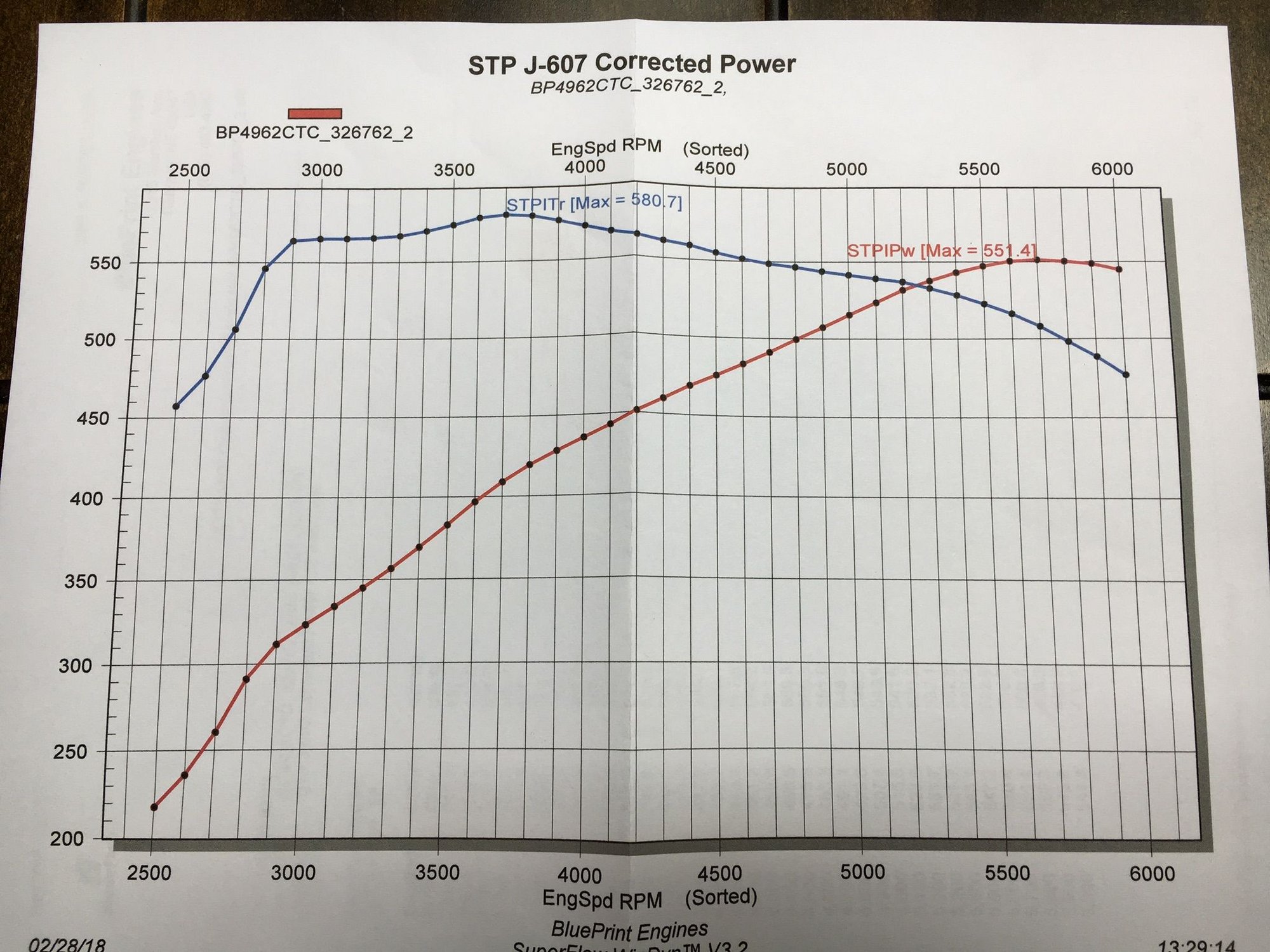

Horsepower/Torque @ RPM: 438hp@5400 / 509tq@3800 rear wheels
Engine specs: (displacement, heads, intake, cam, power adders, etc...)
496 BBC, Edelbrock E-Street Heads, Repo LS6 intake, Straub roller conversion .050” Duration 229/235, Lift .590/.559, LSA 107
Transmission: (Th400, T-10, T-56, 700r4, etc...)
Autogear M23W, the works. 3.36 Gears.
Type of Dyno: (Dynojet, mustang, etc...)
Not sure, not a Dyno jet.
Elevation: (Density altitude)
Sea Level
Engine specs: (displacement, heads, intake, cam, power adders, etc...)
496 BBC, Edelbrock E-Street Heads, Repo LS6 intake, Straub roller conversion .050” Duration 229/235, Lift .590/.559, LSA 107
Transmission: (Th400, T-10, T-56, 700r4, etc...)
Autogear M23W, the works. 3.36 Gears.
Type of Dyno: (Dynojet, mustang, etc...)
Not sure, not a Dyno jet.
Elevation: (Density altitude)
Sea Level
Last edited by ddawson; Jun 15, 2018 at 11:08 AM.
Le Mans Master
Joined: May 2006
Posts: 9,993
Likes: 1,136
From: League City Tx
VortecPro 496, 10.0-1 comp, GM iron 049 oval ports, Isky 238/248* hyd roller, RPM air gap w/1" spacer, 850 DP, 2" dyno headers.
Its actually out of the car now after 24k miles of HARD service...now for some updates, hoping for a bit more power on version 2.0....
Its actually out of the car now after 24k miles of HARD service...now for some updates, hoping for a bit more power on version 2.0....
Last edited by ajrothm; Jun 15, 2018 at 06:38 PM.
Melting Slicks
Joined: Dec 1999
Posts: 2,116
Likes: 156
From: Mid West
Cruise-In III Veteran
GM ZZ4 Crate Motor built over 15 years ago & still running strong
Engine
ZZ4 with GM's LT4 HotCam & 1.6 rockers
Home ported heads with Manley race flow valves
Manley valve springs & retainers
AFR's rev kit
650 Demon Mech. Secondaries
Driveline
5 Spd Richmond Manual Trans
3.08 stock rearend
Performance
1/4 mile =12.8 sec at 108 mph
60' time = 1.9 sec
IMG 0789
ZZ4 with GM's LT4 HotCam & 1.6 rockers
Home ported heads with Manley race flow valves
Manley valve springs & retainers
AFR's rev kit
650 Demon Mech. Secondaries
Driveline
5 Spd Richmond Manual Trans
3.08 stock rearend
Performance
1/4 mile =12.8 sec at 108 mph
60' time = 1.9 sec
IMG 0789
Last edited by Jason Staley; Jun 22, 2018 at 09:53 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Racer
Joined: Jan 2005
Posts: 370
Likes: 77
From: Perth Western Australia

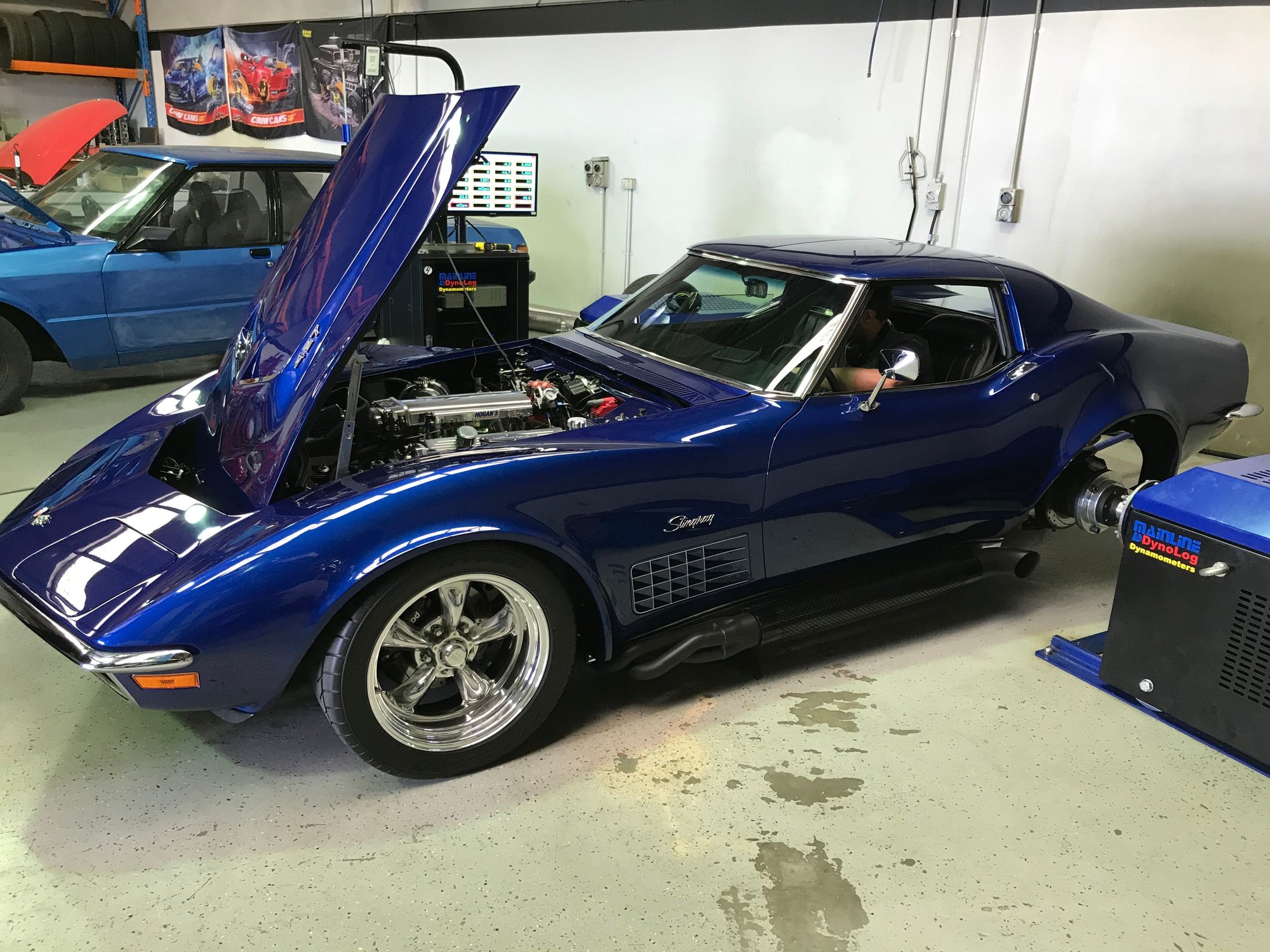

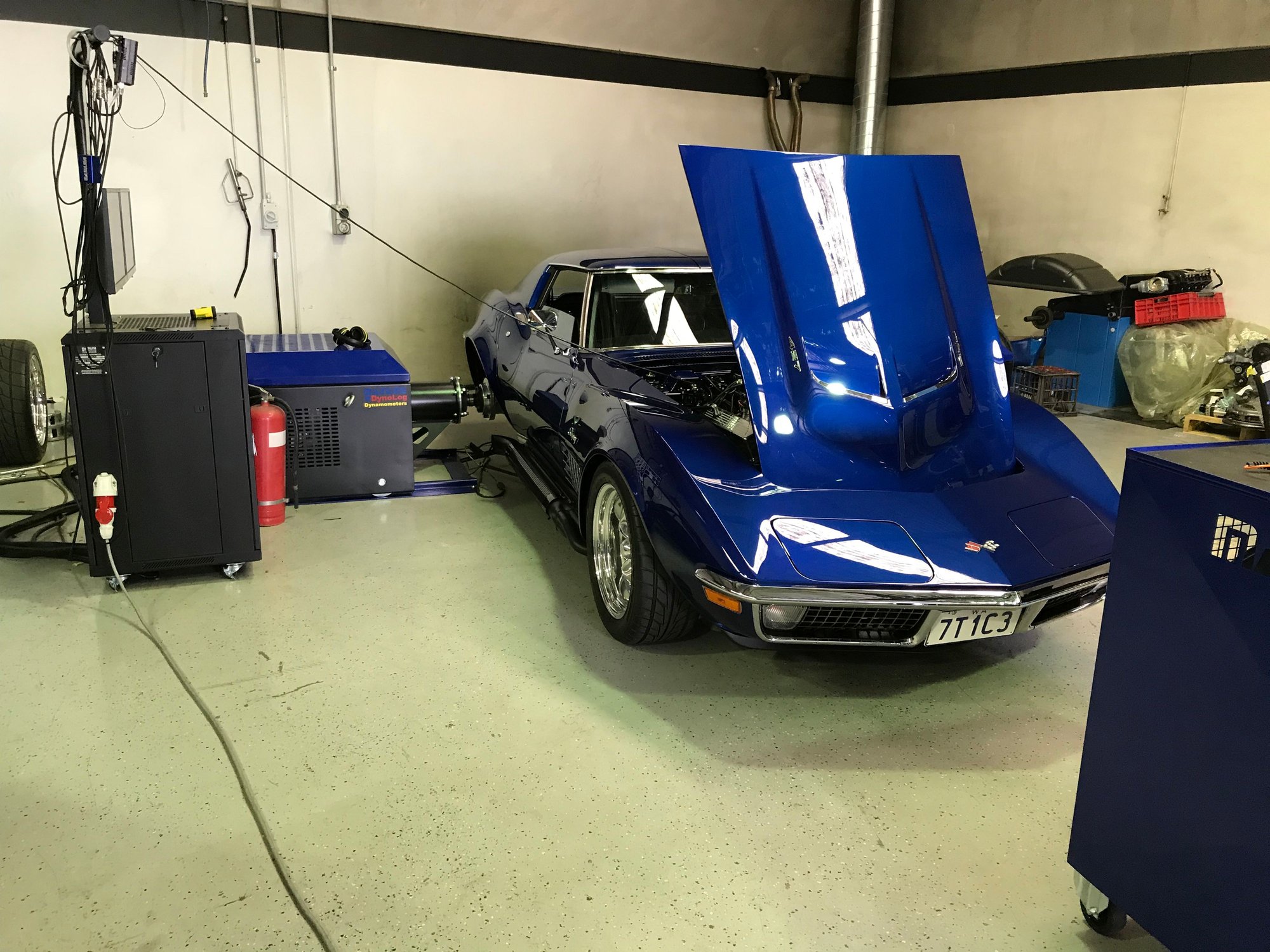

465/465 engine went a bit too rich from about 2500 to 3500 rpm. Have since reduced fuel for this part of the map but haven’t had it on dyno.
427 small block, comp cams 280 hyd roller cam, fabricated efi manifold, 42lb injectors, Fast xfi ecu.
Legend 5 speed transmission. 3.9 rear gears.
Dyno is a Mainline hub Dyno.
Le Mans Master
Joined: Oct 2007
Posts: 7,455
Likes: 977
From: RI, Now Franklin/Nashville TN
465/465 engine went a bit too rich from about 2500 to 3500 rpm. Have since reduced fuel for this part of the map but haven’t had it on dyno.
427 small block, comp cams 280 hyd roller cam, fabricated efi manifold, 42lb injectors, Fast xfi ecu.
Legend 5 speed transmission. 3.9 rear gears.
Dyno is a Mainline hub Dyno.
Thread Starter
Burning Brakes
Joined: Mar 2016
Posts: 1,008
Likes: 163
350 to the tire from a basic 383 is respectable, especially though the IRS on the C3.
Burning Brakes
Joined: May 2017
Posts: 774
Likes: 375
From: Seattle WA
465/465 engine went a bit too rich from about 2500 to 3500 rpm. Have since reduced fuel for this part of the map but haven’t had it on dyno.
427 small block, comp cams 280 hyd roller cam, fabricated efi manifold, 42lb injectors, Fast xfi ecu.
Legend 5 speed transmission. 3.9 rear gears.
Dyno is a Mainline hub Dyno.
Drifting
Joined: Aug 2005
Posts: 1,443
Likes: 65
From: Wauconda IL
465/465 engine went a bit too rich from about 2500 to 3500 rpm. Have since reduced fuel for this part of the map but haven’t had it on dyno.
427 small block, comp cams 280 hyd roller cam, fabricated efi manifold, 42lb injectors, Fast xfi ecu.
Legend 5 speed transmission. 3.9 rear gears.
Dyno is a Mainline hub Dyno.
427 small block, comp cams 280 hyd roller cam, fabricated efi manifold, 42lb injectors, Fast xfi ecu.
Legend 5 speed transmission. 3.9 rear gears.
Dyno is a Mainline hub Dyno.
What heads are you running?
