radio
Le Mans Master
Joined: Aug 2006
Posts: 7,426
Likes: 1,559
From: mount holly NC
2025 c3 ('74-'82) of the Year Finalist - Unmodified
2019 C3 of Year Finalist (appearance mods)
Yellow is 12 volts positive with the key ON.
Gray sends 12 volts to the bulb in the radio when the light switch is pulled.
Black is the ground.
Gray sends 12 volts to the bulb in the radio when the light switch is pulled.
Black is the ground.
Instructor
Joined: Nov 2019
Posts: 245
Likes: 15
Thanks for the 68 radio wire color verification, I don’t see any of the radio wires listed in my wiring diagram.

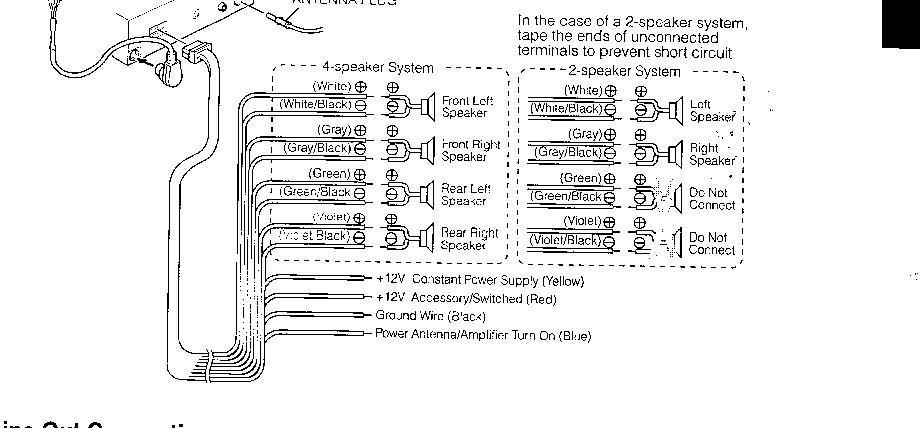

The original 68 radio was replaced by previous owner with a cassette unit that I am replacing with an original looking unit that has modern capabilities. It’s wiring calls for both a memory (battery) power as well as ignition switch power.
I assume cars yellow lead is the ignition lead and gray won’t be used as the units lights are powered via some other internal wiring.
Where would I pick up a battery lead needed to power the units memory function?
The original 68 radio was replaced by previous owner with a cassette unit that I am replacing with an original looking unit that has modern capabilities. It’s wiring calls for both a memory (battery) power as well as ignition switch power.
I assume cars yellow lead is the ignition lead and gray won’t be used as the units lights are powered via some other internal wiring.
Where would I pick up a battery lead needed to power the units memory function?
Le Mans Master
Joined: Aug 2006
Posts: 7,426
Likes: 1,559
From: mount holly NC
2025 c3 ('74-'82) of the Year Finalist - Unmodified
2019 C3 of Year Finalist (appearance mods)
Thanks for the 68 radio wire color verification, I don’t see any of the radio wires listed in my wiring diagram.
The original 68 radio was replaced by previous owner with a cassette unit that I am replacing with an original looking unit that has modern capabilities. It’s wiring calls for both a memory (battery) power as well as ignition switch power.
I assume cars yellow lead is the ignition lead and gray won’t be used as the units lights are powered via some other internal wiring.
Where would I pick up a battery lead needed to power the units memory function?
The original 68 radio was replaced by previous owner with a cassette unit that I am replacing with an original looking unit that has modern capabilities. It’s wiring calls for both a memory (battery) power as well as ignition switch power.
I assume cars yellow lead is the ignition lead and gray won’t be used as the units lights are powered via some other internal wiring.
Where would I pick up a battery lead needed to power the units memory function?
Instructor
Joined: Nov 2019
Posts: 245
Likes: 15
Thanks, I’ll look for the fuse box BAT connection for the new stereos yellow memory lead.
Just to confirm....the cars original radio power wire is also yellow and only powered when the ignition is on?
This yellow lead can be used to power the new stereos red lead which outlines it as an ignition source.
Just to confirm....the cars original radio power wire is also yellow and only powered when the ignition is on?
This yellow lead can be used to power the new stereos red lead which outlines it as an ignition source.
