Replace Fusable link- still no interior power
Idiot moment and hooked the battery charger up backwards. Fusable links by fire wall didn’t last too long- engine died. I replaced the link. Starter works and cranks engine, but there is no power to the interior/ fuse panel. What am I missing?
Thread Starter
Burning Brakes
Joined: Jun 2005
Posts: 1,131
Likes: 106
From: laingsburg MI
2020 C3 of the Year Finalist - Modified

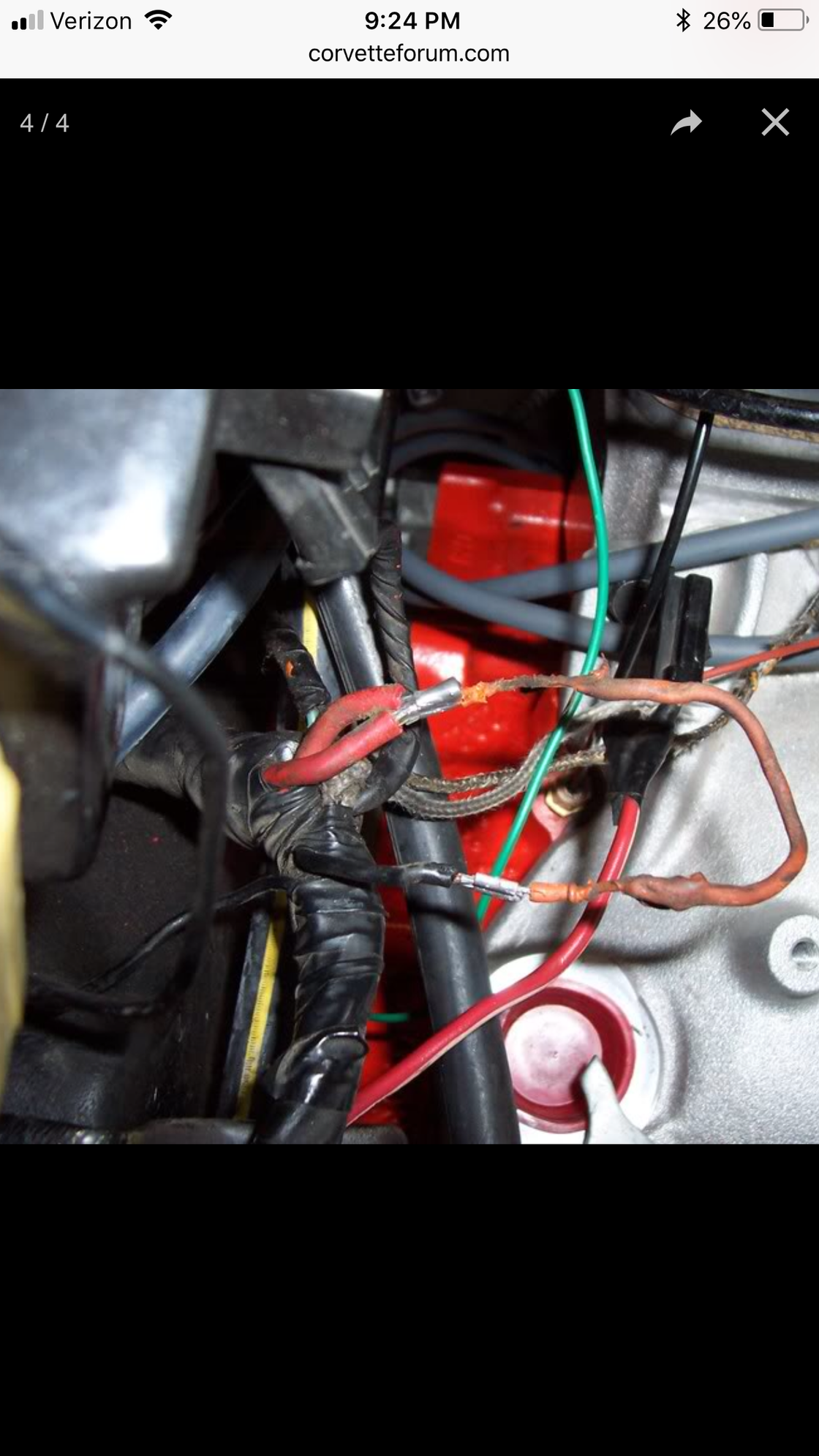

Replaced this Fusable link and a 100 amp fuse I have for a terminal that I run accessories off from. Everything worked for a minute, then smoked something along the fire wall/ bell housing. What does power supply via Fusable link? Pics below
Pro
Joined: Nov 2016
Posts: 729
Likes: 118
From: Kelowna British Columbia
fusible link

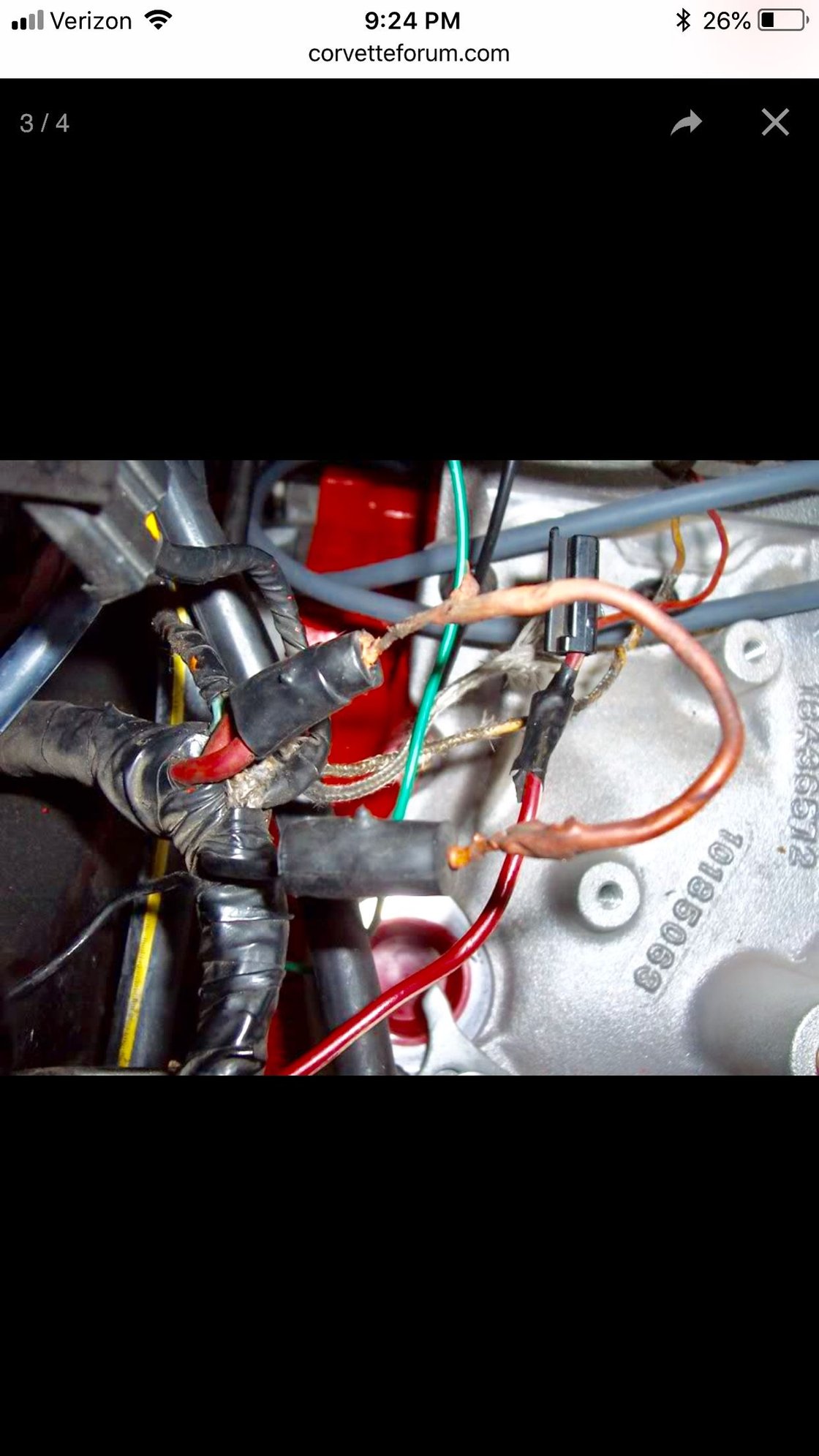

The picture you show of the 2 red wires one comes from the solenoid and it goes to horn relay. The black wire goes to the ammeter. Fusible links can be bought at NAPA or auto store.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Race Director
Joined: Apr 2007
Posts: 11,152
Likes: 890
From: South Western Ontario
The car will still work without that link.
Cut that link out for now (leave the red wires connected together) and insulate the red wires so they won't short to anything. Disconnect the black/white striped wire with the fusible link from the horn relay to completely disconnect the ammeter for now. You can fix the ammeter after you get the electrical working again.
I'd also disconnect the wires from the alternator, making sure to insulate the main red wire. Just in case the alternator is shorted.
Once the ammeter is disconnected, try connecting the battery again and see what you get. Check for voltage at the horn relay. No voltage there, check at that splice where you cut off the fusible link for the ammeter. If there is voltage there, check the fusible links coming from the horn relay.
Cut that link out for now (leave the red wires connected together) and insulate the red wires so they won't short to anything. Disconnect the black/white striped wire with the fusible link from the horn relay to completely disconnect the ammeter for now. You can fix the ammeter after you get the electrical working again.
I'd also disconnect the wires from the alternator, making sure to insulate the main red wire. Just in case the alternator is shorted.
Once the ammeter is disconnected, try connecting the battery again and see what you get. Check for voltage at the horn relay. No voltage there, check at that splice where you cut off the fusible link for the ammeter. If there is voltage there, check the fusible links coming from the horn relay.
Thread Starter
Burning Brakes
Joined: Jun 2005
Posts: 1,131
Likes: 106
From: laingsburg MI
2020 C3 of the Year Finalist - Modified
Thank you for the assistance! Ok what I found is: Fusable link by horn relay was fried AND an accessory “hot” wire that powers the fast idle solenoid had melted insulation and was creating a ground. This was below the area of the fried Fusable link on the fire wall, so it was hard to find. I had already replaced that Fusable link, still no power. So I removed the solenoid circuit and replaced the blown Fusable link by the horn relay, with a “blade fuse” (40 amp) I had available, everything works as it should. Question- can I leave the inline fuse instead of a Fusable link? And if so, what should the amp rating be? Again much thanks for all the help. Jim
