Help - Alternator Brackets 1970 Big Block


Old 03-08-2019, 11:30 AM
  #1
PBCloud
CF Senior Member
Thread Starter

Member Since: Nov 2012
Posts: 195
Thanked 0 Times in 0 Posts
Default Help - Alternator Brackets 1970 Big Block

I am replacing my alternator in the car (diagram showing the bracket configuration on my car attached - its good but not that clear)........should have taken some photos!

I want to make sure all the brackets are replaced/aligned correctly, could anyone please send me photos showing this attached to their car so I may see all the brackets, and how they go bolt together.

KInd regards
Paul
Attached Files
File Type: docx
Alternator Diagram.docx (31.9 KB, 12 views)
PBCloud is offline
Old 03-08-2019, 04:16 PM
  #2
71 Green 454
CF Senior Member

71 Green 454's Avatar

Member Since: Jun 2006
Location: Tampa Florida
Posts: 3,896
Thanked 152 Times in 140 Posts
Default

Does yours have Power Steering?

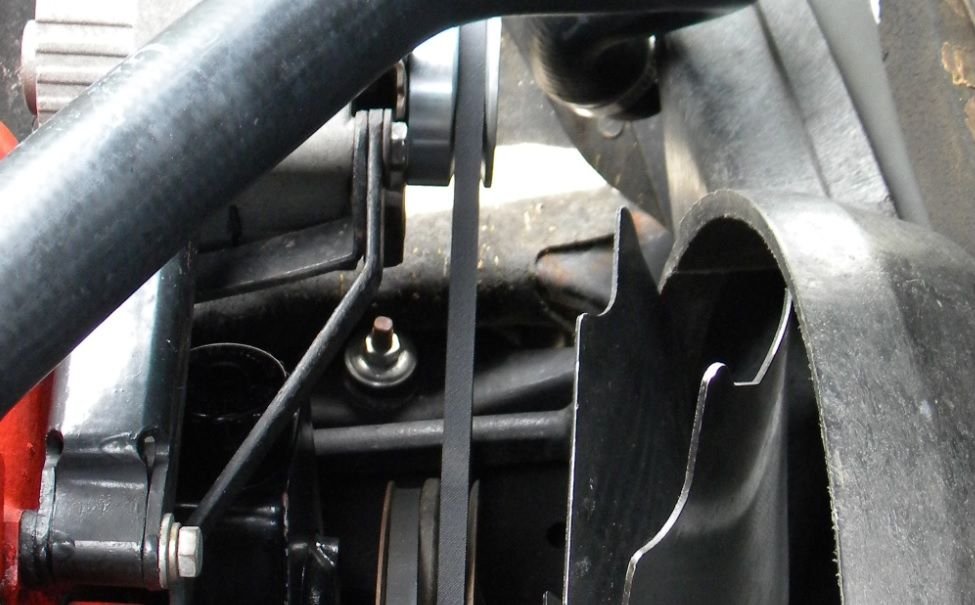

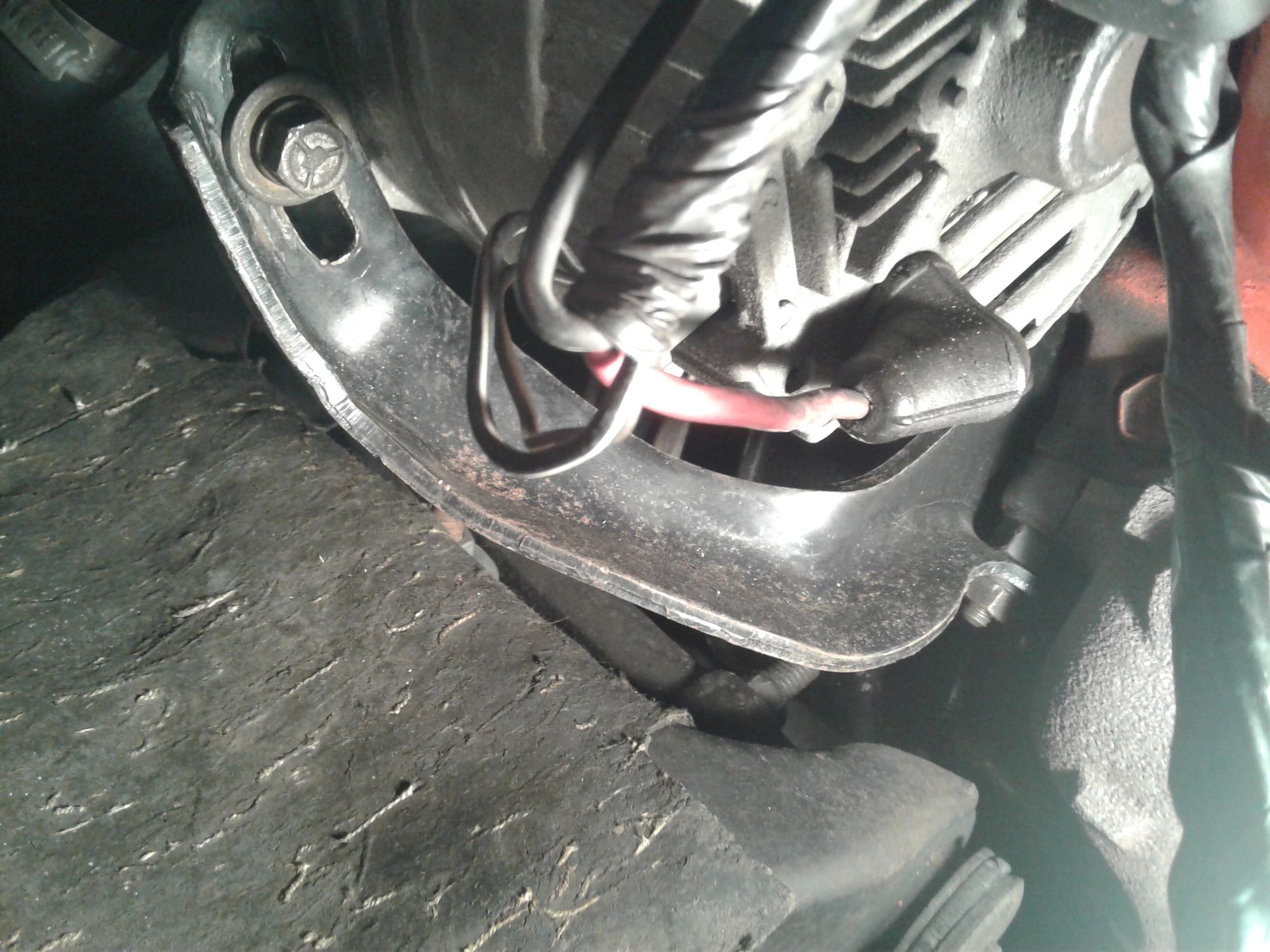

See if these pictures help.










Last edited by 71 Green 454; 03-08-2019 at 10:48 PM.
71 Green 454 is online now
The Following User Says Thank You to 71 Green 454 For This Useful Post:
ajrothm (03-09-2019)
Old 03-09-2019, 04:25 AM
  #3
PBCloud
CF Senior Member
Thread Starter

Member Since: Nov 2012
Posts: 195
Thanked 0 Times in 0 Posts
Default

Thank you so much for taking the time and trouble to take and then send the photo's I am very grateful, they will be so helpful.

Kind regards
Paul
PBCloud is offline
Old 03-09-2019, 02:02 PM
  #4
Sayfoo
CF Senior Member

Sayfoo's Avatar

Member Since: Sep 2005
Location: Orange County Ca
Posts: 1,592
Thanked 33 Times in 30 Posts
Default

The Z brace (first picture in post 2) on my '69 is longer on one end. Putting the long end towards or away from the alternator will give better access to the ps pump cap.

Last edited by Sayfoo; 03-09-2019 at 02:04 PM.
Sayfoo is offline
The Following User Says Thank You to Sayfoo For This Useful Post:
ajrothm (03-10-2019)
Old 03-15-2019, 02:15 AM
  #5
rpoL98
CF Senior Member

rpoL98's Avatar

Member Since: Jun 2005
Location: USA
Posts: 447
Thanked 4 Times in 4 Posts
Default

i thought the fastener for the water pump that holds the bracket for the alternator brace was supposed to be one of those double-ended studs, 3/8-16 to secure the water pump to the block, and a short 5/16-18 stud for the "Z" alternator bracket?




rpoL98 is offline
Old 03-15-2019, 11:45 AM
  #6
ajrothm
CF Senior Member

ajrothm's Avatar

Member Since: May 2006
Location: League City Tx
Posts: 9,301
Thanked 642 Times in 499 Posts
Default

Originally Posted by rpoL98 View Post
i thought the fastener for the water pump that holds the bracket for the alternator brace was supposed to be one of those double-ended studs, 3/8-16 to secure the water pump to the block, and a short 5/16-18 stud for the "Z" alternator bracket?



Yes, usually it is a stud/nut on the water pump/Z bracket.
ajrothm is offline
Old 03-15-2019, 03:22 PM
  #7
71 Green 454
CF Senior Member

71 Green 454's Avatar

Member Since: Jun 2006
Location: Tampa Florida
Posts: 3,896
Thanked 152 Times in 140 Posts
Default

Originally Posted by ajrothm View Post
Yes, usually it is a stud/nut on the water pump/Z bracket.
Correct, I didn't post this photo is post #2... I guess I should have.


71 Green 454 is online now
