Default Led headlight install

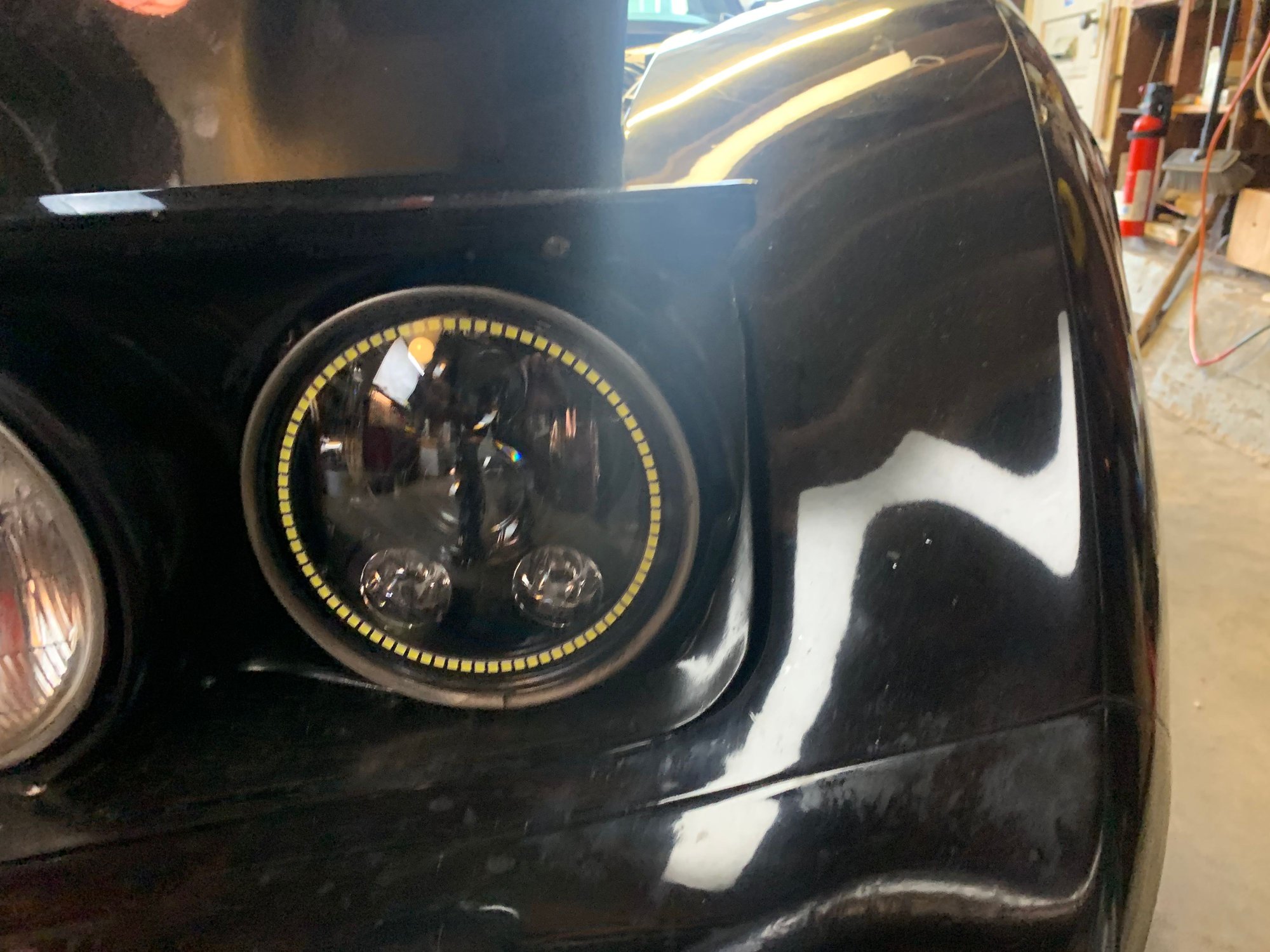

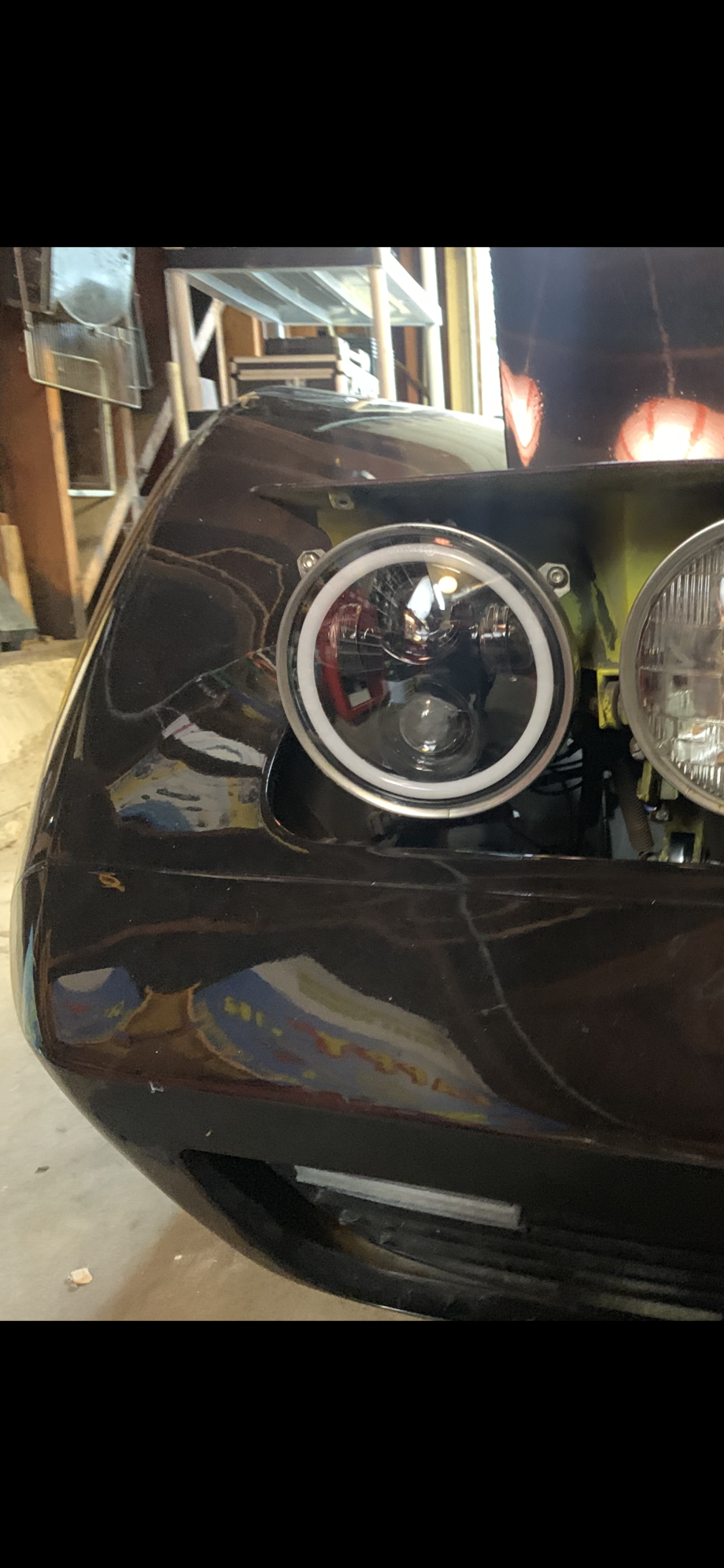

Bought one of each of the best rated Led headlights from Amazon. I think the left (passenger side ) one looks better. Both seem to have good light output. Both bulb products were about fifty bucks.

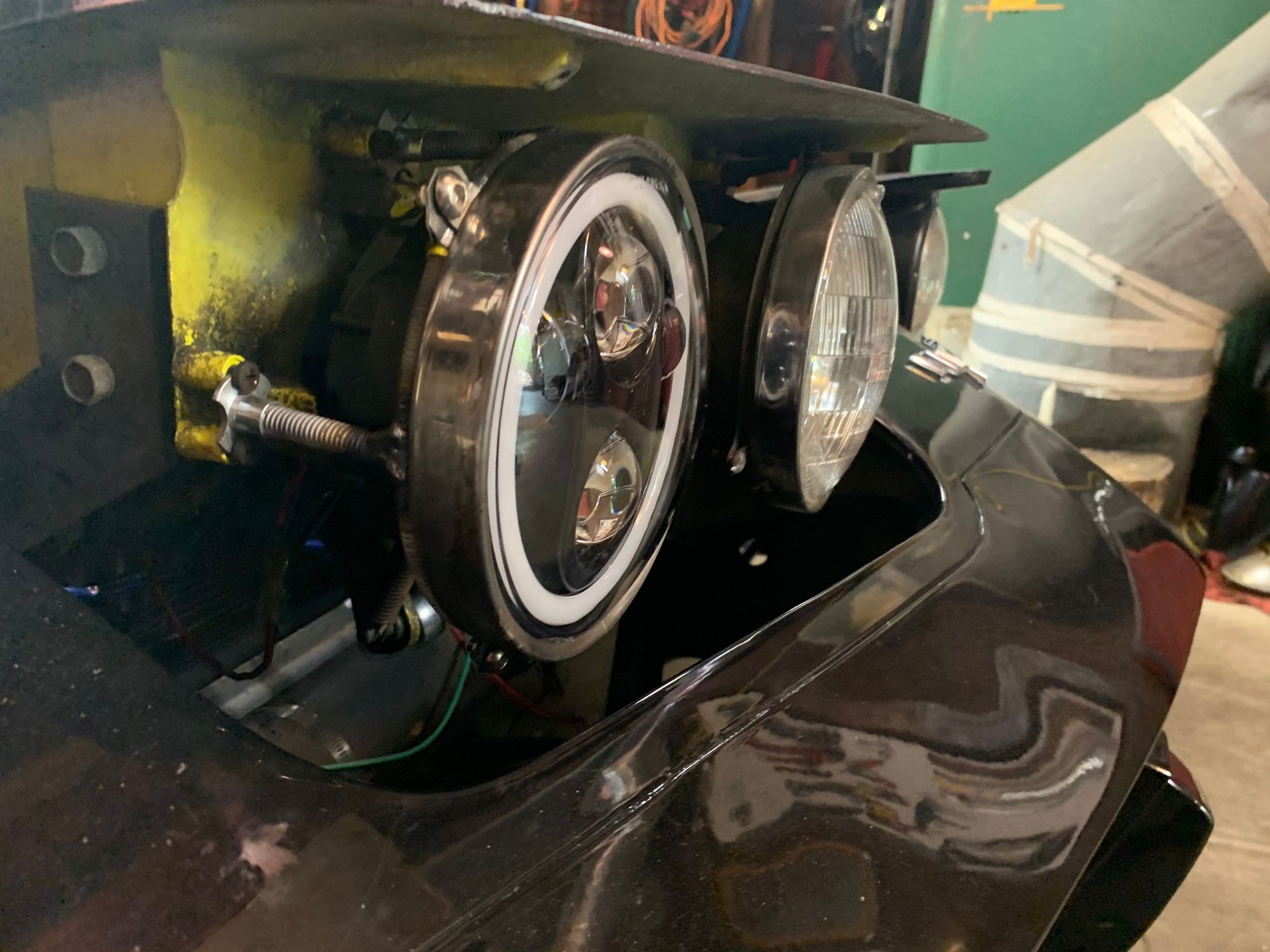

The stock headlight mounts were not compatible. I set aside the stock hardware and fabricated a bracket to hold the big square backed leds. The main market for 5-3/4 leds is for motorcycles. Led bulbs that fit the dished mounting surface of c3 corvette seem too expensive. Ill drive around for a week or so then order 3 more of the bulb that seems better.
making the brakets was more fun than expected. I enjoyed fabricating the small steel parts. The final product is nothing pretty but it does the job of holding the new lights and is not visible once the headlight covers go on.
