Default Proper Hood Support Attachment

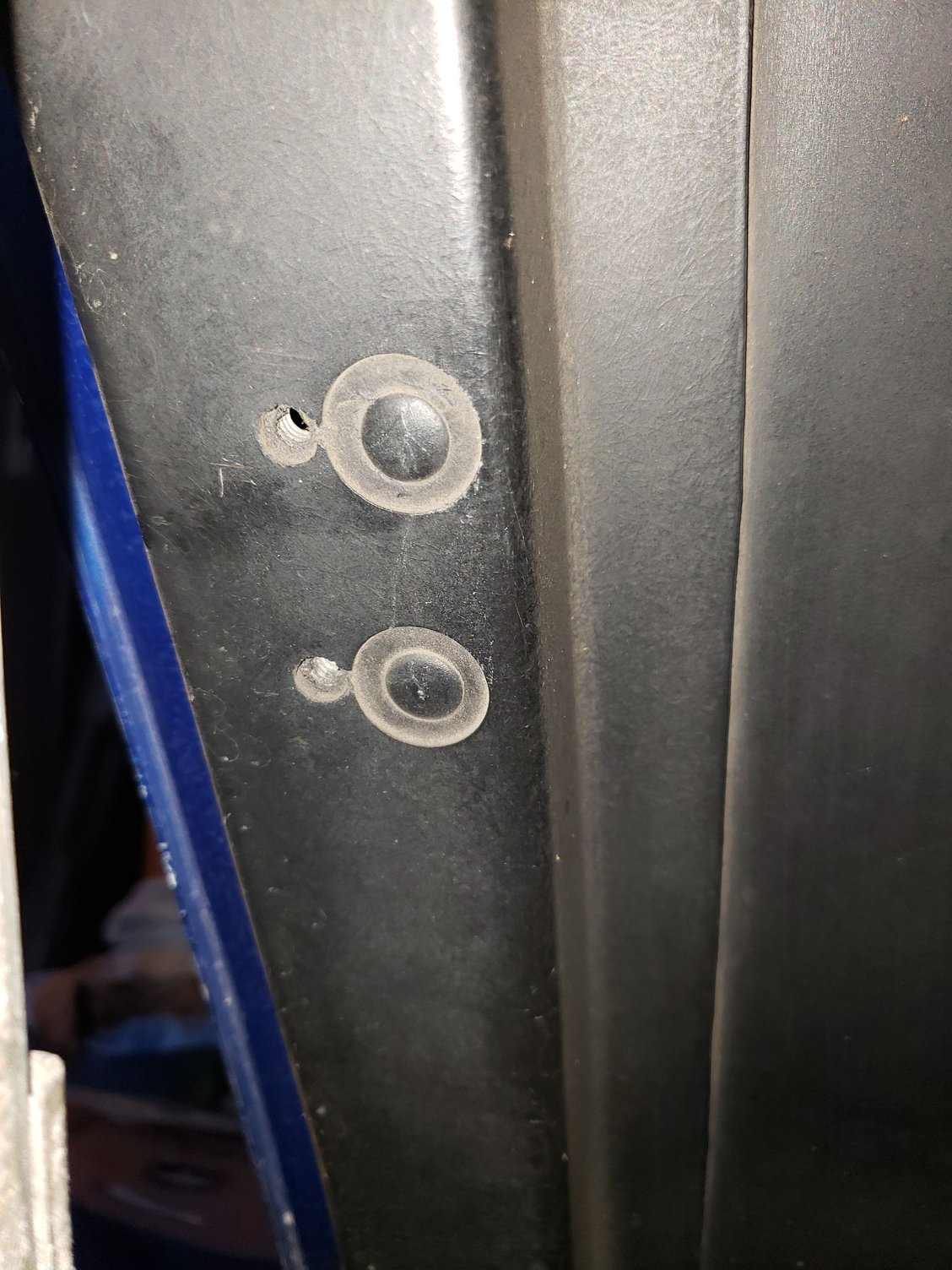

My hood is attached to the hood support with well nuts. In the picture, the fully-extended hood support is attached above a set of threaded holes.

This seems hokey. Is the hood support really supposed to be attached with well nuts? Seems like those threaded holes are the way to go, but my hood support is already fully-extended (locked out) and those holes are lower.

I'd appreciate some advice. These well nuts do not inspire much confidence (you can see the stress is already pulling one of them out its hole).


Turbotrad is online now
Old 05-16-2019, 12:46 PM
  #2
Kacyc3
CF Senior Member

Kacyc3's Avatar

Member Since: Jun 2012
Location: Port St. Lucie Fl
Posts: 1,501
Received 89 Likes on 78 Posts
Default

What year is your car and what hood do you have?
Kacyc3 is offline
Old 05-16-2019, 12:47 PM
  #3
HeadsU.P.
CF Senior Member

HeadsU.P.'s Avatar

Member Since: Aug 2017
Location: Cool Northern Michigan
Posts: 2,159
Received 383 Likes on 362 Posts
Default

I know they changed styles over the yrs. That looks different than mine. The two lower bolt holes are for a mercury switch hood light, I believe. Which was on all day at car shows, so it was removed and stored in a parts box.
HeadsU.P. is offline
Old 05-16-2019, 12:50 PM
  #4
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

It is a 1969 with a small block hood
Turbotrad is online now
Old 05-16-2019, 12:57 PM
  #5
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Originally Posted by HeadsU.P. View Post
I know they changed styles over the yrs. That looks different than mine. The two lower bolt holes are for a mercury switch hood light, I believe. Which was on all day at car shows, so it was removed and stored in a parts box.
Thanks for the tip on what those threaded holes are for.

Oh, I also have no idea if this is an original or replacement hood. Two owners ago the car was restored and I know at least some body panels were repaired if not replaced in that process. I'm still learning something new about this car every time I drive it!
Turbotrad is online now
Old 05-16-2019, 01:32 PM
  #6
Barry's70LT1
CF Senior Member

Barry's70LT1's Avatar

Member Since: Oct 2001
Location: Halifax, Nova Scotia, Canada
Posts: 1,448
Received 48 Likes on 40 Posts
Default

About 1972 the hood support changed to a shorter one. The long one, like you have was used up to '72.

If your two sets of mounting holes are about 4 3/4" apart, then you likely have a newer hood that was designed to use the shorter support. The shorter support can be used in place of the one you have.

Barry's70LT1 is offline
Old 05-16-2019, 01:33 PM
  #7
Easy Mike
CF Senior Member
Support Corvetteforum!

Easy Mike's Avatar

Member Since: Jun 2000
Location: Southbound
Posts: 36,648
Likes: 0
Received 904 Likes on 827 Posts
Cruise-In II Veteran
Default

Originally Posted by Kacyc3 View Post
...What year is your car and what hood do you have?...
It doesn't really matter. Hood supports used two bolts, not well nuts. I'd say someone did a repair.
Easy Mike is offline
Old 05-16-2019, 01:36 PM
  #8
jim-81
CF Senior Member

jim-81's Avatar

Member Since: Dec 2011
Location: Chardon Ohio
Posts: 1,357
Received 84 Likes on 79 Posts
Default

I had to google what well nuts were lol. Looks like they are rubber with a nut in there somewhere. Doesn't seem quite right but if they are secure they might be fine. Not a ton of holding power is required there. Mine are threaded inserts.
jim-81 is offline
The following users liked this post:
Kacyc3 (05-16-2019)
Old 05-16-2019, 02:17 PM
  #9
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Originally Posted by jim-81 View Post
I had to google what well nuts were lol. Looks like they are rubber with a nut in there somewhere. Doesn't seem quite right but if they are secure they might be fine. Not a ton of holding power is required there. Mine are threaded inserts.
I would prefer threaded inserts. I might have to source some that will fit.
Turbotrad is online now
Old 05-16-2019, 02:21 PM
  #10
CanadaGrant
CF Senior Member

CanadaGrant's Avatar

Member Since: Apr 2006
Location: Blind Bay BC
Posts: 3,755
Received 289 Likes on 252 Posts
Default

My 69 big block hood has bolts but no well nuts. The above has been repaired with well nuts probably due to a stripped nut.
CanadaGrant is offline
Old 05-16-2019, 02:25 PM
  #11
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Originally Posted by Barry's70LT1 View Post
About 1972 the hood support changed to a shorter one. The long one, like you have was used up to '72.

If your two sets of mounting holes are about 4 3/4" apart, then you likely have a newer hood that was designed to use the shorter support. The shorter support can be used in place of the one you have.

Yeah my holes are about that far apart. Does the shorter support only use 2 of the 4 holes?
Turbotrad is online now
Old 05-16-2019, 02:28 PM
  #12
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Originally Posted by CanadaGrant View Post
My 69 big block hood has bolts but no well nuts. The above has been repaired with well nuts probably due to a stripped nut.
Thanks for the insight. So my hood appears to have 4 hole positions (blanked off) and two more holes where the support is currently attached.

Can someone explain what the various holes are for?

Is this kind of a one-size fits all aftermarket hood to accommodate several production years?
Turbotrad is online now
Old 05-16-2019, 02:39 PM
  #13
Kacyc3
CF Senior Member

Kacyc3's Avatar

Member Since: Jun 2012
Location: Port St. Lucie Fl
Posts: 1,501
Received 89 Likes on 78 Posts
Default

Originally Posted by Easy Mike View Post
It doesn't really matter. Hood supports used two bolts, not well nuts. I'd say someone did a repair.
AH but it does, the hood support for my car uses 3 bolts, if the hood was aftermarket it could have been made incorrectly and someone may have used well nuts to attach the hood.
Kacyc3 is offline
Old 05-16-2019, 02:56 PM
  #14
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Originally Posted by Kacyc3 View Post
AH but it does, the hood support for my car uses 3 bolts, if the hood was aftermarket it could have been made incorrectly and someone may have used well nuts to attach the hood.
Well, the four recessed circles seem to be there for attaching something. The top two are smooth, but the lower two seem to have round plugs in them.

It looks like my hood support did not line up with the hood support attach points, so some bubba drilled some holes and inserted well nuts to make it work and get the proper line up in the extended support.

Does that seem to be a good assessment of what I have going on here?
Turbotrad is online now
Old 05-16-2019, 03:02 PM
  #15
Kacyc3
CF Senior Member

Kacyc3's Avatar

Member Since: Jun 2012
Location: Port St. Lucie Fl
Posts: 1,501
Received 89 Likes on 78 Posts
Default

Originally Posted by Turbotrad View Post
Well, the four recessed circles seem to be there for attaching something. The top two are smooth, but the lower two seem to have round plugs in them.

It looks like my hood support did not line up with the hood support attach points, so some bubba drilled some holes and inserted well nuts to make it work and get the proper line up in the extended support.

Does that seem to be a good assessment of what I have going on here?
and as mentioned earlier those could be for under hood lights or possible for different hood supports.
Kacyc3 is offline
Old 05-16-2019, 03:36 PM
  #16
CanadaGrant
CF Senior Member

CanadaGrant's Avatar

Member Since: Apr 2006
Location: Blind Bay BC
Posts: 3,755
Received 289 Likes on 252 Posts
Default

My original 69 hood also has those recessed circles right beside the mount with no well nuts but only one set and not two. It's a big block hood though.

CanadaGrant is offline
Old 05-16-2019, 04:30 PM
  #17
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,498
Received 486 Likes on 430 Posts
Default

My 72 with the same type of prop rod (folding type that came out in 72 (maybe late 71?))


you can see the original recesses for the longer style hood prop rod farther up the hood and the new "short" location with the bolts stuck in them
The recesses were where the rivets went to hold the metal nut-plate inside the hood that held the hinges and prop rod etc.

My guess is that they had a later hood and drilled and installed the well nuts to fit the early extension prop rod.
Since there isn't anything likely in there behind that location (I could be wrong but I don't see the rivet heads that would be there in those recessed area) I don't think you can install threaded inserts or anything in that spot. Maybe only option is to switch to the shorter folding prop

That said, maybe it's a repro hood that had nut plates in both locations so it fit either style of prop rod and it's stripped... need to know if there is steel behind those well nuts (would be drilled so bit to fit them it wouldn't matter much anyway....)
M

Last edited by Mooser; 05-16-2019 at 04:32 PM.
Mooser is online now
Old 05-16-2019, 07:17 PM
  #18
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

Thanks Mooser. So by that logic, might the threaded holes in this picture be the same ones you are using for the updated/folding bracket?



Earlier it was mentioned they were for a hood light. But if they are for the shorter bracket then I definitely want to switch to that.
Turbotrad is online now
Old 05-16-2019, 09:18 PM
  #19
Mooser
CF Senior Member

Member Since: Apr 2011
Location: Toronto Ontario
Posts: 5,498
Received 486 Likes on 430 Posts
Default

With a tape sitting on the top of the hood hinge like this


The bolts for my folding prop (and what I think those two tapped holes you have there are) are here
(roughly 8 and 9-1/2)

and the other two recesses (where I believe your well nuts are) around 13 and 14-1/2


Now at no time did you mention if you have the proper short hood with the wiper door or if someone changed to the longer hood.
The short hood never had any light as far as I know.
HIH
M
Mooser is online now
Old 05-16-2019, 11:14 PM
  #20
Turbotrad
CF Senior Member
Thread Starter

Turbotrad's Avatar

Member Since: Oct 2008
Location: Aptos, CA
Posts: 259
Received 2 Likes on 2 Posts
Default

I do have a wiper door. I will check my measurements soon and post them. I really appreciate the info. Not sure how I would solve some of these mysteries without this forum.
Turbotrad is online now
