Front Brake Bracket To Spindle Torque Specs

Hello,

Have questions on the assemble of the Front brake bracket to steering spindle, chiefly the torque specs. The AIM is unclear of this and although I have a rather complete listing

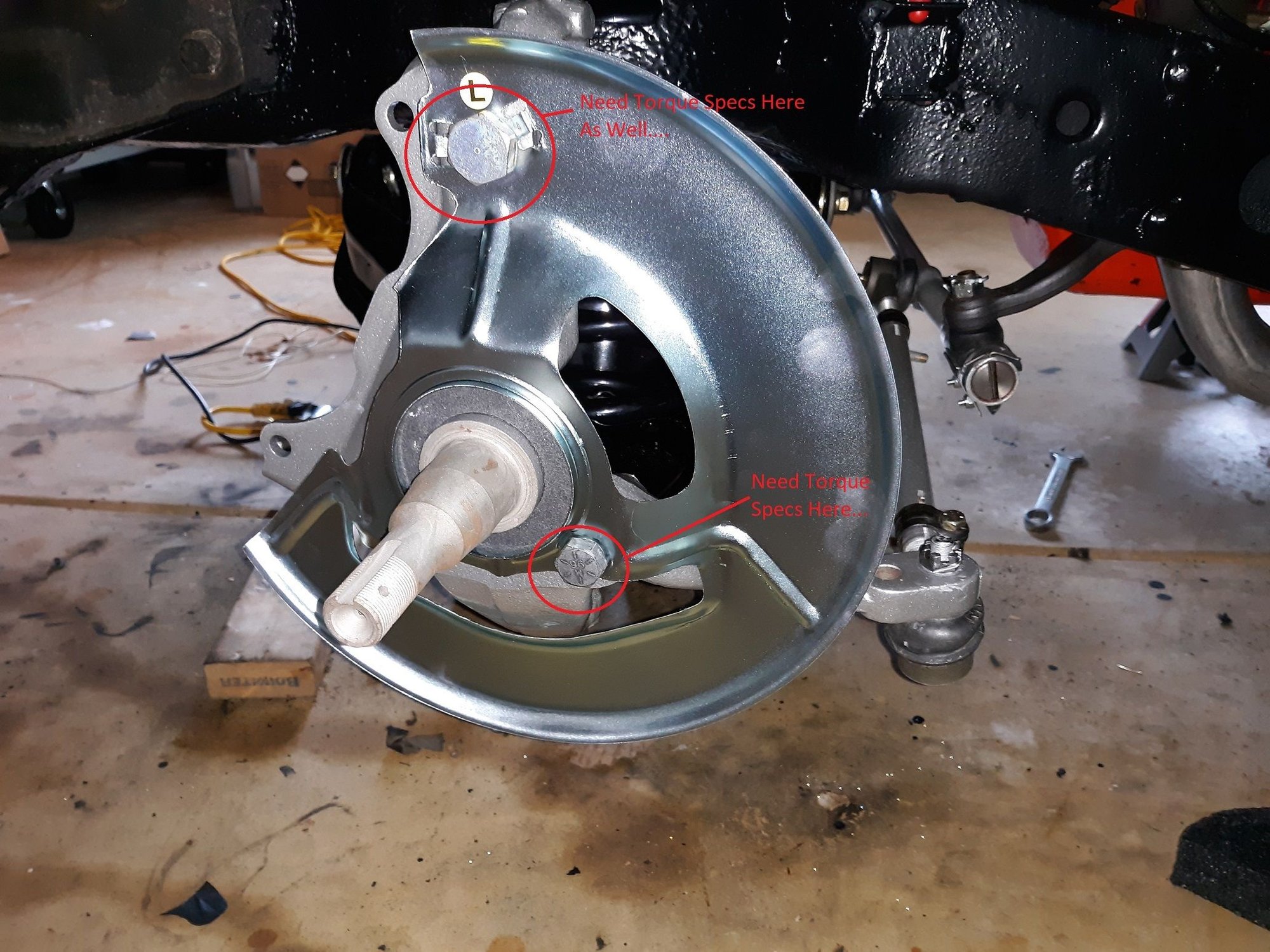

of torque specs, I cannot be certain so I am asking here. The first pic show the 11/16 threaded bolt that essentially connects the spindle, brake shield, and top of the brake braket
together. What is this torque spec? Also, the lower bolt(2) - what are their torque specs?

Also, I thought I took great pics while dis-assembling, but apparently I didn't do as well as I thought.

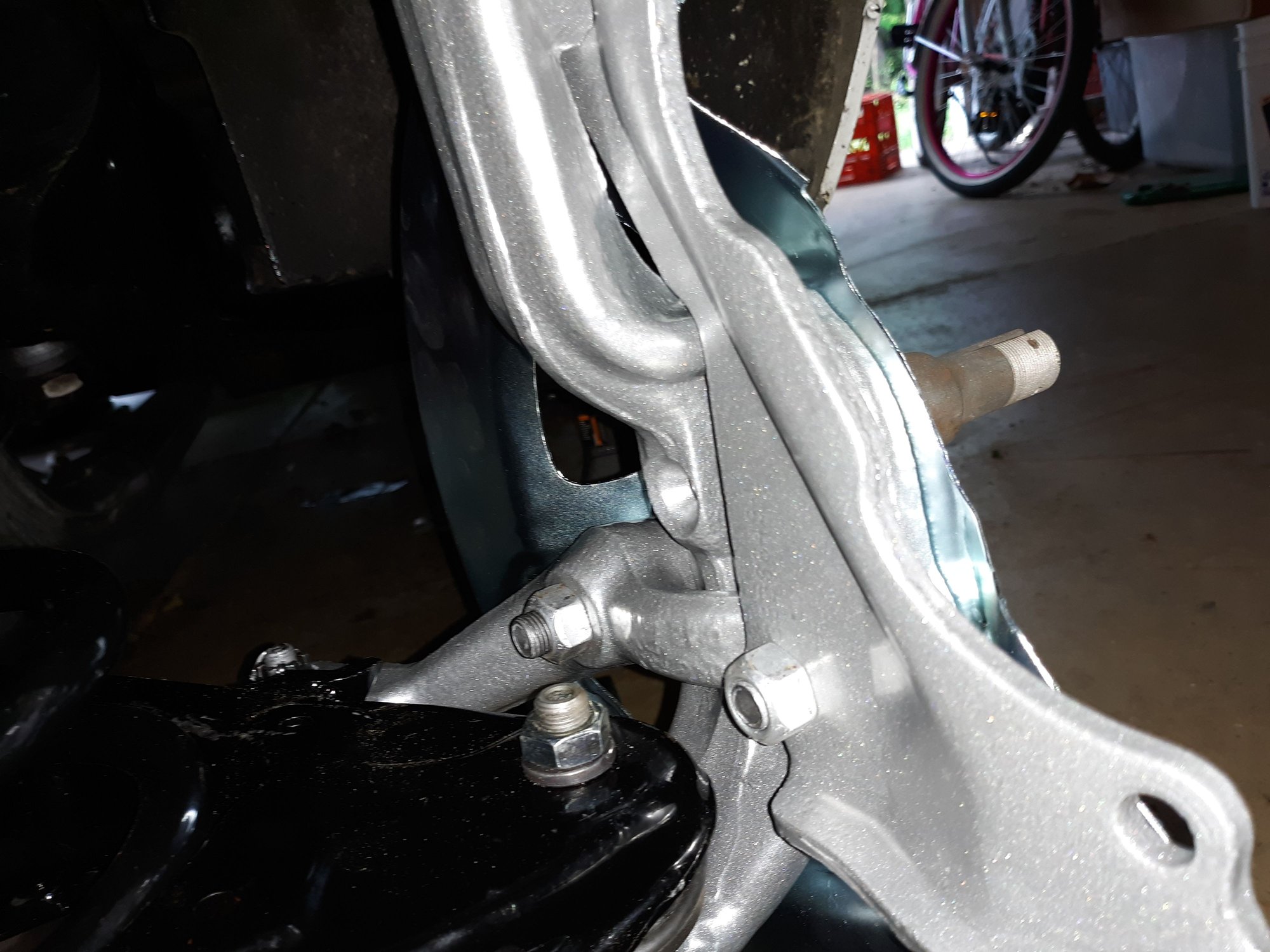

This is a shot behind the spindle - it looked like the steering arm went behind the brake bracket like shown, I just want to be absolutely certain.

Thanks in advance for any help!

Jun 10, 2019 | 03:49 PM

PainfullySlow

Burning Brakes

Joined: Sep 2017

Posts: 1,219

Likes: 365

From: Tolland CT

Looks like 70 lbs. ft.

And yes, it really only goes together one way. That looks correct to me.

I couldn't find a specific reference to that top bolt so when I did mine I set it to 70 like the other two.

Last edited by PainfullySlow; Jun 10, 2019 at 03:51 PM.

Jun 10, 2019 | 04:13 PM

Mooser

Race Director

Joined: Apr 2011

Posts: 11,183

Likes: 3,335

From: North of Toronto - Ontario

Sounds familiar...

https://www.corvetteforum.com/forums...rque-spec.html

M

Jun 10, 2019 | 04:22 PM

jpatrick62

Thread Starter

Burning Brakes

Joined: Jul 2018

Posts: 979

Likes: 258

From: Maryland

Thanks Painfully, I appreciate it - looks like it will be 70 for me as well.

Jun 10, 2019 | 04:24 PM

jpatrick62

Thread Starter

Burning Brakes

Joined: Jul 2018

Posts: 979

Likes: 258

From: Maryland

Thanks Mooser - I think I've settled on 70 for both specs based on that thread and Painfully Slow's reply...
