81 a/c system o-ring placement

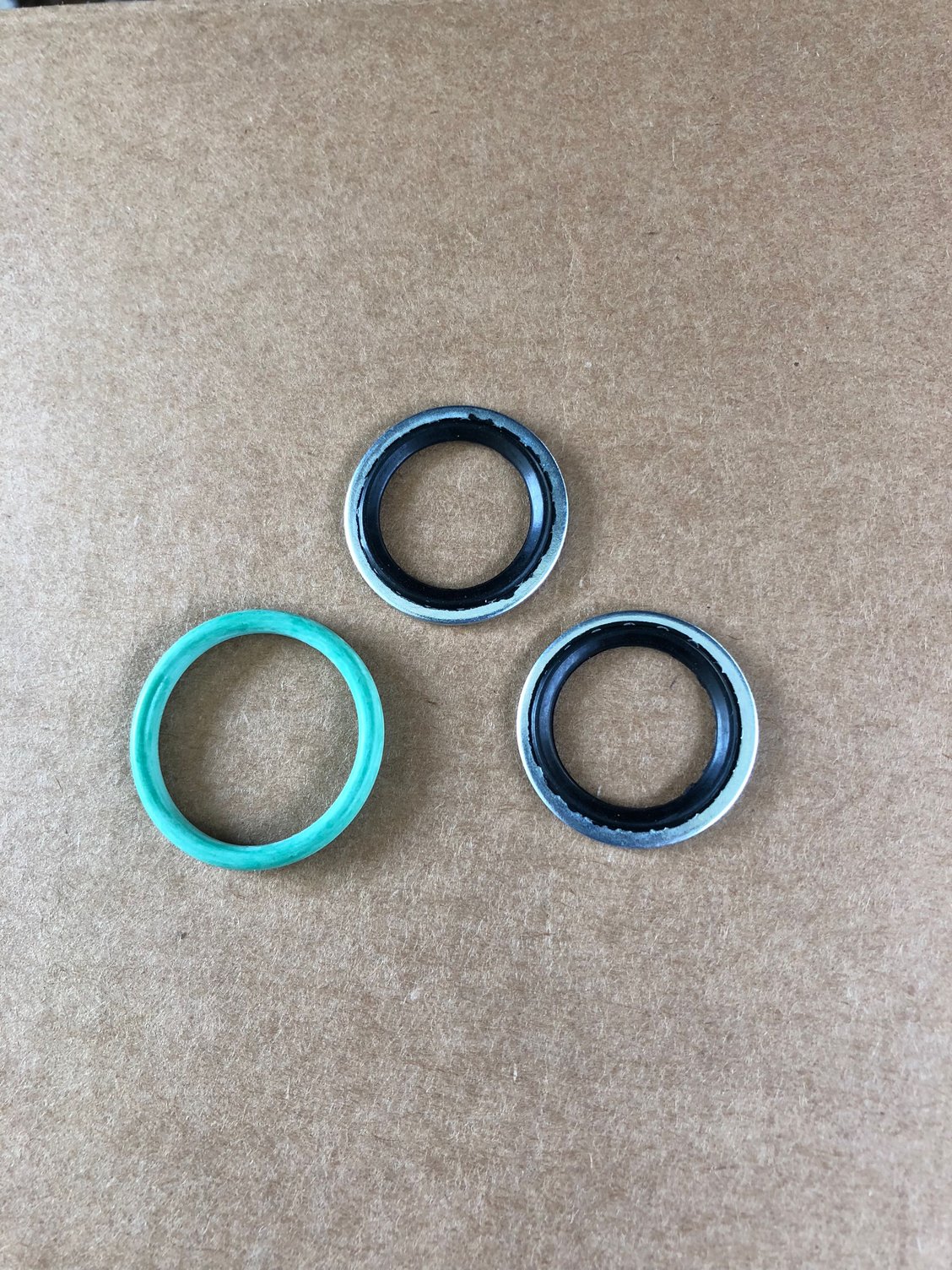

I got an o ring kit to replace all the o rings on my 134 conversion. In the package there’s all different sizes of the rubber ones, then there’s about 4 or so of these metal ones with a small black rubber o ring on the inside, as all one piece. The guy at the parts store said those metal ones go where the manifold connects to the back of the compressor. There wasn’t anything like that when I took it apart
It looks like there are some black o rings in a groove on the back of the compressor. Do those little metal ones go over the ends of the tubes on the manifold? If so it won’t sit completely flat, and I thought it was supposed to be flat against the compressor
It looks like there are some black o rings in a groove on the back of the compressor. Do those little metal ones go over the ends of the tubes on the manifold? If so it won’t sit completely flat, and I thought it was supposed to be flat against the compressor
Intermediate
Joined: Dec 2005
Posts: 47
Likes: 8
The metal gaskets that you are referring to are made for different applications for that compressor and manifold. It cover many gm vehicles. The washers need to be pried out of the compressor and the new ones added. Make sure you size them correct one is larger than the other and use the same space when you bolt up manifold
Thread Starter
Instructor
Joined: May 2013
Posts: 167
Likes: 3
the guy at oriellys said those 2 metal o rings with the black rubber goes on the 2 lines that go in the back of the compressor. Is that right?
i thought those 2 lined are supposed to sit flat on the comp
Intermediate
Joined: Dec 2005
Posts: 47
Likes: 8
use a pick and pull them out from the compressor, I just did this job last week. you wil have different sized washers to fitcompressor. But make sure to use ones that fit orifice in dimension and THICKNESS or when u charge system it will leak out
Thread Starter
Instructor
Joined: May 2013
Posts: 167
Likes: 3
I did as Greg said and used a pick to get them out.
I’ll check at the parts store tomorrow and see if I can get new ones.
Ill have to get another accumulator too. I stripped the top port out thinking it was screwing in.
I’ll check at the parts store tomorrow and see if I can get new ones.
Ill have to get another accumulator too. I stripped the top port out thinking it was screwing in.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Intermediate
Joined: Dec 2005
Posts: 47
Likes: 8
the delco compressor I brought did not come with the correct washers. The bag they came in were delco but they were not correct. Went back to part store and they had the correct ones. Remember the compressor side has different dept and size orifice. If you look at your photo they are flush with the manifold the new ones will be a little more thick. They were green and red
Thread Starter
Instructor
Joined: May 2013
Posts: 167
Likes: 3

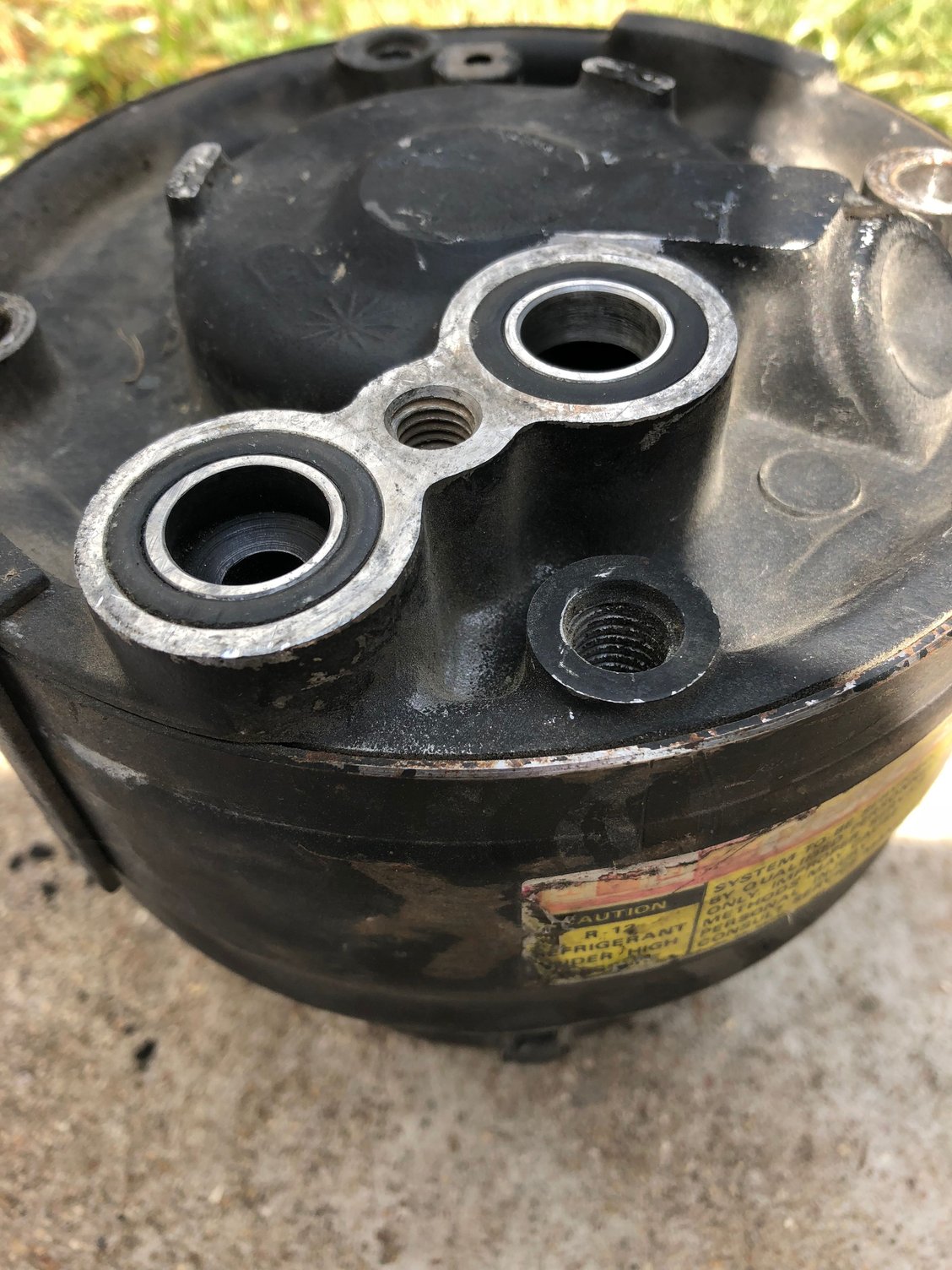

I got the o rings out of the back of the compressor. They are black. You can see them in that one picture. I brought them with me and hopefully the parts store has them
