Testing steering column Switches
I have a 69 with Tilt Tele.
I have the steering column out.
The ignition electrical switch was intermittent. I replaced it and checked it out with a ohmmeter..all good.

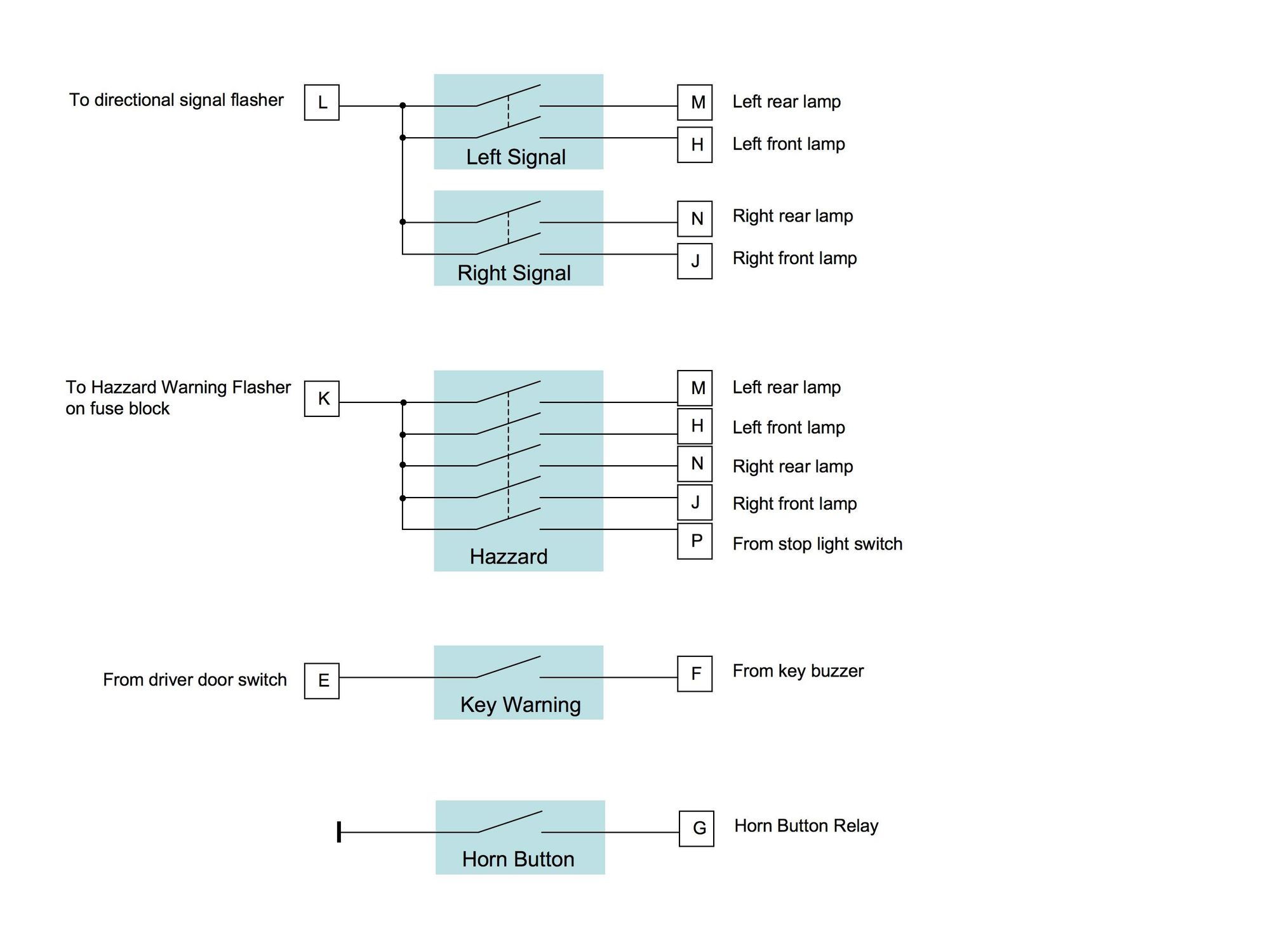

Now I want to check continuity for the turn signal switch, hazard switch and horn through the harmonica connector.
I can't find a electrical diagram shows how the switches are wired to the harmonica connector. I found the horn terminal on the G terminal. When you press the horn button it should have continuity between the G terminal and the end of the steering shaft. Its intermittent I have a bad horn switch.
But how do I check continuity for the other switches.
I also found the key alarm terminals E and F...checks out good.
Thanks for any help.
Mike
I have the steering column out.
The ignition electrical switch was intermittent. I replaced it and checked it out with a ohmmeter..all good.
Now I want to check continuity for the turn signal switch, hazard switch and horn through the harmonica connector.
I can't find a electrical diagram shows how the switches are wired to the harmonica connector. I found the horn terminal on the G terminal. When you press the horn button it should have continuity between the G terminal and the end of the steering shaft. Its intermittent I have a bad horn switch.
But how do I check continuity for the other switches.
I also found the key alarm terminals E and F...checks out good.
Thanks for any help.
Mike
Thread Starter
Racer
Joined: Apr 2013
Posts: 302
Likes: 16
Checked out the flashers all good.
I read a high resistance on terminal J right front signal...
39 ohms.
And terminal N Right Rear signal..... 3 ohms
Do I need to replace the signal switch?
Horn is intermittent. Needs fixed.
I read a high resistance on terminal J right front signal...
39 ohms.
And terminal N Right Rear signal..... 3 ohms
Do I need to replace the signal switch?
Horn is intermittent. Needs fixed.
Is my vette stock?? HAHA
Joined: Oct 2015
Posts: 20,222
Likes: 9,359
From: Im not allowed to tell you
2020 C3 of the Year Finalist - Modified
2020 Corvette of the Year Finalist (performance mods)
2019 C3 of Year Winner (performance mods)
2016 C3 of Year Finalist
If you didn't know, use a pencil eraser or a chemical cleaner on the contacts for best results, be careful of your paint and anything plastic with the sprays
Thread Starter
Racer
Joined: Apr 2013
Posts: 302
Likes: 16
what is a acceptable for a ohm reading between the Horn Terminal G on the Harmonica connector and the shaft of the steering column..... I'm reading 430 ohms when the horn button is pressed.
Thanks
Thanks
Last edited by Z06CE; Jul 21, 2019 at 07:07 PM.
Racer
Joined: May 2007
Posts: 334
Likes: 17
Since this is a simple (from an electrical point of view) contact, it should be close to 0 Ohm.
But from a mechanical point of view there are a few components involved which might sum up to high ohms reading (when corroded / stained / weak).
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Racer
Joined: Apr 2013
Posts: 302
Likes: 16
Are you sure you have a good ground for the measurement (steering column shaft properly grounded)?
Since this is a simple (from an electrical point of view) contact, it should be close to 0 Ohm.
But from a mechanical point of view there are a few components involved which might sum up to high ohms reading (when corroded / stained / weak).
Since this is a simple (from an electrical point of view) contact, it should be close to 0 Ohm.
But from a mechanical point of view there are a few components involved which might sum up to high ohms reading (when corroded / stained / weak).
I think I have to remove the plunger to inspect it.
