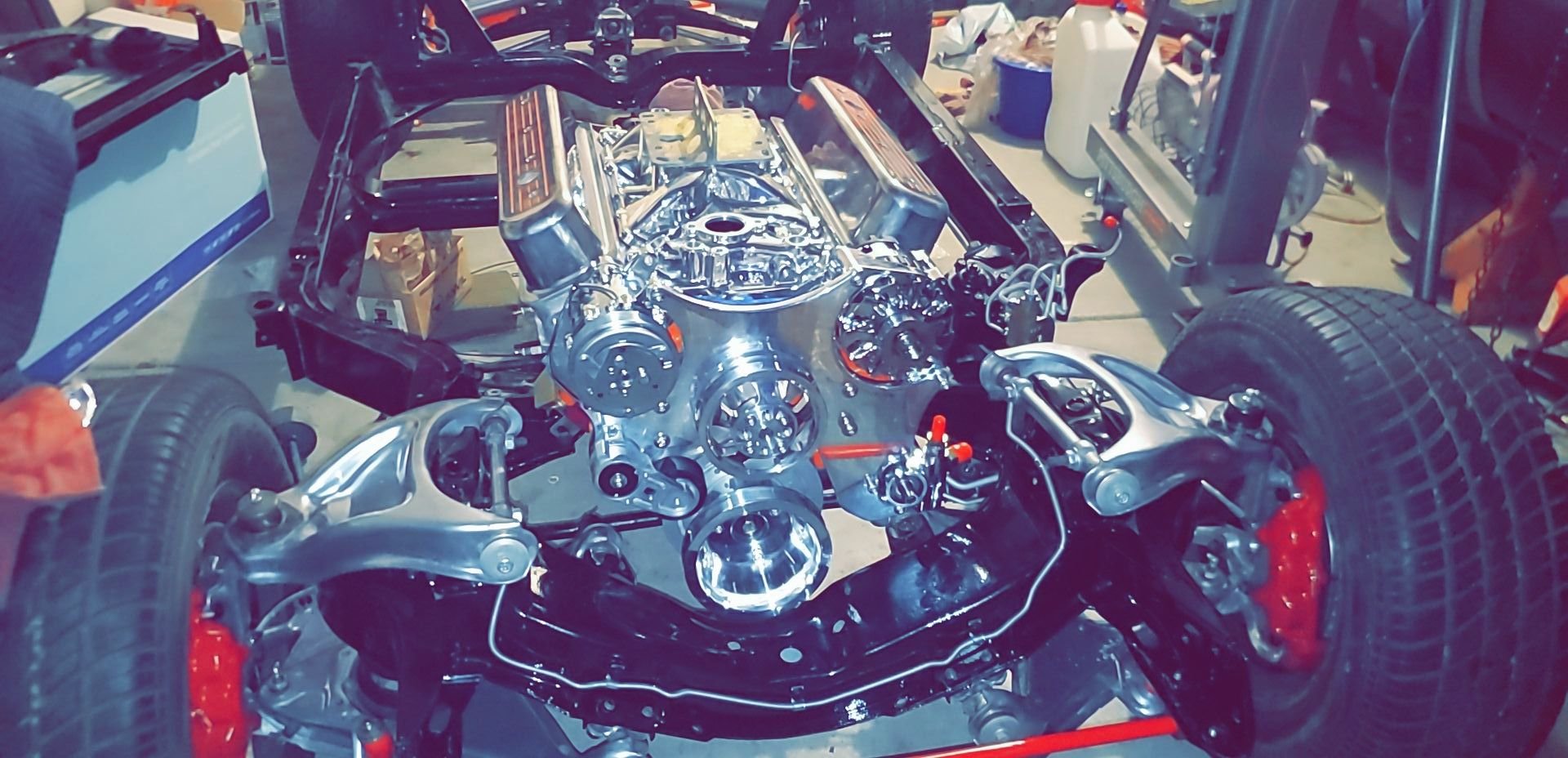

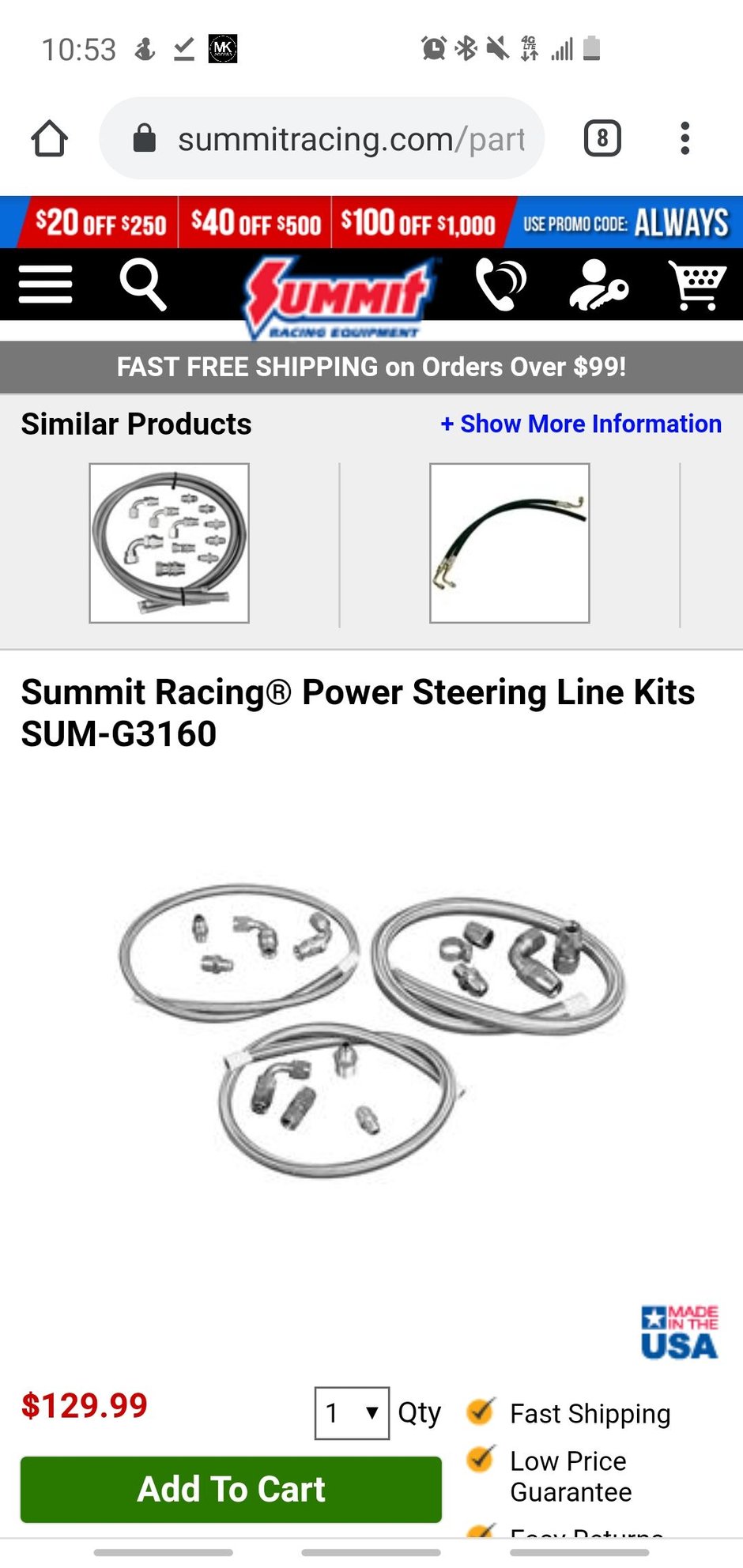

Has anyone used this kit to install their GM Type 2 power steering pump? I installed a pulley kit and need to add a remote reservoir, but I'm wondering what I should do about the lines...
When I added a Type II pump to the BBC in my '75 with stock PS my solution was:
- Reservoir mounted between master cylinder and alternator.
- Feed line to pump.
- Stock line from PS valve to ram.
- Extended return line from valve to reservoir using a brass joining fitting and some 3/8" hose.
- Since my type 2 pump uses O-ring not flare to seal pressure side, two step solution:
1) Get metal line from NAPA that had O ring male end (pump) and O ring female. About 12" long and needed minor bending.
2) Replace stock '75 pump to control valve line (flared ends) with stock '82 line (flared at valve, O-ring at pump)
Been working great for 8 years and if I ever need replacement parts, it is all stock or hard line.
When I added a Type II pump to the BBC in my '75 with stock PS my solution was:
- Reservoir mounted between master cylinder and alternator.
- Feed line to pump.
- Stock line from PS valve to ram.
- Extended return line from valve to reservoir using a brass joining fitting and some 3/8" hose.
- Since my type 2 pump uses O-ring not flare to seal pressure side, two step solution:
1) Get metal line from NAPA that had O ring male end (pump) and O ring female. About 12" long and needed minor bending.
2) Replace stock '75 pump to control valve line (flared ends) with stock '82 line (flared at valve, O-ring at pump)
Been working great for 8 years and if I ever need replacement parts, it is all stock or hard line.
Stock. And awesome info. Thanks! Would you be able to snap and post a few pictures of your setup? Thanks again.
Dave
Last edited by jst2gtby; Aug 24, 2019 at 02:57 PM.
Stock. And awesome info. Thanks! Would you be able to snap and post a few pictures of your setup? Thanks again.
Dave
Dave,
I will see what I can do for pics. It is basically stock underneath. Biggest change is extension to return line to reservoir and then the hardline off the pump. I can't remember which hardline it is but it is male O ring to female O ring. I had a bend at the male end and then I had to make some small adjustments with a tubing bender to get it all lined up. Basically, it brings the pump outlet around the back to where the stock pump outlet would be.
Went out to the garage and here is all the info. Now, I did not want braided lines, but you could make them work using the appropriate adapters.
Tank is a Canton Racing 77-250. Has a 3/8 NPT inlet for return line and 1/2" NPT feed at bottom. I used brass 90 barbed hose fittings. 3/8" return line extended using 3/8" brass barbed union. 5/8" feed line from tank to pump.

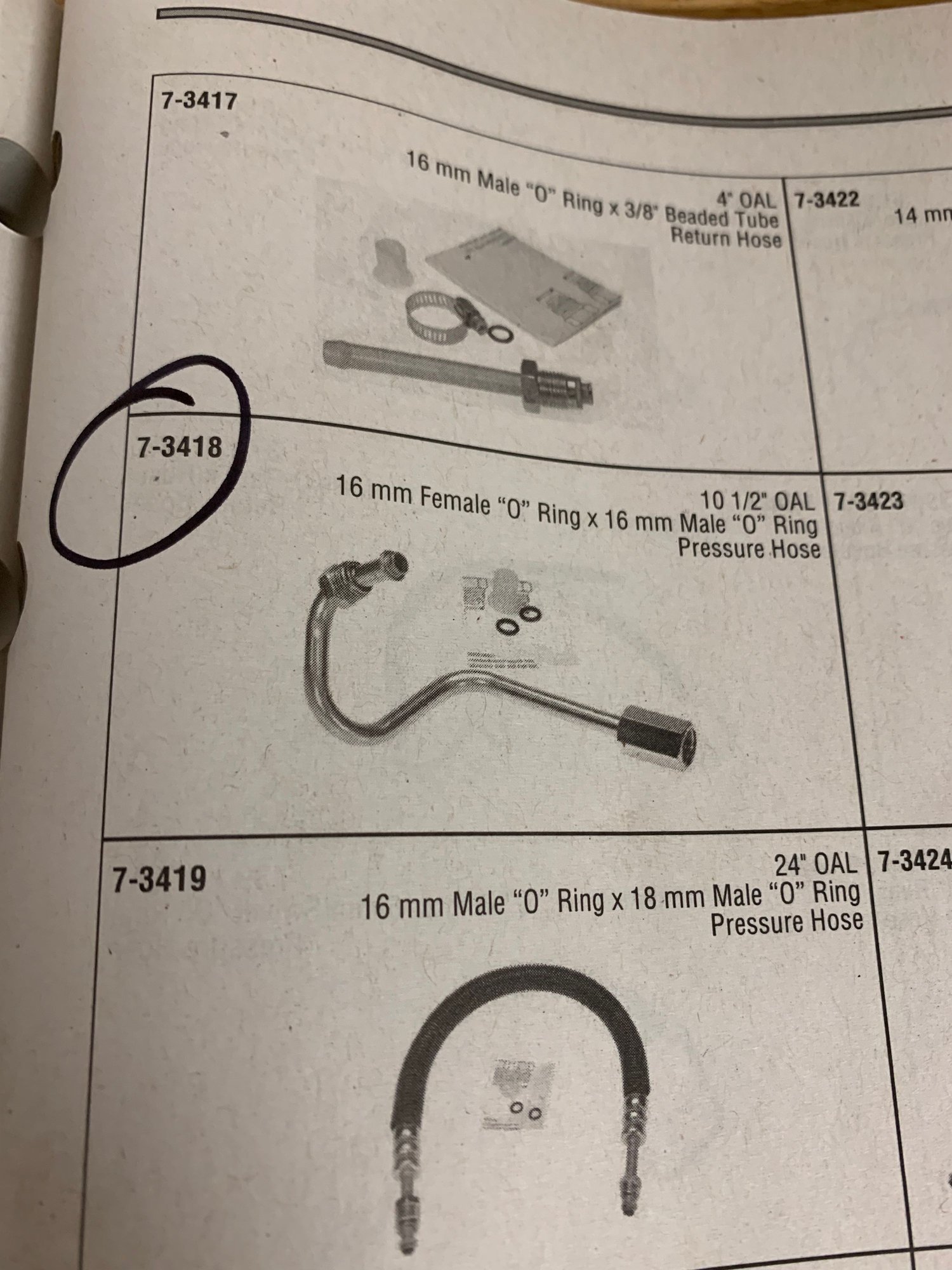

Pressure hoses were a NAPA NPS 71729 (stock 80-82) hose and NAPA NPS 73418 which is a short 16 mm male O-ring to 16 mm female O-ring.

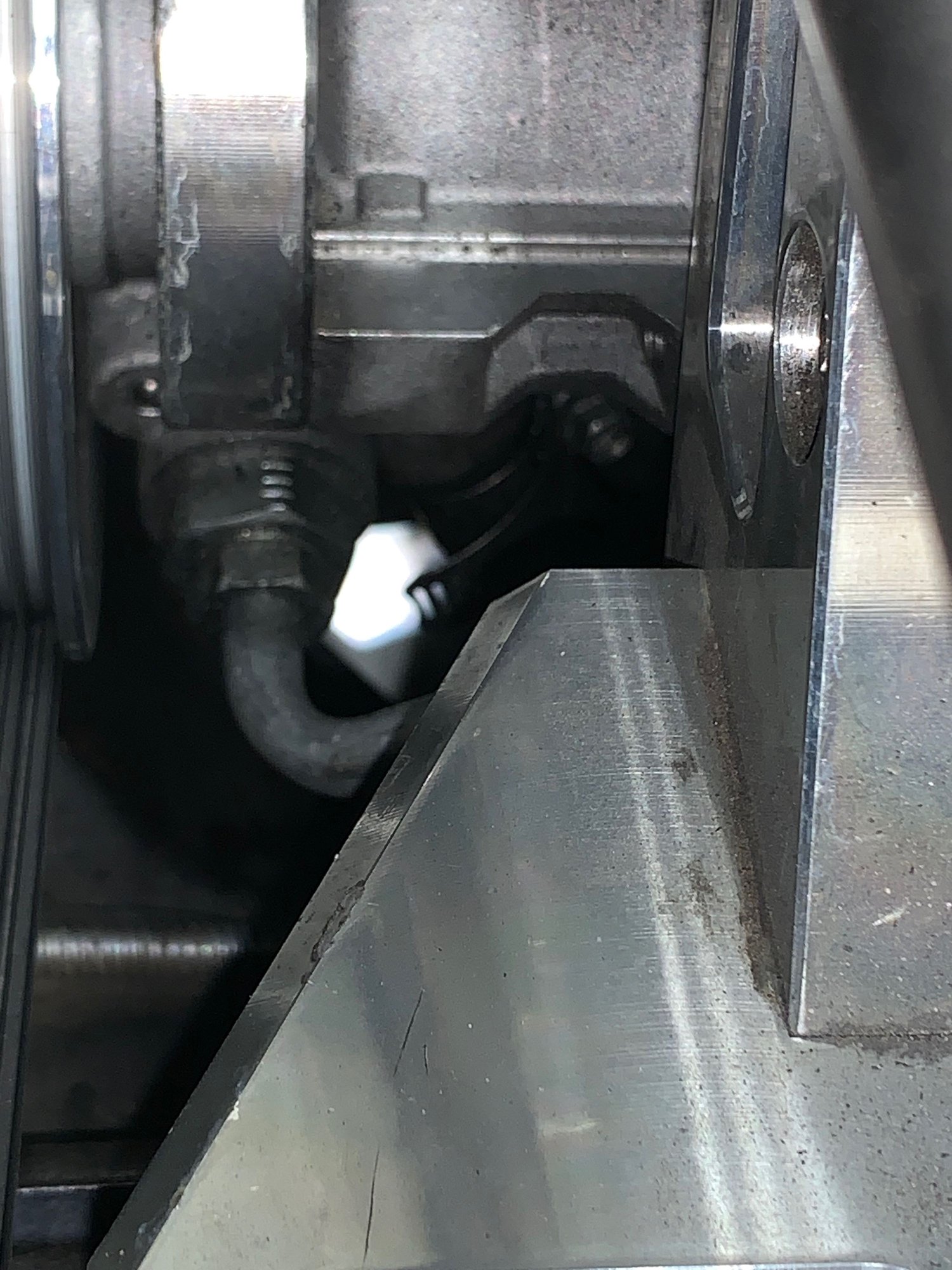

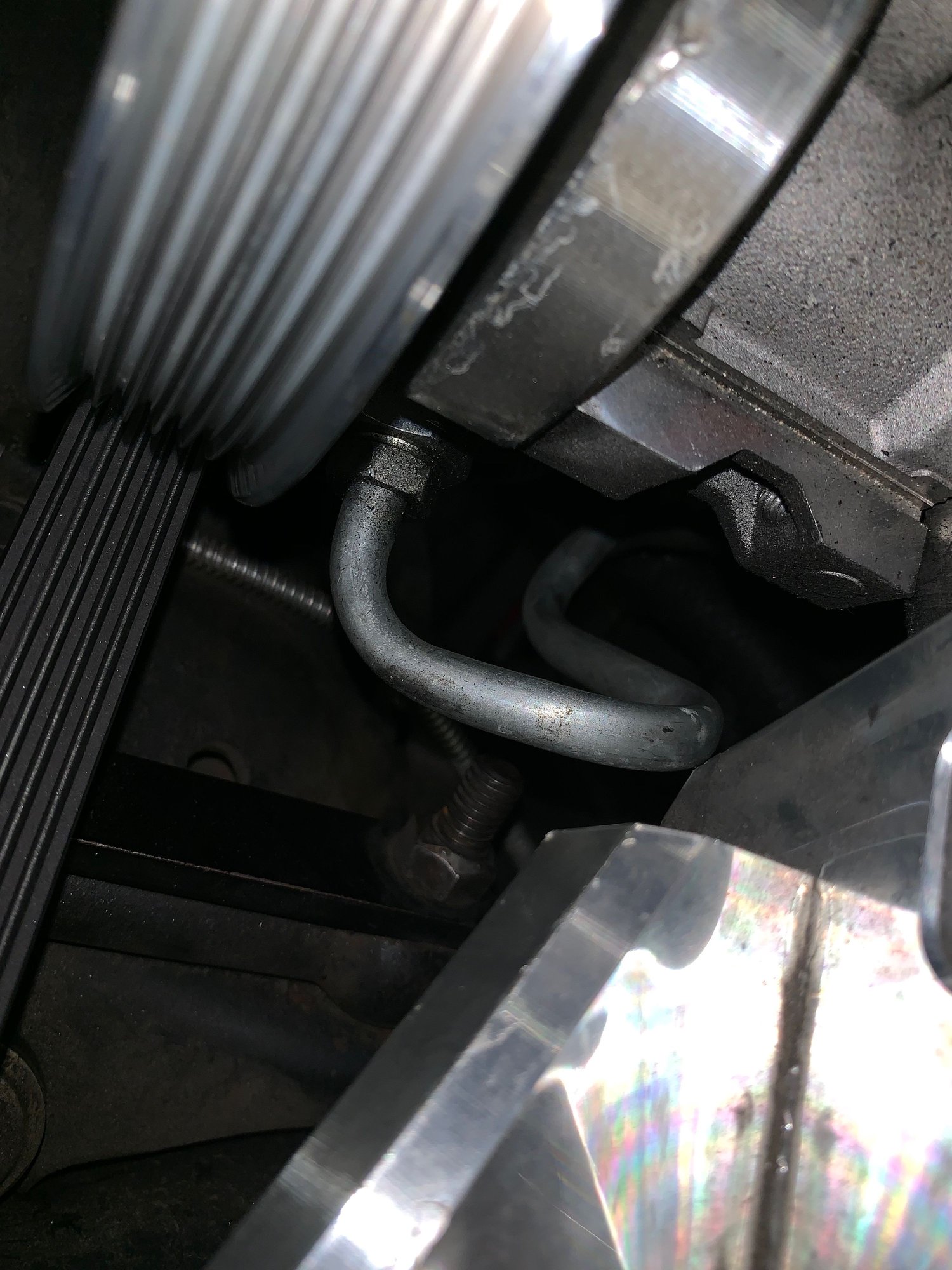

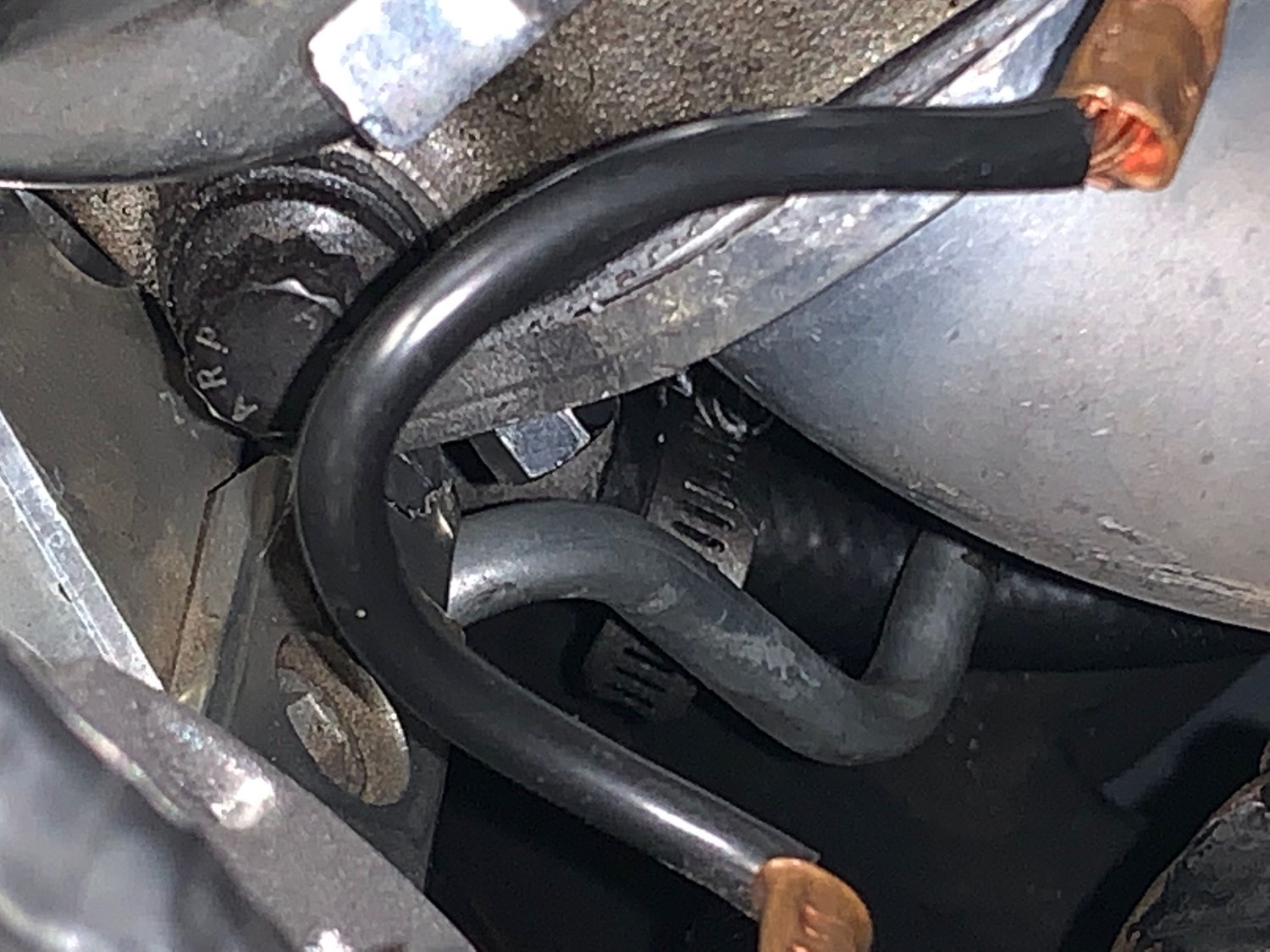

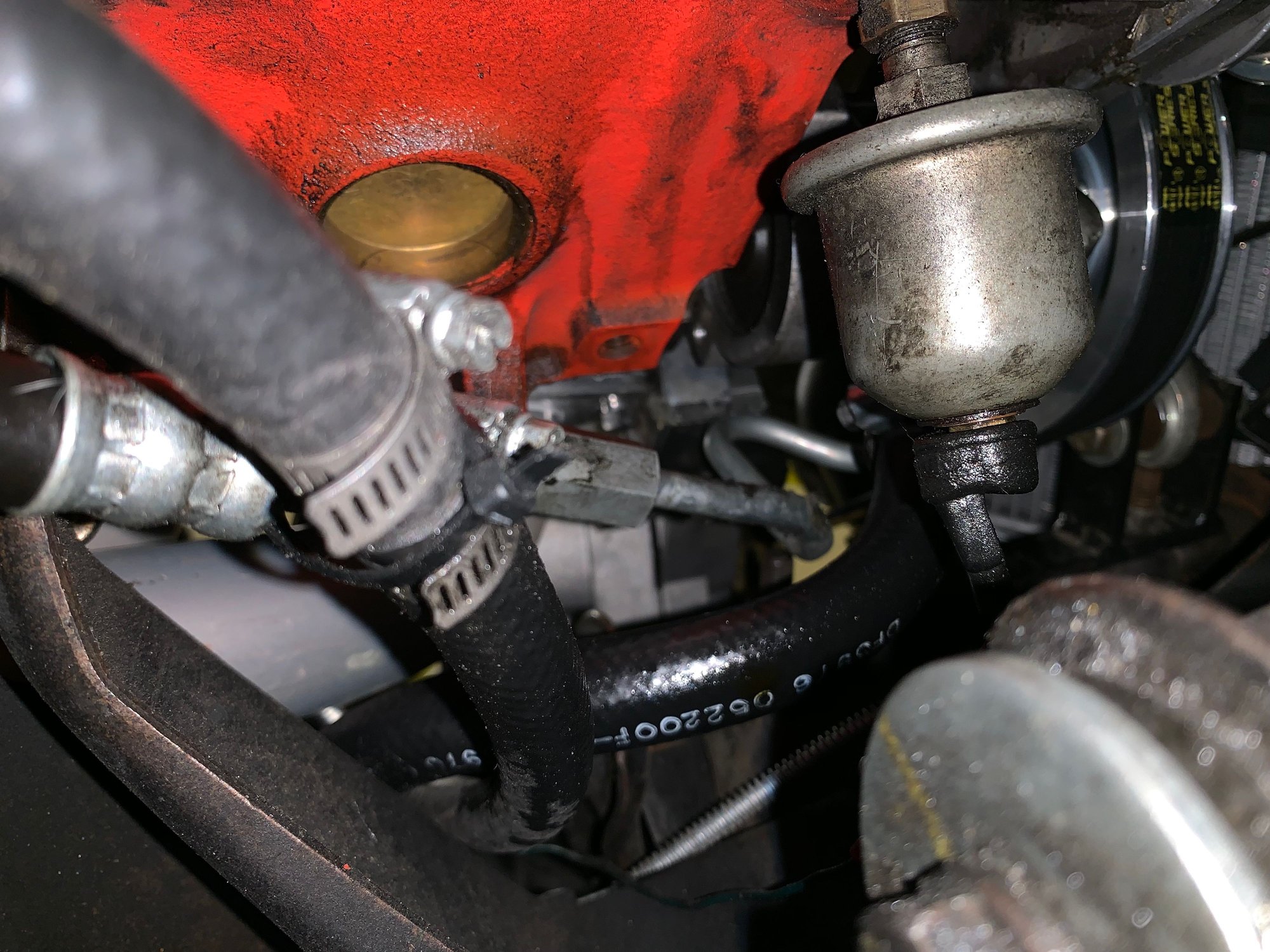

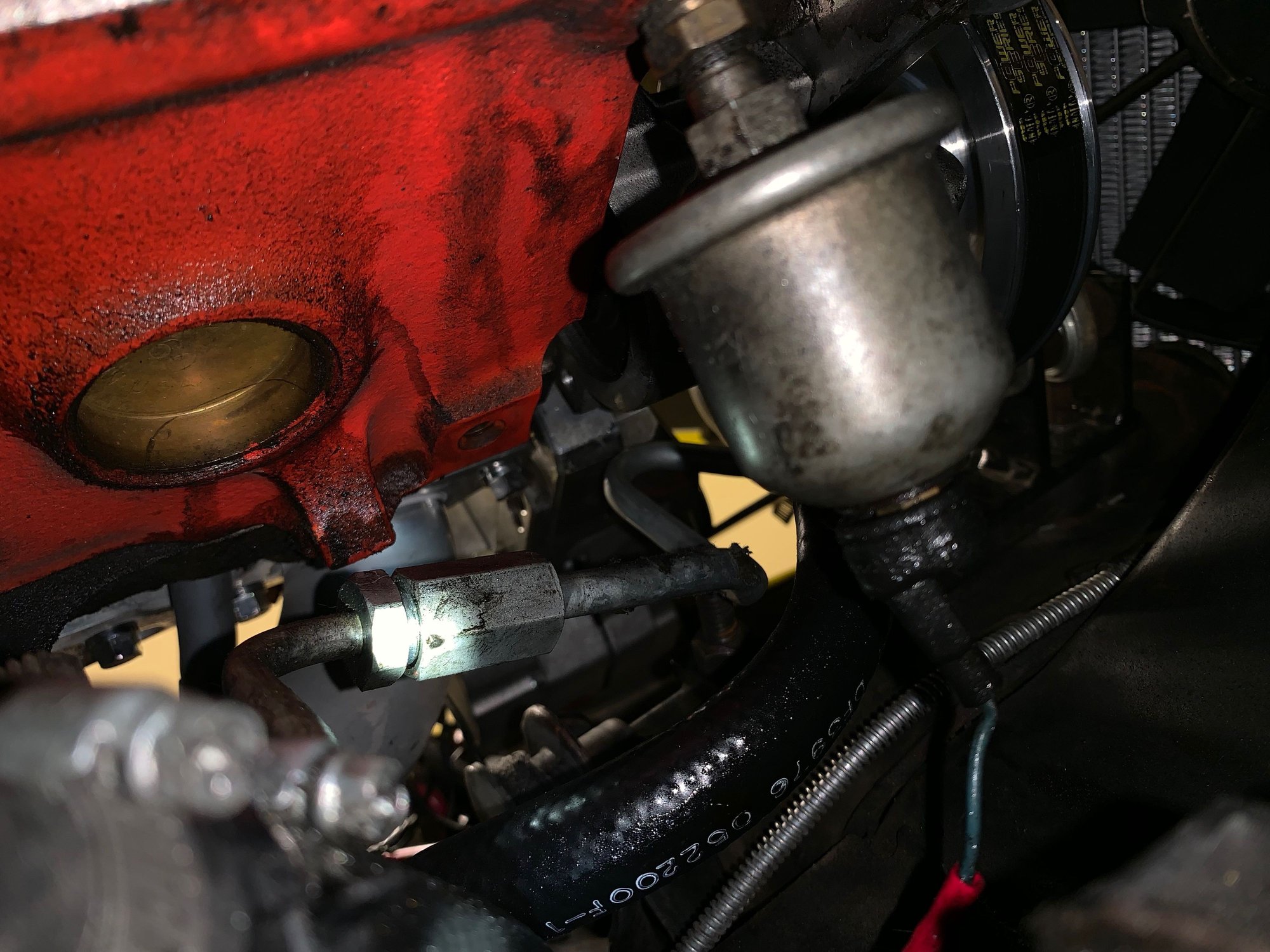

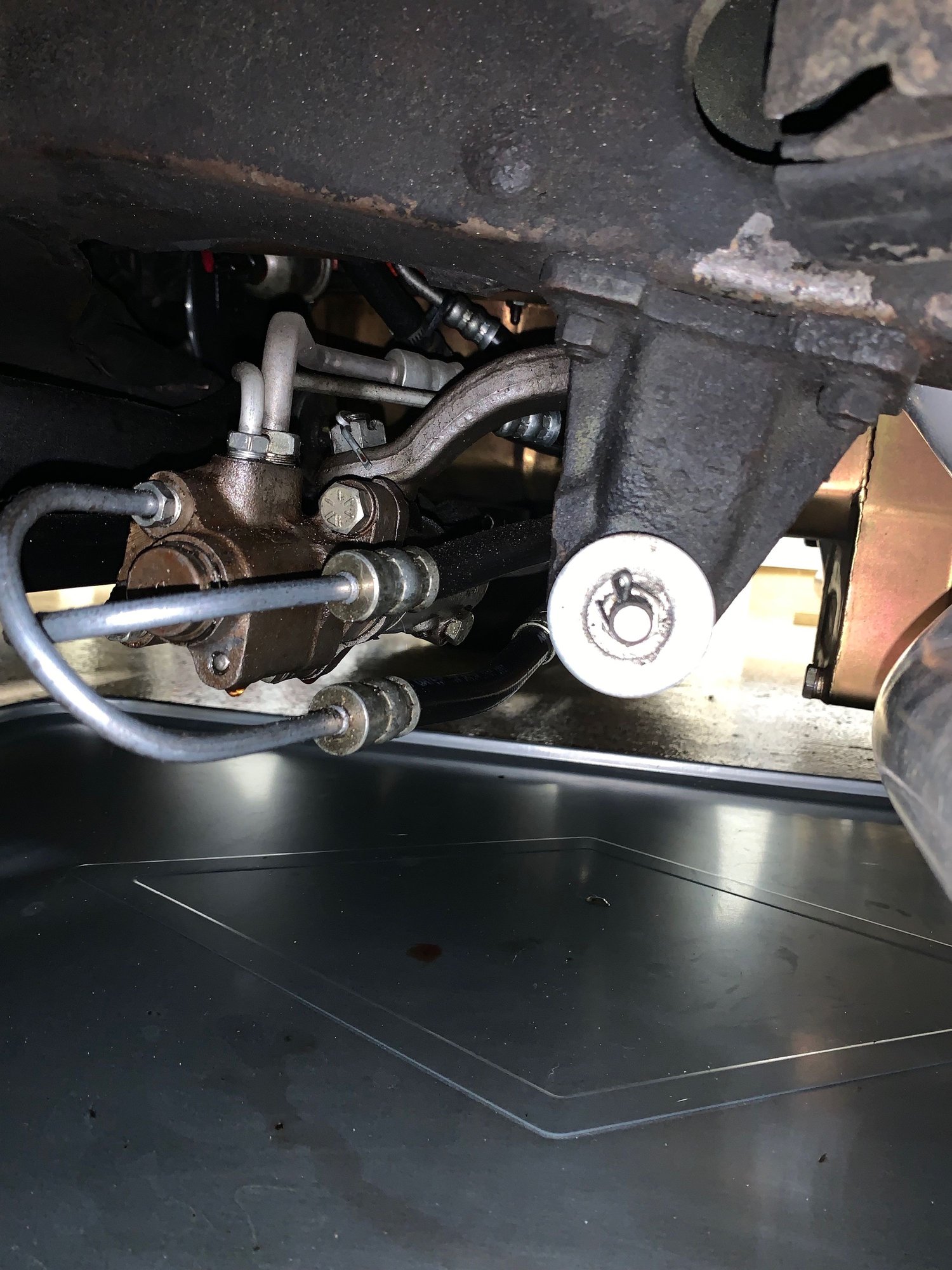

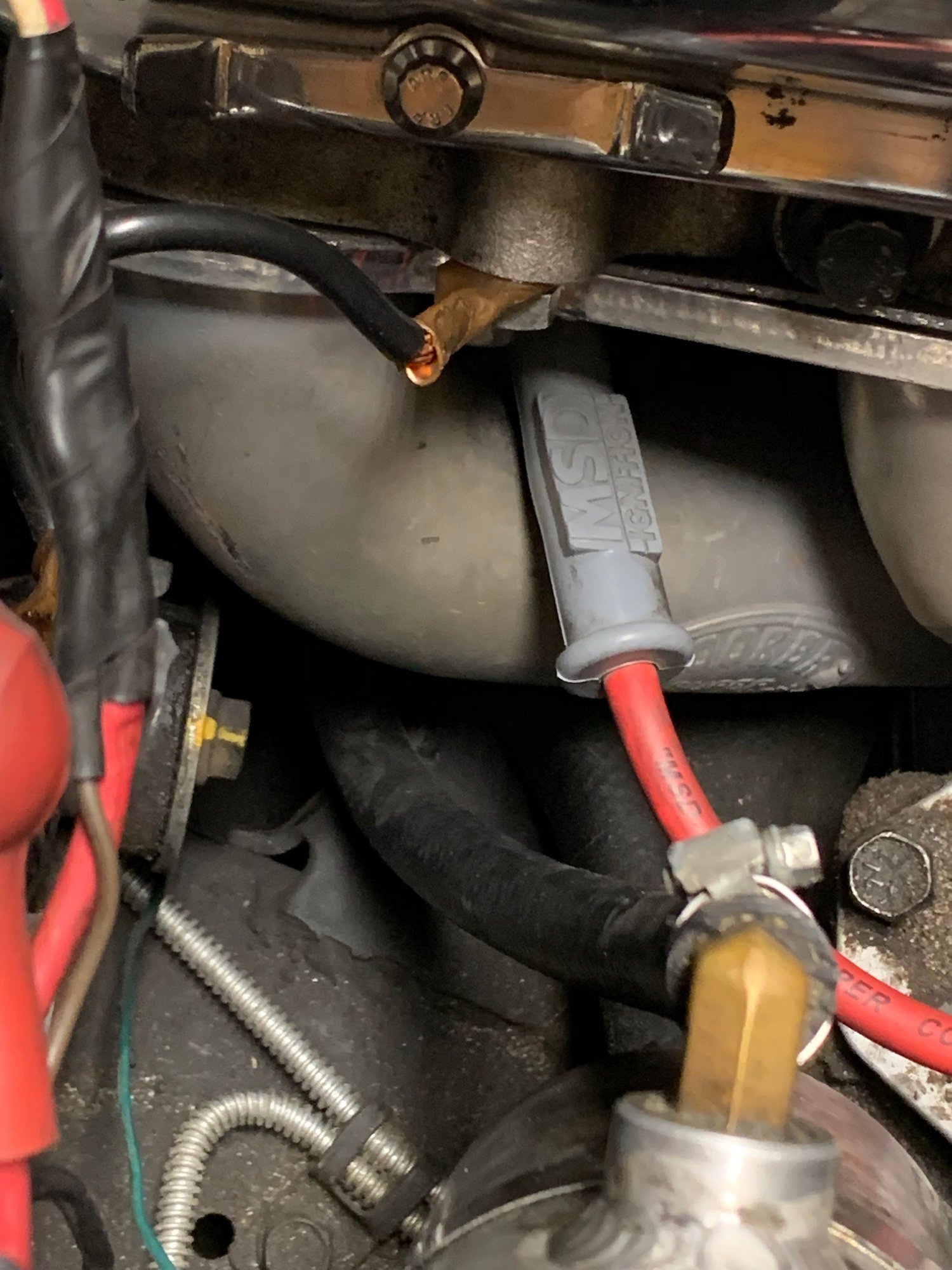

Pressure line (73418) at pump. Can barely see clamp for feed line from reservoir. Pressure line showing bends to bring it around and behind pump. Pressure line and feed line from reservoir. Reservoir. Return line going into upper part of tank. Can just see hose clamp for feed line at bottom. Hoses from tank going under #1 header. Hard to see but feed line is between return line and spark plug wire visually. About 1/2" clearance between hoses and headers on big block. All stock at control valve and ram. Best view I could get under car. Relocated oil pressure sender blocks quite a bit. Line with two hose clamps from upper left is return line from control valve. Pressure line is right above it and hooks to the hard line coming off the pump. Feed line is just below that visually and comes down from tank and then back to pump. Better view of the connection between the stock 80-82 pressure line and hard line. 80-82 pressure line. Hardline used to connect stock line to pump.
Last edited by SteveG75; Aug 25, 2019 at 02:25 PM.
I just got a quote from a reputable shop to add OEM PS to my 63 would cost $3900 in parts and about $3000 in labor. This sounds crazy since I see OEM PS kits listed for $1000 from Corvette Central, etc. Of course, it is a little intimating to do this job alone since I am handy but I am not a mechanic and have not done a job like this before.
I just got a quote from a reputable shop to add OEM PS to my 63 would cost $3900 in parts and about $3000 in labor. This sounds crazy since I see OEM PS kits listed for $1000 from Corvette Central, etc. Of course, it is a little intimating to do this job alone since I am handy but I am not a mechanic and have not done a job like this before.
Thats well into aftermarket rack and pinion territory price wise. Perhaps someone in the C1/C2 section would know if there’s any differences installing it on a ‘63 versus later years.
First, any questions should be sent to TURNOne Steering as they are the experts on the GM steering systems.
I have a Steeroids Power Rack and Pinion Steering system and it works well with the type 2 pump and the reservoir like I used. I made all the -AN lines myself and was able to get it working very easily and cheaply.
Use as big a reservoir as you can, because it will drop the power steering fluid temperature by increasing the volume of psf. Lower PSF temperatures will make the seals and other parts last a lot longer. On my C4 like many the Power Rack and pinions never last that long and mostly due to hot power steering fluid. The reservoir on the 1988 C4 is made of plastic and doesn't conduct heat very well.
On the hoses that I made I went and put an insulating cover over them to protect them from the heat up in the area near the pump.
I just got a quote from a reputable shop to add OEM PS to my 63 would cost $3900 in parts and about $3000 in labor. This sounds crazy since I see OEM PS kits listed for $1000 from Corvette Central, etc. Of course, it is a little intimating to do this job alone since I am handy but I am not a mechanic and have not done a job like this before.
I would say that is too high.
You should give Corvette Paramedics a call in Mt Holly, NJ. Maybe an hour from you.
Family owned, good people, great techs, great communication and fair prices.
Corvette service is all they do, usually ~30 cars there, saw a '54 and a '24 next to each other last week. That was cool.
As long as you do not have a 6 Qt oil pan, that some of the solid lifter cars might have, 340HP?.
Then it gets a little more involved, but still doable.
