Rear Ride Height
75 coupe...
Firstly, let me just confirm something. If you remove your lower shock mounts (done) during a trailing arm rebuild, there is only ONE way they can be re-installed (left side / right side) given the bolt end can only exit the rear of the strut mounting bracket - correct?
I've roughed in all new (rebuilt) Vansteel trailing arms, strut rods, half shafts, and had the spring re-padded. By roughed in, I mean everything is torqued in place - exception the front trailing arm pivot bolts. I just put the old shims back for now - will be taking it in for four wheel alignment soon.
However, as it sits now, the right rear is much higher than the left rear. Seems to be a common problem - based on some searching I've done.
How much can the ride height really be "adjusted" with the two leaf spring link bolts - really? IE - if I tighten the left and loosen the right - how much can the height be effected? There is only so much thread to catch the cotter pin - so you have very little thread space.
Firstly, let me just confirm something. If you remove your lower shock mounts (done) during a trailing arm rebuild, there is only ONE way they can be re-installed (left side / right side) given the bolt end can only exit the rear of the strut mounting bracket - correct?
I've roughed in all new (rebuilt) Vansteel trailing arms, strut rods, half shafts, and had the spring re-padded. By roughed in, I mean everything is torqued in place - exception the front trailing arm pivot bolts. I just put the old shims back for now - will be taking it in for four wheel alignment soon.
However, as it sits now, the right rear is much higher than the left rear. Seems to be a common problem - based on some searching I've done.
How much can the ride height really be "adjusted" with the two leaf spring link bolts - really? IE - if I tighten the left and loosen the right - how much can the height be effected? There is only so much thread to catch the cotter pin - so you have very little thread space.
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4
Not really, it's still in the same position. Will be getting it about later today, have a few things to tidy up first.
Mindful - it needs to go in for four-wheel alignment.
Question is how much can you really adjust the rear height with those link bolts?
Mindful - it needs to go in for four-wheel alignment.
Question is how much can you really adjust the rear height with those link bolts?
Le Mans Master
Joined: Aug 2005
Posts: 6,541
Likes: 1,975
From: Temple Terrace Florida
The height can be changed in the rear of the car using the bolts. However, you should not use the bolts to change the height from left to right in any meaningful way. As others have mentioned, has the suspension leveled out yet? Are one of the shocks frozen? Did you change out the front springs? Are the body mounts in good shape? Jerry
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4
The height can be changed in the rear of the car using the bolts. However, you should not use the bolts to change the height from left to right in any meaningful way. As others have mentioned, has the suspension leveled out yet? Are one of the shocks frozen? Did you change out the front springs? Are the body mounts in good shape? Jerry
Car can be bounced on all four corners, so shocks are not frozen.
Body mounts seem fine. As to the front springs, did not replace them but had them out and back in again a while back.
Tampa Jerry - can you suggest a good C3 shop in the Tampa area that knows what they are doing. I'm in Carrollwood (North Tampa).
Vansteel suggested a Good Year shop in Clearwater for alignment, but I don't know of any shops closer to me.
I'm as far as I can go - given my skill set.
Is my vette stock?? HAHA
Joined: Oct 2015
Posts: 20,218
Likes: 9,355
From: Im not allowed to tell you
2020 C3 of the Year Finalist - Modified
2020 Corvette of the Year Finalist (performance mods)
2019 C3 of Year Winner (performance mods)
2016 C3 of Year Finalist
what are the measurements and how much thread so you have. You can easily adjust out 1/2" I had that issue with my VBP suspension
Le Mans Master
Joined: Aug 2005
Posts: 6,541
Likes: 1,975
From: Temple Terrace Florida
If the front springs were removed and installed without indexing them correctly, you could easily have a 1" difference in the REAR of the car. I made that mistake. Install the spring in the upper pocket of the frame first. The top edge of the spring must be within 3/8" of the inspection hole in the frame. I put some blue painters tape on the spring to see it better. I also dropped a small bolt, 1/4-20 into the hole and used it as a stop for the spring. Lastly, put the spring in the lower control arm and compress the spring and attach the spindle assembly. Don't forget to remove the bolt in the frame. Jerry
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4
If the front springs were removed and installed without indexing them correctly, you could easily have a 1" difference in the REAR of the car. I made that mistake. Install the spring in the upper pocket of the frame first. The top edge of the spring must be within 3/8" of the inspection hole in the frame. I put some blue painters tape on the spring to see it better. I also dropped a small bolt, 1/4-20 into the hole and used it as a stop for the spring. Lastly, put the spring in the lower control arm and compress the spring and attach the spindle assembly. Don't forget to remove the bolt in the frame. Jerry
That said, my rear is way off - more than an inch. I think the issue may simply be that the top of the coil isn't even in the socket at all and is hung up on a ledge.
I'll take it down one more time and double check it all. If it still is way off I'll have Tony deal with it. I assume he has equipment to do a good four wheel alignment, which I'll need in any event - once I get the car sitting pretty.
Le Mans Master
Joined: Jun 2019
Posts: 5,485
Likes: 2,193
From: Loveland
Assuming the spring is installed straight, and the bolt connections on the ends are equal. I just changed from a 7 leaf to a 9 leaf spring. The original bolts were to short. They made the rear set to high. I had to get 1 inch longer bolts. Remember,,,,,, the ONLY thing that controls the ride height is the length of the end bolts,, for a given spring.
Le Mans Master
Joined: Aug 2005
Posts: 6,541
Likes: 1,975
From: Temple Terrace Florida
The videos you are viewing are incorrect if they pertain to a C-2 or C-3 Corvette. Please check the AIM or Assembly Instruction Manual. The AIM was put together by GM to be used on the assembly line as a reference as to how build the cars at the factory. Next to a repair manual, the AIM is a must have tool in repairing and restoring these old cars. They are year specific and can be purchased at any of the vendors. Jerry
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4
The videos you are viewing are incorrect if they pertain to a C-2 or C-3 Corvette. Please check the AIM or Assembly Instruction Manual. The AIM was put together by GM to be used on the assembly line as a reference as to how build the cars at the factory. Next to a repair manual, the AIM is a must have tool in repairing and restoring these old cars. They are year specific and can be purchased at any of the vendors. Jerry
I'm thinking that my issue is that the top isn't seated correctly. I'll know as soon as I can get some time to dig deeper.
Thanks!
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4
Jerry - I see what you mean. I took the spring out again and made sure the spring top / bottom was oriented properly (tight coils on top). Then I took a good look at the upper spring mount. There is really only ONE stop and if you happen to over shoot it with the end of the spring, I can see how the car would be higher on that side. Trusting the bottom to seat the top correctly may work if you luck out. That must be what happened to me with the right side.
I took care to seat (index) it correctly, and got it to spring back to the point that I was able to get the steering knuckle back on to hold it all in place. Hopefully tomorrow I'll have time to wrap it up and see how the car sits.
If it's still off, it's going to Tony.
I took care to seat (index) it correctly, and got it to spring back to the point that I was able to get the steering knuckle back on to hold it all in place. Hopefully tomorrow I'll have time to wrap it up and see how the car sits.
If it's still off, it's going to Tony.
Thread Starter
Instructor
Joined: Apr 2017
Posts: 205
Likes: 4

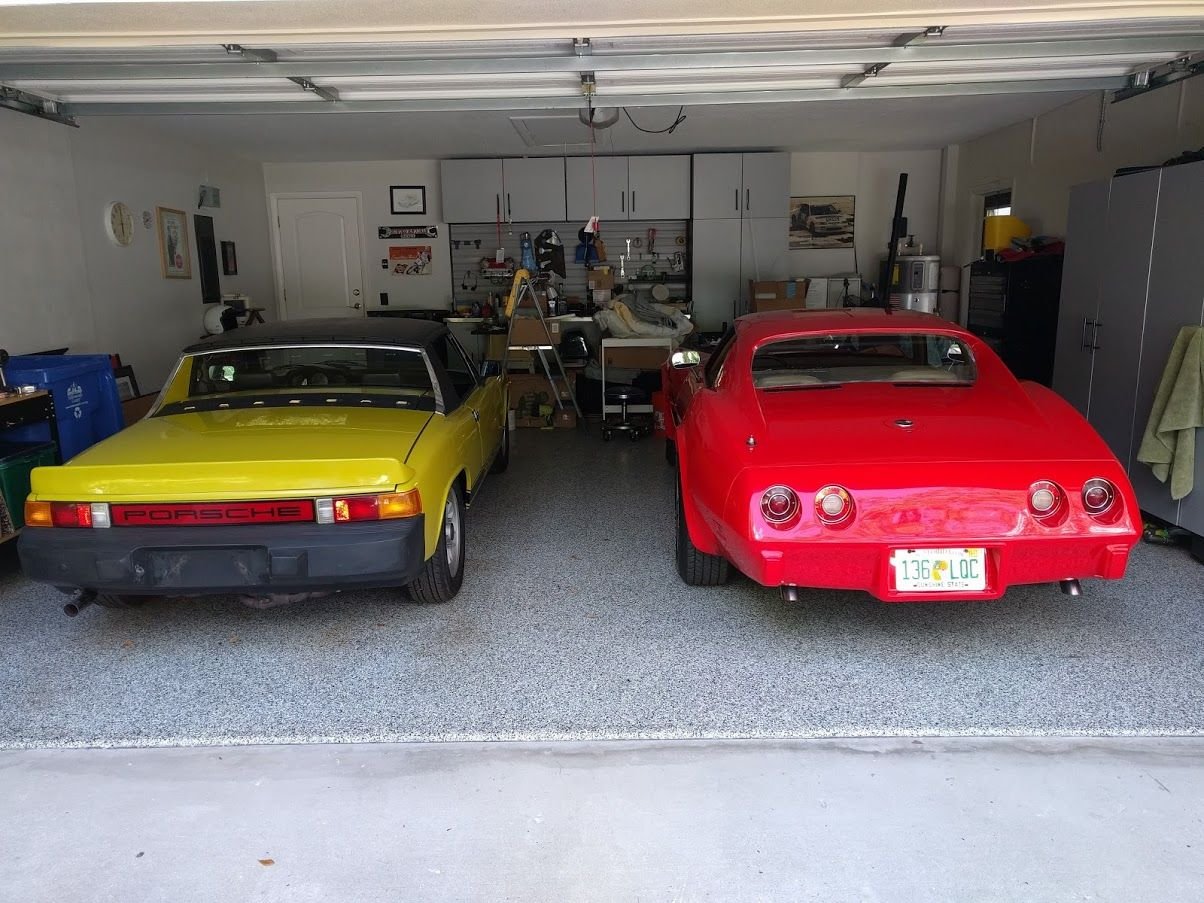

So, I may have misled everyone about the rear height being off. The whole right side is off, just you really can notice it from the rear of the car much more than the front.... Of course parked in the garage nose in, the back is very noticeable. My bad.
