Hi,

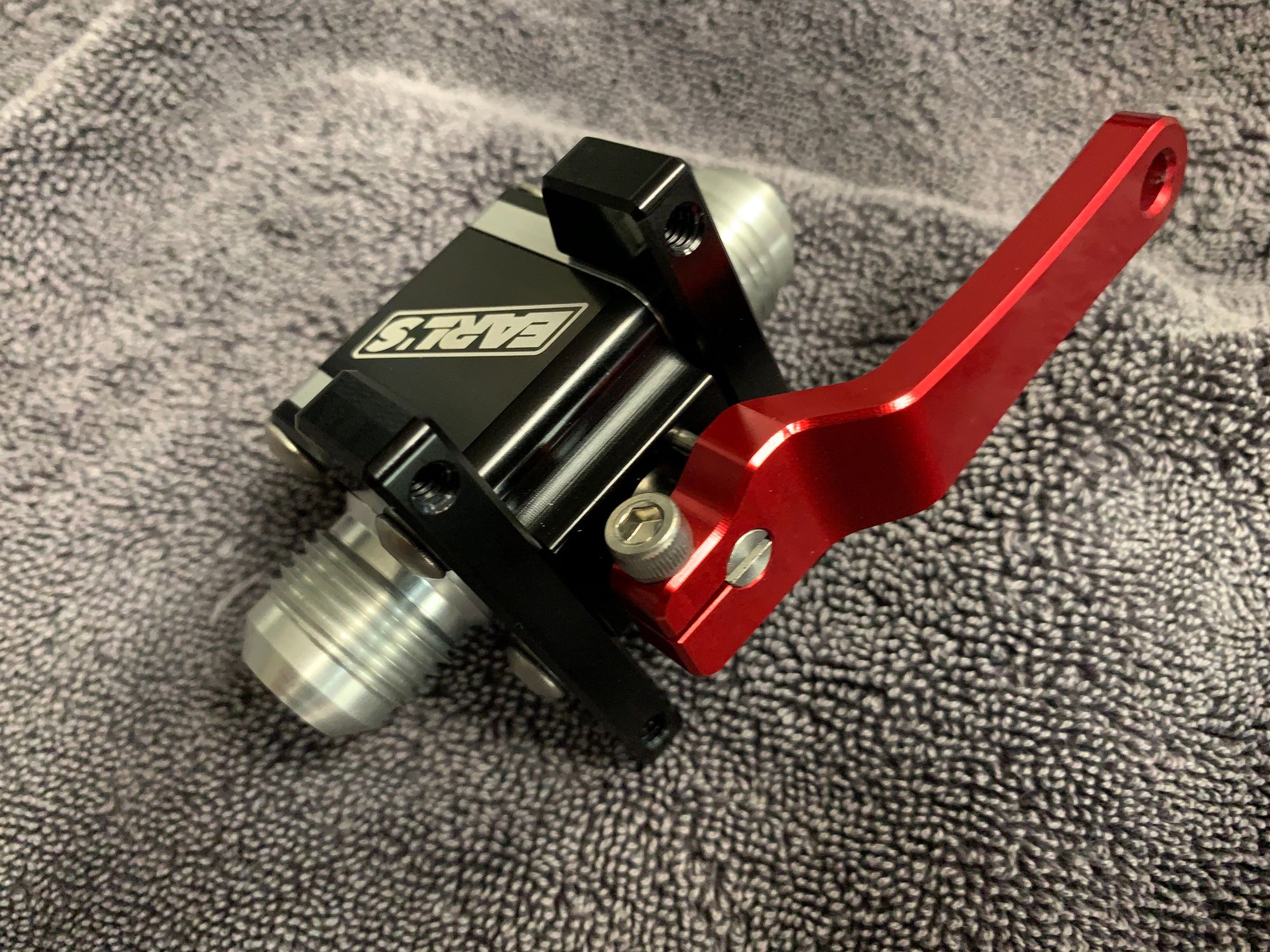

Wanted to share some photos of my recent build progress. I have been working on a fuel system for my 540 using a submerged Phantom 340 pump with a sumped custom 24 gallon tank from Rock Valley. The Aeromotive Phantom kit came with a fuel regulator with return line and dual carb feeds. I am running -10 an from the pump to a Aeromotive -10 an filter and through a -10 an Earls pro shut off valve that will be accessible in from the wiper compartment from outside the car without opening the hood, and will have a pull lever inside also. From there to the regulator and the return line is a -8 an as well as the carb feeds. So when I got this kit I started looking for a regulator mount for my Dominator carb and could not find anything. I did not want to mount it several feet away from the carb and have 3 foot long carb feed lines. So I decided to make a regulator mounting bracket... Sounds easy enough!
My 81, purchased back in 1984. In the later stages of a 30 year build lol.
This will not work, the regulator will be bouncing around with nothing to support it..
Got an idea of what I need, a drop bracket that will let me mount it next to my nitros distro block and stay out of the way of the valve cover and have hood clearance.
Time to bust out the Harbor Freight saw and get cutting! I love this thing it has never let me down.
Hmmm...
Mmm hmm..
Ahh Hah! I may quit my day job and start manufacturing baby aluminum elephants and selling them on eBay.
Final shape. Just have to cut a hole in the base and drill countersinks for the regulator mounting screws.
Time to get polishing!
Parts came out pretty good. Bottom bracket is very surprised at how well he fits. I missed a bunch of deep scratches,that I did not notice until I was 8 grits deep.. I will go back over them again when I am polishing the next bracket I make.
Cut down some Arp bolts to fit, and everything lines up very nicely.
Used a wood hole saw to cut the return line circle in the base. Worked very well besides the black paint on the blade catching on fire. Who knew?
It fits perfect! (Miracle)

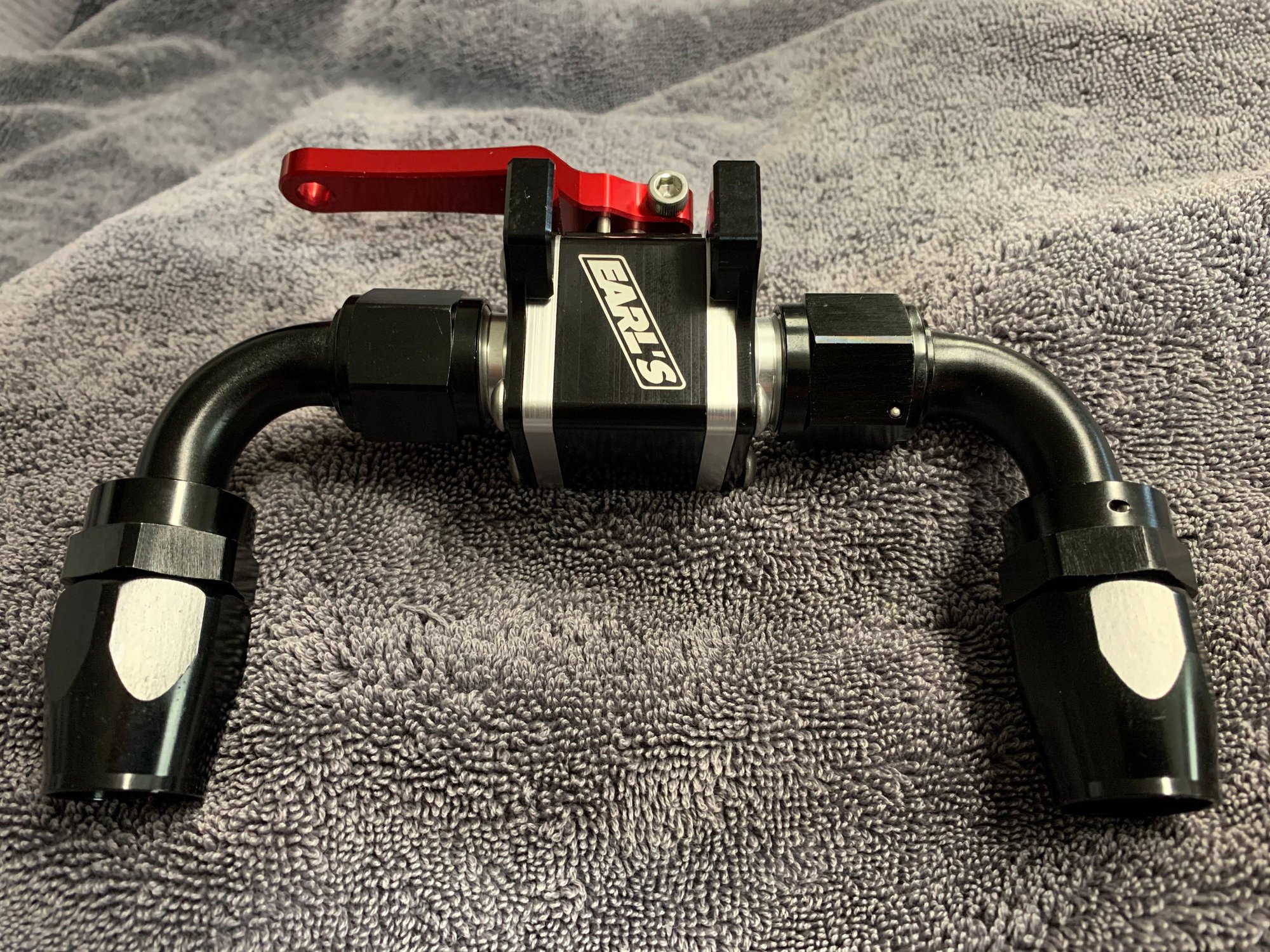

Hey look how good I am at putting together hoses! I tore these hose fittings up.. I need a gallon of an fitting touch up paint. And some foot long an wrenches.. Those hose fittings are tough!
I will throw up some more pics after I make some more progress.
Happy Holidays!
Wanted to share some photos of my recent build progress. I have been working on a fuel system for my 540 using a submerged Phantom 340 pump with a sumped custom 24 gallon tank from Rock Valley. The Aeromotive Phantom kit came with a fuel regulator with return line and dual carb feeds. I am running -10 an from the pump to a Aeromotive -10 an filter and through a -10 an Earls pro shut off valve that will be accessible in from the wiper compartment from outside the car without opening the hood, and will have a pull lever inside also. From there to the regulator and the return line is a -8 an as well as the carb feeds. So when I got this kit I started looking for a regulator mount for my Dominator carb and could not find anything. I did not want to mount it several feet away from the carb and have 3 foot long carb feed lines. So I decided to make a regulator mounting bracket... Sounds easy enough!
My 81, purchased back in 1984. In the later stages of a 30 year build lol.
This will not work, the regulator will be bouncing around with nothing to support it..
Got an idea of what I need, a drop bracket that will let me mount it next to my nitros distro block and stay out of the way of the valve cover and have hood clearance.
Time to bust out the Harbor Freight saw and get cutting! I love this thing it has never let me down.
Hmmm...
Mmm hmm..
Ahh Hah! I may quit my day job and start manufacturing baby aluminum elephants and selling them on eBay.
Final shape. Just have to cut a hole in the base and drill countersinks for the regulator mounting screws.
Time to get polishing!
Parts came out pretty good. Bottom bracket is very surprised at how well he fits. I missed a bunch of deep scratches,that I did not notice until I was 8 grits deep.. I will go back over them again when I am polishing the next bracket I make.
Cut down some Arp bolts to fit, and everything lines up very nicely.
Used a wood hole saw to cut the return line circle in the base. Worked very well besides the black paint on the blade catching on fire. Who knew?
It fits perfect! (Miracle)
Hey look how good I am at putting together hoses! I tore these hose fittings up.. I need a gallon of an fitting touch up paint. And some foot long an wrenches.. Those hose fittings are tough!
I will throw up some more pics after I make some more progress.
Happy Holidays!
Last edited by Mewn; 10-30-2019 at 11:39 PM.
The following 3 users liked this post by Mewn:
#2
Le Mans Master
Member Since: May 2003
Location: Fernandina Beach FL
Posts: 8,481
Received 3,220 Likes
on
1,732 Posts
2023 Restomod of the Year finalist
2020 C3 of the Year Winner - Modified
NICE work!!! ARP 12 points really?? Of course -I'd have done the same thing!!!
I ended up removing the anodizing from the AN fittings and polished them because they are way to easy to nick up-
I'll give a warning re the Aeromotive Phantom...since my build looks like it's taking longer than yours!!!

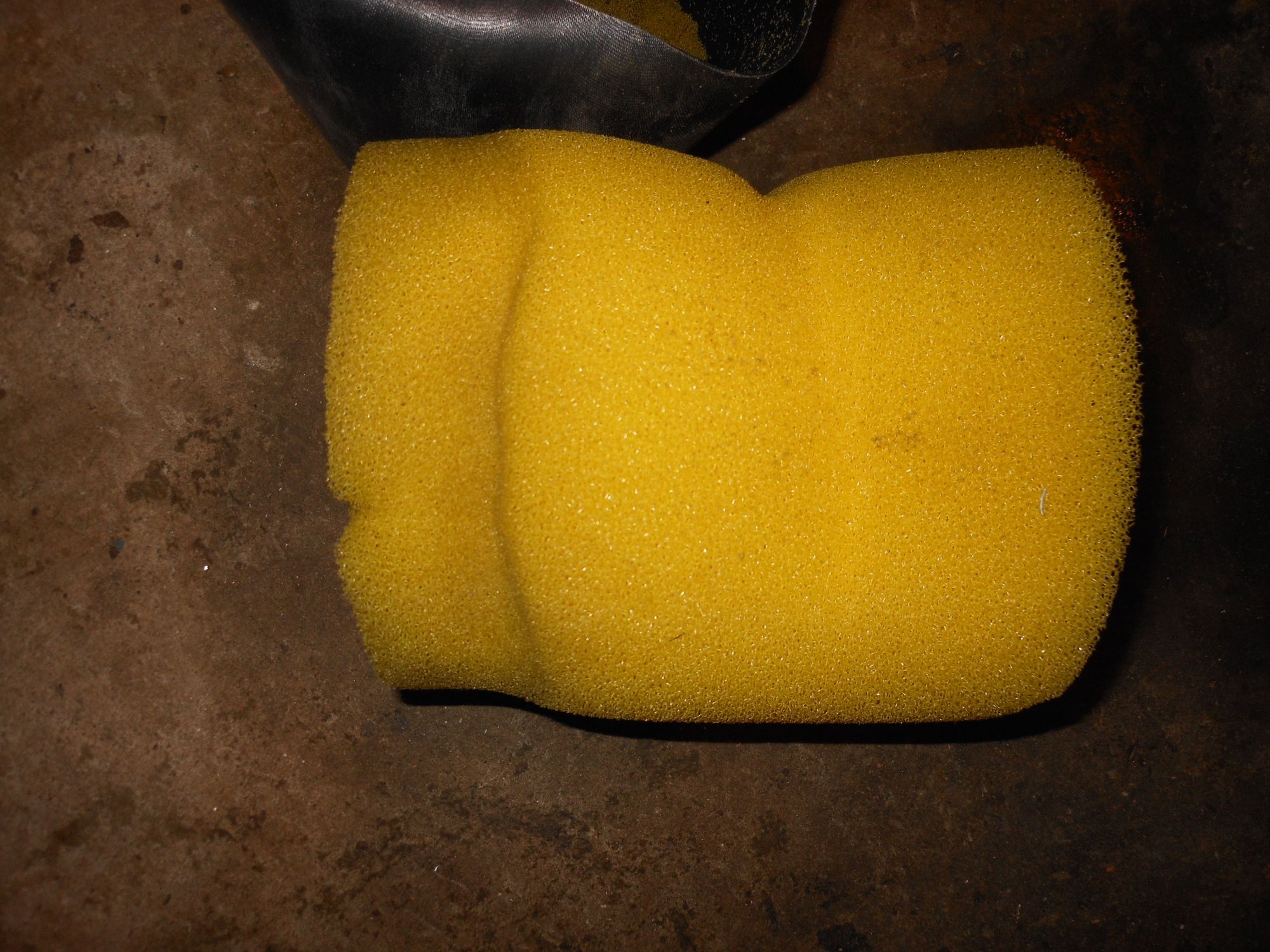

I have the foam DISSOLVE in the tank after 2 years !!!
