Default Black / Orange connector - engine bay - ?????

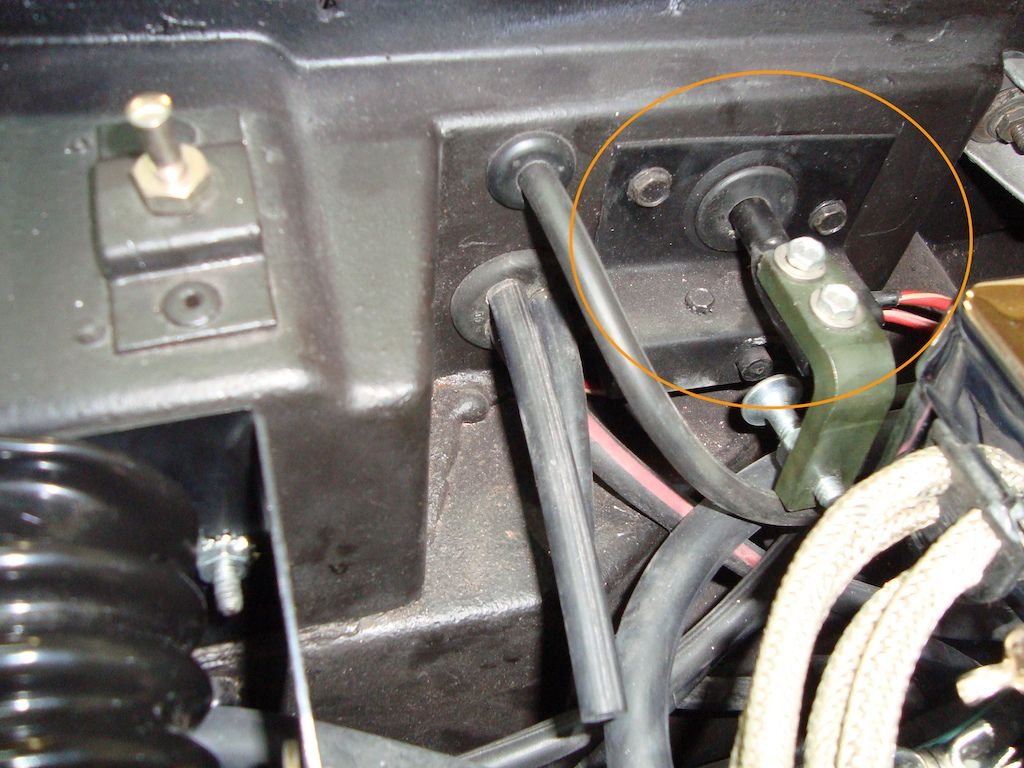

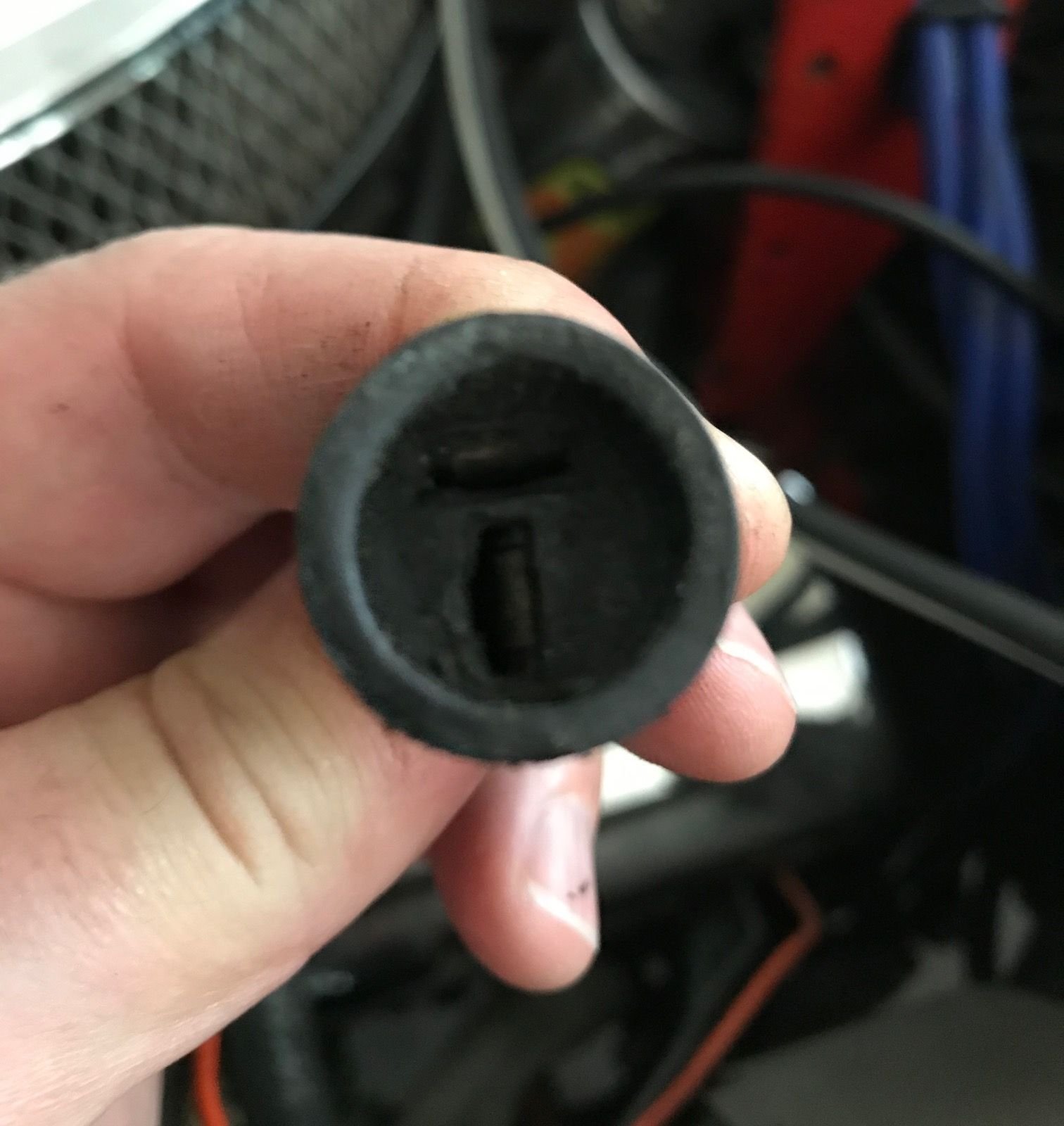

I have been working on getting my 71 vette that I purchased back to "good" and that has involved sorting out a lot of connections that are not mated. Its a 4 speed with a 350. I have a connection that is loose in the engine bay that I cannot find a mate for. I checked the wiring guides that are posted - but no luck. If anyone can help that would be great. I have posted three pics - the one with the circle is the origin point as best as I could get to it with my phone.


Reply
Old Apr 17, 2020 | 03:49 PM
  #2
GunPowder's Avatar
GunPowder
Racer
15 Year Member
Liked
Loved

Joined: May 2007
Posts: 334
Likes: 17
Default

Wiper door limit switch?


Reply
Old Apr 17, 2020 | 06:20 PM
  #3
david71vette's Avatar
david71vette
Thread Starter
Instructor
Conversation Starter
All Eyes On Me
Liked
Top Answer: 1

Joined: Mar 2020
Posts: 118
Likes: 15
From: Texas
Default

Originally Posted by GunPowder
Wiper door limit switch?

Nope - checked that is not it.
Reply
Old Apr 17, 2020 | 08:48 PM
  #4
bazza77's Avatar
bazza77
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2010
Posts: 3,176
Likes: 633
From: perth western australia
Default

TCS solenoid on the engine ?

Last edited by bazza77; Apr 17, 2020 at 08:59 PM.
Reply
Old Apr 17, 2020 | 09:31 PM
  #5
bobby70's Avatar
bobby70
Racer
10 Year Member

Joined: Dec 2012
Posts: 487
Likes: 66
From: Rhode Island
Default

it looks like it goes to the transmission
Reply
Old Apr 17, 2020 | 09:50 PM
  #6
barkingrats's Avatar
barkingrats
1967 Pedal Car Champion
Supporting Gold

Joined: Mar 2020
Posts: 9,137
Likes: 4,247
From: US-PNW
Default

Is it a couple feet long after exiting the wiring harness? If so, it's the TCS solenoid wire to the switch about midpoint on the intake manifold.
Reply
Old Apr 17, 2020 | 09:57 PM
  #7
bazza77's Avatar
bazza77
Melting Slicks
15 Year Member
Liked
Loved
Community Favorite

Joined: Jul 2010
Posts: 3,176
Likes: 633
From: perth western australia
Default

http://repairs.willcoxcorvette.com/1...g-and-routing/
Reply
