#6 with a #10 fusable link would be fine.
As long as that "feeder" is 110% of the connected load, its fine.
I should measure that sometime.

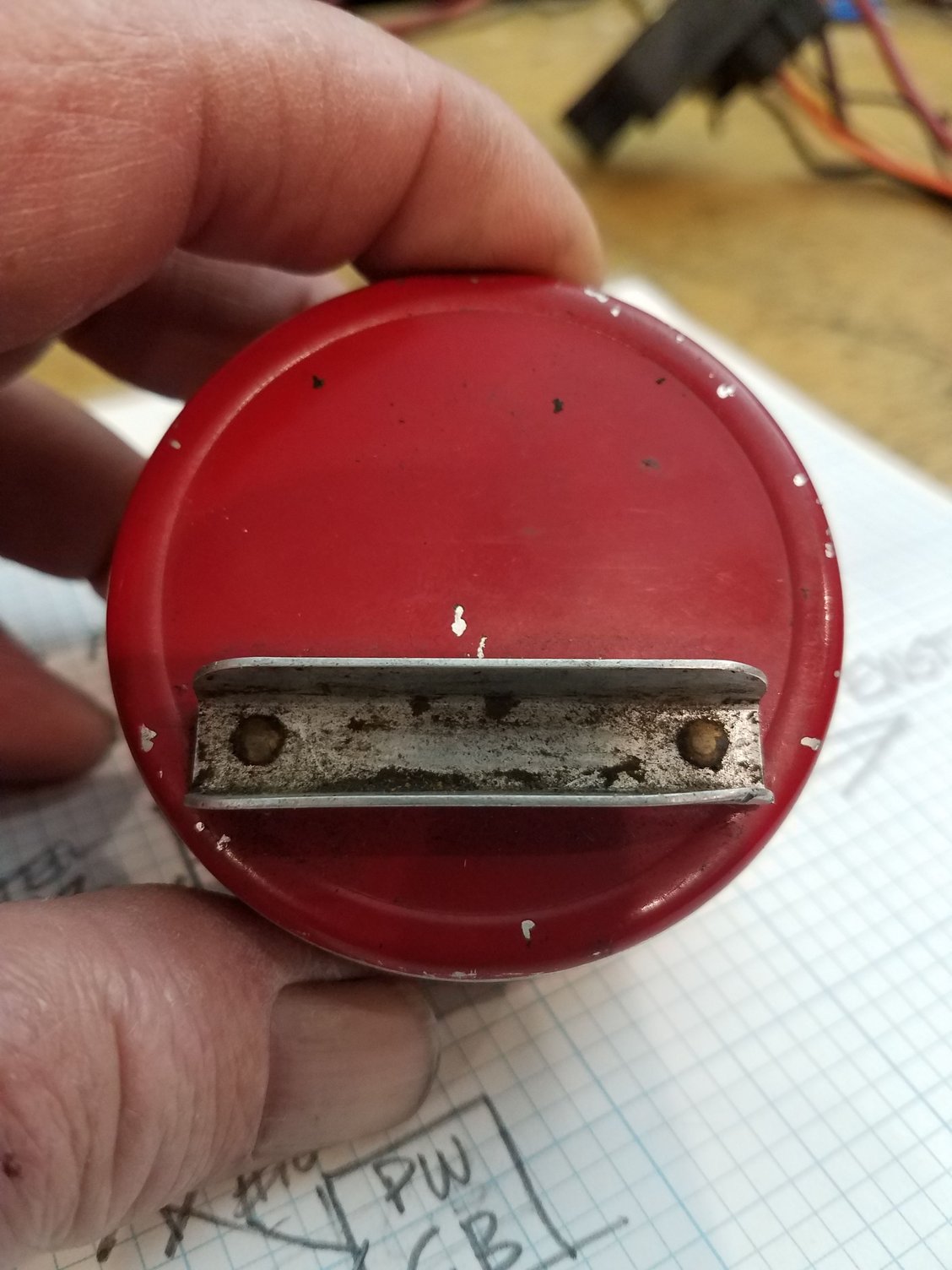

This old induction ammeter works pretty well.
I should run the car with everything going, including the engine cooling fan, and put my ammeter on the battery cable.
Yup. Post the results. Since the alternator goes directly to the battery, the reading will be accurate.
Rear window defroster, blower, lights, radio, etc. Your #10 might get kinda warm.
The lights alone are substantial. Being a resistive load, they use more with higher voltage.
When ever I can while performing wiring mods on GM's I will remove the use of the power distribution point at the starter and add a remote 3/8 power distribution stud. From that point the links will be attached as well well as any other High current accessories. It makes life easy for modded cars.
When ever I can while performing wiring mods on GM's I will remove the use of the power distribution point at the starter and add a remote 3/8 power distribution stud. From that point the links will be attached as well well as any other High current accessories. It makes life easy for modded cars.
The schematic I have shows the alternator output wire also goes to the dash where it joins other wires and eventually comes back out to under the hood where it connects to the solenoid and also power things like the heater relay. The routing is very convoluted, with wires in parallel too.
The schematic I have shows the alternator output wire also goes to the dash where it joins other wires and eventually comes back out to under the hood where it connects to the solenoid and also power things like the heater relay. The routing is very convoluted, with wires in parallel too.
It goes right to the battery. My 81 wiring was unmolested before I updated it.
It isn't the only error in the book. I have few notes in my manual of errors.
Even the 73 book I am using on the way back thread has a pin out wrong.
Poor proof reading on their part.
I just remembered. The single line shows all the fusable links, but they omitted the one going back to the battery. When I pulled it out, it had a fusable link soldered under friction tape, right before it dives into the battery box.
Last edited by Big2Bird; Jul 16, 2020 at 01:20 PM.
From: Arizona - If you don’t know CFI, STOP proliferating the myths around it...
Originally Posted by Big2Bird
It goes right to the battery. My 81 wiring was unmolested before I updated it.
It isn't the only error in the book. I have few notes in my manual of errors.
Even the 73 book I am using on the way back thread has a pin out wrong.
Poor proof reading on their part.
I just remembered. The single line shows all the fusable links, but they omitted the one going back to the battery. When I pulled it out, it had a fusable link soldered under friction tape, right before it dives into the battery box.
That IS exactly how an 82 is wired and I think that is 10ga, maybe larger? I also have the same old school indicator as the one you have and works great.
Last edited by Buccaneer; Jul 16, 2020 at 04:13 PM.
Yup. Post the results. Since the alternator goes directly to the battery, the reading will be accurate.
Rear window defroster, blower, lights, radio, etc. Your #10 might get kinda warm.
The lights alone are substantial. Being a resistive load, they use more with higher voltage.
Thanks for this. The 10% over rule is key. Here's what I decided to do.
After I make this change I'll measure the amperage with bright lights and on the cold #6.
When ever I can while performing wiring mods on GM's I will remove the use of the power distribution point at the starter and add a remote 3/8 power distribution stud. From that point the links will be attached as well well as any other High current accessories. It makes life easy for modded cars.
So then the wire from the starter to the remote pwr. dist. stud is left unprotected? That not good.
There are some manufactures that will use a 250 amp mega fuse or better in line to the starter from the battery but most every car on earth does not including yours.
Autozone gave me three options with a 6ga cable.
A. 19" long (I need 24") for $10.
B. 12' long jumper cables for $33. Not a bad option if you have a bunch of projects like this.
C. #4 or #2 in various lengths The 32" #4 is cheaper than the short #6 or the 24" #4.
Your 10 gauge should work without giving you any trouble, as I commented on before. Not much point making it larger unless you update the charging wire too. Make sure it is mounted so it can't short and it should be good. In reality, wire is not rated by a current, to size you make sure you remain under the insulation temperature rating and voltage drop. The various tables are used to pick wire and have a safety factor. I've done testing on stuff that had wire sized light enough it wasn't allowed when following the tables but it still passed the temperature rise tests.
