Ground strap diagram?

Hi, guys. Does anyone know where I can find a diagram or list of where the body is grounded to the chassis? I have a 76 that I bought as a project that was completely blown apart and nothing was documented. I have a Willcox wiring diagram but it doesn't appear to show the chassis-to-birdcage connections. Any help would be greatly appreciated.
Thanks,
Peter

Dec 10, 2020 | 02:24 PM

Redvette2

Drifting

Joined: Nov 2013

Posts: 1,562

Likes: 484

From: Loud, Raw and Dangerous 1968 327 4S in Southern California

I'm no expert and could be wrong...but isn't the bird cage bolted to the chassis frame?

Dec 10, 2020 | 02:43 PM

fake

Safety Car

Joined: Jan 2004

Posts: 4,549

Likes: 343

From: Glastonbury CT

There is a door sil ground strap Door sill to frame strap 6290663 sheet 32 you need two self taping screws 11502453 mid america part numbers

Dec 10, 2020 | 02:46 PM

fake

Safety Car

Joined: Jan 2004

Posts: 4,549

Likes: 343

From: Glastonbury CT

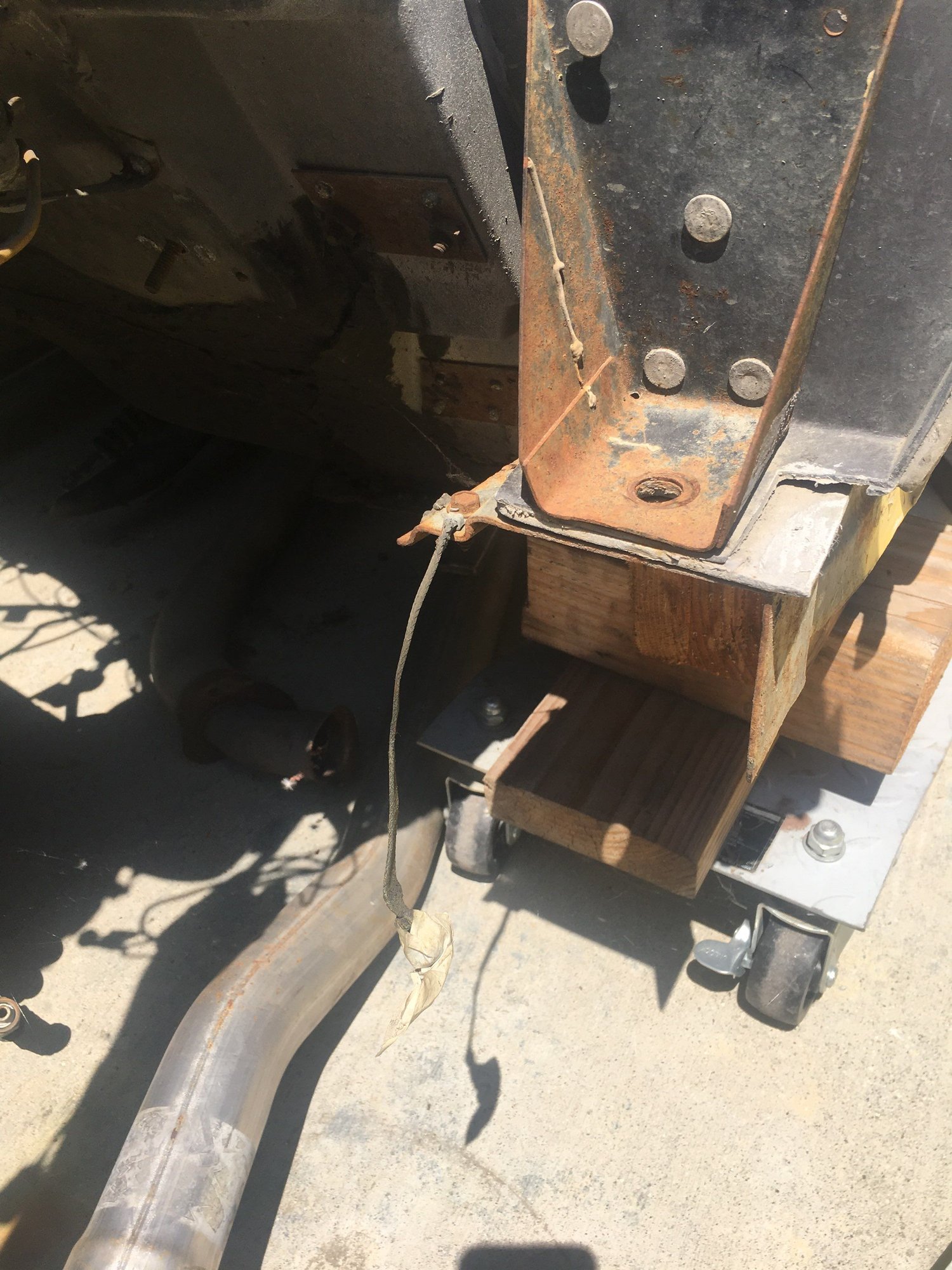

The strap ground is on drivers side. Only one per car. Located close to frame bottom corner under door.

Dec 10, 2020 | 04:21 PM

lars

Tech Contributor

Joined: Aug 1999

Posts: 14,356

Likes: 6,332

From: At my Bar drinking and wrenching in Lafayette Colorado

Quote:

Originally Posted by cheapta

Hi, guys. Does anyone know where I can find a diagram or list of where the body is grounded to the chassis?

The AIM shows all of the ground straps and their installation. You have to page through it to locate them all, but that's the best diagram you're going to find.
