Speedometer drive vs driven gear
Thread Starter
Racer
Joined: Dec 2001
Posts: 461
Likes: 184
From: Lachute QC
Speedometer drive vs driven gear
Hi,
I have a 1970 with an automatic THM400, 3.08 gear ratio, tires are P255/60R15... I searched several threads but didn't see anything that answered my question... my car's speedometer is running about 6mph less than what is showing... so the speedometer shows 30mph, but I'm actually going around 24 mph... I understand that I can change the driven gear to a different one and if I am understanding correctly, I would have to get one with more teeth to decrease the speedometer speed showing (but I might be getting that backwards). I've also heard that an increase/decrease of 1 tooth would be a difference of 3mph, but I also heard 5mph... not sure if there's an exact science or not.
First I hope that I am getting the terminology right... my interpretation is that the driven gear is the one on the end of the speedo cable that is located in the housing affixed to the transmission, and the drive gear is the one inside the transmission on the shaft...
So my main question is that if I change the driven gear (the one on the end of the speedo cable), does the internal gear have to change as well? Friend of mine is under the impression if I change the external driven gear, I also need to change the internal drive gear.
Thanks.
I have a 1970 with an automatic THM400, 3.08 gear ratio, tires are P255/60R15... I searched several threads but didn't see anything that answered my question... my car's speedometer is running about 6mph less than what is showing... so the speedometer shows 30mph, but I'm actually going around 24 mph... I understand that I can change the driven gear to a different one and if I am understanding correctly, I would have to get one with more teeth to decrease the speedometer speed showing (but I might be getting that backwards). I've also heard that an increase/decrease of 1 tooth would be a difference of 3mph, but I also heard 5mph... not sure if there's an exact science or not.
First I hope that I am getting the terminology right... my interpretation is that the driven gear is the one on the end of the speedo cable that is located in the housing affixed to the transmission, and the drive gear is the one inside the transmission on the shaft...
So my main question is that if I change the driven gear (the one on the end of the speedo cable), does the internal gear have to change as well? Friend of mine is under the impression if I change the external driven gear, I also need to change the internal drive gear.
Thanks.
Burning Brakes
Joined: Apr 2020
Posts: 788
Likes: 418
From: Western NY
you will need to install a driven gear with more teeth. the more teeth on the driven gear the slower your speedo will display one tooth equals about 1.5 mph difference. my th400 has a drive gear with 15 teeth and i have about 6 different driven gears to adjust for different gear ratios and tire diameters. with the 15 tooth drive gear each driven gear tooth is 1.5mph difference. the driven gear with the most teeth available is 45 teeth. if your correct driven gear equates to needing more than 45 teeth then you will need to change the drive gear on the output shaft of the trans (would need to drop down a tooth). as far as drive gears i believe there are about 3 or 4 gears available something like 15,16.18 tooth gears. check TCI's website they list and sell most of the gears for the th400. they also have calculators where you can plug in your info - tire diameter,rear gear etc and it will tell you what driven gear you need. on my set up i have a 15 tooth drive gear and 255/60-15 rear tires with a 3.70 differential. my driven gear has 41 teeth to make my speedo accurate the driven gears are also available from many of the corvette vendors.
Last edited by pspicci; Jul 13, 2021 at 08:17 AM.
Safety Car
Joined: Mar 2006
Posts: 4,538
Likes: 5,127
From: Chester VA
Hi,
First I hope that I am getting the terminology right... my interpretation is that the driven gear is the one on the end of the speedo cable that is located in the housing affixed to the transmission, and the drive gear is the one inside the transmission on the shaft...
So my main question is that if I change the driven gear (the one on the end of the speedo cable), does the internal gear have to change as well? Friend of mine is under the impression if I change the external driven gear, I also need to change the internal drive gear.
Thanks.
First I hope that I am getting the terminology right... my interpretation is that the driven gear is the one on the end of the speedo cable that is located in the housing affixed to the transmission, and the drive gear is the one inside the transmission on the shaft...
So my main question is that if I change the driven gear (the one on the end of the speedo cable), does the internal gear have to change as well? Friend of mine is under the impression if I change the external driven gear, I also need to change the internal drive gear.
Thanks.
Is the 3.08 rear end original? Does your car have its original speedo gears? With your setup the driven gear would be 1362049, green with 42 teeth. I don't know what sort of difference to expect by changing gears.

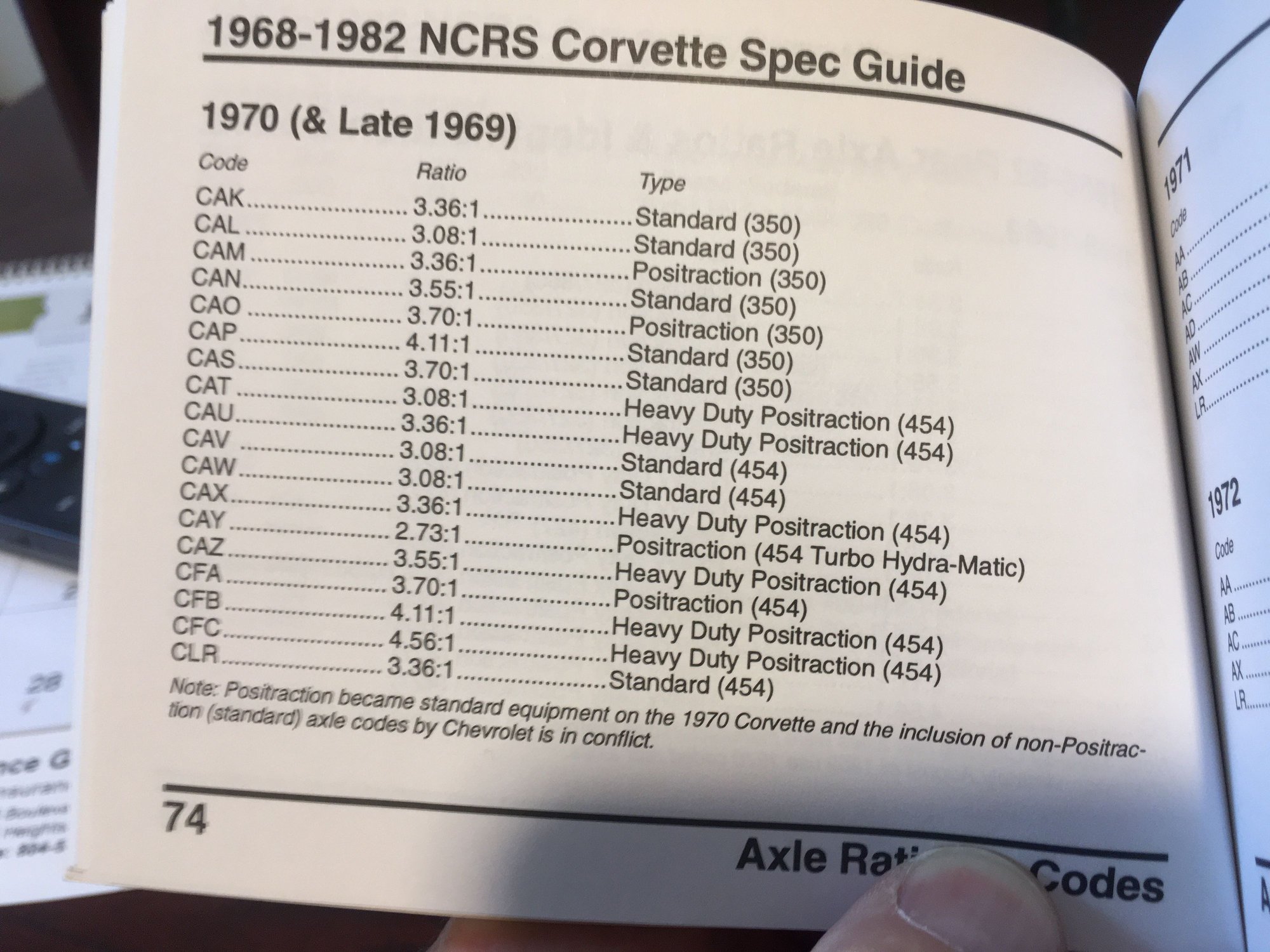

Here are the originally available driven gears:
