I understand what you're saying, but if your really want them to pay attention, you should start by spelling their name correctly.
W I L W O O D
I hesitated on that as well. Highly unlikely that they will change a design that has long been in production. Seems clear to me that this plumbing was done for their convenience, not ours. They may never even have thought about it, although one look at the originals is a damn big clue.
It is irritating, but once properly bled, it lasts for years, provided of course that you have no runout whatsoever.
I just looked at some pictures of Brembos and they don't look any more friendly.
Other than saving weight the stock brakes work just as good as any aftermarket 4 piston brakes. After all they were 4 piston brake calipers before 4 piston brake calipers were cool. My '71 will still out stop anything in my garage. Just saying.................
fwiw ... at end of MT article are source credits ...guess who's credited ?... wilwood. Every stock car chassis I've worked on (including scratch built tube w/aftermarket race calipers) ... fronts do trail & rears do lead.
now, they Do handle differently; so, what's the better of these two and why ? ... front steer (tie rods forward of spindles) or rear steer (tie rods aft of spindles) ?
fwiw ... at end of MT article are source credits ...guess who's credited ?... wilwood. Every stock car chassis I've worked on (including scratch built tube w/aftermarket race calipers) ... fronts do trail & rears do lead.
now, they Do handle differently; so, what's the better of these two and why ? ... front steer (tie rods forward of spindles) or rear steer (tie rods aft of spindles) ?
Where the caliper is clocked has zero effect on braking..it's ease of assembly on the line, packaging, ease of service, and finally performance. The calipers can be placed inside the wheelbase for a slight decrease in the polar moment of inertia, or at the bottom for a slight decrease in the vertical center of gravity, or in the front for a slight advantage in cooling.
front steer has diminished deflection oversteer
Last edited by Pegan2261; Aug 10, 2021 at 02:20 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor

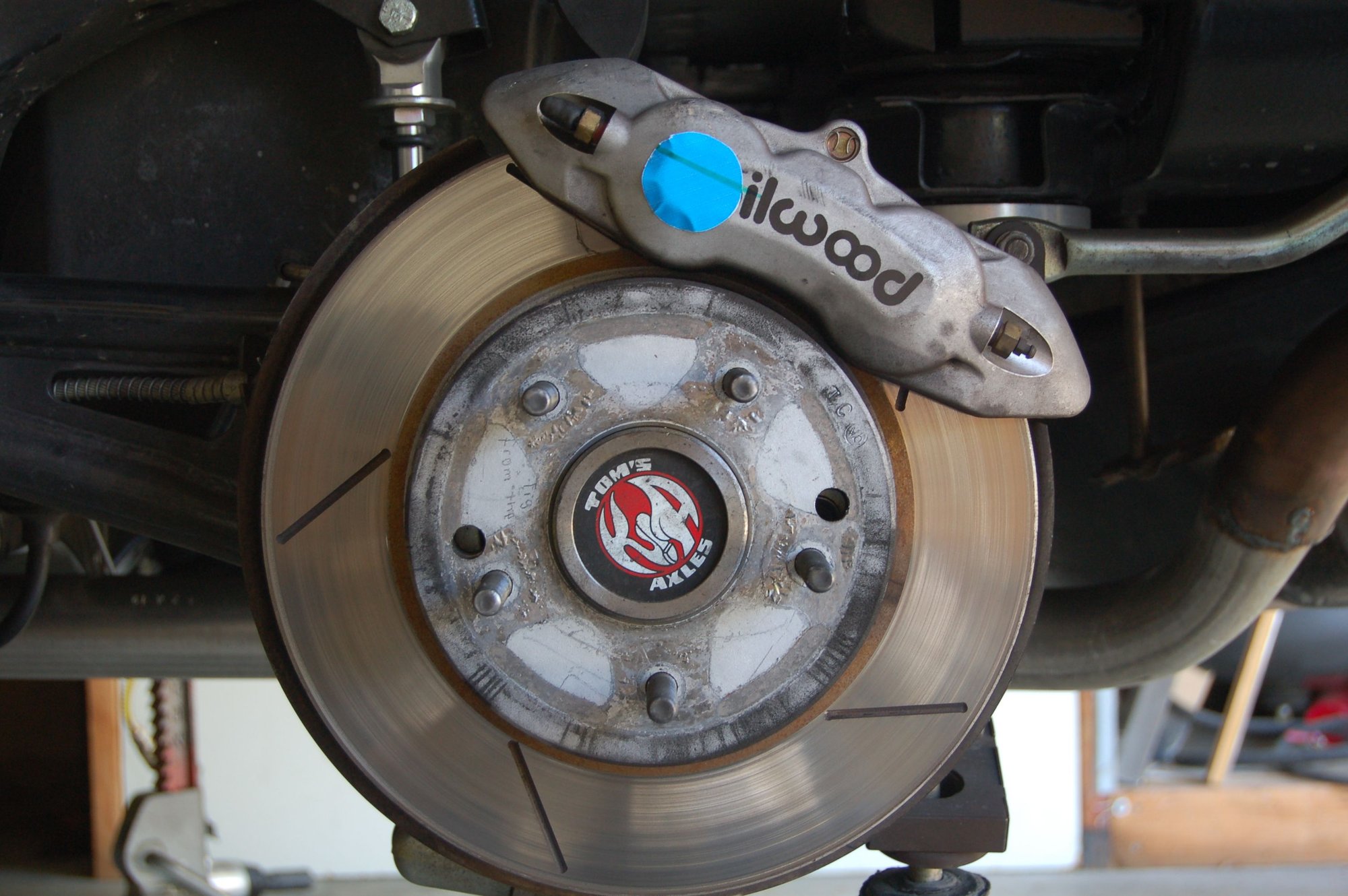

Jebby: Here is the geometry for our cars. The blue tape is the correct diameter and likely placement of the caliper piston and cylinder. The inked line is the likely path of the bleeding. Wilwood probably drills it out, maybe it is cast, I don't know. If you drew a horizontal line across the cylinder, there would be an air pocket, technically a secant, above the line in all four cylinders that can't be bled in the stock position. To properly bleed it you need to unfasten the caliper and hold it vertical, much as your Demon picture shows a more vertical mounting position.
At least that is how I and others see the situation
Jebby: Here is the geometry for our cars. The blue tape is the correct diameter and likely placement of the caliper piston and cylinder. The inked line is the likely path of the bleeding. Wilwood probably drills it out, maybe it is cast, I don't know. If you drew a horizontal line across the cylinder, there would be an air pocket, technically a secant, above the line in all four cylinders that can't be bled in the stock position. To properly bleed it you need to unfasten the caliper and hold it vertical, much as your Demon picture shows a more vertical mounting position.
At least that is how I and others see the situation
I was speaking more about the OP’s link in post one…..in the article, the Wilwood kit is a leading caliper…..

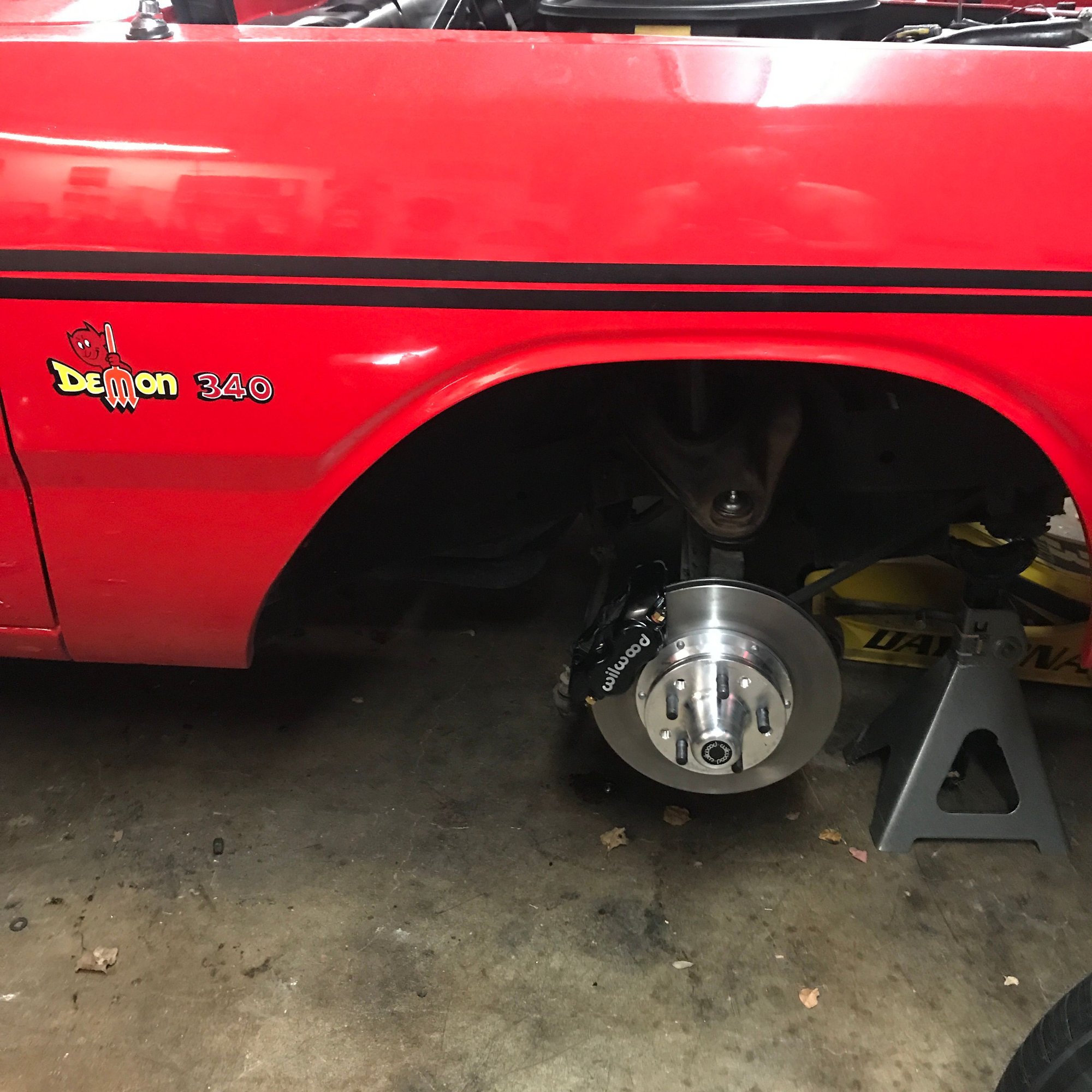

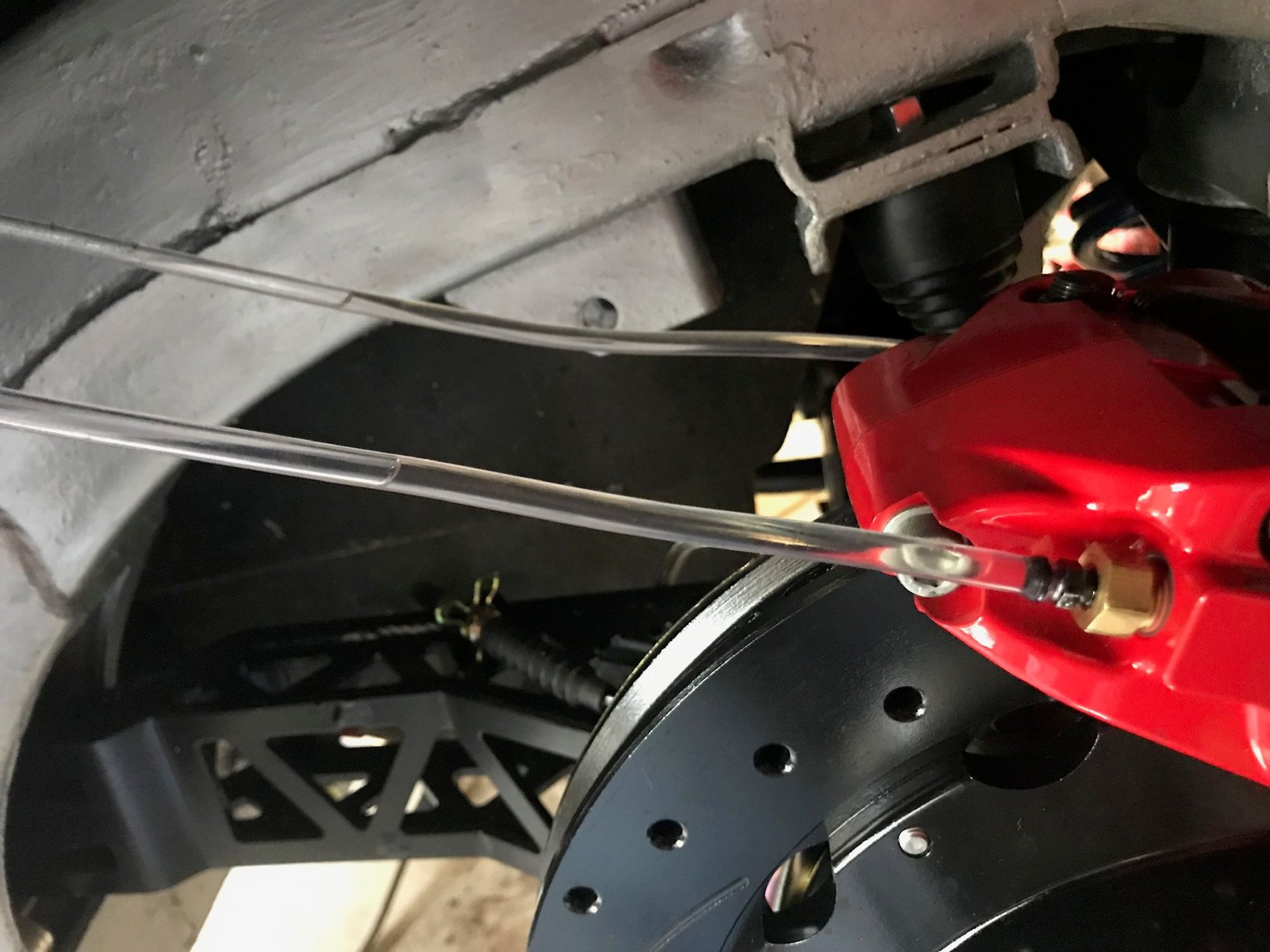

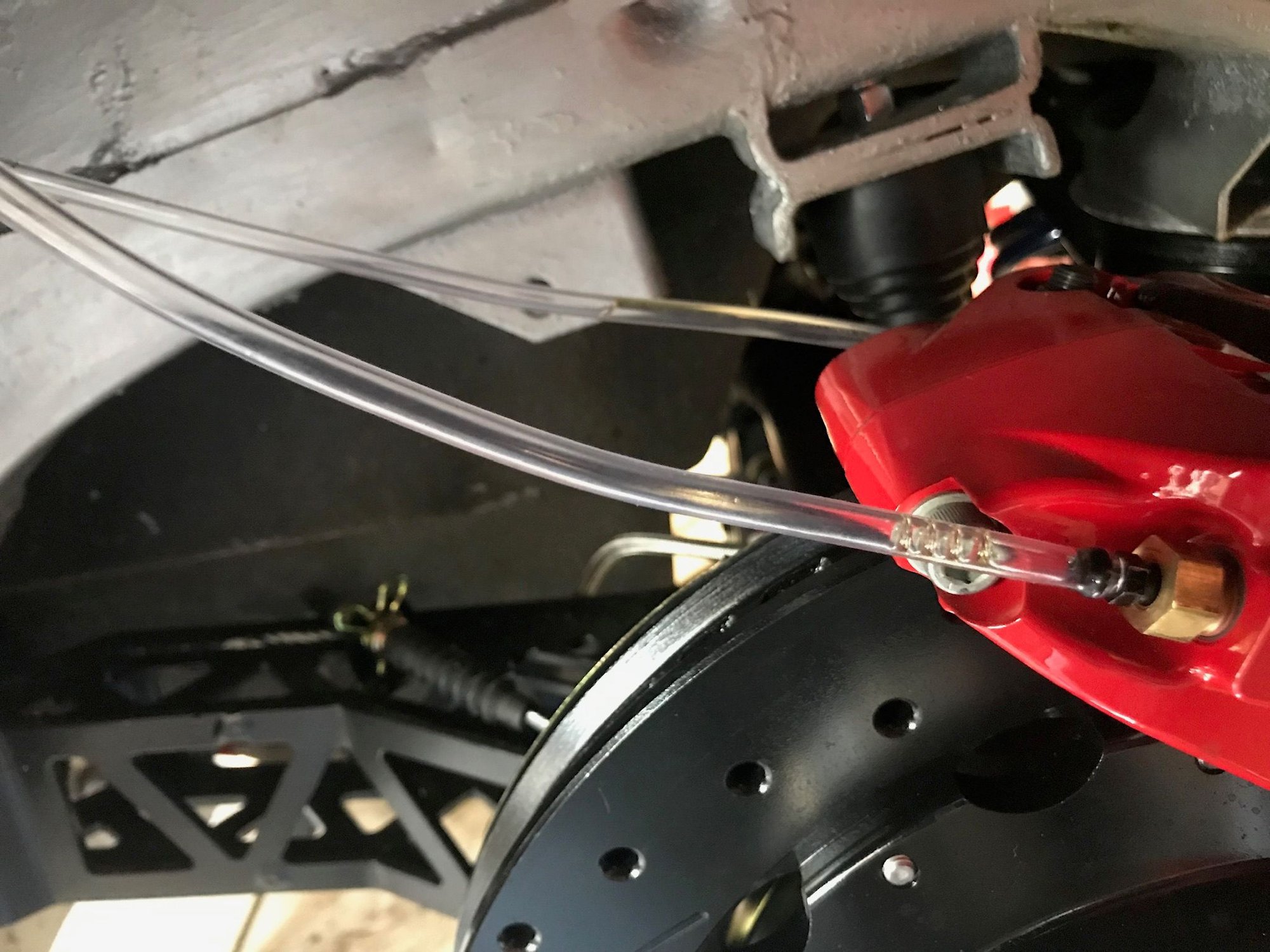

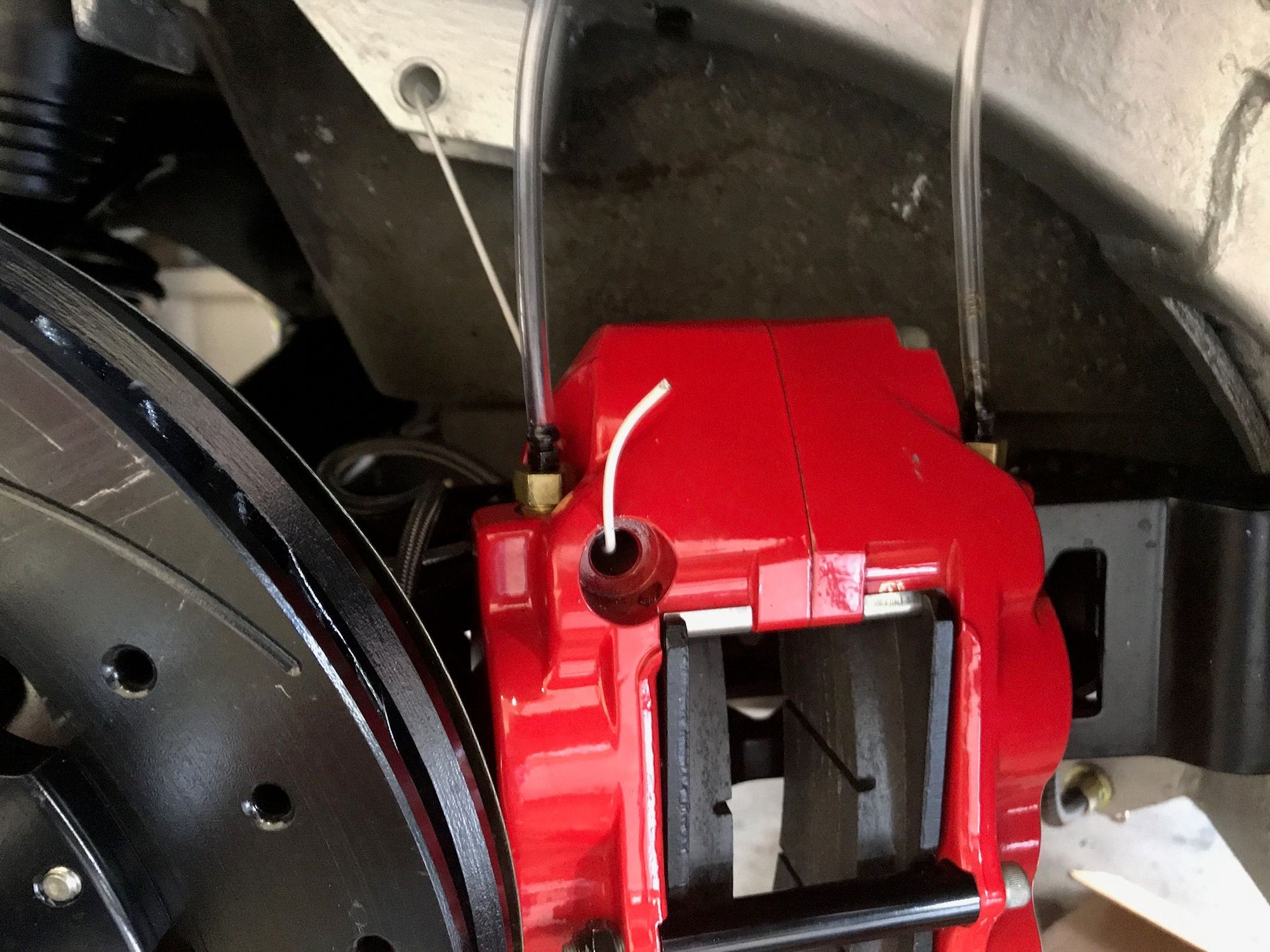

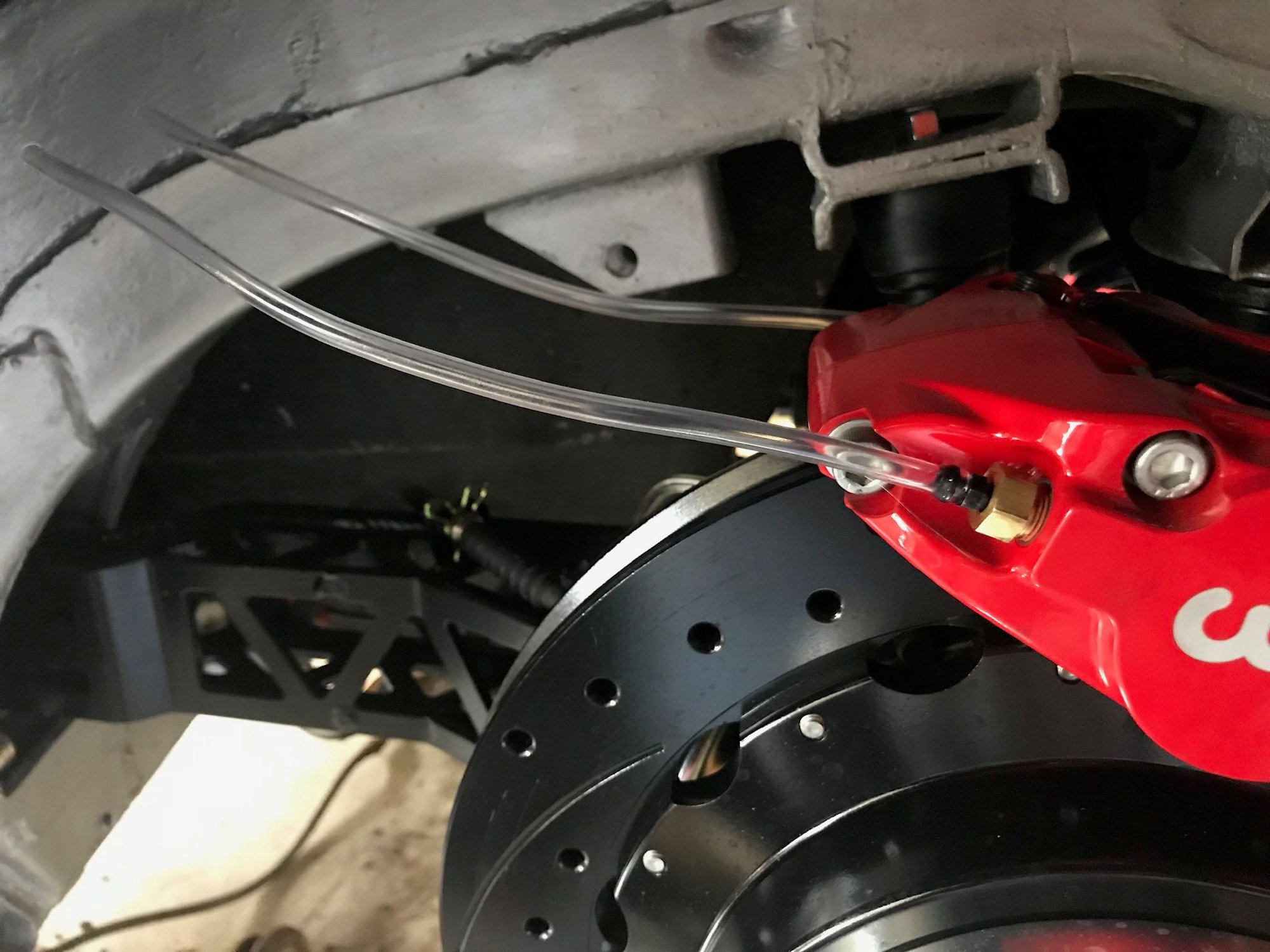

The calipers on the Demon bled awesome in 30 minutes with a gravity bleed…..
Jebby
Last edited by Jebbysan; Aug 10, 2021 at 01:02 PM.
Jebby: Here is the geometry for our cars. The blue tape is the correct diameter and likely placement of the caliper piston and cylinder. The inked line is the likely path of the bleeding. Wilwood probably drills it out, maybe it is cast, I don't know. If you drew a horizontal line across the cylinder, there would be an air pocket, technically a secant, above the line in all four cylinders that can't be bled in the stock position. To properly bleed it you need to unfasten the caliper and hold it vertical, much as your Demon picture shows a more vertical mounting position.
At least that is how I and others see the situation
I don't understand the drawn line. I believe the fluid level line in the caliper cylinder would be horizontal. Perhaps I am missing some peculiar detail?
I don't understand the drawn line. I believe the fluid level line in the caliper cylinder would be horizontal. Perhaps I am missing some peculiar detail?
I'm going to give you the benefit of the doubt and believe you just looked at the picture.. So let's try it again this time in bold!
Jebby: Here is the geometry for our cars. The blue tape is the correct diameter and likely placement of the caliper piston and cylinder. The inked line is the likely path of the bleeding. Wilwood probably drills it out, maybe it is cast, I don't know. If you drew a horizontal line across the cylinder, there would be an air pocket, technically a secant, above the line in all four cylinders that can't be bled in the stock position. To properly bleed it you need to unfasten the caliper and hold it vertical, much as your Demon picture shows a more vertical mounting position.
One thing the artical didn't quite get correct was production car caliper placement could have been dumbed down a bit. Caliper placement is relative to steering placement. Rear streer (firewall mount) requires Front mount calipers and Front steer (rack under the rad) Rear mount calipers. There may be 'some' exception to that but for the most part its rather obvious why this is- there's only so much room on the knuckle.

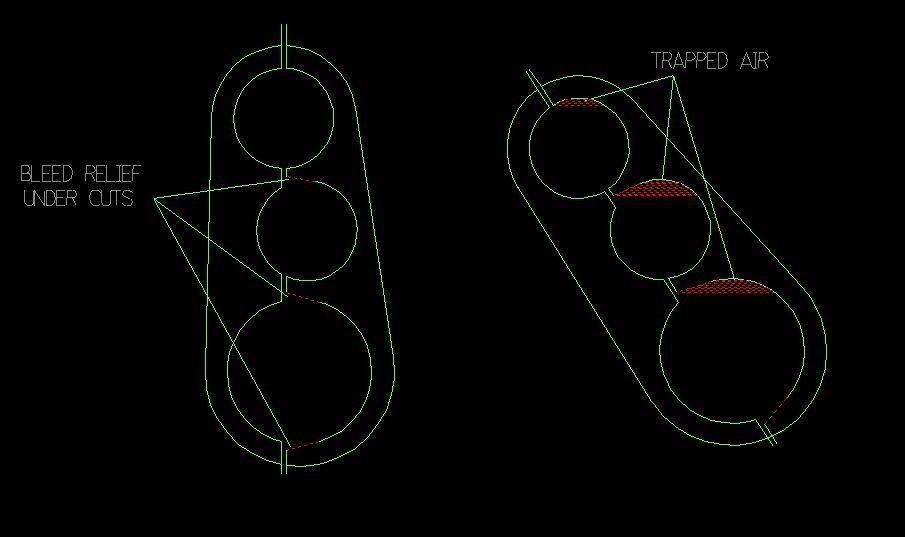

As for the layed over bleeding above- won't work. Once you get past about 15 degrees the bleed passages don't have enough under cut remaining to not trap air. I put this drawing up years ago to explain what is going on inside your caliper and how angles effect the bleeding. Multi piston calipers have a port passing through all three (ex) piston locations. But due to the staggered location they may not always intersect the crown of the circle. For that reason an undercuat is milled into the crown to force air to channel into the port.
