Help - Frame Gauge Hole Identification

I'm in the process welding in a C4 front suspension into my '79 frame.

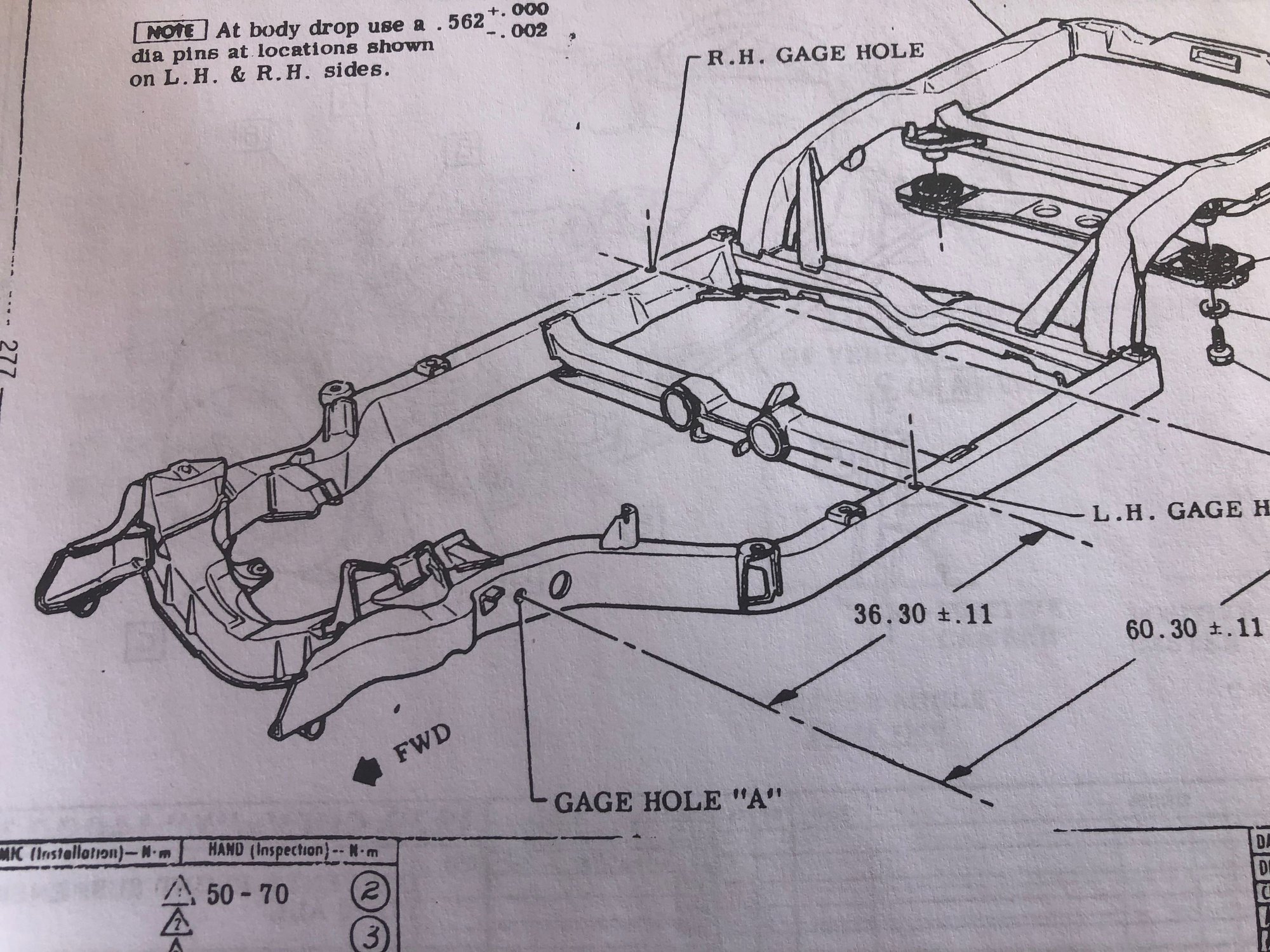

I need to locate a good reference point and my shop manual shows a "Gauge Hole A" as a reference for checking frame straightness.

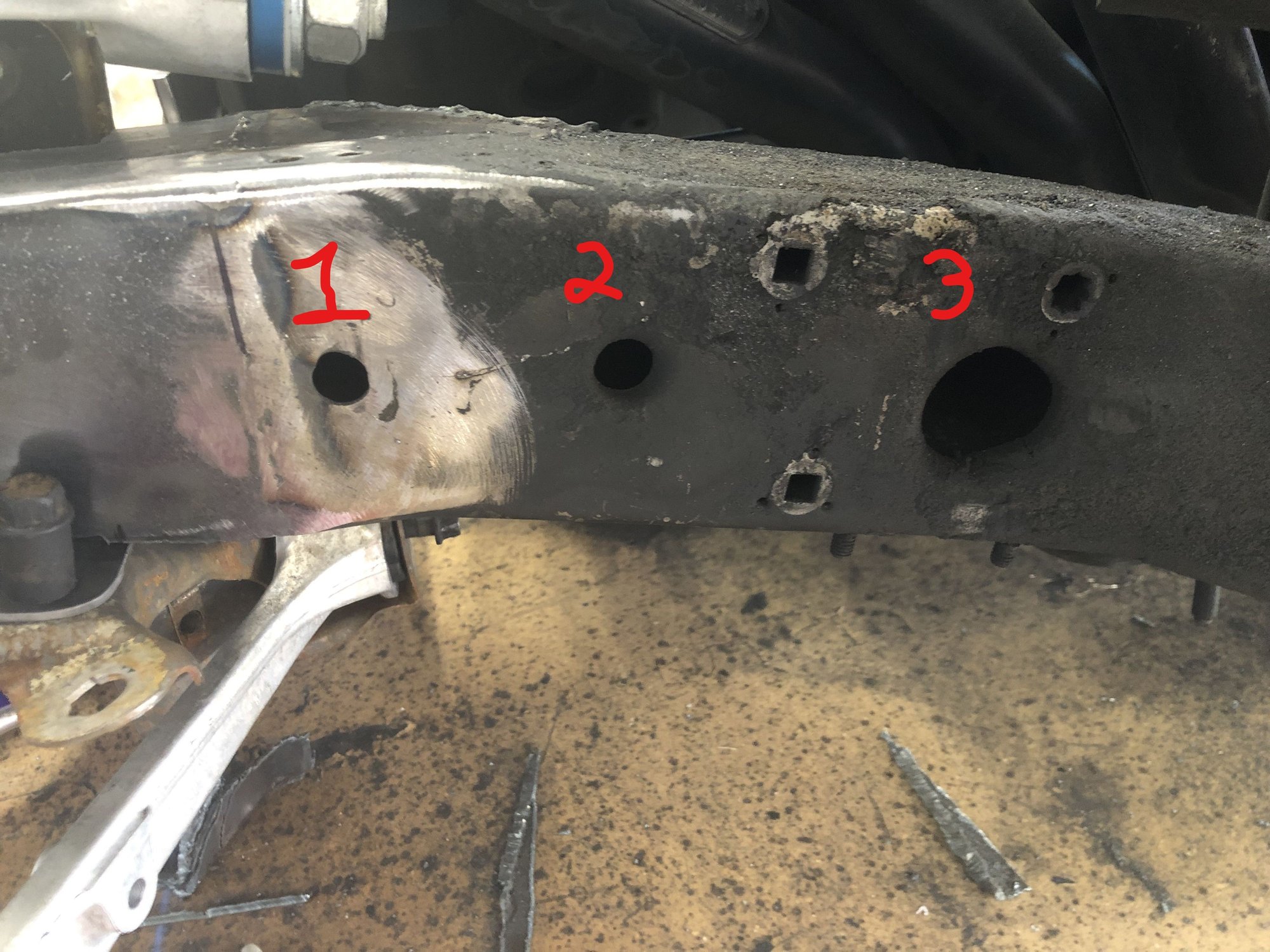

The problem is, I'm not sure which hole on the frame is "Gauge Hole A".
I'm thinking it's #2 but I'd appreciate confirmation.

Last edited by ChrisLSx; Nov 13, 2021 at 06:07 PM.

Nov 13, 2021 | 08:28 PM

forman

Melting Slicks

Joined: Mar 2010

Posts: 2,270

Likes: 375

From: Randolph nj

I always like the number 2 hole but it might be painful for her ,,, number 2

Nov 13, 2021 | 08:32 PM

forman

Melting Slicks

Joined: Mar 2010

Posts: 2,270

Likes: 375

From: Randolph nj

you could always measure the 36.30 in from the other lh gauge hole and figure it out but i like number 2

Nov 14, 2021 | 05:22 PM

ChrisLSx

Thread Starter

Burning Brakes

Joined: Apr 2002

Posts: 1,105

Likes: 114

From: Lawrenceburg, KY

Well, it's in. The CL of the front suspension is parallel to the CL of the rear suspension and spaced at the factory wheel base, but I also used "Gauge Hole A" as yet another point to verify that everything was sitting where it should be.

This was an exercise in measure 50 time, make 1 cut, and then measure 50 more times.

Last edited by ChrisLSx; Nov 14, 2021 at 05:52 PM.

Nov 14, 2021 | 05:32 PM

forman

Melting Slicks

Joined: Mar 2010

Posts: 2,270

Likes: 375

From: Randolph nj

number 2
