At this point you could use a piece of wire and simply touch each end to the plug that goes to the very hard to reach slide switch (at the accelerator). If the solenoid energizes, then you can test the switch by setting your voltmeter to test “Continuity”. With key removed from ignition, attach the meter leads to each of the switch terminals and then move the round post up and down. If the switch is good you will see the meter needle move (numbers increase on a digital meter) plus hear a tone from the meter. You can test the “Continuity” by touching both meter leads together. I hope this makes sense.
Doug
At this point you could use a piece of wire and simply touch each end to the plug that goes to the very hard to reach slide switch (at the accelerator). If the solenoid energizes, then you can test the switch by setting your voltmeter to test “Continuity”. With key removed from ignition, attach the meter leads to each of the switch terminals and then move the round post up and down. If the switch is good you will see the meter needle move (numbers increase on a digital meter) plus hear a tone from the meter. You can test the “Continuity” by touching both meter leads together. I hope this makes sense.
Yes, I was thinking something like that also. The switch has two prongs, I assume the movement of the post completes the circuit from one prong to the other. That in turn sends 12 volts to the wire connector by the headlight actuator and from there up to the solenoid wire on the hood.
Tks. Doug
Ok, I already have 12 volts at the wire connector which plugs into the accelerator switch. I can also just do a continuity test from the accelerator wire to the headlight actuator location, then the other side of that connector up to the wire ending at the hood.
If that all shows full continuity then I can assume the accelerator switch is bad.
Do you think I should use the 50 year old solenoid or get a new one (China made?).
Tks. Doug
I am still using the 50 year old solenoids in my 73 (hood flapper and anti dieseling one at carb) and they work great and most likely will contiue to do so unless hit with a hammer or voltage spike.
Follow Eliredanblack's procedure. Easier than what I outlined.
Ok, plugged solenoid back in hood connector and grounded. Wire linked both slots of accelerator switch wire together. Key on and solenoid arm pops out. So solenoid and wiring to hood all ok.

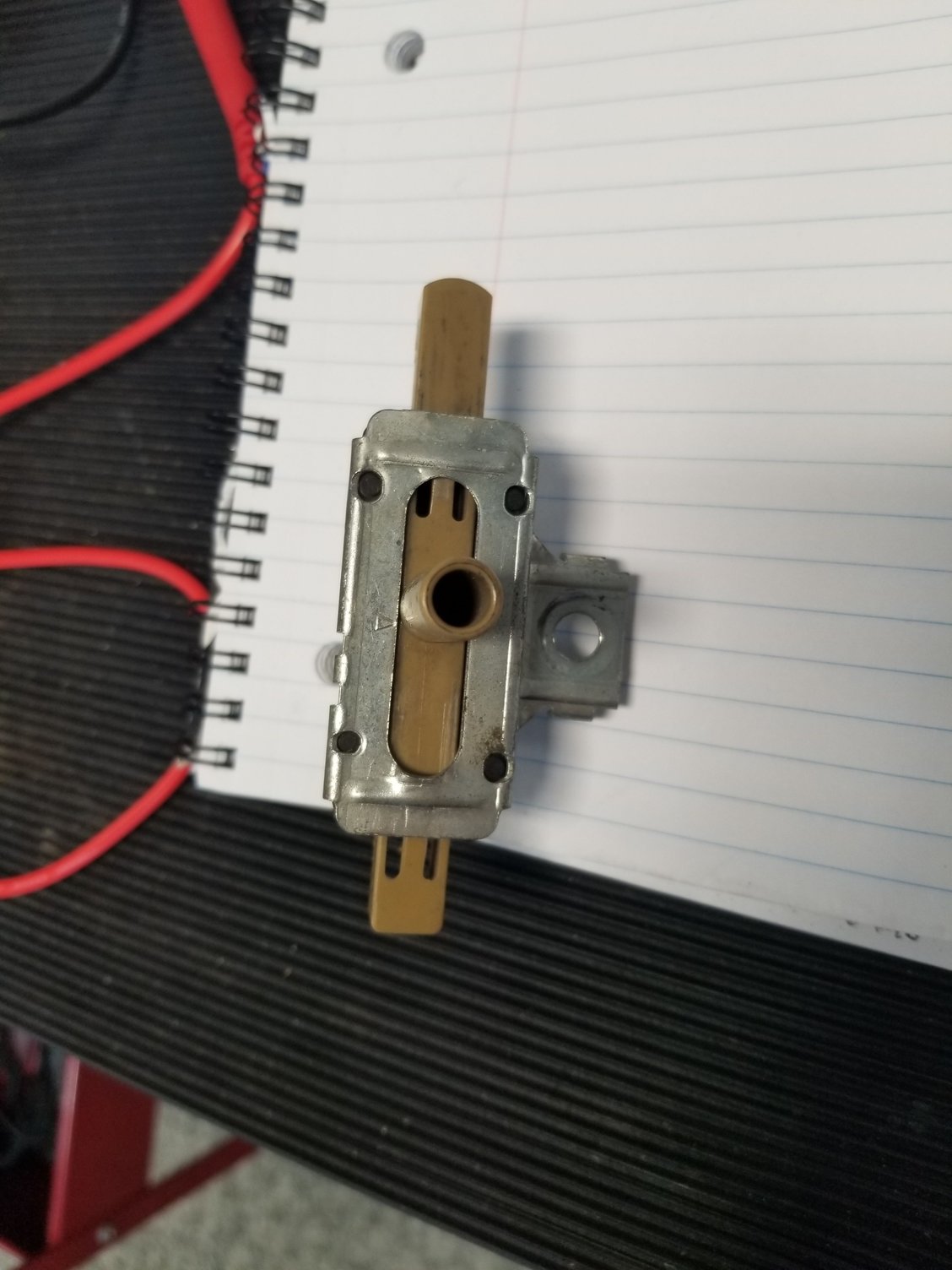

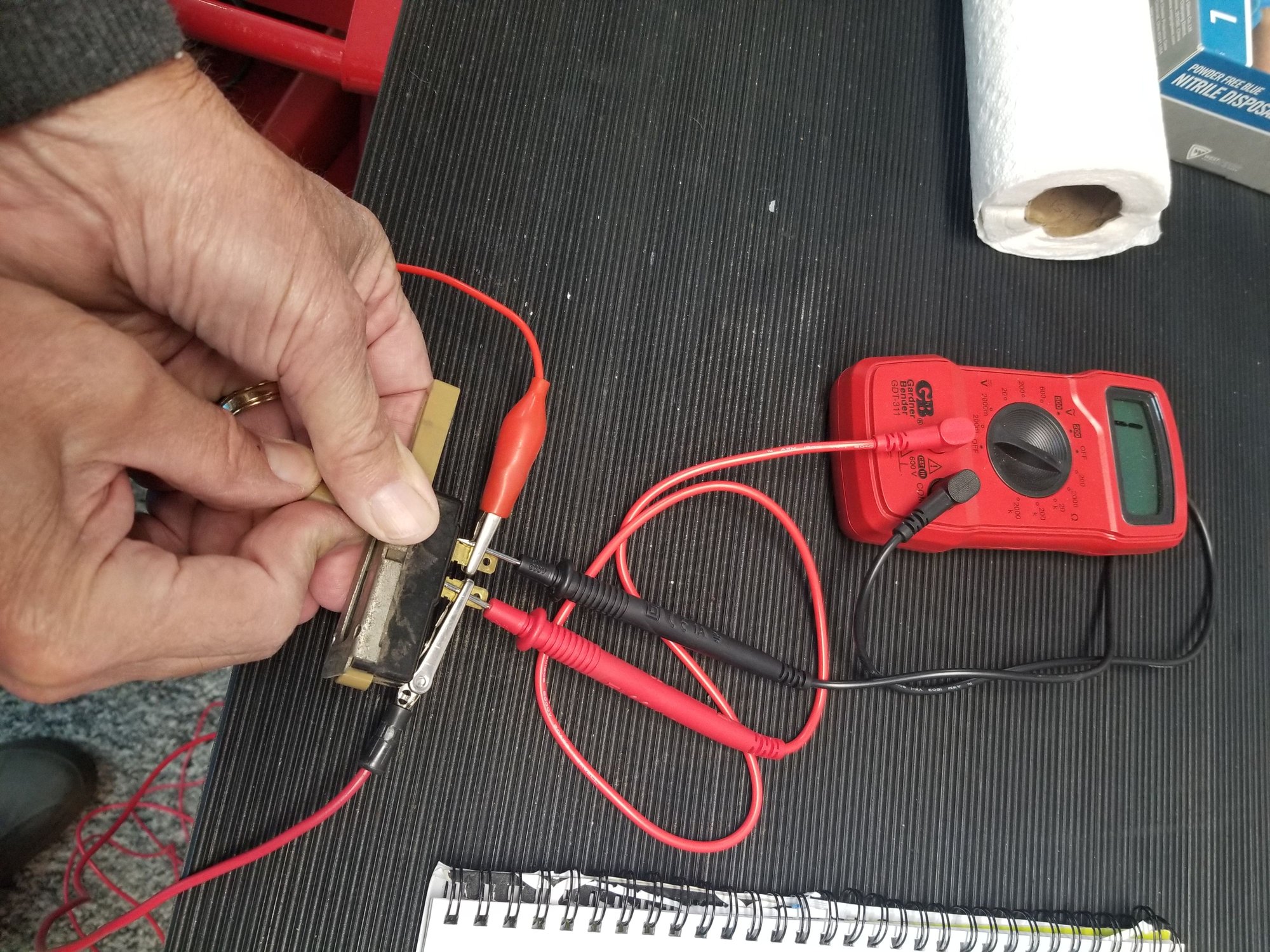

See pics, took switch out, set meter on continuity. Switch closed, off, and no continuity. Switch open, on, and still no continuity. So, switch must be the problem.
Will order kickdown switch which I believe is same for accelerator pedal.
When you purchase the new switch be Sure to test it with your meter prior to installation. I don’t trust restoration parts after reading all the horror stories.
When you purchase the new switch be Sure to test it with your meter prior to installation. I don’t trust restoration parts after reading all the horror stories.
Thanks, and I have a question. My switch has the post starting in the center. Pics on line show the post at the bottom. Ads call it a kickdown switch. Is the switch really different for auto or 4 speed car? Zip has a part number for kickdown, and a separate part for pedal switch.
Doug
