Vertical ignition shield brackets

Does anyone happen to have a picture of the two brackets referred to in the attached picture attached to their engine?

I cannot tell from my AIM or repair manual specifically where these brackets that support the bottom of the vertical ignition shielding attaches to the engine or body.

Jun 29, 2023 | 12:03 PM

Dino_'72

Pro

Joined: Aug 2000

Posts: 610

Likes: 167

From: Vancouver B.C.

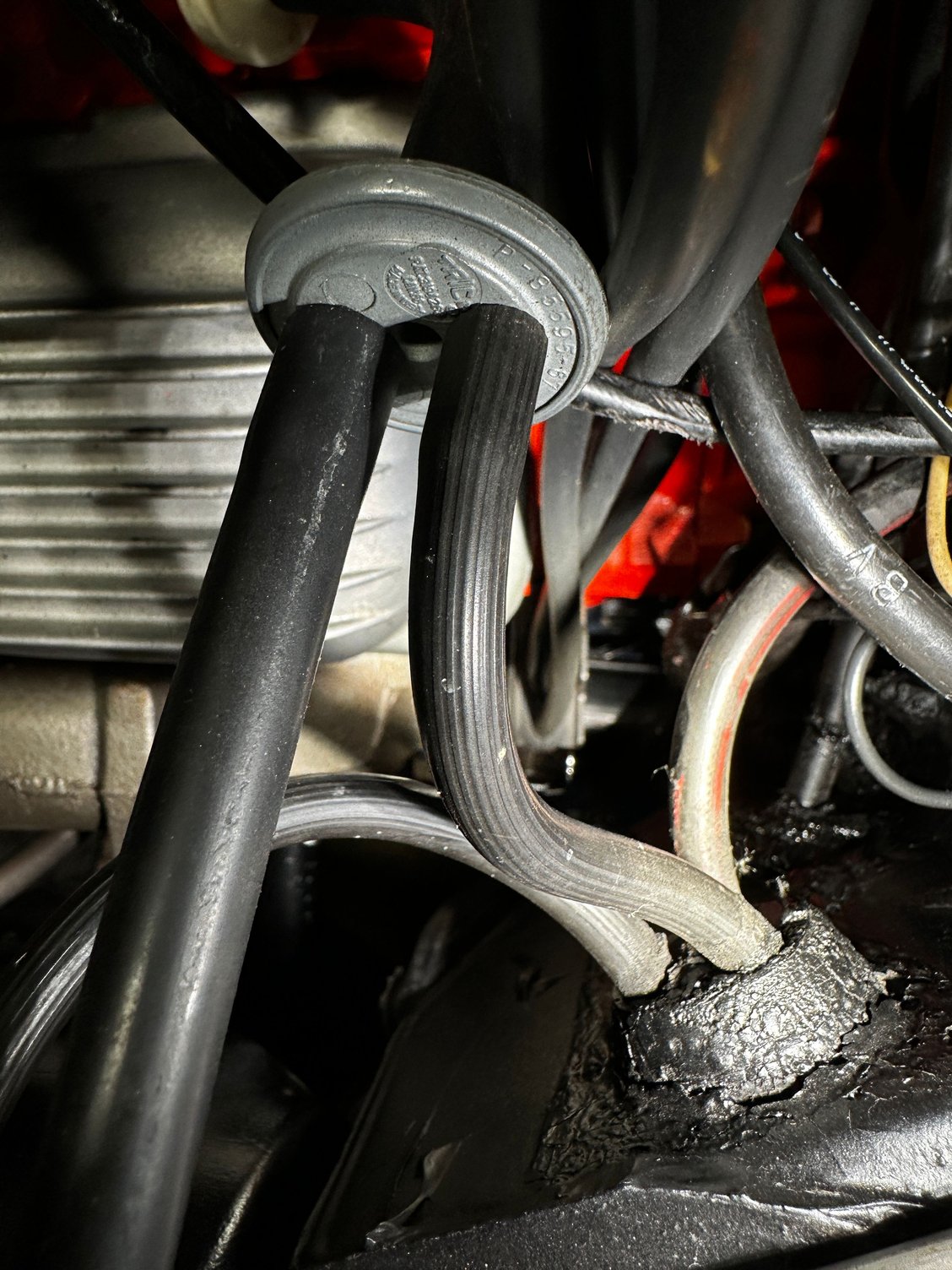

Here are some pics from my ‘72. Hope they help. If more needed. Let me know.

Passenger side

Drivers side

Jun 29, 2023 | 05:06 PM

68V

Thread Starter

Instructor

Joined: Nov 2022

Posts: 158

Likes: 82

From: North Coast

Awesome, thx!

the great thing about the Assembly Manual is it pretty much shows everything.

The bad thing is it also tells me how much of my car is missing, or incorrect!

Jun 30, 2023 | 02:53 PM

PJO

Melting Slicks

Joined: May 2002

Posts: 2,474

Likes: 755

From: Laporte, IN

Original GM part numbers for these items sometime you can find used ones for less.

3923971 LH

3864498 RH

Jul 3, 2023 | 08:06 PM

~~piste~~

Banned Scam/Spammer

Joined: Jul 2010

Posts: 624

Likes: 121

Quote:

Originally Posted by 68V

Awesome, thx!

the great thing about the Assembly Manual is it pretty much shows everything.

The bad thing is it also tells me how much of my car is missing, or incorrect!

HA...same. I speculate half my car was gone or incorrect when I started my resto.

Jul 3, 2023 | 08:30 PM

68V

Thread Starter

Instructor

Joined: Nov 2022

Posts: 158

Likes: 82

From: North Coast

Quote:

Originally Posted by Dino_'72

Here are some pics from my ‘72. Hope they help. If more needed. Let me know.

Passenger side

Drivers side

anyway you could back the camera up about a foot and take some snaps?

Jul 4, 2023 | 12:57 PM

Dino_'72

Pro

Joined: Aug 2000

Posts: 610

Likes: 167

From: Vancouver B.C.

Here are some more pics. I hope these will show you what you need to see. If you’re more specific I can help out with more pics. My car is not ncrs or anything but I have tried to make it as factory correct within reason. Sorry I do not have the vertical shielding on right now. Overall, all the shielding for the radio and heat shields are a major pain to install. Small hands helps. I know the shielding has a purpose and if you’re looking for the factory look it needs to be there. But I can appreciate back in the day why people discarded many of these pieces.

Jul 4, 2023 | 01:15 PM

68V

Thread Starter

Instructor

Joined: Nov 2022

Posts: 158

Likes: 82

From: North Coast

Awesome, thanks, very clean engine bay btw, wish mine looked as good!

im going for factory original look as well, but can certainly see why a lot of fellas did not reinstall the shields!
