what is this

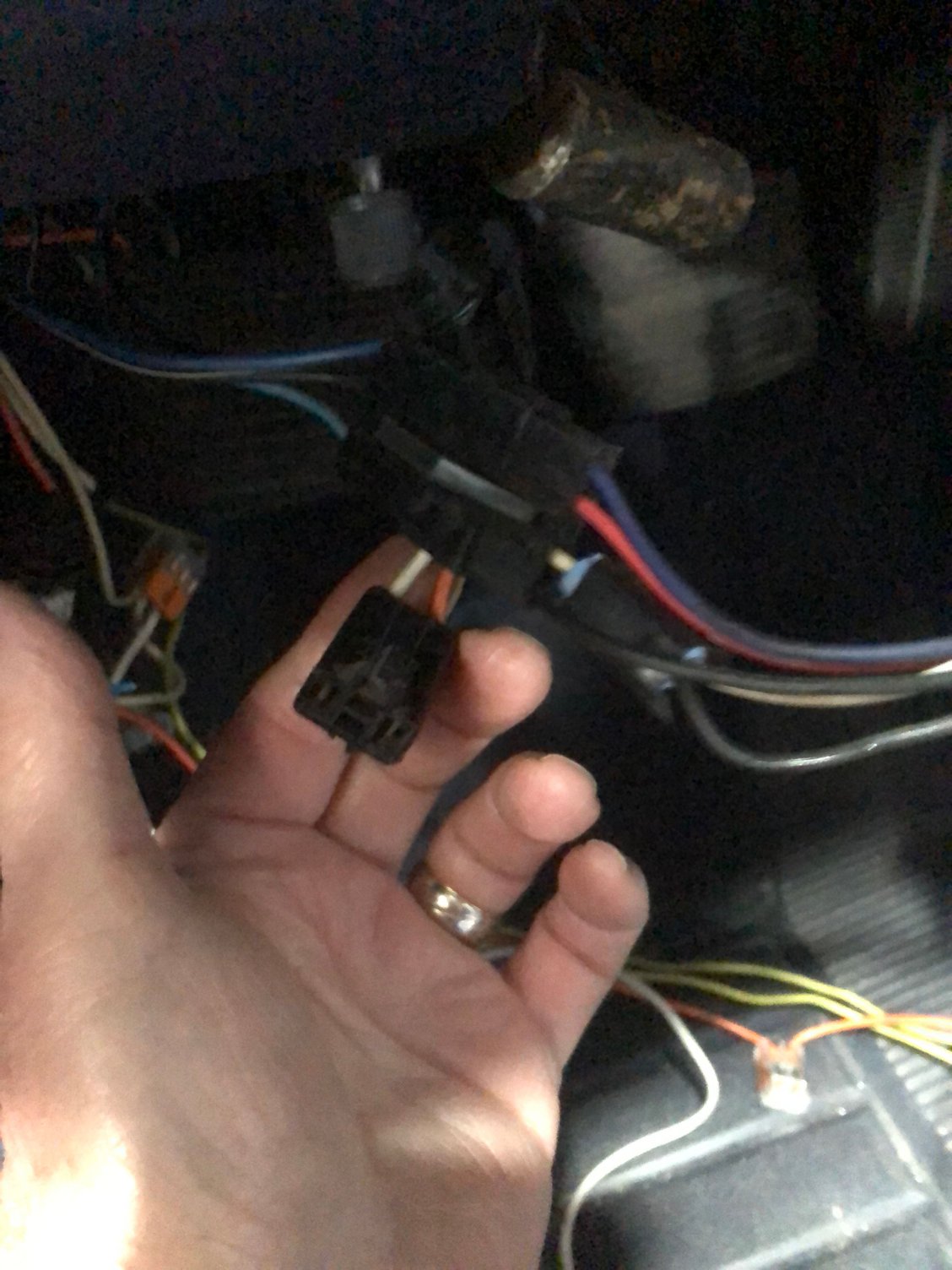

This connector appeared after I removed and replaced the steering column in my 1977. I pulled the column several times to make it easier to get the driver side dash pad out. It's always gone in easily in the past,
this time has been a challenge. Only courtesy lights, when I move the ignition switch the lights dim or go out. The fuel gauge is pegged past full. I put in a new radio and the hot always circuit is good but no power thru ignition. Did I miss something? Does it have anything to do with this connector. It's located on same bundle as headlight switch just below it. The connector is hot all the time two orange and one white wire. The wires it is attached to bend around in a tight curve. Guy before me screwed with the alarm system and tried to add cruise so I have a bit of a wire jungle behind the dash.

Apr 29, 2024 | 01:25 AM

jyounane

Burning Brakes

Joined: Feb 2002

Posts: 752

Likes: 31

From: Melbourne Australia

Might be worth checking to see if it is the connector for the brake light switch. Usually orange and white wires.

Joe

Apr 29, 2024 | 01:31 AM

speedreed8

Melting Slicks

Joined: Oct 2006

Posts: 2,417

Likes: 336

From: Texas

Brake switch connector. Do your brake lights work ?

Apr 29, 2024 | 03:50 AM

4-vettes

Race Director

Joined: Nov 2006

Posts: 13,228

Likes: 7,825

From: Sunshine Coast, Queensland, Australia

2025 C3 of the Year Finalist - Modified

2024 C3 of the Year Finalist- Modified

2022 C3 of the Year Finalist - Modified

Cruise-In VIII Veteran

As always, what doesn't work? Usually points me in the right direction!

Apr 29, 2024 | 11:44 AM

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

Right now going back to beginning and see what else might be disconnected. Basically the only thing working is courtesy lights.

Apr 29, 2024 | 06:35 PM

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

whats this

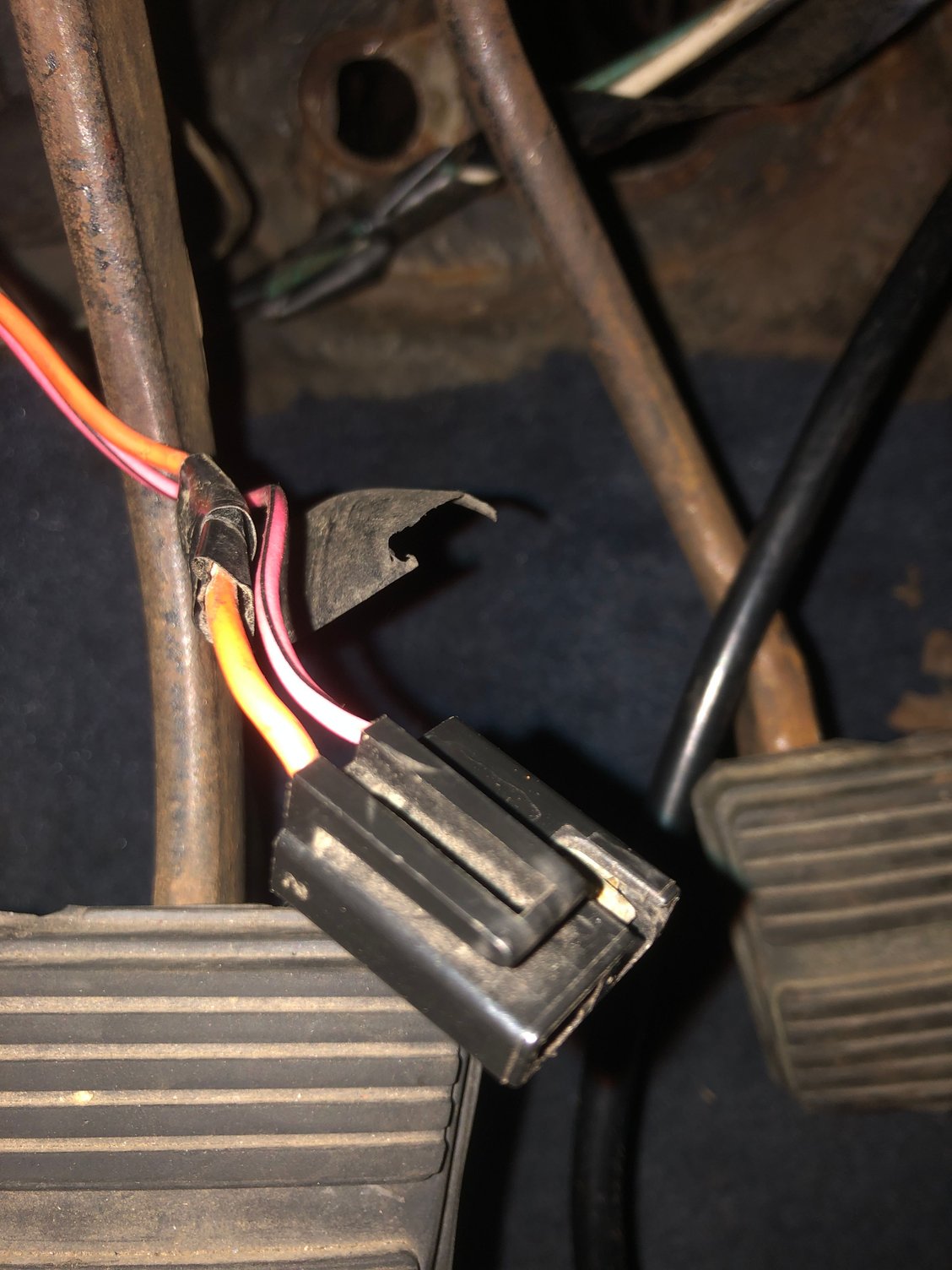

Thanks for the help all, connector is back where it belongs. Now what is this one? Live all the time, one orange one pink, goes to fuse box.

Spoiler

Apr 29, 2024 | 08:09 PM

bmotojoe

Safety Car

Joined: Oct 2007

Posts: 4,380

Likes: 1,744

From: Seattle Area Washington

Quote:

Originally Posted by jimbo8125

Thanks for the help all, connector is back where it belongs. Now what is this one? Live all the time, one orange one pink, goes to fuse box.

Spoiler

C122 Warning Buzzer...
I'm telling you, get the 1977 Electrical Troubleshooting Manual and this 77 could have been on the road already...lol

Apr 29, 2024 | 09:10 PM

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

whats this

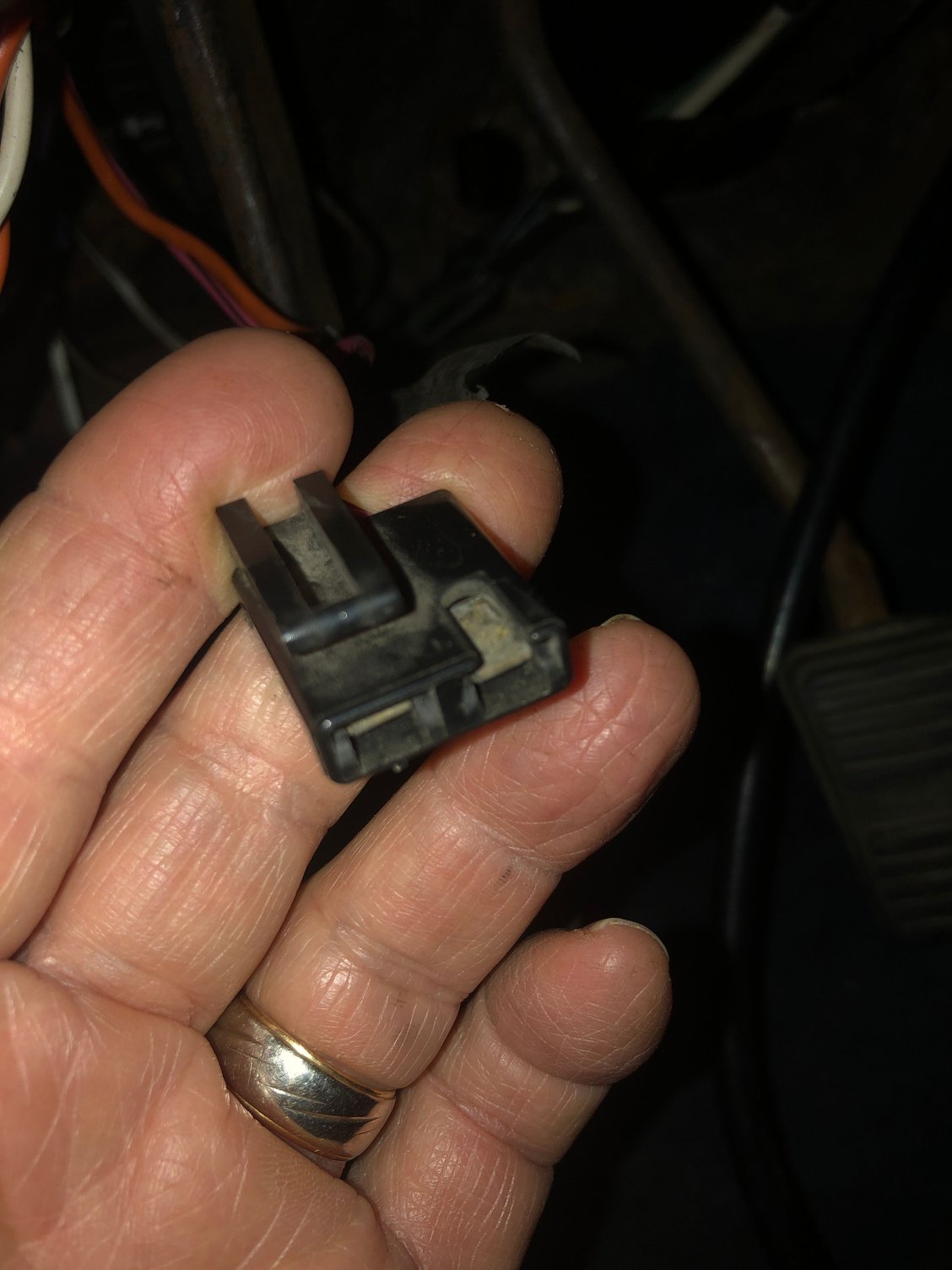

Thanks, I assume it pulls into the two tabs on the bottom. Which way does it go?

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Apr 29, 2024 | 11:32 PM

bmotojoe

Safety Car

Joined: Oct 2007

Posts: 4,380

Likes: 1,744

From: Seattle Area Washington

Quote:

Originally Posted by jimbo8125

Thanks, I assume it pulls into the two tabs on the bottom. Which way does it go?

Look closely at the connector, one side is slotted.
On the buzzer one terminal has a small protruding bump.
They did that so the connector could only go on the buzzer one way...
I guess you could cram the connector on the other way but that would be incorrect...
Shorting out the buzzer unit....

Apr 29, 2024 | 11:38 PM

#10

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

whats this

got it.
Thanks for the help.

Apr 30, 2024 | 05:41 PM

#11

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

whats this

Qne more for good measure. Plugs into the fuse box slot bat. Two orange wires coming out one ends at this connector.

May 8, 2024 | 11:44 AM

#12

jimbo8125

Thread Starter

Instructor

Joined: Jun 2014

Posts: 160

Likes: 25

From: Prior Lake Minnesota

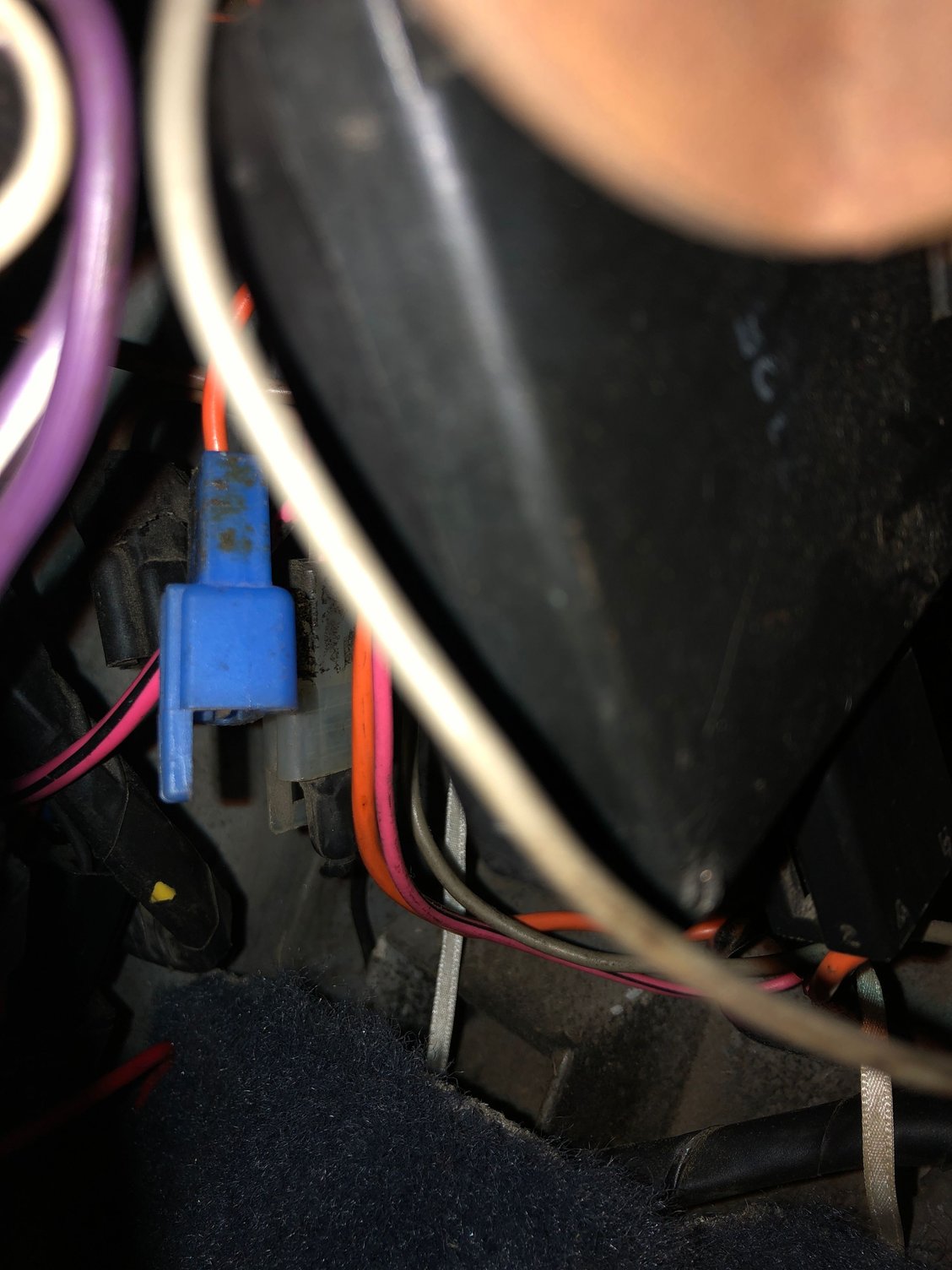

Cannot find where this one goes. I also found the anti-theft warning switch hanging with the threaded end broken off. The anti- theft has never worked, I have no key and the key slot is not original.it is a round key. I have the trouble shooting guide but still can't find where the blue connector goes. All the wires that should have power without the ignition switch turned on seem to have power but the ones that go thru the ignition don't. Turning on the ignition does nothing. The courtesy lights come on when door is opened but dim when the ignition key is turned. Any one have any thoughts? I can' find any other loose connections. The anti theft warning switch being broken I have never seen before and I have had the steering column and dash out more than once and never this type of problem.
