instrument cluster lighting?
Thread Starter
Instructor
Joined: May 2023
Posts: 118
Likes: 14
instrument cluster lighting?
there was 0 lighting on tha instruments when i bought this car so replacing all with 194 leds.. discovered tha lamps in it were all good and lighting up when called for.. still no lighting showing up on gauges???. so cleaned tha whole package up and install all red leds.. they all come on ok but still no lighting on gauges??? have checked everything with how its assembled and can find nothing wrong?.. it can only go together one way that i can see because of tha clock stem.. what tha hell am i doin' wrong.. gettin' kinda frustrated...............
after some experimentation making tha room completely dark there is justa tiny bit of red light showing on tha gauges.. white is a complete no show... this is with 12v direct to tha circuit?
after some experimentation making tha room completely dark there is justa tiny bit of red light showing on tha gauges.. white is a complete no show... this is with 12v direct to tha circuit?
Last edited by tlwjkw; Oct 16, 2025 at 04:59 AM.
Thread Starter
Instructor
Joined: May 2023
Posts: 118
Likes: 14
i've got tha cluster in tha house and usin' direct 12v to 'em.. i think there may be several different lumans (?) brightness in tha 194 configurations.. these are supposed ta be direct replacement 194's?...
Thread Starter
Instructor
Joined: May 2023
Posts: 118
Likes: 14
no, its this one...

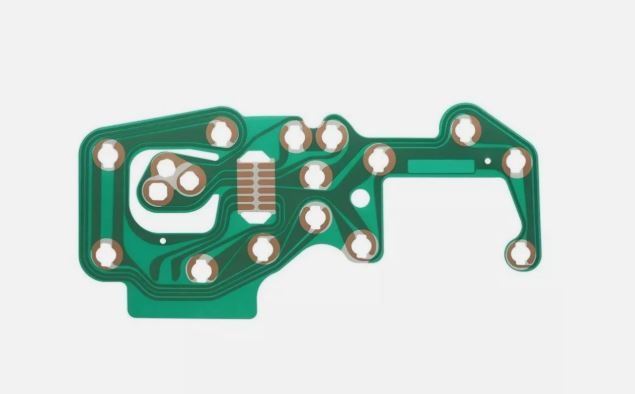

C3 1977-1982 Chevrolet Corvette Console Gauges Printed Circuit - CA
got one ordered.. mine is kinda messed up where tha fingers engage tha harness plug... so it needs a new one anyway......
C3 1977-1982 Chevrolet Corvette Console Gauges Printed Circuit - CA
got one ordered.. mine is kinda messed up where tha fingers engage tha harness plug... so it needs a new one anyway......
