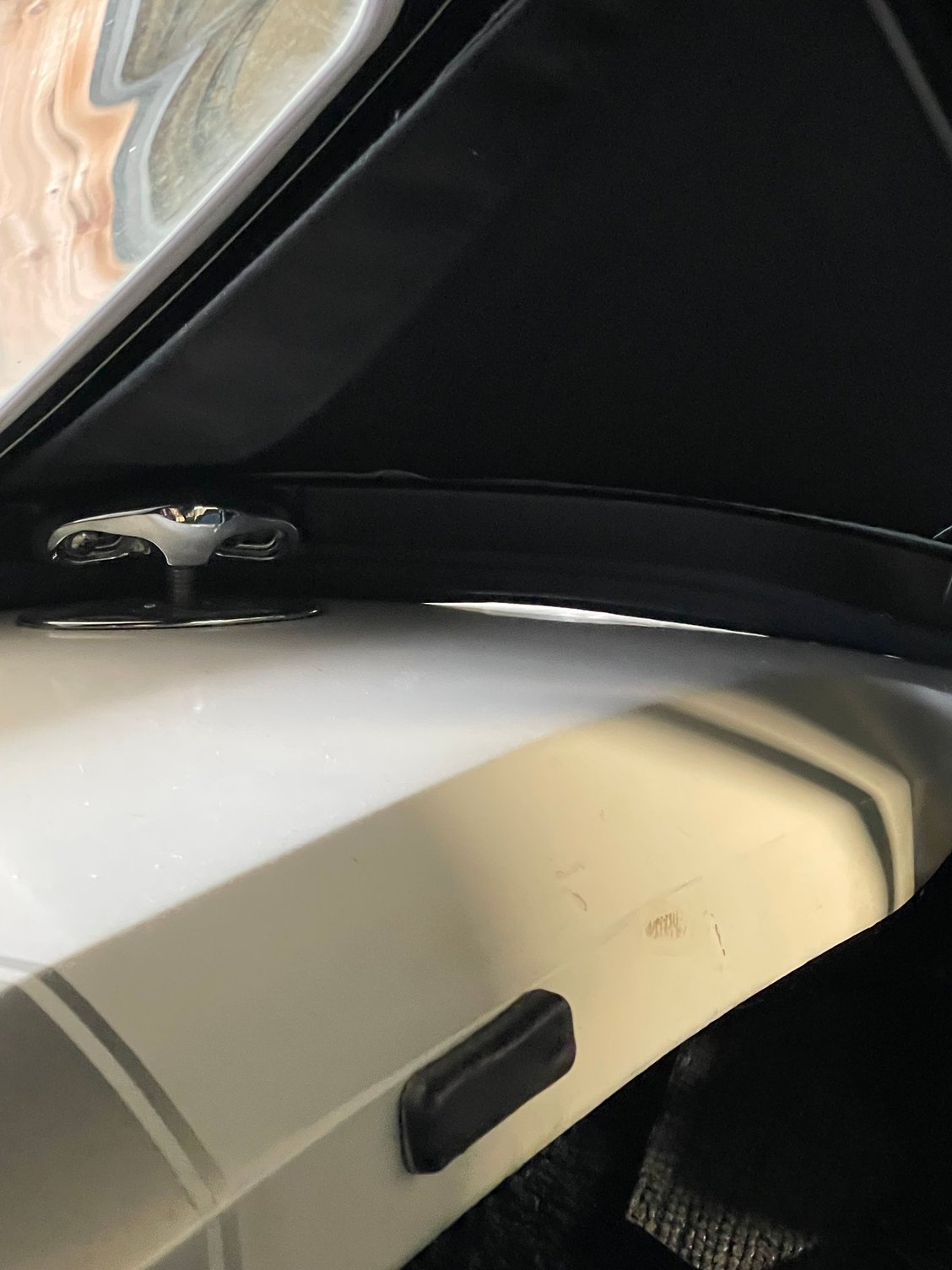

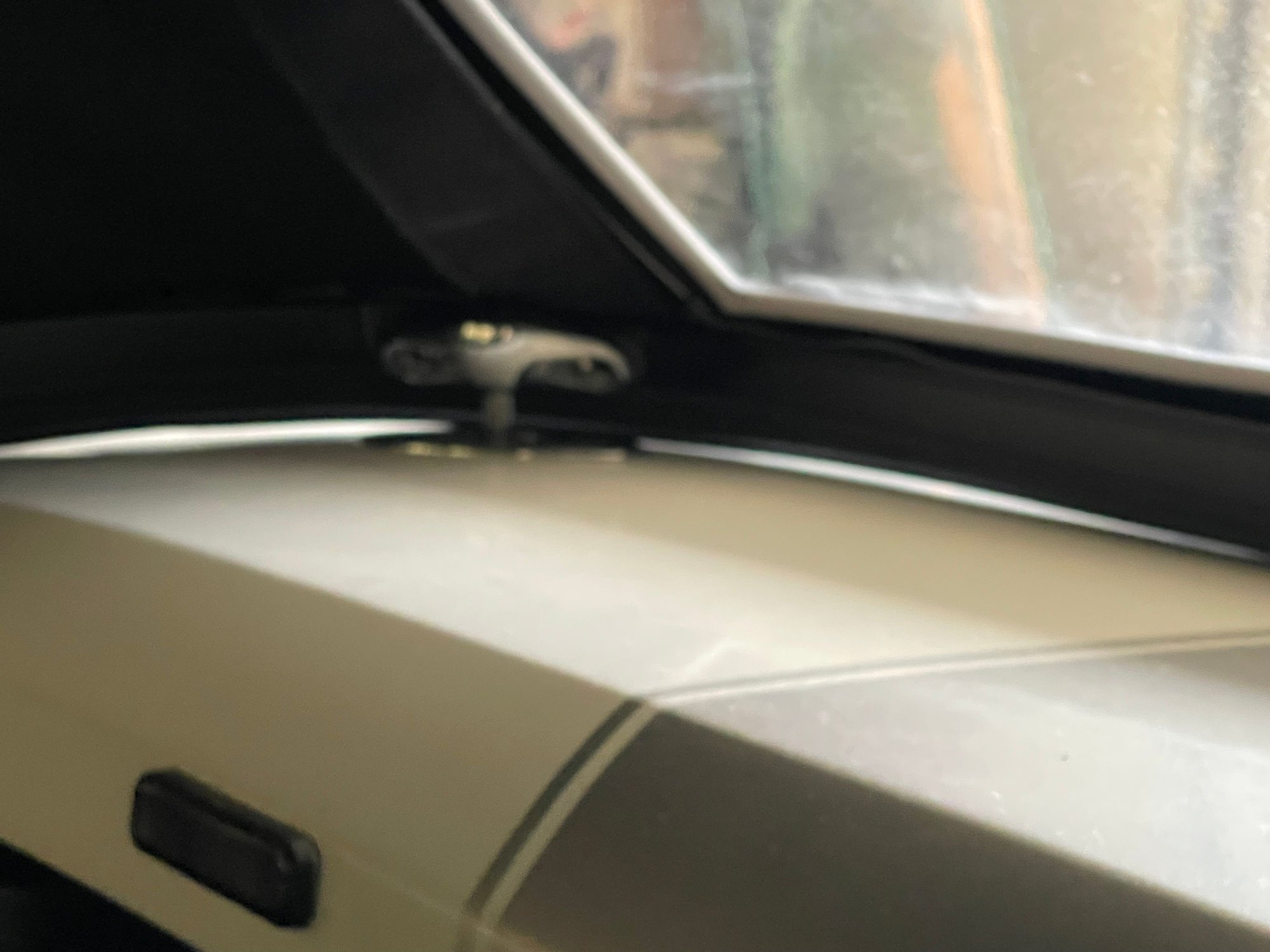

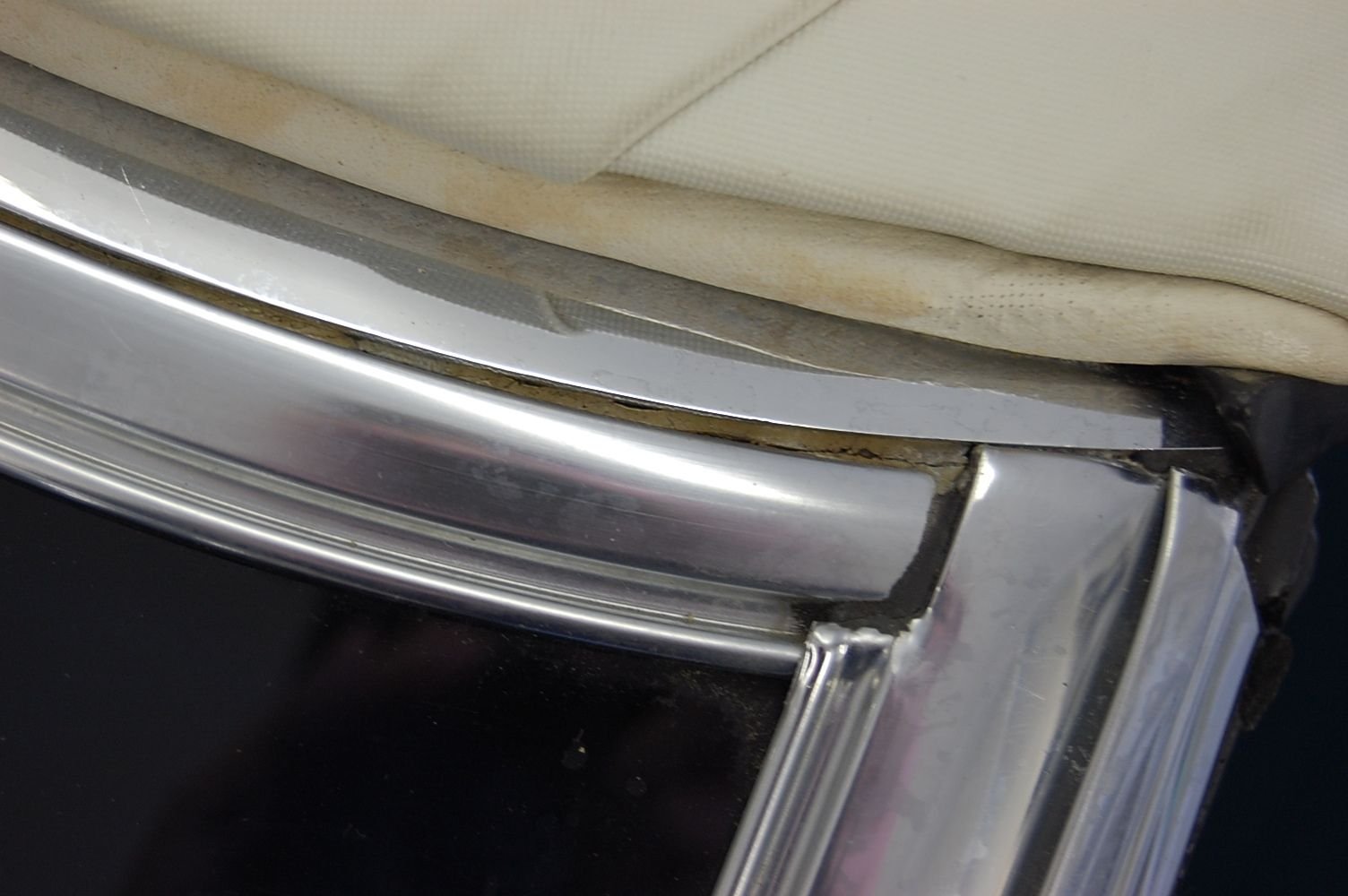

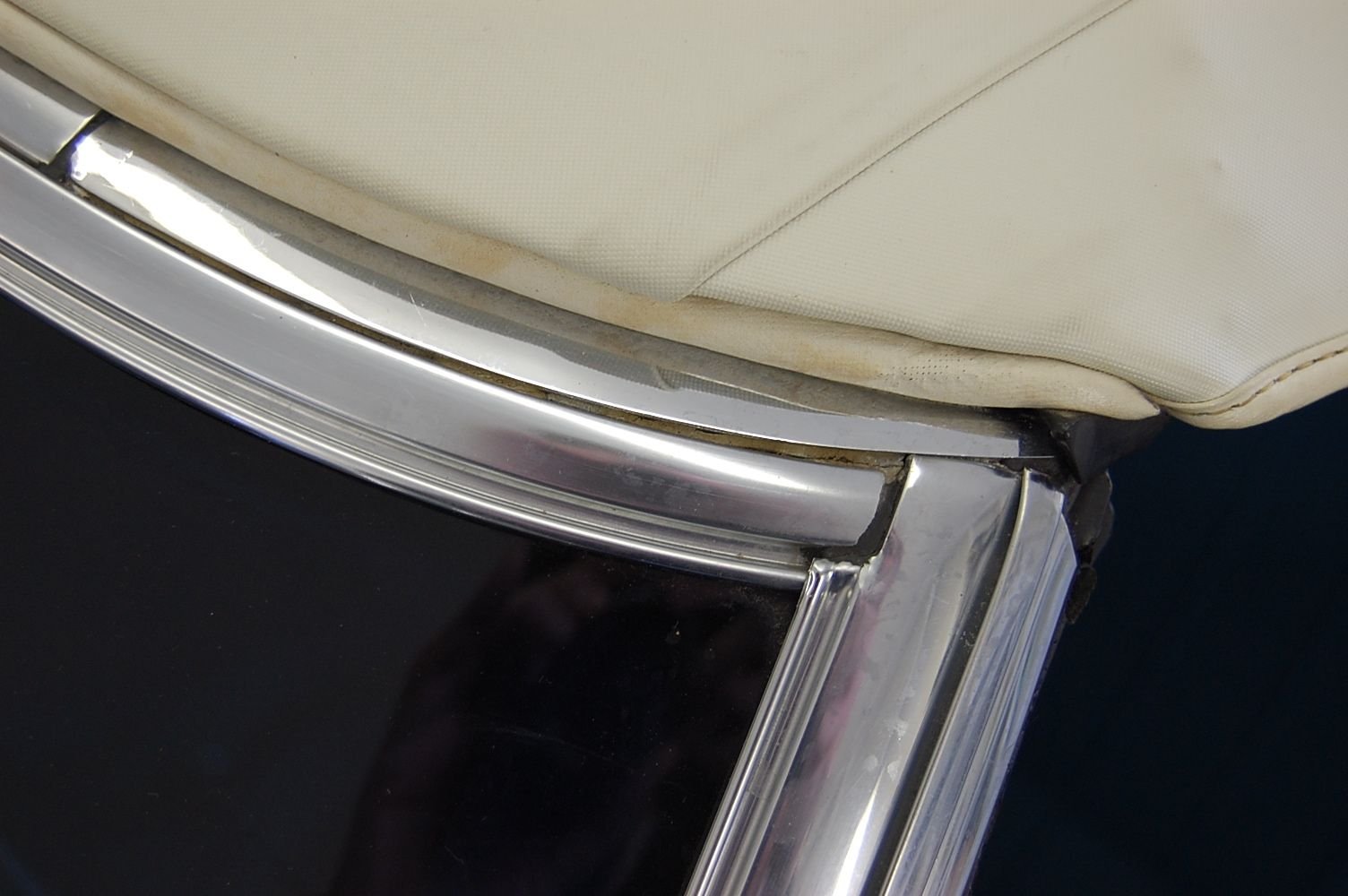

New to convertibles. I've had this '74 for about a month. I'm not new to Corvettes but I haven't owned one in about 10 years. Anyway, I'm having trouble finding adjustment procedures in the AIM, on Youtube, and the forum. I bought this Vette with this new top already installed, looks like it has a new frame too. I can't seem to adust the gaps on the back of the top. I I haven't tried loosening the frame bolts yet but I have tried adjusting the rear pins. Before loosening the frame bolts and getting it farther out of adjustment, I wanted to see if I could get some expert opinions.

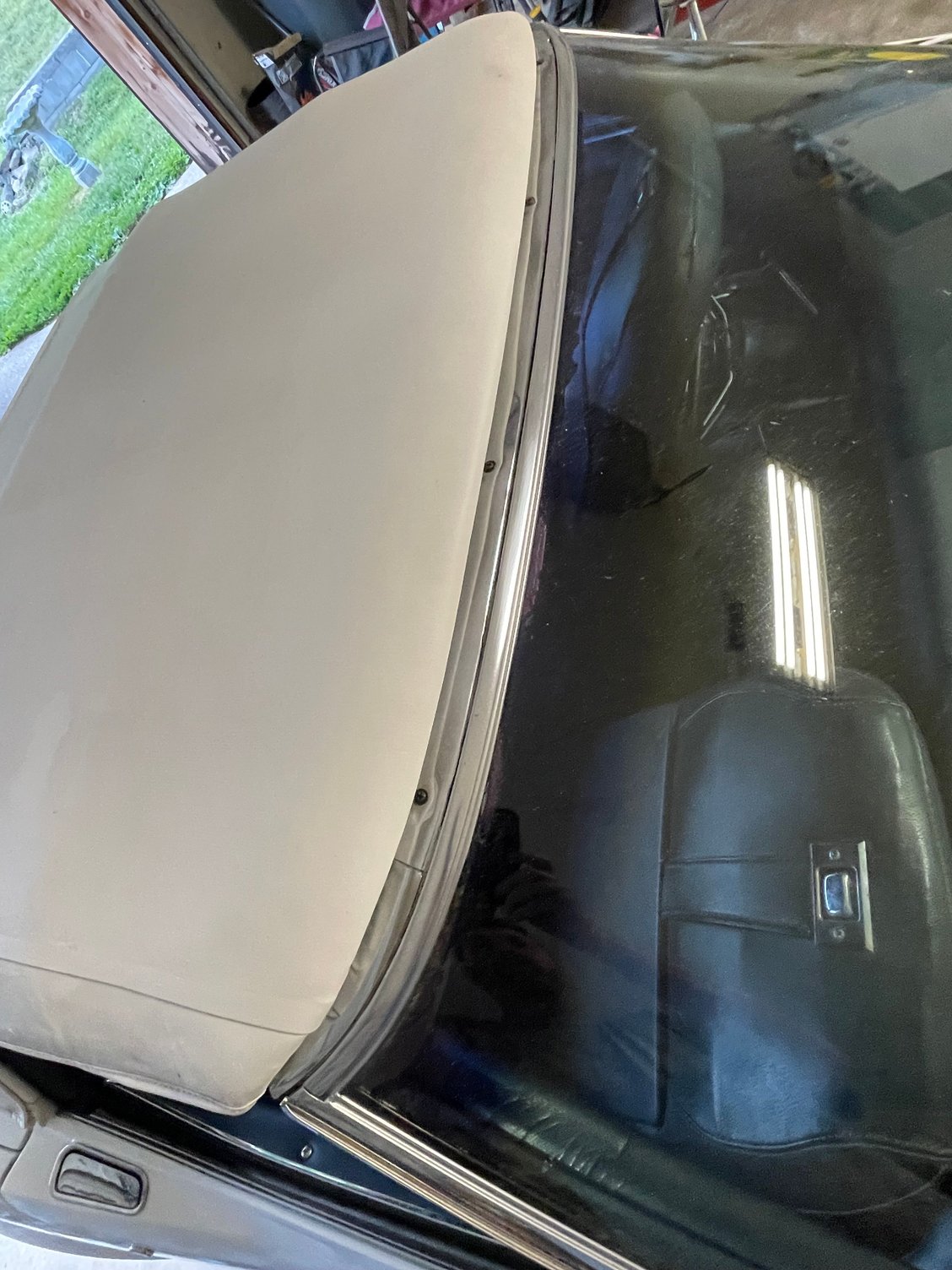

Also, am I missing something in the front? I looks like too much of the windshield frame is visible.
Sorry if the pictures are too big, I can't figure out how to make them smaller.
Hello,
Maybe Al Knoch for the windlace?
One source for information dealing with the soft top itself is the Chassis Service Manual for your year car.
Corvette Body Folding Tops 1B-39 thru 1B-45.
It's POSSIBLE that its the same for all 68-....? soft tops.
Regards....
My weather strip is new. I got the drivers side gap closed up tonight by adjusting the pin.
The passenger side pin is screwed in all the way. It seemed like the latch wasn’t closing all the way so I took it apart and cleaned it. When the pin latched I can still kinda push on the frame and get it to unlatch without pulling the latch handle. If I do pull the latch handle the pin doesn’t pop out of the latch like the drivers side does.
I'm wondering if I need a new latch, pin, and maybe some shims.
Hello,
The Chassis Service Manual deals with the vinyl / cloth part of the soft top and attaching it to the top's frame.
The AIM deals with installing the top on the car since it comes to the line as an 'assembly'.
Regards.....
I think I’ve got it figured out. The passenger side is not latching. It feels like it latches but it is actually latching on the edge of the bezel. That is why I can push it towards the front of the car and unlatch it. When I unscrew the pin long enough to reach the actual latch, it doesn’t line up with the bezel hole.
I’ve ordered a shim for the pin bracket. I think I’m getting close to correcting this issue. I’ll let you guys know if this fixes it.
I got the gaps in the rear fixed! It was a matter of adding a shim and adjusting the pin bracket.

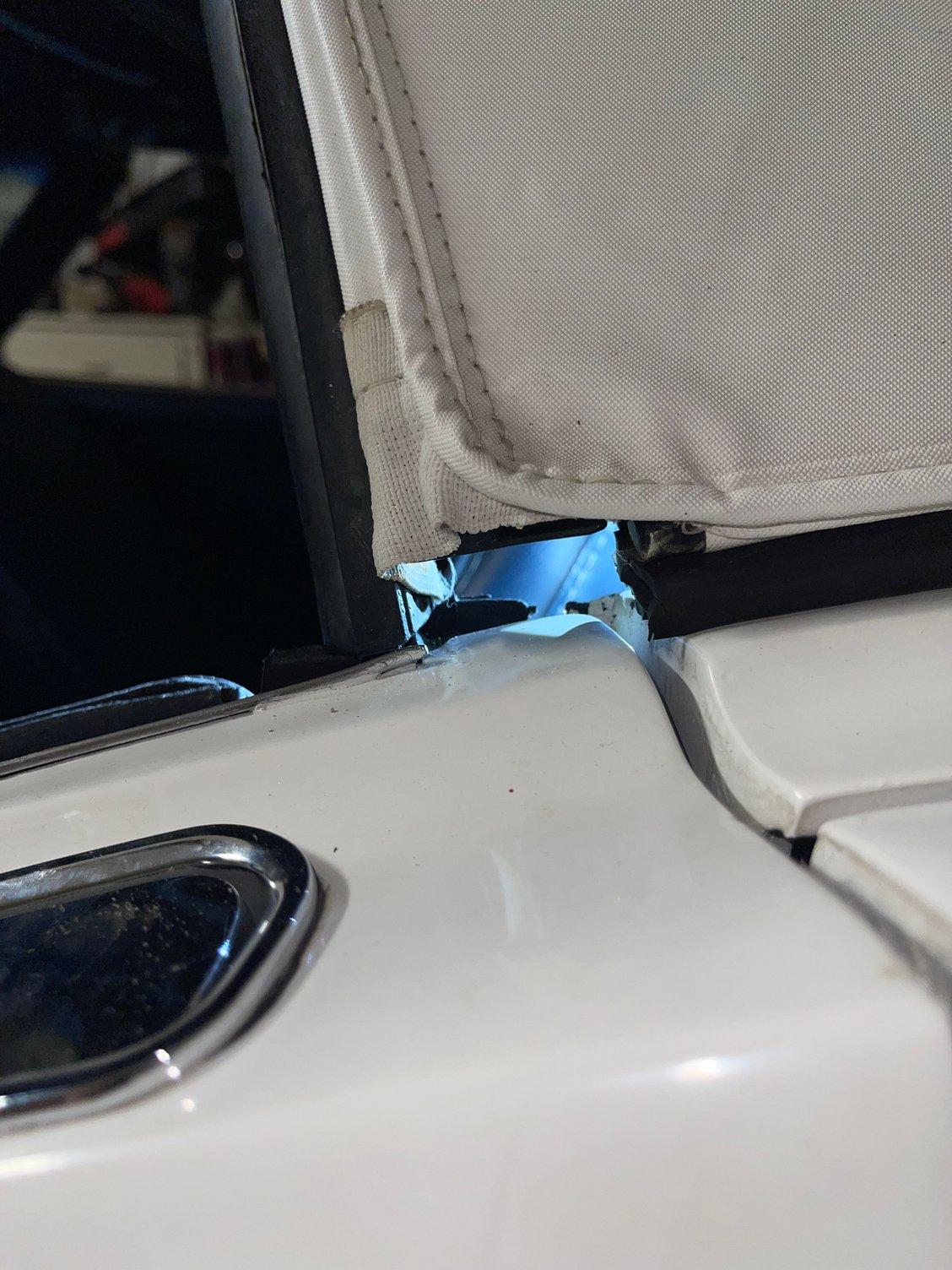

My next issue are these 1”X2” holes over the doors on both sides. Am I missing weather stripping or did someone cut the weather stripping short on the rear bow of the soft top?
The back of my top always pops up because the clamp let's go of the pins, Are there any spring kits for the lock hinges in the rear deck lid or do I need to buy new latches
I got the rear figured out, I needed to add a shim to the pin bracket. The problem I'm working on now is what I'm missing in that picture that two replies up.
Hello,
Are you missing some weatherstrip
It appears it's part of the door weatherstrip for a convertible.
Are you looking in the AIM??
Look at:
ASM1 Sheet F3
ASM1 Sheet F10
?????
Regards...
It would be extremely helpful getting the free catalogs from various Corvette vendors. Most of them will have detailed illustrations showing parts needed, like for soft top weather stripping. The AIM is not as detailed in some instances as many assemblies were already put together when they were shipped to the assembly plant.
