'96 HVAC Vent Control Problem
#81
Intermediate
https://www.etsy.com/listing/4945689...s-24-raw-brass
Hope it helps all future repairs !!
#82
Safety Car
I found this today. I’m preparing to finally pull this one off. This helped me see what I’m about to undertake a bit better.
Last edited by 1Asterisk; 04-08-2020 at 08:57 PM.
#83
Burning Brakes
this is timeless..
is this fix only for the digital automatic controllers?
i have same problems but i have the manual dial control head
just for time line refrnce the world is now in the COVID-19 PANDEMIC! AND "SOCIAL DISTANCING" IS THE NORM
is this fix only for the digital automatic controllers?
i have same problems but i have the manual dial control head
just for time line refrnce the world is now in the COVID-19 PANDEMIC! AND "SOCIAL DISTANCING" IS THE NORM
Last edited by rollin18; 04-08-2020 at 11:39 PM.
The following users liked this post:
BigBilll (08-03-2020)
#84
Advanced
I did it myyyyy wayyyy!
https://youtu.be/3jgvX967Q0o
I found this today. I’m preparing to finally pull this one off. This helped me see what I’m about to undertake a bit better.
I found this today. I’m preparing to finally pull this one off. This helped me see what I’m about to undertake a bit better.
#85
Drifting
In 5ft10 and 180 pounds. Tell me how much of a pain inthe *** it was to do a complete hose replacement for the HVAC from the firewall
#86
Advanced
I’m 6’ 1”, 200lbs and find it not too impossible to work under the dash if I completely remove the driver seat. One thing that helps is having someone stand by to pull you out.
#87
Safety Car
So today was the day. I'm 6'1" and about 205. The challenging part (as most know) is really just the lack of space. After removing the lower dash pad and panel I went for it. Once that one little 7mm bolt was out I truly realized what I was in for. You only have have inches of movement in trying to get the push nut off. This was first time doing this job. I think if I ever had to do it again I would have much better knowledge of how removing that push nut works. I couldn't really see what I was grabbing with my pliers. I intended to try a pair of needle nose vice grips. I wanted to snap them on the push nut then just twirl it off. I thought this would make it easier than trying to grab it with pliers 1000 times. After a bit of not knowing if I was getting anywhere I went with the final solution.
That meant just snipping the connector off. Doing that allowed it drop free. With a little more wiggling it came out. Now my intention to was to bypass the connector and splice the lines directly to each other. I just wanted to have it apart in hand just in case I changed my mind and went with either trimming back the connector tips or inserting brass.
Once it was out I took it inside to inspect it. Those rubber connector tips were soft and sticky. It was easy to see first hand why things were not working. I used 5/32 vacuum line and put them on while inside. I used a small piece of tape to label each by color. I use a qtip with a faint amount of WD40 on it to lube up the ends of the vacuum lines to help the 5/32 slip over. This worked well. The new line would slip on something like 1/4 to 3/8 inch before it became very difficult to do more. I tested by pulling to see how much force it would take to separate them. I was pleasantly supervised to feel they were very snug. You would really have to be stupid to accidentally pull it apart. At least I hope.
I took it to the car. Each line has an extra 18 to 20 inches of vacuum hose. My goal was to have enough to splice the lines prior to reinstalling the unit. This was difficult due to space again. Still it went well. I tested the car before reinstalling everything. It worked flawlessly! Button presses resulted in nearly instant vent switching. Last week I had taken the head unit off/apart and cleaned all the contacts. So I knew the buttons were freshened up.
I installed the unit with putting the extra vacuum line in the void above it. Everything went back in place fine. I will say that taking out the lower right bolt on the metal dash panel was quite annoying. I just couldn't reach it very well due to the middle wall of the car. Also the carpet panel is annoying to put in and out on the side with the torx screws. You can't really see the little floating nuts that they are screwing into. It wasn't that bad, and really a minor complaint. I was just ready to go for a test drive at this point.
Once it was all back to normal I drove for about an hour. With full control over my vents.
I think total time invested in this was about 2.5 hours. I think if I had snipped the connector off to start with I would have saved at least 30 to 45 minutes. I was going to take pictures, but there wasn't anything not already covered in this thread to see. The pictures above document this pretty well. Part of the reason I bypassed the connector and didn't just trim the heads back was they felt very soft and a little tacky. I think they would have continued to be a problem in the future. Now I should be trouble free.
This topic certainly was awesome. There's no way I would have attempted this without it.
That meant just snipping the connector off. Doing that allowed it drop free. With a little more wiggling it came out. Now my intention to was to bypass the connector and splice the lines directly to each other. I just wanted to have it apart in hand just in case I changed my mind and went with either trimming back the connector tips or inserting brass.
Once it was out I took it inside to inspect it. Those rubber connector tips were soft and sticky. It was easy to see first hand why things were not working. I used 5/32 vacuum line and put them on while inside. I used a small piece of tape to label each by color. I use a qtip with a faint amount of WD40 on it to lube up the ends of the vacuum lines to help the 5/32 slip over. This worked well. The new line would slip on something like 1/4 to 3/8 inch before it became very difficult to do more. I tested by pulling to see how much force it would take to separate them. I was pleasantly supervised to feel they were very snug. You would really have to be stupid to accidentally pull it apart. At least I hope.
I took it to the car. Each line has an extra 18 to 20 inches of vacuum hose. My goal was to have enough to splice the lines prior to reinstalling the unit. This was difficult due to space again. Still it went well. I tested the car before reinstalling everything. It worked flawlessly! Button presses resulted in nearly instant vent switching. Last week I had taken the head unit off/apart and cleaned all the contacts. So I knew the buttons were freshened up.
I installed the unit with putting the extra vacuum line in the void above it. Everything went back in place fine. I will say that taking out the lower right bolt on the metal dash panel was quite annoying. I just couldn't reach it very well due to the middle wall of the car. Also the carpet panel is annoying to put in and out on the side with the torx screws. You can't really see the little floating nuts that they are screwing into. It wasn't that bad, and really a minor complaint. I was just ready to go for a test drive at this point.
Once it was all back to normal I drove for about an hour. With full control over my vents.
I think total time invested in this was about 2.5 hours. I think if I had snipped the connector off to start with I would have saved at least 30 to 45 minutes. I was going to take pictures, but there wasn't anything not already covered in this thread to see. The pictures above document this pretty well. Part of the reason I bypassed the connector and didn't just trim the heads back was they felt very soft and a little tacky. I think they would have continued to be a problem in the future. Now I should be trouble free.
This topic certainly was awesome. There's no way I would have attempted this without it.
Last edited by 1Asterisk; 04-10-2020 at 09:47 PM.
The following users liked this post:
cragowski (03-28-2024)
#88
Intermediate
So today was the day. I'm 6'1" and about 205. The challenging part (as most know) is really just the lack of space. After removing the lower dash pad and panel I went for it. Once that one little 7mm bolt was out I truly realized what I was in for. You only have have inches of movement in trying to get the push nut off. This was first time doing this job. I think if I ever had to do it again I would have much better knowledge of how removing that push nut works. I couldn't really see what I was grabbing with my pliers. I intended to try a pair of needle nose vice grips. I wanted to snap them on the push nut then just twirl it off. I thought this would make it easier than trying to grab it with pliers 1000 times. After a bit of not knowing if I was getting anywhere I went with the final solution.
That meant just snipping the connector off. Doing that allowed it drop free. With a little more wiggling it came out. Now my intention to was to bypass the connector and splice the lines directly to each other. I just wanted to have it apart in hand just in case I changed my mind and went with either trimming back the connector tips or inserting brass.
Once it was out I took it inside to inspect it. Those rubber connector tips were soft and sticky. It was easy to see first hand why things were not working. I used 5/32 vacuum line and put them on while inside. I used a small piece of tape to label each by color. I use a qtip with a faint amount of WD40 on it to lube up the ends of the vacuum lines to help the 5/32 slip over. This worked well. The new line would slip on something like 1/4 to 3/8 inch before it became very difficult to do more. I tested by pulling to see how much force it would take to separate them. I was pleasantly supervised to feel they were very snug. You would really have to be stupid to accidentally pull it apart. At least I hope.
I took it to the car. Each line has an extra 18 to 20 inches of vacuum hose. My goal was to have enough to splice the lines prior to reinstalling the unit. This was difficult due to space again. Still it went well. I tested the car before reinstalling everything. It worked flawlessly! Button presses resulted in nearly instant vent switching. Last week I had taken the head unit off/apart and cleaned all the contacts. So I knew the buttons were freshened up.
I installed the unit with putting the extra vacuum line in the void above it. Everything went back in place fine. I will say that taking out the lower right bolt on the metal dash panel was quite annoying. I just couldn't reach it very well due to the middle wall of the car. Also the carpet panel is annoying to put in and out on the side with the torx screws. You can't really see the little floating nuts that they are screwing into. It wasn't that bad, and really a minor complaint. I was just ready to go for a test drive at this point.
Once it was all back to normal I drove for about an hour. With full control over my vents.
I think total time invested in this was about 2.5 hours. I think if I had snipped the connector off to start with I would have saved at least 30 to 45 minutes. I was going to take pictures, but there wasn't anything not already covered in this thread to see. The pictures above document this pretty well. Part of the reason I bypassed the connector and didn't just trim the heads back was they felt very soft and a little tacky. I think they would have continued to be a problem in the future. Now I should be trouble free.
This topic certainly was awesome. There's no way I would have attempted this without it.
That meant just snipping the connector off. Doing that allowed it drop free. With a little more wiggling it came out. Now my intention to was to bypass the connector and splice the lines directly to each other. I just wanted to have it apart in hand just in case I changed my mind and went with either trimming back the connector tips or inserting brass.
Once it was out I took it inside to inspect it. Those rubber connector tips were soft and sticky. It was easy to see first hand why things were not working. I used 5/32 vacuum line and put them on while inside. I used a small piece of tape to label each by color. I use a qtip with a faint amount of WD40 on it to lube up the ends of the vacuum lines to help the 5/32 slip over. This worked well. The new line would slip on something like 1/4 to 3/8 inch before it became very difficult to do more. I tested by pulling to see how much force it would take to separate them. I was pleasantly supervised to feel they were very snug. You would really have to be stupid to accidentally pull it apart. At least I hope.
I took it to the car. Each line has an extra 18 to 20 inches of vacuum hose. My goal was to have enough to splice the lines prior to reinstalling the unit. This was difficult due to space again. Still it went well. I tested the car before reinstalling everything. It worked flawlessly! Button presses resulted in nearly instant vent switching. Last week I had taken the head unit off/apart and cleaned all the contacts. So I knew the buttons were freshened up.
I installed the unit with putting the extra vacuum line in the void above it. Everything went back in place fine. I will say that taking out the lower right bolt on the metal dash panel was quite annoying. I just couldn't reach it very well due to the middle wall of the car. Also the carpet panel is annoying to put in and out on the side with the torx screws. You can't really see the little floating nuts that they are screwing into. It wasn't that bad, and really a minor complaint. I was just ready to go for a test drive at this point.
Once it was all back to normal I drove for about an hour. With full control over my vents.
I think total time invested in this was about 2.5 hours. I think if I had snipped the connector off to start with I would have saved at least 30 to 45 minutes. I was going to take pictures, but there wasn't anything not already covered in this thread to see. The pictures above document this pretty well. Part of the reason I bypassed the connector and didn't just trim the heads back was they felt very soft and a little tacky. I think they would have continued to be a problem in the future. Now I should be trouble free.
This topic certainly was awesome. There's no way I would have attempted this without it.
1990-1996 Corvette #5 - C68 HVAC Programmer Module Removal -(2020 post)
https://www.youtube.com/watch?time_continue=2&v=3jgvX967Q0o&feat ure=emb_logo
Last edited by raid007; 04-11-2020 at 02:14 AM.
#89
Melting Slicks
A couple observations and pics of my repaired controller:
- Any one successfully performing this repair WITHOUT removing the driver's seat first has no bones in their body.
- I replaced the thin cardboard backer with a spare piece of plastic packaging cut to fit as mine looked pretty sad.
- Vacuum line to number hole mapping once block is removed:
- 1 = PINK (rear mode blend door)
- 2 = WHITE (A/C defrost blend door)
- 3 = blank
- 4 = BLACK (vacuum source)
- 5 = blank
- 6 = BLUE (front mode blend door)
- 7 = ORANGE (recirculate blend door)
Last edited by RC4G; 07-27-2020 at 10:04 PM.
The following users liked this post:
Joetrackside (12-23-2020)
#90
Le Mans Master
A couple observations and pics of my repaired controller:
could not have done this repair without this thread.
could not have done this repair without this thread.
- Any one successfully performing this repair WITHOUT removing the driver's seat first has no bones in their body.
- that was the first thing i did when i decided to do this after a lot of procrastination. being 73, replaced knee and a bunch of screws and plates in my lower back, i do everything i can to make working easier.
- also being 5'6" and less than 150# i raised the steering and put the shifter in 5th so i could squeeze my head between the steering wheel and the shifter as i was getting myself into position.
- Vacuum line to number hole mapping once block is removed:
- 1 = PINK (rear mode blend door)
- 2 = WHITE (A/C defrost blend door)
- 3 = blank
- 4 = BLACK (vacuum source)
- 5 = blank
- 6 = BLUE (front mode blend door)
- 7 = ORANGE (recirculate blend door)
back to being a happy camper while the outside temps are hovering around the century mark.
#91
Dreaded 96 stuck on heat and defrost.
Decided to tackle this today. All was going well had the controller ready to go back in after about 1.5 hours.
I decided to forgo using the manifold and just hook lines directly to each other.
Get it back together go to check it, I secretly know it wont work that's just how it goes with this POS, now the fan is on full speed and there are no green lights on the buttons. The system won't respond. Yes I have cleaned buttons and they were all working before hand. Now none are lit up and I have this weird thing on the LCD. I held down the fan buttons and it pulled no code.
I did try unplugging and plugging it back in.
What is this? What do I have to do now??
This is all it will do and it comes on full fan speed at Key On. Still blowing out the defrost and floor.
Decided to tackle this today. All was going well had the controller ready to go back in after about 1.5 hours.
I decided to forgo using the manifold and just hook lines directly to each other.
Get it back together go to check it, I secretly know it wont work that's just how it goes with this POS, now the fan is on full speed and there are no green lights on the buttons. The system won't respond. Yes I have cleaned buttons and they were all working before hand. Now none are lit up and I have this weird thing on the LCD. I held down the fan buttons and it pulled no code.
I did try unplugging and plugging it back in.
What is this? What do I have to do now??
This is all it will do and it comes on full fan speed at Key On. Still blowing out the defrost and floor.
Last edited by Furias15x; 12-11-2020 at 07:12 PM.
#92
Intermediate
Ship the box for repairs first. Get it rebuilt once its out
Dreaded 96 stuck on heat and defrost.
Decided to tackle this today. All was going well had the controller ready to go back in after about 1.5 hours.
I decided to forgo using the manifold and just hook lines directly to each other.
Get it back together go to check it, I secretly know it wont work that's just how it goes with this POS, now the fan is on full speed and there are no green lights on the buttons. The system won't respond. Yes I have cleaned buttons and they were all working before hand. Now none are lit up and I have this weird thing on the LCD. I held down the fan buttons and it pulled no code.
I did try unplugging and plugging it back in.
What is this? What do I have to do now??
This is all it will do and it comes on full fan speed at Key On. Still blowing out the defrost and floor.
Decided to tackle this today. All was going well had the controller ready to go back in after about 1.5 hours.
I decided to forgo using the manifold and just hook lines directly to each other.
Get it back together go to check it, I secretly know it wont work that's just how it goes with this POS, now the fan is on full speed and there are no green lights on the buttons. The system won't respond. Yes I have cleaned buttons and they were all working before hand. Now none are lit up and I have this weird thing on the LCD. I held down the fan buttons and it pulled no code.
I did try unplugging and plugging it back in.
What is this? What do I have to do now??
This is all it will do and it comes on full fan speed at Key On. Still blowing out the defrost and floor.
Jack
The following users liked this post:
Furias15x (12-12-2020)
#93
Pro
I have read all this post and need some clarity . If you cut the vacuum tubes before the manifold on the programmer to avoid removing that push on nut. Then you directly connect new vacuum lines to the programmer instead of using the manifold. How do you connect the new vacuum lines to the colored lines under the dash? Do you slide a brass tube between them as a transition? Is 3/32" ID the proper size vacuum tubing to use?
#94
I have read all this post and need some clarity . If you cut the vacuum tubes before the manifold on the programmer to avoid removing that push on nut. Then you directly connect new vacuum lines to the programmer instead of using the manifold. How do you connect the new vacuum lines to the colored lines under the dash? Do you slide a brass tube between them as a transition? Is 3/32" ID the proper size vacuum tubing to use?
#95
Hi Everyone- As a first time Corvette owner I just want to say thank you to all that contributed to this post and to Batee.com. I called Batee to either order the module repair kit or have them perform the repair, instead of just taking my money like allot of venders from my other car platform (Buick GN), they referred me to this post. I took the information from here and got my 96 HVAC working like it should!
My fix was just to trim the rubber nipples on the module connector and reinstall the unit. It only took me 1.5 hours but I was lucky. Someone had been in there before, the retainer clip was already removed and longer bolt and nut were installed. The module had also already been reconditioned. The internals were spotless and the cardboard backer was new and held on by electrical tape. A previous owner probably sold the car because of the issue.....
Before I realized the little connector clip was removed I was thinking there is no way a guy my size can get to the connecter. I started looking for alternatives and thought.... These cars were built on an assembly line, no way the assemblers contorted around to install the vacuum lines and module. My guess is that the module was mounted to the fire wall, next the dash surround. Once the the dash surround was installed the assemblers would connect the HVAC plug to the module. Then finally the dash gauge cluster and trim. My guess is that with the gauge cluster removed from the dash, the HVAC module connectors are easily accessible (or maybe not).
So if this happens to others it might be easier to remove the gauge cluster to access the vacuum line connector but I don't know that for sure. Just something to consider.
My fix was just to trim the rubber nipples on the module connector and reinstall the unit. It only took me 1.5 hours but I was lucky. Someone had been in there before, the retainer clip was already removed and longer bolt and nut were installed. The module had also already been reconditioned. The internals were spotless and the cardboard backer was new and held on by electrical tape. A previous owner probably sold the car because of the issue.....
Before I realized the little connector clip was removed I was thinking there is no way a guy my size can get to the connecter. I started looking for alternatives and thought.... These cars were built on an assembly line, no way the assemblers contorted around to install the vacuum lines and module. My guess is that the module was mounted to the fire wall, next the dash surround. Once the the dash surround was installed the assemblers would connect the HVAC plug to the module. Then finally the dash gauge cluster and trim. My guess is that with the gauge cluster removed from the dash, the HVAC module connectors are easily accessible (or maybe not).
So if this happens to others it might be easier to remove the gauge cluster to access the vacuum line connector but I don't know that for sure. Just something to consider.
The following users liked this post:
Furias15x (08-13-2021)
#96
Intermediate
Fastener that holds the controller to firewall.
Anyone know off hand what size the fastener is that holds the controller to firewall. Once I'm in there on my back it would be good to know the size tool to take with me. Thanks much.
#97
Instructor
#98
#100
6th Gear
Member Since: Aug 2007
Location: San Antonio TX
Posts: 6
Likes: 0
Received 0 Likes
on
0 Posts
Programmer Hoses Replaced
Last week I had a local Corvette shop fix the problem of air not blowing out the front vents. The tech replaced the hoses on the programmer. You can see in the top part of the picture what was replaced. It works great now. Nothing like feeling the blast of cool air coming from the front vents on a hot summer. Lived with this problem for many years. Finally fixed. 96 Grand Sport.

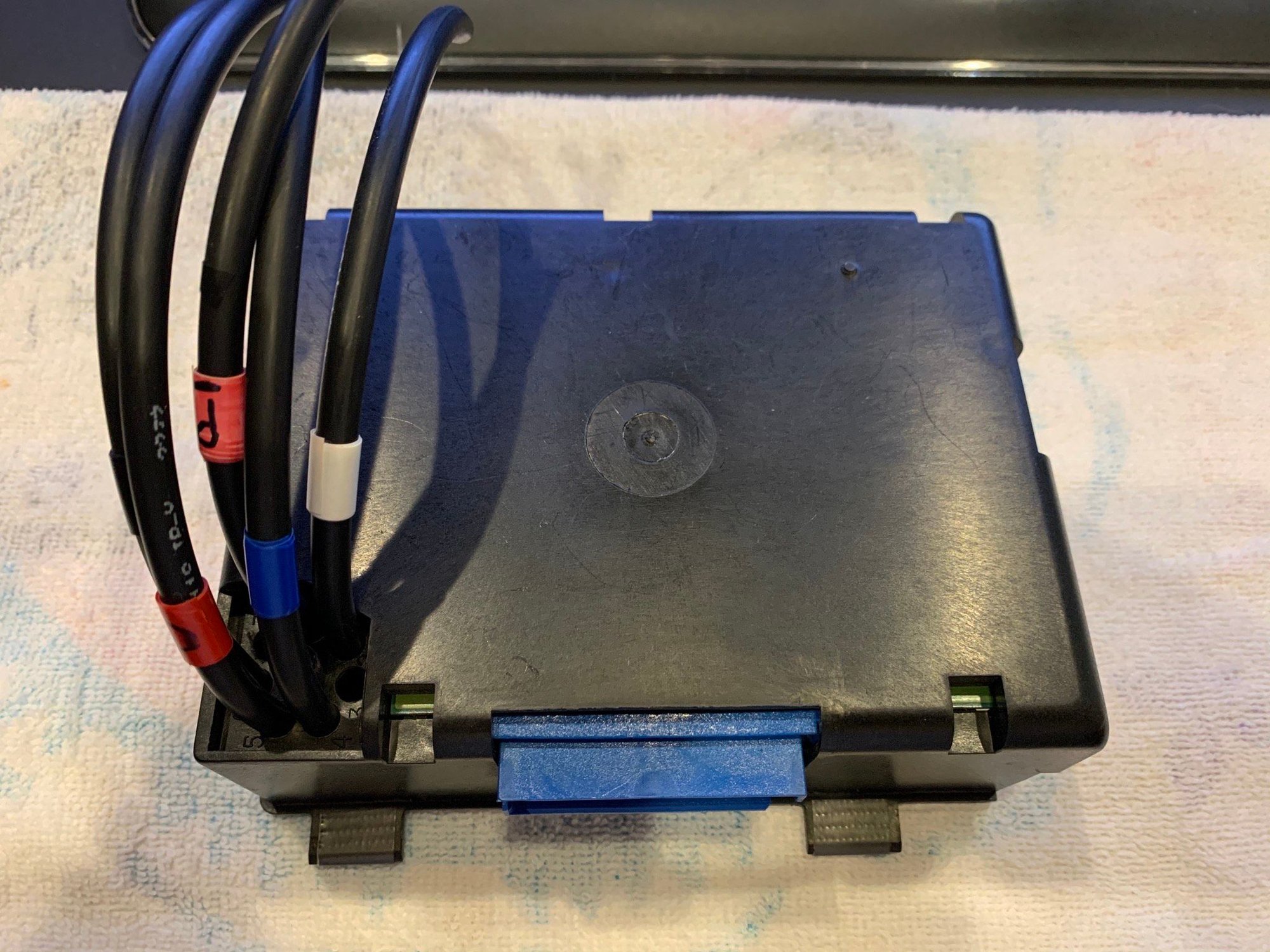

96 Corvette AC Programmer. Replaced the original part shown in the upper half of picture with new hoses and connectors.
96 Corvette AC Programmer. Replaced the original part shown in the upper half of picture with new hoses and connectors.
