Part Identification Help
Anyone know what to call this and/or where to find it?

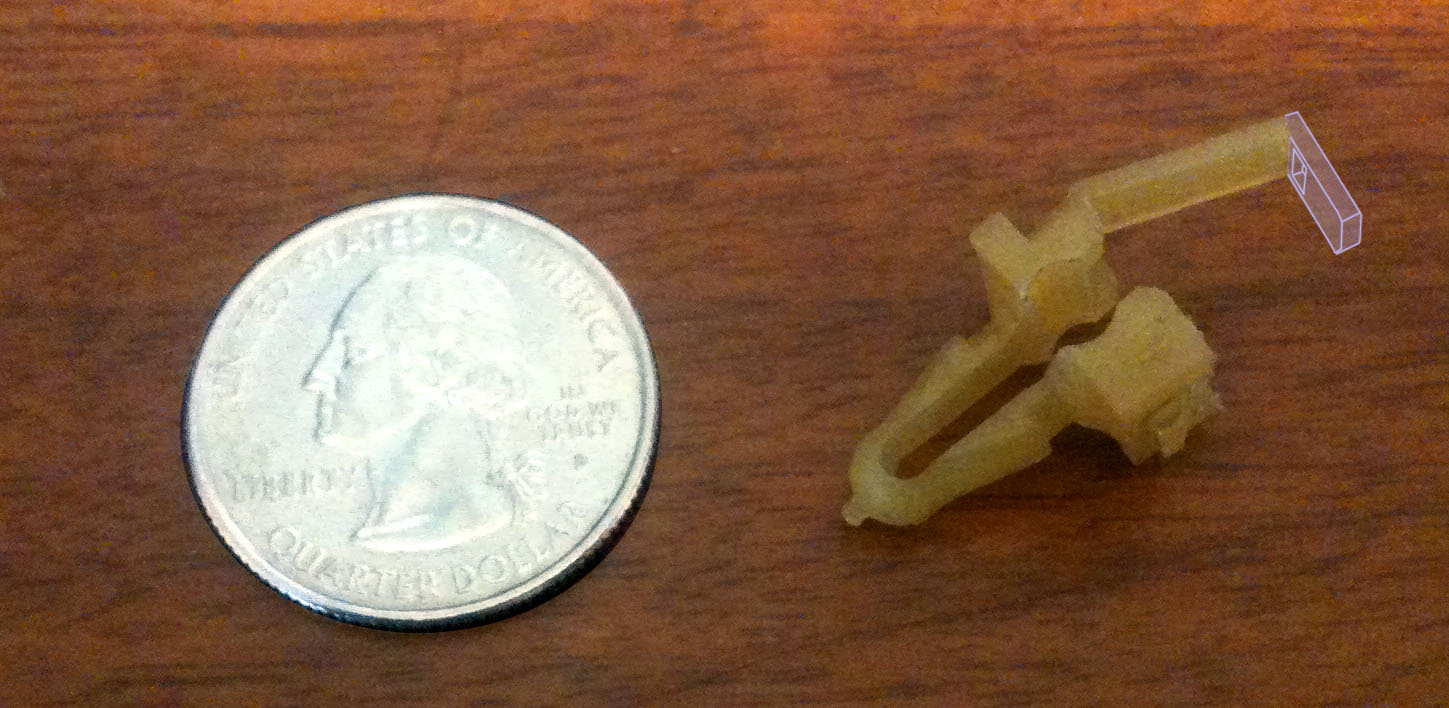

I found this broken piece when changing my heater core. There is a small motor on the heater core cover that moves the flapper door back and forth. This is the retainer clip that fits into the motor arm and holds the rod that links to the flapper door.
It should look something like this if the tab wasn't broken off.
I found this part on Corvette Central but it doesn't look correct.
Heater control rod to valve - retainer
For reference, I have an 89 Coupe with electronic climate control.
I found this broken piece when changing my heater core. There is a small motor on the heater core cover that moves the flapper door back and forth. This is the retainer clip that fits into the motor arm and holds the rod that links to the flapper door.
It should look something like this if the tab wasn't broken off.
I found this part on Corvette Central but it doesn't look correct.
Heater control rod to valve - retainer
For reference, I have an 89 Coupe with electronic climate control.
Thread Starter
Burning Brakes
Joined: Jan 2009
Posts: 871
Likes: 15
From: Shepherdsville Kentucky
Don't you love it when the shipping on an item costs more than the item itself?
Part turned out to be incorrect and does not work. Anyone have any ideas?
I attempted to glue the piece together, but that wasn't successful. I may try a zip tie and see if I have any luck there. Would really prefer just to replace the part though.
Last edited by 89 Vett; Dec 4, 2010 at 12:22 PM.
Drifting
Joined: Jun 2010
Posts: 1,853
Likes: 8
From: Westerly RI
Chances are that retainer is not Corvette-specific. Maybe if you could find a sympathetic GM parts guy he could help you.
Another (remote) possibility- the "HELP" rack of bits and pieces in some auto parts stores.
You may have to be creative with something that doesn't look like the original but will adapt.
If you come up completely empty, you could hold the retainer in the closed position and drill thru the two parts where they meet, then use a small piece of wire like a cotter pin to hold them together, even add a drop of gorilla glue or urethane glue for insurance.
Another (remote) possibility- the "HELP" rack of bits and pieces in some auto parts stores.
You may have to be creative with something that doesn't look like the original but will adapt.
If you come up completely empty, you could hold the retainer in the closed position and drill thru the two parts where they meet, then use a small piece of wire like a cotter pin to hold them together, even add a drop of gorilla glue or urethane glue for insurance.
Melting Slicks
Joined: Jan 2009
Posts: 3,482
Likes: 195
From: folsom california
if you're into U Pull It type yards, and there's no Corvette donors (good luck there), I've found that big front engined GM cars, ala Cadillacs, of a similiar year, have HVAC systems and are a good surce of possible donor parts; i.e a solid state ten speed fan control module, $300 list, $20 at U Pull it (and I still think it should have been cheaper, but hey, its about the only thing I ever fixed on my Corvette for 20 bucks).
Thread Starter
Burning Brakes
Joined: Jan 2009
Posts: 871
Likes: 15
From: Shepherdsville Kentucky
The part turned out to be incorrect. Couldn't even really mod it to work. I did however mod the original part and it sorta works. I guess I'll have to start calling some corvette yards and see if I can find a replacement. Though it will likely be as brittle as my original.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
2027 Corvette vs The World: Every Model vs Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
10 Things C8 Corvette Owners Hate (But Won't Tell You)
Joe Kucinski
10 Best Corvettes Coming to Barrett-Jackson Palm Beach 2026!
Brett Foote
Every Corvette Grand Sport Explained! (C2, C4, C6, C7, & C8)
Joe Kucinski
Grand Sport & Grand Sport X Launch Alongside All-New 535hp LS6 V8!
Michael S. Palmer
5 Reasons Bad Drivers Crash & 5 Ways to Avoid a Costly Mistake!
Joe Kucinski
Racer
Joined: Oct 1999
Posts: 372
Likes: 1
From: Santa Fe TN
I know that this isn't much help but...
Looks like the part you bought from Corvette Central was perhaps for the manual A/C, as it is identical to the part that I broke when changing the heater core in my '85 with manual A/C. I searched high and low for this part for the better part of a year, and ended up buying a complete heater box on fleabay because it had the rod with the little white clip that I needed. Now I see that Corvette Central has the part, so next time I break it, I'll be able to get one from them...
Looks like the part you bought from Corvette Central was perhaps for the manual A/C, as it is identical to the part that I broke when changing the heater core in my '85 with manual A/C. I searched high and low for this part for the better part of a year, and ended up buying a complete heater box on fleabay because it had the rod with the little white clip that I needed. Now I see that Corvette Central has the part, so next time I break it, I'll be able to get one from them...
Thread Starter
Burning Brakes
Joined: Jan 2009
Posts: 871
Likes: 15
From: Shepherdsville Kentucky

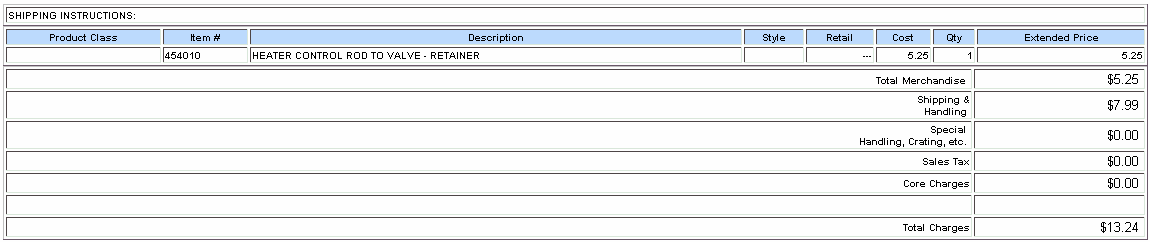

I ordered another part from Dino's salvage. It came the other day and it's different than my piece but no the one I ordered from Corvette Central (which didn't work).
It looks to be basically the same part without the locking tab on it. Doesn't seem like it'll work well but I'll give it a shot.
It looks to be basically the same part without the locking tab on it. Doesn't seem like it'll work well but I'll give it a shot.
Team Owner
Joined: Sep 2003
Posts: 25,331
Likes: 2,722
Your response is to the snapshot in the post above you?
The part in the snapshot is a GM # 1224062 which shouldn't be what you received looking at the invoice you posted or I guess maybe that's what you received from Dino's which should work then. Here's an image of the "service part" in Cliff's snapshot using the ACD # 15-7994. The part is NLA but there is stock on many dealers shelves throughout the country. A GM dealer could tell you if there were any close.
http://webcaps.ecomm.gm.com/internet...Number=15-7994
The part in the snapshot is a GM # 1224062 which shouldn't be what you received looking at the invoice you posted or I guess maybe that's what you received from Dino's which should work then. Here's an image of the "service part" in Cliff's snapshot using the ACD # 15-7994. The part is NLA but there is stock on many dealers shelves throughout the country. A GM dealer could tell you if there were any close.
http://webcaps.ecomm.gm.com/internet...Number=15-7994
Last edited by WVZR-1; Feb 13, 2013 at 08:21 AM.
Thread Starter
Burning Brakes
Joined: Jan 2009
Posts: 871
Likes: 15
From: Shepherdsville Kentucky
Yes, sorry for the lack of clarity. The part pictured in the snapshot is what I received from Dino's. The part I previously orderd from Corvette Central was different and didn't work. The part from Corvette Central would hold the rod but has a cup shape on it designed for the end of the rod rest against.
From the picture it looks like that part from Covette Central would work with the blend door pictured. On mine the blend door rod is longer and extends a couple of inches beyond the clip so I'd have to drill a hole in the "cup" side of the clip to allow the rod to pass through.
From the picture it looks like that part from Covette Central would work with the blend door pictured. On mine the blend door rod is longer and extends a couple of inches beyond the clip so I'd have to drill a hole in the "cup" side of the clip to allow the rod to pass through.
Team Owner
Joined: Sep 2003
Posts: 25,331
Likes: 2,722
Yes, sorry for the lack of clarity. The part pictured in the snapshot is what I received from Dino's. The part I previously orderd from Corvette Central was different and didn't work. The part from Corvette Central would hold the rod but has a cup shape on it designed for the end of the rod rest against.
From the picture it looks like that part from Covette Central would work with the blend door pictured. On mine the blend door rod is longer and extends a couple of inches beyond the clip so I'd have to drill a hole in the "cup" side of the clip to allow the rod to pass through.
From the picture it looks like that part from Covette Central would work with the blend door pictured. On mine the blend door rod is longer and extends a couple of inches beyond the clip so I'd have to drill a hole in the "cup" side of the clip to allow the rod to pass through.
A last resort could be a salvage yard. The one you need is used on most all GM full-size pickups(with a vent window) from '85 - '91, S10 trucks the same vintage and all GM cars '76 - '88 RWD bodies.
Two years! WOW - I don't recall ever seeing the post!
