Help identifying these connectors!!

4lnkdsupra · 2013-06-02 02:27:35

http://i183.photobucket.com/albums/x56/boostGotMeLaid/harn_zps4a772c46.jpeg (http://s183.photobucket.com/user/boostGotMeLaid/media/harn_zps4a772c46.jpeg.html) http://i183.photobucket.com/albums/x56/boostGotMeLaid/harn2_zpse5056045.jpeg (http://s183.photobucket.com/user/boostGotMeLaid/media/harn2_zpse5056045.jpeg.html) http://i183.photobucket.com/albums/x56/boostGotMeLaid/harn3_zps1605dc39.jpeg (http://s183.photobucket.com/user/boostGotMeLaid/media/harn3_zps1605dc39.jpeg.html) thanks guys not too sure what they are...Recently did a tpi restore and cant figure out what they are seeing if i can get a quick responds:cheers:

Reply Subscribe

Thread Tools

Search this Thread

Jun 1, 2013 | 10:27 PM

4lnkdsupra

Thread Starter

Heel & Toe

Joined: May 2013

Posts: 18

Likes: 0

Help identifying these connectors!!

thanks guys not too sure what they are...Recently did a tpi restore and cant figure out what they are seeing if i can get a quick responds

Jun 1, 2013 | 10:32 PM

4lnkdsupra

Thread Starter

Heel & Toe

Joined: May 2013

Posts: 18

Likes: 0

btw deleted cruise, EGR, went with a th350, and no smog pump!! and both plugs are identical but one makes my front ac fan stay on constant

Last edited by 4lnkdsupra; Jun 1, 2013 at 10:40 PM.

Jun 1, 2013 | 10:45 PM

Just BOB

Racer

Joined: Oct 2012

Posts: 350

Likes: 2

From: Huntsville AL

It varies depending on tire size. What year Buick is that?

Jun 1, 2013 | 10:49 PM

JackDidley

Race Director

Joined: Sep 2003

Posts: 16,838

Likes: 341

From: Database Error Indiana

Quote:

Originally Posted by Just BOB

It varies depending on tire size. What year Buick is that?

Jun 1, 2013 | 10:57 PM

4lnkdsupra

Thread Starter

Heel & Toe

Joined: May 2013

Posts: 18

Likes: 0

ha 88 tpi^^^

Jun 1, 2013 | 11:05 PM

Just BOB

Racer

Joined: Oct 2012

Posts: 350

Likes: 2

From: Huntsville AL

Might take a day or two, but someone with an 88 will probably weigh in with an answer.

Jun 1, 2013 | 11:08 PM

65Z01

Team Owner

Joined: Dec 2000

Posts: 90,675

Likes: 304

From: SE NY

Cruise-In II Veteran

They don't look familiar; what year Vette?

Jun 1, 2013 | 11:42 PM

Just BOB

Racer

Joined: Oct 2012

Posts: 350

Likes: 2

From: Huntsville AL

Quote:

Originally Posted by 65Z01

...what year Vette?

Might be an 88.

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Jun 2, 2013 | 02:03 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,394

Likes: 2,741

#3 - red is cannister purge, #2 trans connector likely and #1 if you'd take the damn "fingers" off the "clue" you could be helped much easier. Post the wire colors for each and life could get good quickly. If under your thumb is yellow & purple VSS?

Last edited by WVZR-1; Jun 2, 2013 at 02:06 AM.

Jun 2, 2013 | 09:58 AM

#10

4lnkdsupra

Thread Starter

Heel & Toe

Joined: May 2013

Posts: 18

Likes: 0

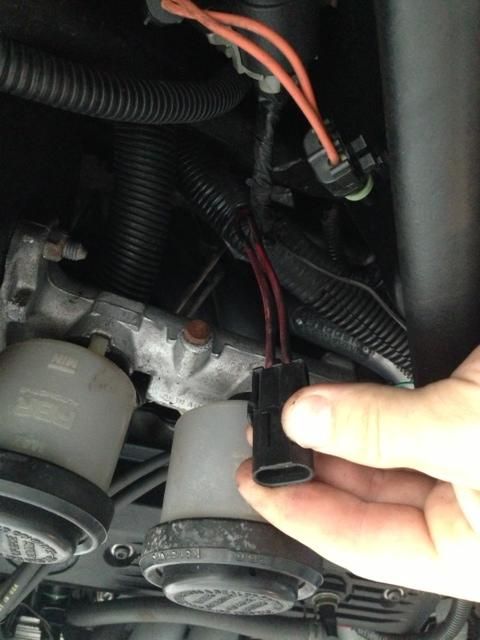

Haha ill take better pic the connector(under tumb) in first picture... its on the same pigtail for the 2nd pic connector.. If that makes any since..

If ur saying that the white connector in second pic is tranny the the one I'm holding in the first pic is speed sensor mabe..

What's the connector coming of the positive battery cable??

Jun 2, 2013 | 10:25 AM

#11

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,394

Likes: 2,741

Quote:

Originally Posted by 4lnkdsupra

Like I mentioned if it's yellow & purple under your thumb then yes VSS!

The reds from + cable, likely cooling fan relay and ecm, fuel pump and other relays likely fusible link material.

Jun 2, 2013 | 12:17 PM

#12

4lnkdsupra

Thread Starter

Heel & Toe

Joined: May 2013

Posts: 18

Likes: 0

Does Any of those absolutely need to be connected I'm having problems with fans coming on?? I connect the connector coming off the battery to connector closest that would make since and only the ac fan (front of the car blow) constantly blows
