1986 HVAC C68 dead blower motor


Old 08-03-2014, 01:34 PM
  #1
Square
CF Senior Member
Thread Starter

Square's Avatar

Member Since: Jan 2001
Location: Chesapeake VA
Posts: 2,931
Likes: 0
Liked 2 Times in 2 Posts
Default 1986 HVAC C68 dead blower motor

Hi,

I have an 1986 with the C86 electronic A/C. My blower motor will not run at all. Current conditions/findings:

- I can directly connect the blower to the battery and it will work fine
- The single fuse next to the blower is good
- There is a 2 wire and 4 wire connector that plugs into the A/C condenser box:
- On the 2 wire connector, the red wire has 12 volts, with the HVAC fan on 10(measured between the red wire and the engine block)
- On the 2 wire connector, the green wire does not show continuity to ground, but I cannot find where it comes out of the wiring loom to test continuity of the wire itself.


Thanks for any help.
Square is offline
Old 08-03-2014, 06:29 PM
  #2
Hooked on Vettes
CF Senior Member

Member Since: Aug 1999
Location: Baltimore, MD USA
Posts: 2,240
Likes: 0
Liked 17 Times in 17 Posts
Default

Originally Posted by Square View Post
Hi,

I have an 1986 with the C86 electronic A/C. My blower motor will not run at all. Current conditions/findings:

- I can directly connect the blower to the battery and it will work fine
- The single fuse next to the blower is good
- There is a 2 wire and 4 wire connector that plugs into the A/C condenser box:
- On the 2 wire connector, the red wire has 12 volts, with the HVAC fan on 10(measured between the red wire and the engine block)
- On the 2 wire connector, the green wire does not show continuity to ground, but I cannot find where it comes out of the wiring loom to test continuity of the wire itself.


Thanks for any help.
The Red wire powers the Blower Control Module and should be battery voltage.

On the 4 wire connector.
Black is ground.
Black/Red is the output voltage to the Blower Motor.
Brown wire is the variable voltage from the HVAC Control Head.

At Blower Speed 10, you should measure over 6 volts on the
Brown wire. As you decrease the blower speed the volts should
drop on the Brown wire.

If no voltage on the Brown wire, the HVAC Control Head is bad.

If there is no voltage coming out of the module on the Black/Red
wire, the Blower Control Module is bad.

Hooked on Vettes is offline
Old 08-03-2014, 07:53 PM
  #3
Square
CF Senior Member
Thread Starter

Square's Avatar

Member Since: Jan 2001
Location: Chesapeake VA
Posts: 2,931
Likes: 0
Liked 2 Times in 2 Posts
Default

Thank you very much!

When I do the measuring, can this be done with the 2 and 4 wire plugs disconnected, or do I need to back probe the wires to get them to read correctly?



Originally Posted by Hooked on Vettes View Post
The Red wire powers the Blower Control Module and should be battery voltage.

On the 4 wire connector.
Black is ground.
Black/Red is the output voltage to the Blower Motor.
Brown wire is the variable voltage from the HVAC Control Head.

At Blower Speed 10, you should measure over 6 volts on the
Brown wire. As you decrease the blower speed the volts should
drop on the Brown wire.

If no voltage on the Brown wire, the HVAC Control Head is bad.

If there is no voltage coming out of the module on the Black/Red
wire, the Blower Control Module is bad.

Square is offline
Old 08-03-2014, 08:04 PM
  #4
Hooked on Vettes
CF Senior Member

Member Since: Aug 1999
Location: Baltimore, MD USA
Posts: 2,240
Likes: 0
Liked 17 Times in 17 Posts
Default

Originally Posted by Square View Post
Thank you very much!

When I do the measuring, can this be done with the 2 and 4 wire plugs disconnected, or do I need to back probe the wires to get them to read correctly?
Back probe the connector wires.
Stick red probe on brown wire.
Black probe on Black wire.

Turn ignition On.

Select Auto mode.
Manually vary the fan speed.

You should see a changing DC voltage around 2-7 volts depending
on the speed selected.

Zero volts on the Brown wire when Off.
If that works you should see a varying voltage on the Black/Red wire
which goes to the Blower Motor.
Hooked on Vettes is offline
Old 08-03-2014, 11:35 PM
  #5
Square
CF Senior Member
Thread Starter

Square's Avatar

Member Since: Jan 2001
Location: Chesapeake VA
Posts: 2,931
Likes: 0
Liked 2 Times in 2 Posts
Default

Here is what I found:



On the 4 wire connector, with the HVAC on "ECON" and the fan at "10", I measured 234 millivolts between the thick black wire and the thin "black" wire which I assume is the brown wire.

Also, on the 2 wire connector, with it disconnected it shows battery voltage with the car off, and 0 volts with the car and HVAC on. Is that normal?

Thanks!
Square is offline
Old 08-04-2014, 04:58 AM
  #6
Cliff Harris
CF Senior Member

Cliff Harris's Avatar

Member Since: Apr 2002
Location: Anaheim CA
Posts: 10,028
Likes: 0
Liked 306 Times in 285 Posts
Default

Originally Posted by Square View Post
Also, on the 2 wire connector, with it disconnected it shows battery voltage with the car off, and 0 volts with the car and HVAC on. Is that normal?
The red wire goes directly to the positive battery cable on the starter solenoid (though a fusible link), so it has 12 volts on it all the time, ignition on or off.

If there is zero volts on the red wire then there is something wrong (probably fusible link is blown).

The large black wire with the red stripe should be around 12 volts when the fan is at 10. That is measured with respect to ground, which means a metal part of the engine or the frame. That wire goes to the blower motor. My car only has the one wire connected to the blower motor connector and a separate ground wire. I have seen later versions that have a 2 pin connector on the blower motor.

Last edited by Cliff Harris; 08-04-2014 at 05:06 AM.
Cliff Harris is offline
Old 08-04-2014, 01:08 PM
  #7
Hooked on Vettes
CF Senior Member

Member Since: Aug 1999
Location: Baltimore, MD USA
Posts: 2,240
Likes: 0
Liked 17 Times in 17 Posts
Default

Originally Posted by Square View Post
Here is what I found:



On the 4 wire connector, with the HVAC on "ECON" and the fan at "10", I measured 234 millivolts between the thick black wire and the thin "black" wire which I assume is the brown wire.

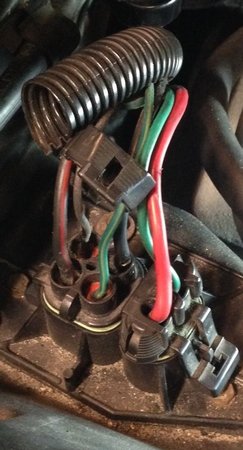

Looks like you popped the cover off of the 4 pin connector so I assume when you are probing the wires you're making good contact?

If you unplug the four pin connector.
Turn the ignition On.
Press Auto button. Shouldn't matter what blower speed is selected
you should measure around 10 volt DC on the Brown wire.

If you do that indicates the HVAC Control head is good. No voltage the Control head is bad.

That leaves the Blower Control Module or the wiring.

The Red/Black wire appears to be burnt.
That wire powers the Blower motor.
With the plug disconnected if you manually apply 12 volts to
that wire does the Blower Motor run at full speed?

If it doesn't the wiring is bad to the Blower motor.

If the Blower Motor runs it points to a bad Blower Control Module.

You should always have 12 volts on the Red wire (Hot all the time)
to the Black wire which is ground.
Hooked on Vettes is offline
Old 08-05-2014, 08:05 AM
  #8
Square
CF Senior Member
Thread Starter

Square's Avatar

Member Since: Jan 2001
Location: Chesapeake VA
Posts: 2,931
Likes: 0
Liked 2 Times in 2 Posts
Default

Thanks for all the advice. I t looks like the control module is bad. The fan will run with 12 volts applied to the Black/Red wire.

I have ordered a new module, and will report back when I have it installed.

Thanks again!
Square is offline
Old 08-07-2014, 10:44 PM
  #9
Square
CF Senior Member
Thread Starter

Square's Avatar

Member Since: Jan 2001
Location: Chesapeake VA
Posts: 2,931
Likes: 0
Liked 2 Times in 2 Posts
Default

UPDATE:

THANK YOU!!!!!!!!!!!!!!!!!!!!!

The Blower control module arrived today. I just plugged it in and turned on the fan, and it fixed the problem!

It did remind me how bad off the blower bearings are, so I will order a new blower fan.

I am very happy to have a working fan as the State of Virginia requires that the defroster be operational in order to pass the annual State inspection (which expired on my 86' at the end of July).

Thanks again!!!!
Square is offline
