Gear decipher

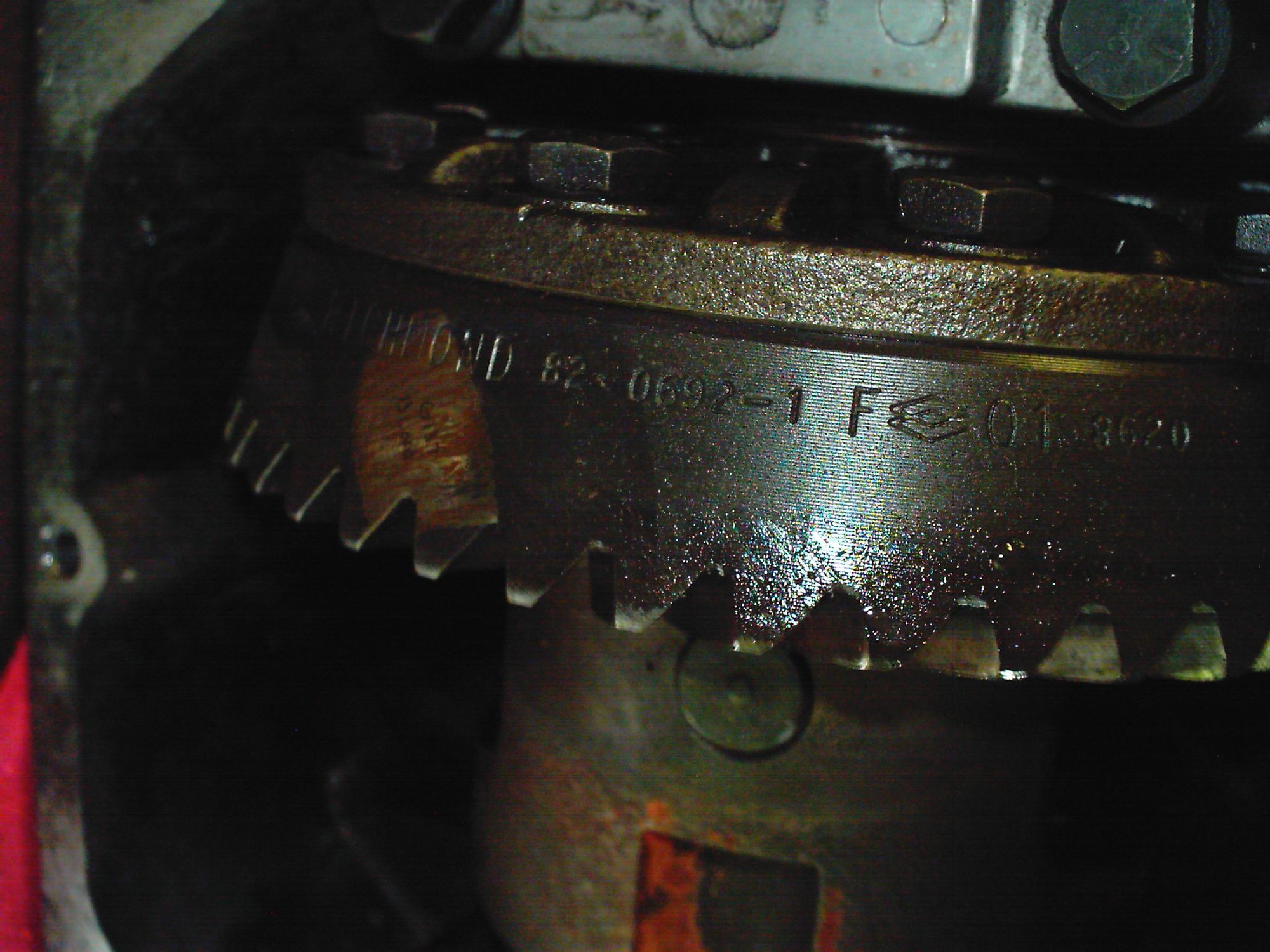

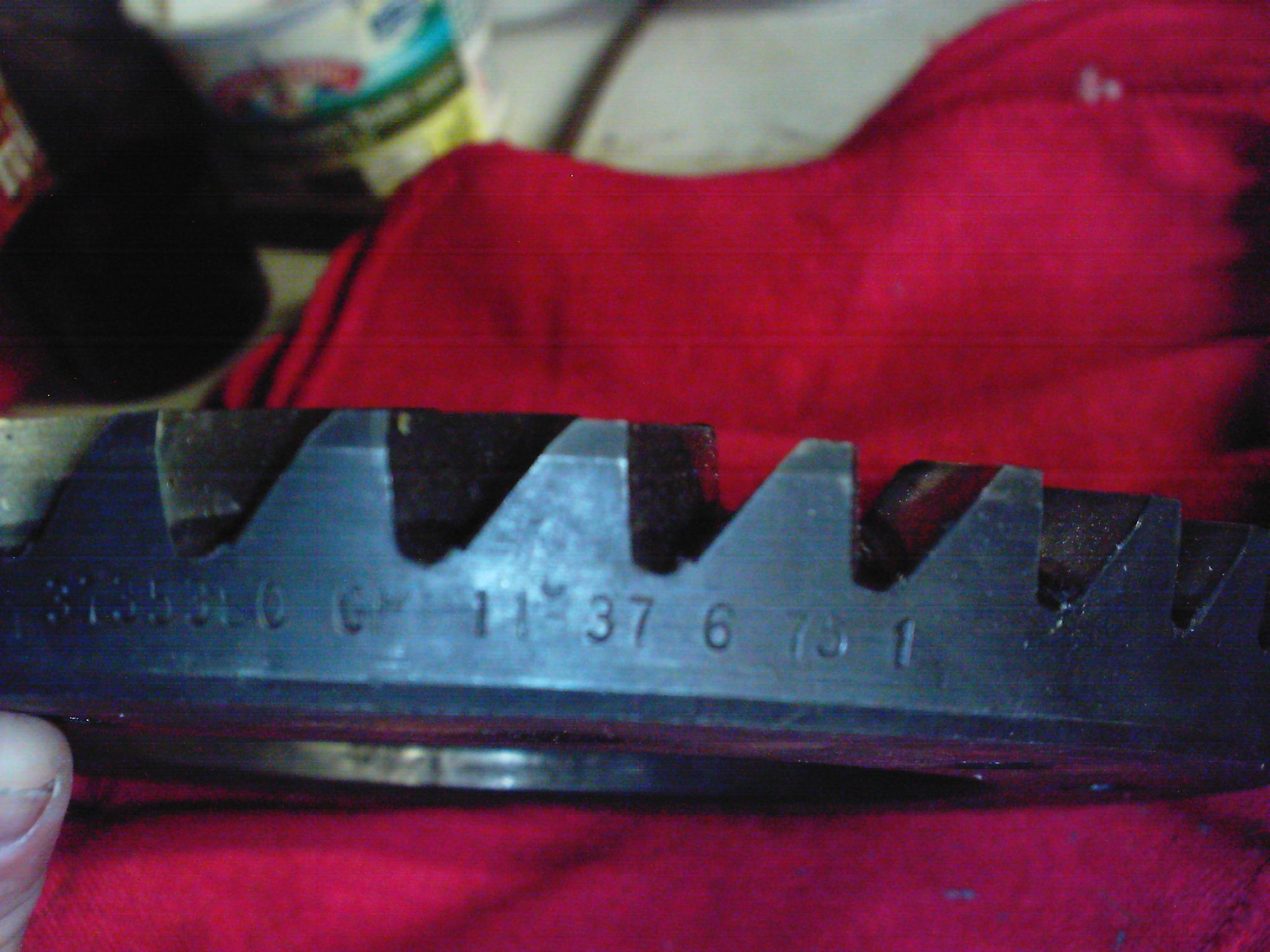

I picked up a Dana 36 case at Carlisle and they have a set of richmond gears in it, the numbers on the gears are 82 0692-1 F 01 8620. I was told they are 3:54's and counting the turns comes out to about that. He also gave me the ring and pinion that came out of it the numbers on it are 37355380 GM 11 37 6 75. I am trying to ID them the richmond site list a different part number. Any Thoughts.
Team Owner
Joined: Sep 2003
Posts: 25,366
Likes: 2,733
I picked up a Dana 36 case at Carlisle and they have a set of richmond gears in it, the numbers on the gears are 82 0692-1 F 01 8620. I was told they are 3:54's and counting the turns comes out to about that. He also gave me the ring and pinion that came out of it the numbers on it are 37355380 GM 11 37 6 75. I am trying to ID them the richmond site list a different part number. Any Thoughts.
The D36 that you bought is a 3.75 with the kit # of 49-0110-1, 82-0692-1 is the ring gear and 82-0693-1 is the pinion if you could read it. There should be 45 teeth on the ring gear and 12 on the pinion. It ain't no 3.54. Check the tooth counts and do the math. Ring gear/pinion = ratio.
I believe the ring gear number on the gear set is 3735390 and that would make it a 3.36 for a '63 or '64 by application. Is the pinion 11 tooth? Is there a number on it? Maybe 3819186 for '63 - '64. If the pinion is 3885942 its for a '65 - '79.
Last edited by WVZR-1; Aug 23, 2014 at 06:42 PM.
Team Owner
Joined: Sep 2003
Posts: 25,366
Likes: 2,733
Thread Starter
Drifting
Joined: Jul 2009
Posts: 1,257
Likes: 98
From: Ashland PA
2021 C4 of the Year - Modified Finalist
Thread Starter
Drifting
Joined: Jul 2009
Posts: 1,257
Likes: 98
From: Ashland PA
2021 C4 of the Year - Modified Finalist

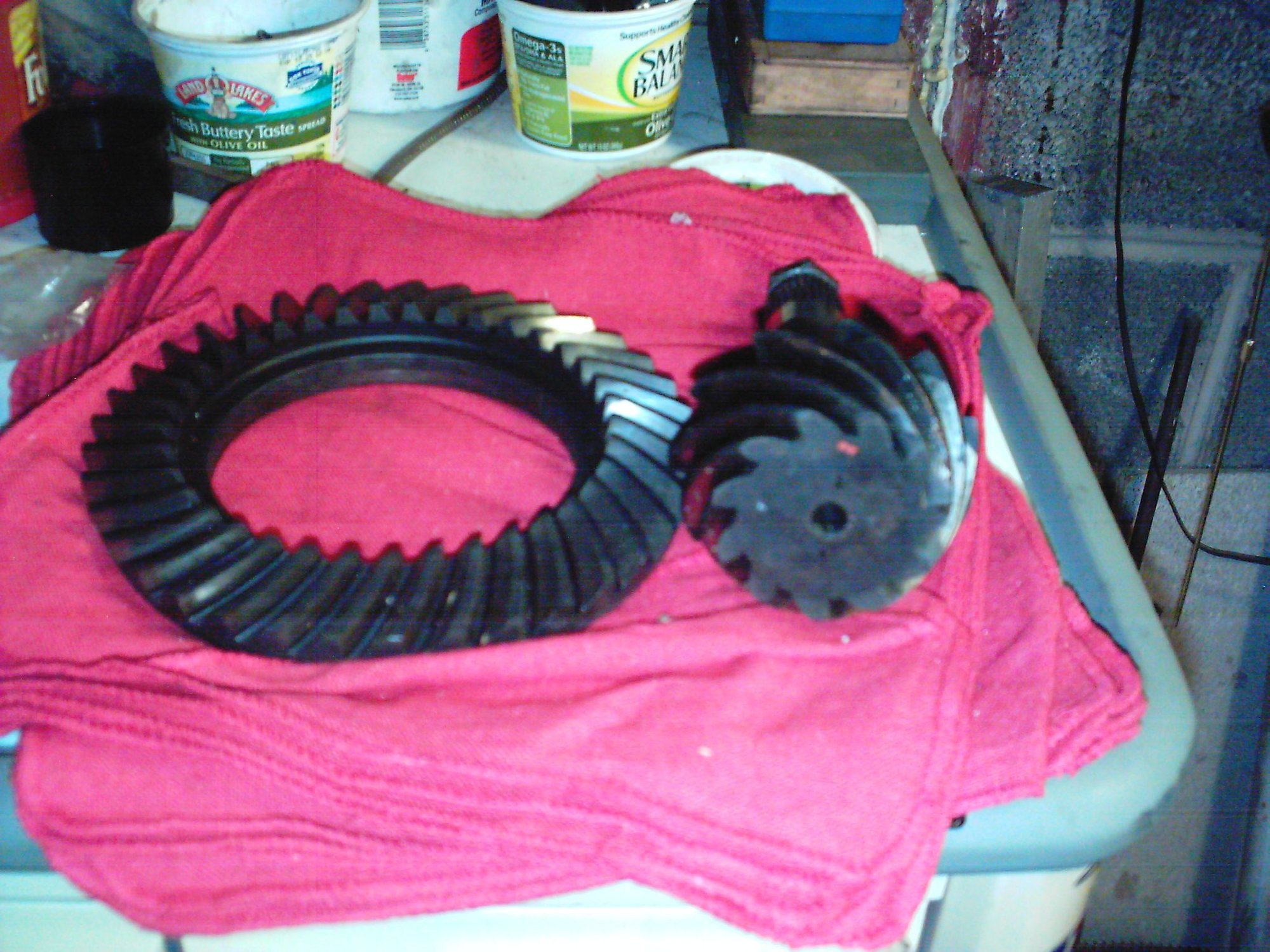

I'd say the gear set is for a 3.36 rear and it's NOT for a D36 Corvette. There's a couple possible applications and I believe if you posted more accurate information off of the ring gear I could ID it. Post a picture of the stuff you bought.
The D36 that you bought is a 3.75 with the kit # of 49-0110-1, 82-0692-1 is the ring gear and 82-0693-1 is the pinion if you could read it. There should be 45 teeth on the ring gear and 12 on the pinion. It ain't no 3.54. Check the tooth counts and do the math. Ring gear/pinion = ratio.
I believe the ring gear number on the gear set is 3735390 and that would make it a 3.36 for a '63 or '64 by application. Is the pinion 11 tooth? Is there a number on it? Maybe 3819186 for '63 - '64. If the pinion is 3885942 its for a '65 - '79.
The D36 that you bought is a 3.75 with the kit # of 49-0110-1, 82-0692-1 is the ring gear and 82-0693-1 is the pinion if you could read it. There should be 45 teeth on the ring gear and 12 on the pinion. It ain't no 3.54. Check the tooth counts and do the math. Ring gear/pinion = ratio.
I believe the ring gear number on the gear set is 3735390 and that would make it a 3.36 for a '63 or '64 by application. Is the pinion 11 tooth? Is there a number on it? Maybe 3819186 for '63 - '64. If the pinion is 3885942 its for a '65 - '79.
Team Owner
Joined: Sep 2003
Posts: 25,366
Likes: 2,733
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Thread Starter
Drifting
Joined: Jul 2009
Posts: 1,257
Likes: 98
From: Ashland PA
2021 C4 of the Year - Modified Finalist
I replaced all the bearings and seals in my diff thats in my 90 C4 over the winter at the time I was laid off and would have liked to replace the ring and pinion but did not want to spend any more money on it than I had to. The gears have 176K + on them they are 2:59's I was thinking of going to 3:07's but then the way I understand it I will need a different center section that the ring bolts to. So now I will have to determine what center section I have in the case with the bad richmond gears in it.
Team Owner
Joined: Sep 2003
Posts: 25,366
Likes: 2,733
I replaced all the bearings and seals in my diff thats in my 90 C4 over the winter at the time I was laid off and would have liked to replace the ring and pinion but did not want to spend any more money on it than I had to. The gears have 176K + on them they are 2:59's I was thinking of going to 3:07's but then the way I understand it I will need a different center section that the ring bolts to. So now I will have to determine what center section I have in the case with the bad richmond gears in it.
The four holes where the camber brackets bolt to are drilled for either 10mm or 12mm hardware. Which are yours?

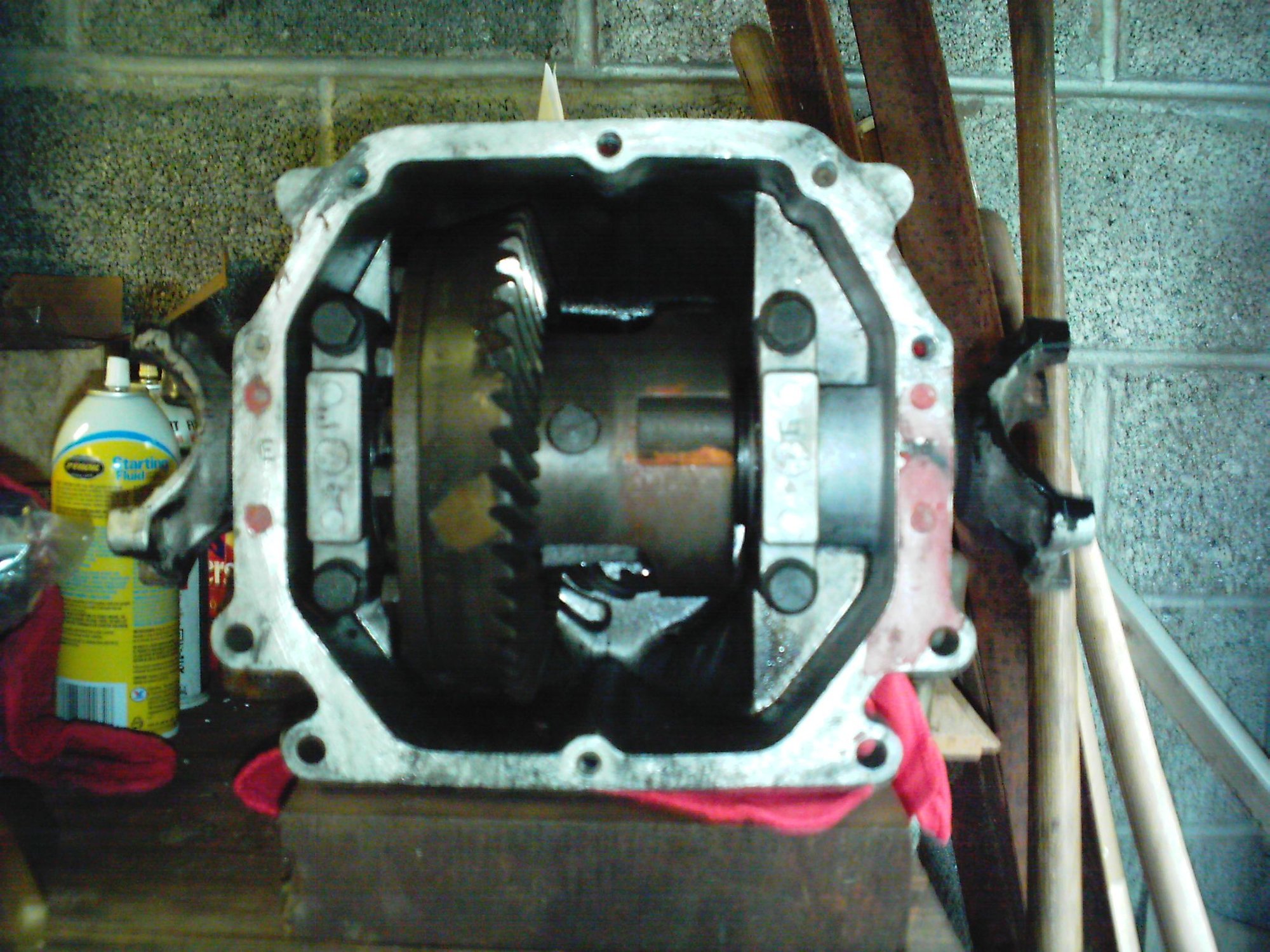

Rotate the case to a point where you may be able to read the casting information on it. Post that and maybe the case can be identified more closely.
