What is this????
OK, I'm attempting to replace a leaking intake gasket on an 87 base vert. Most of my motor head experience is pretty old. The car is from the 80s but my experience is from the 50s and 60s. A lot has changed so who will help me here?

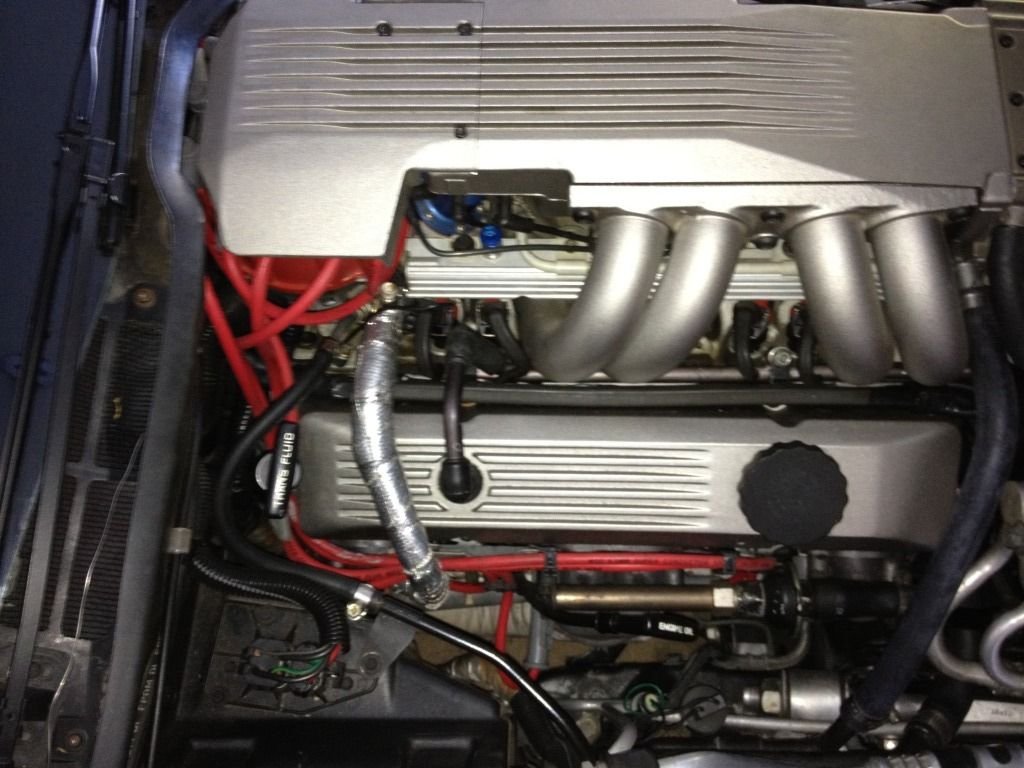

I believe the item wrapped in the aluminum looking blanket pictured in the first pic is the EGR pipe and the second pic is an EGR temperture sensor.
Is that correct? How do they come off? The pipe appears to be part of the exhaust manifold, I have the FSM but it just says remove them.
And finally, can they be eliminated? No emissions test to worry about and while I was gonna keep this car very stock I'm starting to have a change of heart as I see all the crap attached to the engine.
I believe the item wrapped in the aluminum looking blanket pictured in the first pic is the EGR pipe and the second pic is an EGR temperture sensor.
Is that correct? How do they come off? The pipe appears to be part of the exhaust manifold, I have the FSM but it just says remove them.
And finally, can they be eliminated? No emissions test to worry about and while I was gonna keep this car very stock I'm starting to have a change of heart as I see all the crap attached to the engine.
Team Owner
Joined: Aug 2004
Posts: 21,543
Likes: 3,216
From: Park City Utah
Yes, you have identified those parts correctly.
The pipe has a two bolt flange on either end.
You can not remove these parts w/o possibly setting a Check engine light, unless you have the ability to tune out the EGR function in your ECM.
Here is a pic of the intake flange for that tube:
And here is the flange on the tube, itself...
The pipe has a two bolt flange on either end.
You can not remove these parts w/o possibly setting a Check engine light, unless you have the ability to tune out the EGR function in your ECM.
Here is a pic of the intake flange for that tube:
And here is the flange on the tube, itself...
Last edited by Tom400CFI; Nov 5, 2014 at 10:22 AM.
Team Owner
Joined: Aug 2004
Posts: 21,543
Likes: 3,216
From: Park City Utah
Thread Starter
Advanced
Joined: Sep 2010
Posts: 95
Likes: 3
From: Sharpsburg GA
OK guys, thanks. They are torx heads. I can't see the bottom bolts yet but I'll try feeling my way. As to asbestos, I probably changed 100 pairs of asbestos brake shoes as a teenager. We thought asbestos was a wonderful thing back in the 50s. I LMAO every time I see those guys in space suits removing asbestos shingles. Again, thanks for the help. I'll probably be back.
