Cargo hatch lights don't work
Thread Starter
Instructor
Joined: Apr 2010
Posts: 114
Likes: 0
From: MD
All of my interior lights are on except the cargo lights. The tire light didn't work either. Someone has done some monkey fixing to the left of the rear hatch ground switch. Not sure if that makes a difference. When I pull the bulbs I have power on both sides of the connector.
Last edited by MDstar2; Mar 29, 2015 at 08:26 PM.
Safety Car
Joined: Sep 2004
Posts: 3,953
Likes: 550
From: Mission Viejo CA
When you check for voltage on both sides of the cargo light bulb sockets, are BOTH cargo light bulbs removed?
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.
Last edited by Hot Rod Roy; Mar 30, 2015 at 07:00 PM.
Thread Starter
Instructor
Joined: Apr 2010
Posts: 114
Likes: 0
From: MD
When you check for voltage on both sides of the cargo light bulb sockets, are BOTH cargo light bulbs removed?
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.
Thread Starter
Instructor
Joined: Apr 2010
Posts: 114
Likes: 0
From: MD
When you check for voltage on both sides of the cargo light bulb sockets, are BOTH cargo light bulbs removed?
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.
Where are you connecting for the ground side of your volt meter?
Remove the diode module shown in post #4, and try this test again.
This is a confusing circuit, so we need to move slowly.

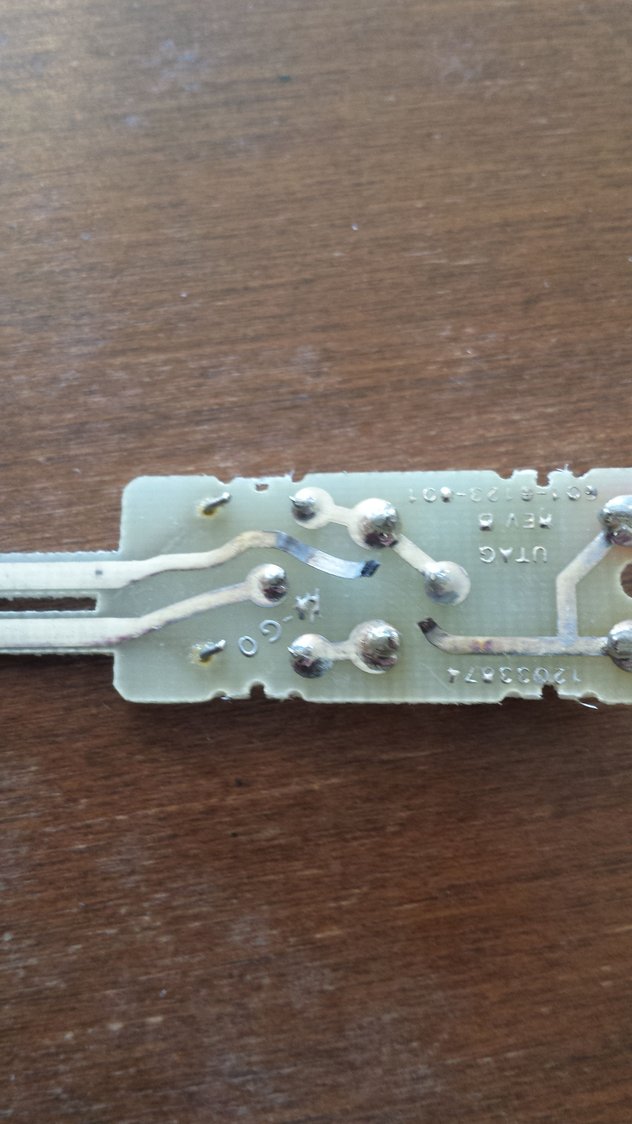

I have power on the red and white wires here
Last edited by MDstar2; Apr 2, 2015 at 04:19 PM.
Thread Starter
Instructor
Joined: Apr 2010
Posts: 114
Likes: 0
From: MD
Safety Car
Joined: Sep 2004
Posts: 3,953
Likes: 550
From: Mission Viejo CA
BINGO!!!
I wanted you to work with me slowly thru this process, so you could learn some troubleshooting techniques. I wanted you to find the problem. Good job!
Can you fix it? Check the diodes with your ohm meter.
I wanted you to work with me slowly thru this process, so you could learn some troubleshooting techniques. I wanted you to find the problem. Good job!
Can you fix it? Check the diodes with your ohm meter.
