bad backfire no start
Whats up guys got a quick question for this stubborn problem.
Installed my LTCC kit and finally found my white EST wire. I have it all wired up grounds nice and tight and clean. New opti installed as well GEN1 optispark spline drive, which went in fairly easy. Coil harness is also hooked up properly as well. Tried to start the car and its backfiring badly through the intake and the engine seems to be holding like when the distributor is 180* off. I got a green light when cranking so Im puzzled here. Any ideas where to start from here?
Installed my LTCC kit and finally found my white EST wire. I have it all wired up grounds nice and tight and clean. New opti installed as well GEN1 optispark spline drive, which went in fairly easy. Coil harness is also hooked up properly as well. Tried to start the car and its backfiring badly through the intake and the engine seems to be holding like when the distributor is 180* off. I got a green light when cranking so Im puzzled here. Any ideas where to start from here?
Thread Starter
Racer
Joined: Sep 2015
Posts: 382
Likes: 17
nah i went over all of it. All wiring is done, coils have power, opti is signaling and getting fuel and spark. I bought a summit opti bc my other opti took a dump on the high res side. Im thinking its something internal to the opti at this point. it spits out the intake as if its firing on the intake stroke. I matched all the wiring on the coil harness to each cylinder, ex 1,3,5,7 are Purple, Blue, Green, Red and 2,4,6,8 Red, Green, Blue, Purple.
Melting Slicks
Joined: Sep 2010
Posts: 2,422
Likes: 202
nah i went over all of it. All wiring is done, coils have power, opti is signaling and getting fuel and spark. I bought a summit opti bc my other opti took a dump on the high res side. Im thinking its something internal to the opti at this point. it spits out the intake as if its firing on the intake stroke. I matched all the wiring on the coil harness to each cylinder, ex 1,3,5,7 are Purple, Blue, Green, Red and 2,4,6,8 Red, Green, Blue, Purple.
is the Summit Opti. Known good?? Never Create more Work. Unless it's NEEDED.
Hopefully. you get this resolved soon. the LTCC kit is a great upgrade. And makes a big improvement.
I actually reduced. Some timing in my tune. The OE table is very high 44deg in areas.
Last edited by THE 383 admiral; Dec 30, 2015 at 11:23 PM.
Thread Starter
Racer
Joined: Sep 2015
Posts: 382
Likes: 17
i didnt know u didnt need the high side, but i think the other opti was a summit as well, and dont trust it im sure the low side wouldve eventually bitten the dust. Im going to check a few things today and if all else fails ill exchange the opti for another. I also want to delete the MAF and go strictly VE table. ill see what happens
Melting Slicks
Joined: Jul 2011
Posts: 2,605
Likes: 202
From: Trinity FL
nah i went over all of it. All wiring is done, coils have power, opti is signaling and getting fuel and spark. I bought a summit opti bc my other opti took a dump on the high res side. Im thinking its something internal to the opti at this point. it spits out the intake as if its firing on the intake stroke. I matched all the wiring on the coil harness to each cylinder, ex 1,3,5,7 are Purple, Blue, Green, Red and 2,4,6,8 Red, Green, Blue, Purple.

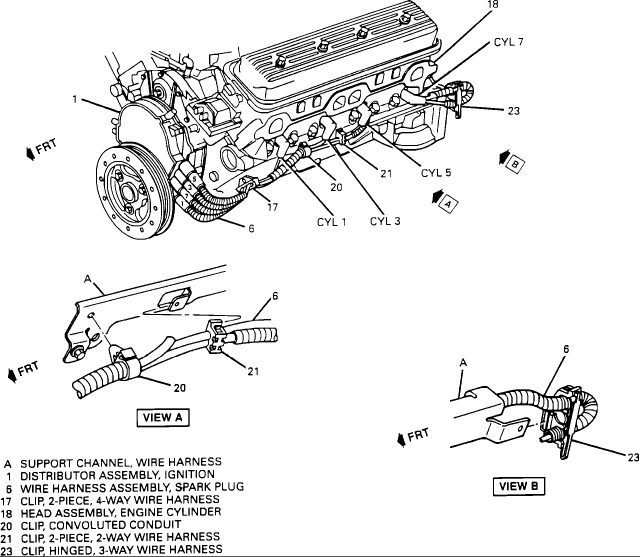

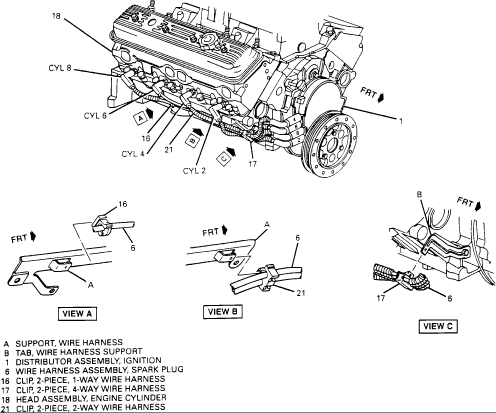

I am sure you have these pinouts, but just for reference:
The best thing I can tell you is to retrace your wiring one more time, you will find something you missed or skipped. Verify the two pinks and the whites are soldered to the appropriate factory wires.
Patrick
Last edited by TorchTarga94; Dec 31, 2015 at 11:39 AM.
