Piston Damage

Reply




Old 02-04-2018, 08:35 PM
  #21
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

Originally Posted by bjankuski View Post
Definately detonated, I assume this car if fuel injected, I would look for a problem with that cylinders fuel injector. (Did the WB monitor a lean condition and add fuel to the other three cylinders while this one was still lean)? Was your water pump working on the run, (Hot spot like a steam pocket)?
..... Holley EFI on E85 ... the injectors were new 60# Siemens Deka's (less than 12 passes) and were sent out the day after the heads came off ... F.I.C. flowed them and they were all on target ... the last 10 runs had datalog's showing a split in AFR's 'tween left and right banks with left about a half point richer ... this piston was #7 cylinder ... water pump is belt driven and the engine didn't get hot ... I didn't shut it off until it was on the trailer after the meltdown pass ... funny that it melted on the intake side and not the exhaust side .....
C409 is offline
Reply With Quote
Old 02-05-2018, 06:30 AM
  #22
bjankuski
CF Senior Member

Member Since: Sep 2001
Location: Glenbeulah Wi
Posts: 3,062
Thanked 142 Times in 134 Posts
Default

Originally Posted by C409 View Post
..... Holley EFI on E85 ... the injectors were new 60# Siemens Deka's (less than 12 passes) and were sent out the day after the heads came off ... F.I.C. flowed them and they were all on target ... the last 10 runs had datalog's showing a split in AFR's 'tween left and right banks with left about a half point richer ... this piston was #7 cylinder ... water pump is belt driven and the engine didn't get hot ... I didn't shut it off until it was on the trailer after the meltdown pass ... funny that it melted on the intake side and not the exhaust side .....
Is your WB set up to read gasoline afr numbers or e85 numbers? In either case it is too lean. If the wb was set for gas you should see around 11.8 at wot for best power, but I would think 12.5 would not cause any issues. What is your compression ratio? If you have winter grade e70 not e85 it may have detonated due to high compression ratio from the e70 vs summer blend e85? E85 is good to around 13.5 compression where e70 is around 12 to one.
bjankuski is offline
Reply With Quote
Old 02-05-2018, 08:26 AM
  #23
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

Originally Posted by bjankuski View Post
Is your WB set up to read gasoline afr numbers or e85 numbers? In either case it is too lean. If the wb was set for gas you should see around 11.8 at wot for best power, but I would think 12.5 would not cause any issues. What is your compression ratio? If you have winter grade e70 not e85 it may have detonated due to high compression ratio from the e70 vs summer blend e85? E85 is good to around 13.5 compression where e70 is around 12 to one.
..... Holley ECU reads out gas AFR numbers but does all its calculations using percentage of stoich . There is a dropdown where the readout can be switched to E85 but the average person (me) is far more familiar with gasoline AFR's ... This combo has been run at 13.0 @ WOT without any piston melting issues ... static compression is 13.4:1 ... I'm in Florida (we don't have a winter blend) and test every pump purchase before it goes into a can and have never found our pump E85 at less than E80 ... its usually 85 or better .....
C409 is offline
Reply With Quote
Old 02-05-2018, 09:16 AM
  #24
bjankuski
CF Senior Member

Member Since: Sep 2001
Location: Glenbeulah Wi
Posts: 3,062
Thanked 142 Times in 134 Posts
Default

Originally Posted by C409 View Post
..... Holley ECU reads out gas AFR numbers but does all its calculations using percentage of stoich . There is a dropdown where the readout can be switched to E85 but the average person (me) is far more familiar with gasoline AFR's ... This combo has been run at 13.0 @ WOT without any piston melting issues ... static compression is 13.4:1 ... I'm in Florida (we don't have a winter blend) and test every pump purchase before it goes into a can and have never found our pump E85 at less than E80 ... its usually 85 or better .....
OK, it just seems very strange that it burned down. How much timing were you running and what heads?

Were the rings end gaps too tight and they butted together and ripped out a piece of the piston top that then burned on the edges?

Last edited by bjankuski; 02-05-2018 at 09:19 AM.
bjankuski is offline
Reply With Quote
Old 02-05-2018, 07:14 PM
  #25
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

..... Timing was set @ 30 degrees from 3000 RPM - up ... I had run up to 34 before with no issues ... The tune was set for safe operation (well that didn't work) so I could sneak up on the magic formula ... I just needed a nice batch of consistent runs before any adjustments could be empirically applied .....
..... Heads are Brodix KC227 T1's ... ring ends were set to N2O specs even though I never spray (again for safety) and show no evidence of butting .....
..... The consensus here is that it was detonating when on the 2-step ... (never had an issue while I foot braked only) ... and would eat itself up down track ... it may have been wounded on the prior run also ... Timing @ the 2-step RPM (2800) was set at 28 degrees ... coming off the line @ idle , I would run past that in a heartbeat with a 5000 stall converter ... But on the 2-step , its there for a few seconds ... 2-step was set on Spark , high only in the software .....

Last edited by C409; 02-05-2018 at 07:18 PM.
C409 is offline
Reply With Quote
Old 02-05-2018, 07:39 PM
  #26
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

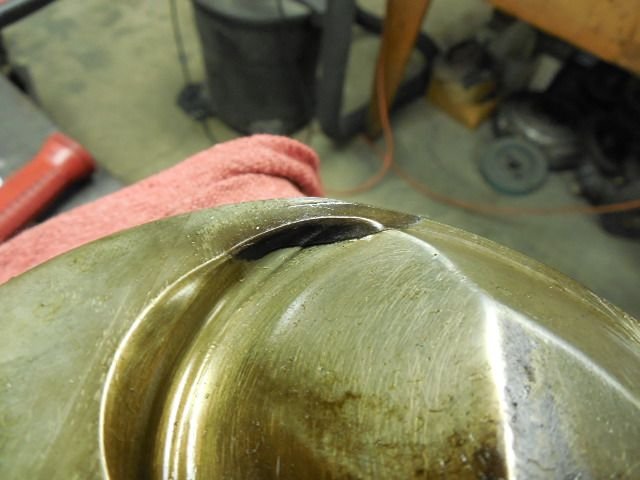

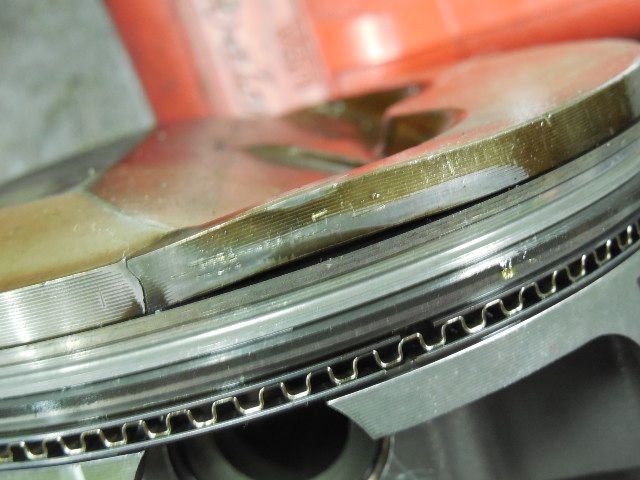

..... Pics of #5 piston ... right next door ... This is the beginning of what happened to cylinder 7 piston ... note how the ring land was pushed up and eventually contacted the cyl head at the peak .....










Last edited by C409; 02-05-2018 at 07:42 PM.
C409 is offline
Reply With Quote
Old 02-05-2018, 07:59 PM
  #27
383vett
CF Senior Member

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 15,309
Thanked 574 Times in 417 Posts
Default

Obviously either too lean or too much timing. Are you running a knock sensor. I don't on my motor because if the computer retards the timing a few degrees, I've lost the race. I'm running what I consider a conservative tune.
383vett is offline
Reply With Quote
Old 02-05-2018, 08:07 PM
  #28
JrRifleCoach
CF Senior Member

JrRifleCoach's Avatar

Member Since: Sep 2003
Location: Criminals obey guns laws like politicians follow their oath to office Republik of Kalifornico"
Posts: 18,162
Thanked 203 Times in 189 Posts
St. Jude '03-'04-'05-'06-'07-'08-'09-'10-'11-'12-'13-'14-'15-'16-'17

Default

JrRifleCoach is offline
Reply With Quote
Old 02-05-2018, 10:17 PM
  #29
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

Originally Posted by 383vett View Post
Obviously either too lean or too much timing. Are you running a knock sensor. I don't on my motor because if the computer retards the timing a few degrees, I've lost the race. I'm running what I consider a conservative tune.
..... Per the datalog , the right bank was a half point leaner at 12.9 AFR with no damage ... I do not have a knock sensor ... same reason as you plus solid roller cam , shaft rockers , and solid motor mounts ... I'm not sure one would work at all if it was desensitized to all of the above . I thought my tune was pretty conservative too ! .....
..... I ran this combo for 2 years at 13.0 AFR and 34 degrees timing with no issues ... that's why I'm looking at the 2-step tune to see if it was too hot timing-wise ... Still curious as to why it burned the intake side and not the exhaust valve side .....
C409 is offline
Reply With Quote
Old 02-07-2018, 09:35 PM
  #30
cardo0
CF Senior Member

cardo0's Avatar

Member Since: Oct 2002
Location: Las Vegas - Boycott Hypocrisy!
Posts: 5,933
Thanked 176 Times in 168 Posts
Default

Man that hurts to look at. My sympathies. Carnage is easy to look at when it's not your own but we all know how much work goes into rebuilding and getting the car running again.

Well #7 blew out downward while #5 started to move up. I don't think it was a ring/ring land problem. Maybe try some gas ports in the piston crown to help seat the rings just in case. Might be a localized hot spot in the block causing detonation between #5 and #7 take a look in the cooling jacket with a USB camera.

Just my 2 cents as I truly don't know the answer. Good luck.
cardo0 is offline
Reply With Quote
The Following User Says Thank You to cardo0 For This Useful Post:
1993C4LT1 (02-12-2018)
Old 02-09-2018, 06:35 AM
  #31
jetskibruce
CF Member

Member Since: Dec 2016
Posts: 65
Thanks: 0
Thanked 3 Times in 3 Posts
Default Lean

Your system sounds like it is in top shape, but what about low fuel pressure for any reason, tank level, voltage, weird pump issue. I've heard of people saying that the AFR sensor does not always react quick enough during full load. At full song it doesn't need to be lean for very long. Are you testing at Sunshine?
jetskibruce is offline
Reply With Quote
Old 02-09-2018, 08:12 AM
  #32
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

..... Fuel pressure was datalogged as a flat line graph @ 40psi , the AFPR setting ... I haven't been to Sunshine in almost a year ... slip'n'slide ... I hear they have a new track mgr and that prep has been better and the contractor working on the Roosevelt extension has planted grass on the berms ... that should keep most of the sand from blowing around on the big end ... last time I went , there was a car in the middle of the track on fire just past the finish line ... its a shame because I'm less than 3 miles from the track .....
C409 is offline
Reply With Quote
Old 02-09-2018, 08:25 PM
  #33
jetskibruce
CF Member

Member Since: Dec 2016
Posts: 65
Thanks: 0
Thanked 3 Times in 3 Posts
Default

So not knowing what happened is troublesome. Where was the fuel from? From what I am seeing the 15% from everyday pump gas can be what they call refinery drippings (almost anything ) Are you planning the new pistons to be at the same compression? If you do come to any theories to what happen... post them. Otherwise, the only idea I have is to really fatten it up to start and see if it slows or goes faster. Did the plugs tell you anything? the pistons look clean except for the damage.
And you running at Bradenton then? I've been a few times, different vehicles, just to get a real number of what I driving.
jetskibruce is offline
Reply With Quote
Old 02-10-2018, 12:15 AM
  #34
ghoastrider1
CF Senior Member

ghoastrider1's Avatar

Member Since: May 2006
Location: indy indiana
Posts: 6,930
Thanked 151 Times in 137 Posts
Default

man you got lucky that your bores cleaned up.
ghoastrider1 is offline
Reply With Quote
Old 02-10-2018, 08:09 AM
  #35
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

..... The engine shop ordered the new pistons yesterday ... JE custom ... 4.157 bore ... 0.990 compression height ... small ring pkg , 1mm , 1mm , 2mm ... Flat tops with deep valve pockets ... should be 11.8 - 12.0 static compression ... 2-3 weeks , maybe .....
C409 is offline
Reply With Quote
Old 02-10-2018, 09:18 AM
  #36
Churchkey
CF Senior Member

Churchkey's Avatar

Member Since: Sep 2008
Location: Cherokee National Forest TN
Posts: 2,340
Thanks: 0
Thanked 80 Times in 74 Posts
Default

Have puked quite a few small blocks your damage is new to me. Ran 13.5 to 1 with Brodex 12's for hundreds of laps at a time without piston heat issues, always used race fuel.

Just a guess, bore size indicates a 400 block if so are the heads drilled for the block steam ports? If not that could be the problem area since # 5 & # 7 intakes are next to each other + the back of the block will run hotter than the front. Brodex 12's have a water port mid way on the intake side if your heads have that feature connect it. Another option is to drill the intake for pipe fittings @ the rear water port in the head, connect with a thermostat riser block. Lefthanderchassis.com has riser blocks for about 30 bux.

Water flow: If using a stock paddle wheel water pump + driving it with stock pulleys @ high rpm the coolant will have cavitation = no coolant flow. Suggest a water pump with a cast radius vane impeller + reduce the water pump RPM by 30% with different size pulleys.

Luck with the rebuild.

BTW If using a thermostat circle file it & use a thermostat washer. A 3/4" opening is good for starters then reduce the opening size for more temp as you see fit.

Last edited by Churchkey; 02-10-2018 at 09:33 AM. Reason: add text
Churchkey is offline
Reply With Quote
The Following 2 Users Say Thank You to Churchkey For This Useful Post:
cardo0 (02-10-2018), Red 91 (02-10-2018)
Old 02-11-2018, 08:23 AM
  #37
Churchkey
CF Senior Member

Churchkey's Avatar

Member Since: Sep 2008
Location: Cherokee National Forest TN
Posts: 2,340
Thanks: 0
Thanked 80 Times in 74 Posts
Default

Additional info: The steam ports for the heads need to be drilled @ an angle to get into the water jacket in the head. Mine were drilled on a Bridgeport mill with a quill but do not recall the angle required. Suggest a call to Brodex for tech info.
Churchkey is offline
Reply With Quote
Old 02-11-2018, 09:03 AM
  #38
C409
CF Senior Member
Thread Starter

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,545
Thanked 95 Times in 91 Posts
Default

..... Dart Little M Block ... no steam holes .....
C409 is offline
Reply With Quote
Old 02-11-2018, 12:24 PM
  #39
cardo0
CF Senior Member

cardo0's Avatar

Member Since: Oct 2002
Location: Las Vegas - Boycott Hypocrisy!
Posts: 5,933
Thanked 176 Times in 168 Posts
Default

So I thought the steam hole angle would be easy to look up but there's more to it than that.

C409 is using a Dart Little M he reports no steam holes in the block. My Chevy Power Catalog (5th edition) says just use the stock 400 gasket as template. While my 7th edition Power Manual says the smaller 3/16" holes need to be at 10 degrees. But both my catalogs say it is not needed for race only motors driven above 3500rpm. Since C409 really has different 400 block I doubt he wants to go there.

Now to really confuse things the 7th edition catalog has a sidebar on Hendrick Motorsports conversions of any small block for NASCAR racing in that period. And of course they (Hendrick's) drill 0.090 holes on the sides of the block, 0.75" below deck surface, between siamesed cylinders - 3 on each side. The holes are connected by some kinda manifold I can't really see in the picture to the water pump to prevent air pockets under the block deck. Then plug the water pump bypass hole. Hendrick's also add holes to heads near the head bolts but I really don't know how they do it so I won't even try to explain it.

Man the details never end.
cardo0 is offline
Reply With Quote
Old 02-11-2018, 12:29 PM
  #40
cardo0
CF Senior Member

cardo0's Avatar

Member Since: Oct 2002
Location: Las Vegas - Boycott Hypocrisy!
Posts: 5,933
Thanked 176 Times in 168 Posts
Default

Originally Posted by Churchkey View Post
BTW If using a thermostat circle file it & use a thermostat washer. A 3/4" opening is good for starters then reduce the opening size for more temp as you see fit.
Yes, many times this is overlooked but the cooling system needs some backpressure to work. Backpressure at the t-stat keeps the system in the heads and block under higher pressure to prevent air pockets/steam holes.
cardo0 is offline
Reply With Quote
