C-beam Delete?
I've been thinking about deleting the C-beam in my C4 by making a trans crossmember that bolts to the frame on the bottom and a bracket that goes from the C-beam holes on the differential to the frame to keep it from rotating.
Has anyone done this? Anything particular I need to look out for? This is honestly the first IRS that I'm going to modify.
Has anyone done this? Anything particular I need to look out for? This is honestly the first IRS that I'm going to modify.
Melting Slicks
Joined: May 2014
Posts: 2,888
Likes: 590
From: New Port Richey FL
O.K. Why
In my book it is a proven system that is Fairly Light Weight, all this Bracketing & frames are going to reduce ground clearance to nothing and add weight. If your concerned about Driveline Twist/Defection of the Beam I am sure you could stiffen it by Aluminum Welding a flat plate on the flat side of beam.
In my book it is a proven system that is Fairly Light Weight, all this Bracketing & frames are going to reduce ground clearance to nothing and add weight. If your concerned about Driveline Twist/Defection of the Beam I am sure you could stiffen it by Aluminum Welding a flat plate on the flat side of beam.
Thread Starter
Burning Brakes
Joined: Sep 2016
Posts: 1,133
Likes: 319
From: Ohio
The car has a TH400 and I would like to consider the possibility of eventually swapping out the Dana 36 for a Ford 8.8. Making a C-beam bracket to mount the 8.8 to the C-beam would be easy, but easier yet to just mount it to the frame.
The car already has a cage. A transmission crossmember would be a quick job.
The car already has a cage. A transmission crossmember would be a quick job.
Melting Slicks
Joined: May 2014
Posts: 2,888
Likes: 590
From: New Port Richey FL
The car has a TH400 and I would like to consider the possibility of eventually swapping out the Dana 36 for a Ford 8.8. Making a C-beam bracket to mount the 8.8 to the C-beam would be easy, but easier yet to just mount it to the frame.
The car already has a cage. A transmission crossmember would be a quick job.
The car already has a cage. A transmission crossmember would be a quick job.
Some photo's of what you have would help
Last edited by s carter; Mar 22, 2018 at 09:55 AM.
Le Mans Master
Joined: Sep 2013
Posts: 6,192
Likes: 750
From: near the thumb in the mitten
The cobra IRS is designed to bolt in on the mustang 4 link frame locations. So rear underbody would be a pattern to fab from. Since car is caged a cross member shouldn't be difficult. Running a engine and mid plates can help in layout in keeping every thing straight and centered. Good Luck.
Thread Starter
Burning Brakes
Joined: Sep 2016
Posts: 1,133
Likes: 319
From: Ohio
Explorer 8.8 can be made to work with the factory C4 rear IRS setup fairly easy. A batwing/C-beam adapter would take me a weekend to finish but my biggest hassle would be axles. No need to do a subframe adaptation or anything like that.
If I'm going to fabricate a C-beam adapter, it seems the easier solution would be to just put a cross bar between the frame rails that the front of the differential bolts to, so I can delete the C-beam all together.
If I'm going to fabricate a C-beam adapter, it seems the easier solution would be to just put a cross bar between the frame rails that the front of the differential bolts to, so I can delete the C-beam all together.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Thread Starter
Burning Brakes
Joined: Sep 2016
Posts: 1,133
Likes: 319
From: Ohio
Safety Car
Joined: Apr 2005
Posts: 3,624
Likes: 431
From: Dale City VA
The rear cross member will be easy as the frame rails are exposed.
The trans cross member will be a bit tougher but really not that difficult. The easiest access to the frame rails are from inside the car, right in front of the seats. You can make up a 3 piece cross member where 2 pieces welded to the frame rails and run along the floor thru the side of the trans tunnel.... then a center removable bar for the trans to bolt to. No ground clearance problems and I run 3.5" dual exhaust under it on my 84.
The above is the way my 84 with a Powerglide trans is done.
I have pics of the rear cross member in my car as I documented the straight rear 3 link suspension conversion really well.... I did not take any pics of the trans cross member but I will after this weekend as I have been asked about the trans cross member many times....

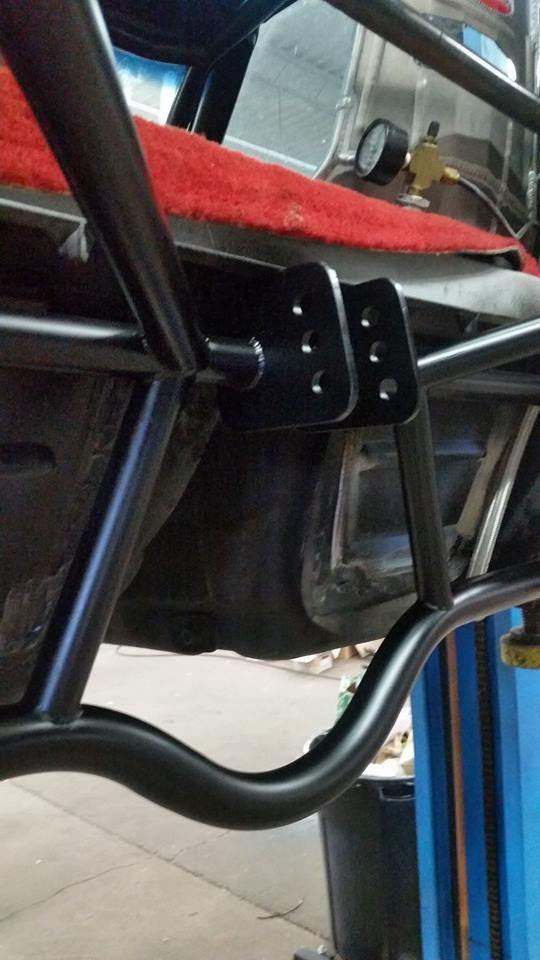

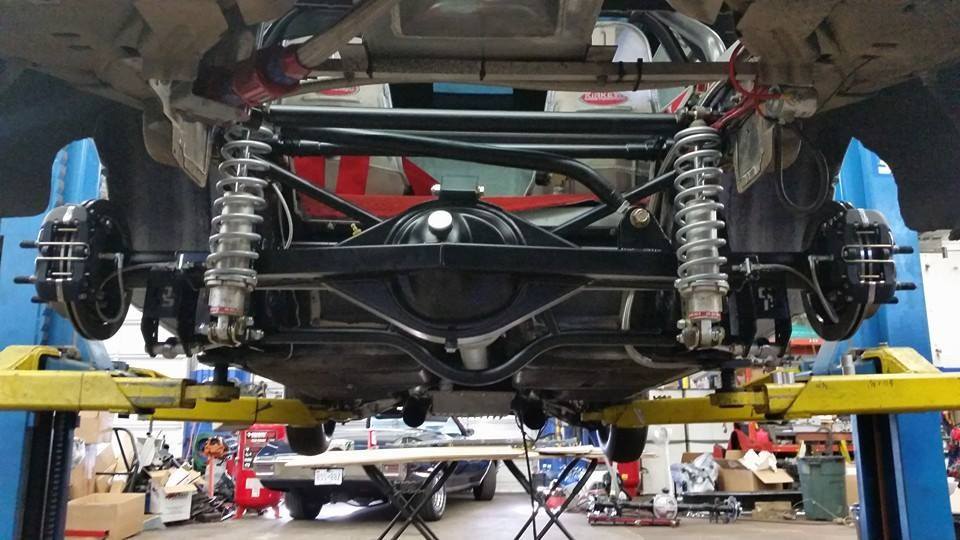

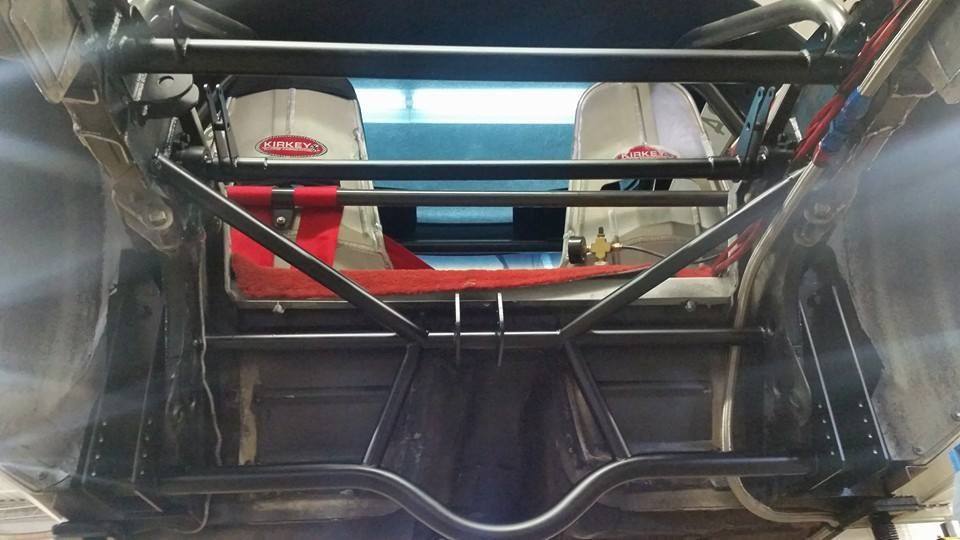

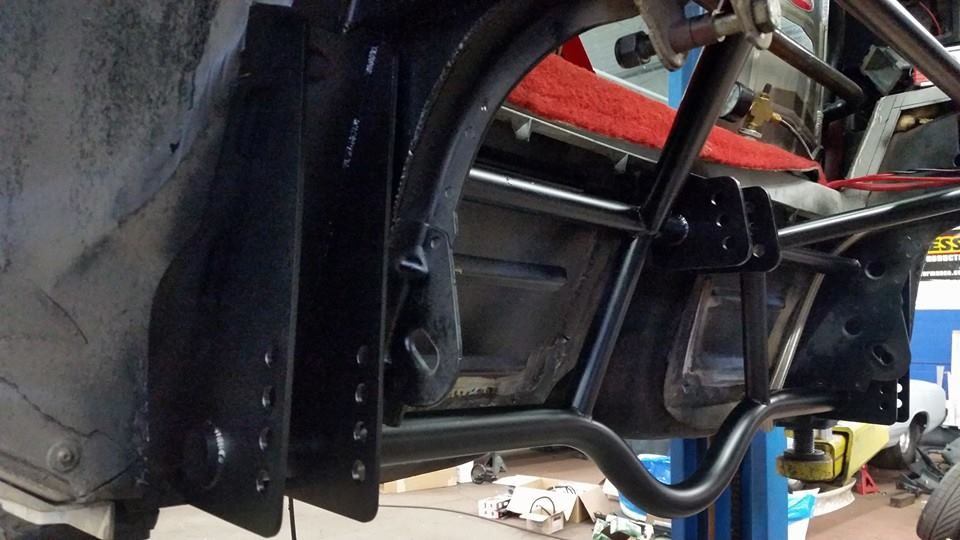

Here are some of the rear.
