Problems Installing Mini Starter 1984 Corvette


Old 01-15-2019, 10:27 PM
  #1
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default Problems Installing Mini Starter 1984 Corvette

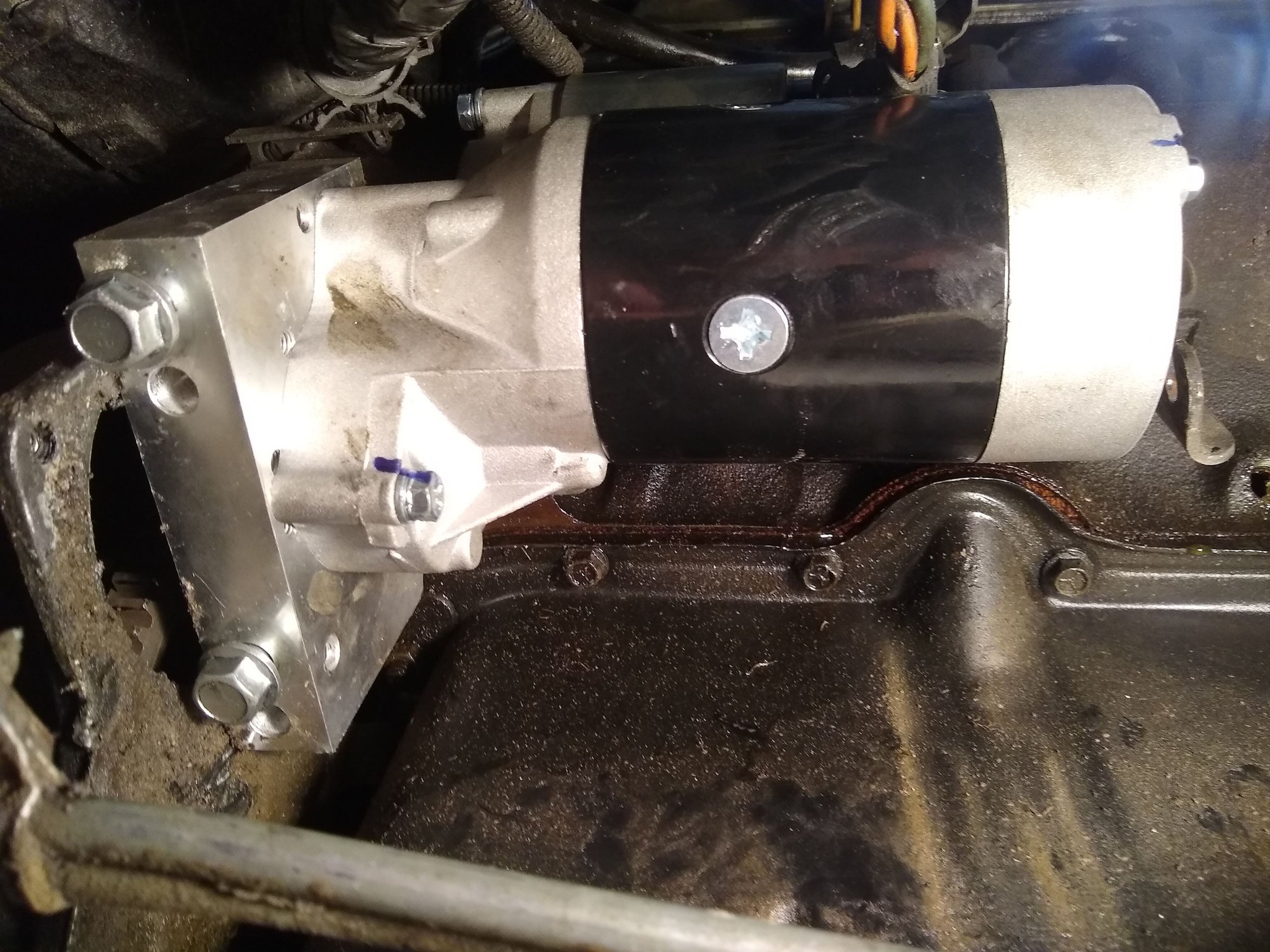

I post a thread a while back about a mini starter for the 1984 Corvette. I ended up going with the one from Summit that was supposed to fit but it doesn't cover the hole in the bellhousing. I haven't measured it yet to see if it needs shims but I'm assuming I can get a feeler gauge through that hole that needs to be covered. My main question here is how in the world do I cover that hole? I can't just leave it open. Others said that this starter fit perfectly and I've never installed one before but I know for a fact that this isn't right.


James C4 is offline
Old 01-15-2019, 10:54 PM
  #2
Midnight 85
CF Senior Member

Midnight 85's Avatar

Member Since: May 2004
Location: Hellinois
Posts: 5,744
Thanked 18 Times in 14 Posts
Default

Never seen an '84 in that area and it is different from my '85 but don't you have the dust cover, that is what covers that area on mine. Also, that bracket that holds your trans cooler lines looks like if it was bolted up it would cover the hole. Sorry, I'm just making guesses until someone who knows can speak up.
Midnight 85 is offline
Old 01-15-2019, 11:00 PM
  #3
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@Midnight 85 the picture makes it look like it would but I just ran down to the garage and it definitely does not. There is no dust cover that I know of. I looked at the old starter and didn't see anything. Leave it to the '84 to be different.
James C4 is offline
Old 01-16-2019, 12:42 AM
  #4
383vett
CF Senior Member

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 15,732
Thanked 658 Times in 487 Posts
Default

Looks like the starter is mounted upside down.
383vett is online now
Old 01-16-2019, 08:16 AM
  #5
Ray Quayle
- 1986 Original Owner -
Support Corvetteforum!

Ray Quayle's Avatar

Member Since: Apr 1999
Location: North Yorkshire, England
Posts: 2,948
Thanked 13 Times in 13 Posts
Cruise-In I Veteran
Cruise-In II Veteran
Cruise-In III Veteran
Cruise-In IV Veteran
Cruise-In VII Veteran
Default

The dust cover is in place. The hole you see is in the dust cover. The problem is that the original GM starter had a large snout that filled the hole in the dust cover, the mini starter does not. That is why I was desperately looking for a 1988 dust cover when I did my mini starter install. '88 was the only year with the 4+3 and mini starter.
Ray Quayle is offline
Old 01-16-2019, 09:08 AM
  #6
Churchkey
CF Senior Member

Churchkey's Avatar

Member Since: Sep 2008
Location: Cherokee National Forest TN
Posts: 2,358
Thanks: 0
Thanked 87 Times in 79 Posts
Default

Aluminum roof flashing is easy to work = fashion a cover.

If you happen to know someone that drinks from a can cut one open & make a cover.
Churchkey is offline
Old 01-16-2019, 11:21 AM
  #7
84 4+3
CF Senior Member

Member Since: Aug 2017
Location: New Jersey
Posts: 1,453
Thanked 166 Times in 148 Posts
Default



That plate that is on there is in fact the dust shield. It runs along the oil pan lip. Piece of aluminum will work fine. It honestly doesn't even need to be sealed.
84 4+3 is online now
Old 01-16-2019, 12:13 PM
  #8
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@383vett The picture is from the bottom. Isn't the starter supposed to have the solenoid on top like the original? I at least know the starter block is correct because of the cut out on top. I've never installed one so I'm not sure.

@Ray Quayle Did you ever find a solution or the '88 dust cover?

@Churchkey How would I keep the aluminium in place?

@84 4+3 I live on a gravel road. Wouldn't a lot of debris get inside and cause problems? If so, how exactly would I get a piece of aluminium to stay in place?
James C4 is offline
Old 01-16-2019, 12:45 PM
  #9
84 4+3
CF Senior Member

Member Since: Aug 2017
Location: New Jersey
Posts: 1,453
Thanked 166 Times in 148 Posts
Default

Originally Posted by James C4 View Post
@383vett The picture is from the bottom. Isn't the starter supposed to have the solenoid on top like the original? I at least know the starter block is correct because of the cut out on top. I've never installed one so I'm not sure.

@Ray Quayle Did you ever find a solution or the '88 dust cover?

@Churchkey How would I keep the aluminium in place?

@84 4+3 I live on a gravel road. Wouldn't a lot of debris get inside and cause problems? If so, how exactly would I get a piece of aluminium to stay in place?
Just notch it to go under the starter bolts like this crude drawing...

Edit: looks like your inner bolt isn't in all the way either.

Last edited by 84 4+3; 01-16-2019 at 12:46 PM.
84 4+3 is online now
Old 01-16-2019, 01:54 PM
  #10
Ray Quayle
- 1986 Original Owner -
Support Corvetteforum!

Ray Quayle's Avatar

Member Since: Apr 1999
Location: North Yorkshire, England
Posts: 2,948
Thanked 13 Times in 13 Posts
Cruise-In I Veteran
Cruise-In II Veteran
Cruise-In III Veteran
Cruise-In IV Veteran
Cruise-In VII Veteran
Default

Originally Posted by James C4 View Post
@Ray Quayle Did you ever find a solution or the '88 dust cover?
Yea, I managed to get a used 88 dust cover from a member here.
Ray Quayle is offline
Old 01-16-2019, 02:25 PM
  #11
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@84 4+3 Thank you. I'll probably try to make one similar to that.

@Ray Quayle If I'm not able to custom make one, I'll see if I can pick one up.

Thanks guys for the help.
James C4 is offline
Old 01-16-2019, 06:57 PM
  #12
383vett
CF Senior Member

383vett's Avatar

Member Since: Apr 2003
Location: moraga ca
Posts: 15,732
Thanked 658 Times in 487 Posts
Default

It looks like the starter is positioned too close to the block. What happens if you flip it over? Will it be centered in the hole?
383vett is online now
Old 01-16-2019, 07:14 PM
  #13
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@383vett The solenoid would be in the way of the transmission line mount and my exhaust. I could clock it a bit but there is plenty of clearance between the block and the starter. I'm about to make a cover for the opening, but how do I check that everything lines up correctly? If I want to take the whole dust cover off, then I have to remove the oil filter to get to one of the bolts which means I'd have to change the oil so that's out. Thanks again for the tips. I made the mistake of thinking this would be easy. Haha.
James C4 is offline
Old 01-16-2019, 09:17 PM
  #14
84 4+3
CF Senior Member

Member Since: Aug 2017
Location: New Jersey
Posts: 1,453
Thanked 166 Times in 148 Posts
Default

Originally Posted by James C4 View Post
@383vett The solenoid would be in the way of the transmission line mount and my exhaust. I could clock it a bit but there is plenty of clearance between the block and the starter. I'm about to make a cover for the opening, but how do I check that everything lines up correctly? If I want to take the whole dust cover off, then I have to remove the oil filter to get to one of the bolts which means I'd have to change the oil so that's out. Thanks again for the tips. I made the mistake of thinking this would be easy. Haha.
Just eye ball it and use the old starter as the hole template. Once you're under just trim it some. Not like you'll be looking at it all the time or anything.
84 4+3 is online now
Old 01-17-2019, 12:25 AM
  #15
Midnight 85
CF Senior Member

Midnight 85's Avatar

Member Since: May 2004
Location: Hellinois
Posts: 5,744
Thanked 18 Times in 14 Posts
Default

Originally Posted by 383vett View Post
Looks like the starter is mounted upside down.
That's what I thought to at first glance. Seems like it is sitting awful high.
Midnight 85 is offline
Old 01-17-2019, 09:17 AM
  #16
Churchkey
CF Senior Member

Churchkey's Avatar

Member Since: Sep 2008
Location: Cherokee National Forest TN
Posts: 2,358
Thanks: 0
Thanked 87 Times in 79 Posts
Default

Mini starter mounting position:
Close to the engine block is for use with a 153 tooth flywheel. An auto trans car may have the 153 tooth wheel. For header clearance I use a 153 tooth wheel & mini starter with a 4L60 trans, L98 in the 57 Chevy.
The other set of mounting holes are for use with a 168 tooth flywheel.

Remove the inspection cover then lever the starter bendix out if it hits the flywheel move the starter outboard if it engages the flywheel teeth your good to go with the starter in its current position.
Churchkey is offline
Old 01-17-2019, 10:15 AM
  #17
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@84 4+3 getting the cover made wasn't too hard. My concern for lining everything up had more to do with the starter.

@Midnight 85 I checked everything and the solenoid lines up with the bolts just like on the old starter so it should be fine.

@Churchkey Thanks for the tips. I have it installed now and I placed it closer which should be right because I have the 153 tooth flywheel.

Thank you all once again for the help.
James C4 is offline
Old 01-17-2019, 08:03 PM
  #18
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

I thought I would be in the clear now but the wiring is quite a bit different than on the original starter.

It looks like the two bigger wires go to the terminal closest to the block and the small wire that was attached to the s terminal goes to the the slip on type connector that's not very obvious in this picture. It is there though. The instructions say nothing about wiring except to connect them properly. Super helpful.
James C4 is offline
Old 01-17-2019, 08:58 PM
  #19
84 4+3
CF Senior Member

Member Since: Aug 2017
Location: New Jersey
Posts: 1,453
Thanked 166 Times in 148 Posts
Default

Yea, if you had a newer style starter then it would look like that one but yes. You are correct. The small one is the s or purple wire... yellow and red maybe?
84 4+3 is online now
Old 01-17-2019, 10:39 PM
  #20
James C4
Junior Member
Thread Starter

James C4's Avatar

Member Since: Oct 2017
Location: Missouri
Posts: 39
Thanked 0 Times in 0 Posts
Default

@84 4+3 so is the outer terminal even used then? If the ground and the wire from the battery go on the the terminal that connects to the starter and the small wire that was connected to the s on the old starter slips on to the small connector, then the outer, or lower terminal in this picture, goes unused.
James C4 is offline
