C4 CORVETTE 9" FACTORY IRS 40spline stubs


Old 02-06-2019, 03:18 AM
  #1
Rob Burich
Junior Member
Thread Starter

Member Since: Dec 2018
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
Default C4 CORVETTE 9" FACTORY IRS 40spline stubs





9" centre to factory IRS 40 spline stub axles in progress

Last edited by Rob Burich; 02-06-2019 at 03:21 AM.
Rob Burich is offline
Old 02-06-2019, 04:48 AM
  #2
James93LT1
CF Senior Member

James93LT1's Avatar

Member Since: Oct 2004
Location: In the middle of the Pacific Ocean
Posts: 1,179
Thanks: 0
Thanked 3 Times in 3 Posts
Default

Wow, Nice!
James93LT1 is offline
Old 02-06-2019, 09:15 AM
  #3
C409
CF Senior Member

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,724
Thanked 120 Times in 113 Posts
Default

.. Nice ! keep the pics coming How long will the half shafts/axles be ?... and will they use u-joints or CV joints ? ..

Last edited by C409; 02-06-2019 at 09:16 AM.
C409 is offline
Old 02-06-2019, 09:51 AM
  #4
Rob Burich
Junior Member
Thread Starter

Member Since: Dec 2018
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
Default




Yes mate. Good question. Just mocking it up at the moment. I estimate halfshafts to be around. 250mm ( 10" ) give or take. I got a price from action driveshafts. $300each for halfshafts 4" aluminum .125 wall. Driveshaft the same.. debating 1350/1410 uni's . Outer stubs 40spline 200mm long with billet 1350 yokes.bolted..
Inner stubs. 35spline. Billet yoke bolted. Not sure on length. Not up to that stage. But will comfirm at a later date..
just centralizing everything. No hickups yet🙏

Last edited by Rob Burich; 02-06-2019 at 10:14 AM.
Rob Burich is offline
Old 02-07-2019, 01:06 PM
  #5
DMITTZ
CF Senior Member

DMITTZ's Avatar

Member Since: Mar 2016
Location: Langley BC
Posts: 1,484
Thanked 167 Times in 158 Posts
Default

Very cool, keep us updated of your progress!
DMITTZ is offline
Old 02-07-2019, 01:19 PM
  #6
bjankuski
CF Senior Member

Member Since: Sep 2001
Location: Glenbeulah Wi
Posts: 3,214
Thanked 175 Times in 160 Posts
Default

Originally Posted by Rob Burich View Post



Yes mate. Good question. Just mocking it up at the moment. I estimate halfshafts to be around. 250mm ( 10" ) give or take. I got a price from action driveshafts. $300each for halfshafts 4" aluminum .125 wall. Driveshaft the same.. debating 1350/1410 uni's . Outer stubs 40spline 200mm long with billet 1350 yokes.bolted..
Inner stubs. 35spline. Billet yoke bolted. Not sure on length. Not up to that stage. But will comfirm at a later date..
just centralizing everything. No hickups yet🙏

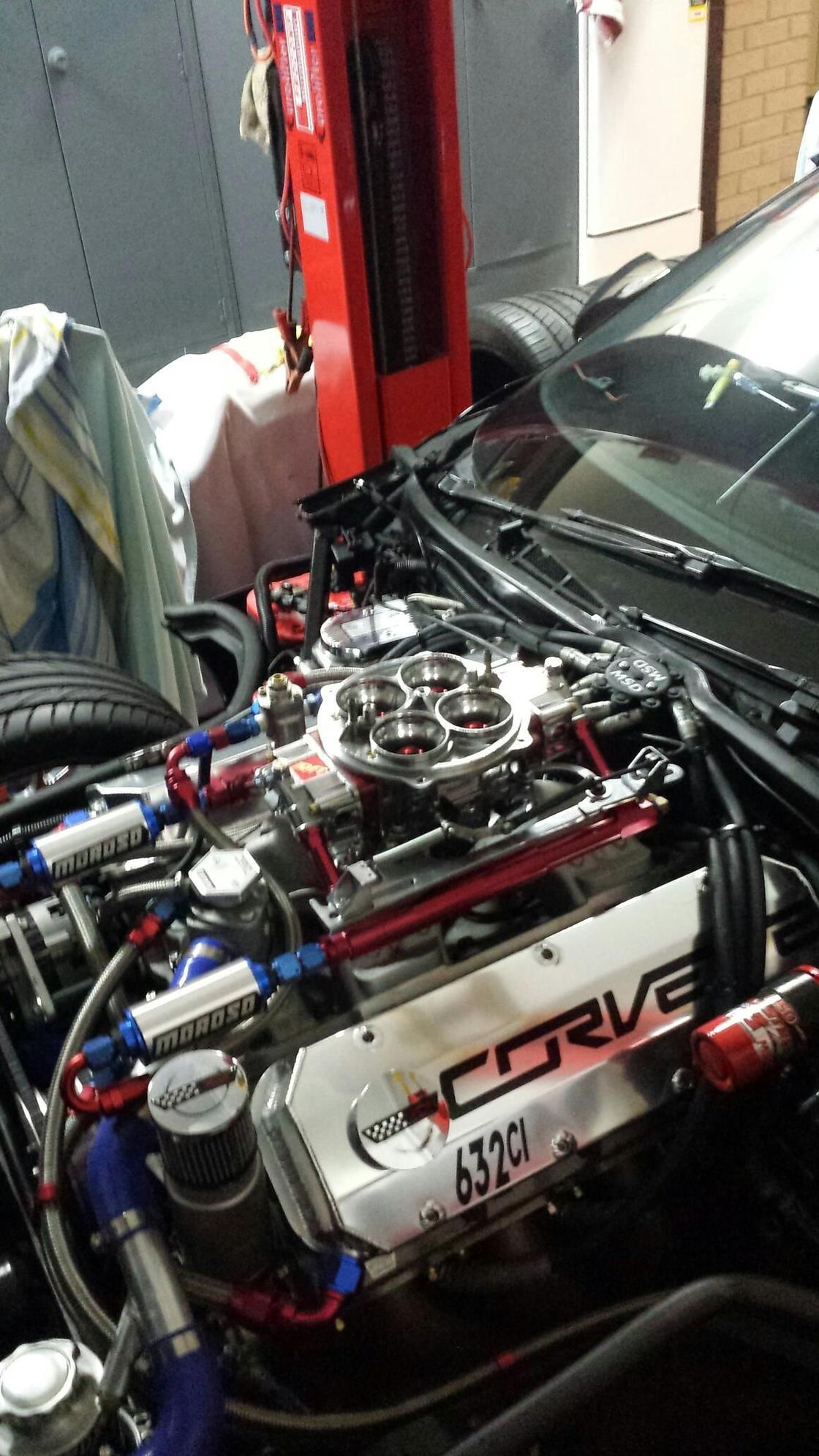

That is sweet, nice car 632BBC, and IRS!
bjankuski is offline
Old 02-07-2019, 02:43 PM
  #7
STEVEN13
CF Senior Member

STEVEN13's Avatar

Member Since: Sep 2003
Location: N. Babylon NY
Posts: 1,945
Thanked 28 Times in 26 Posts
Default

Cool car and build! Keep the updates coming!

Steve
STEVEN13 is offline
Old 02-07-2019, 06:46 PM
  #8
C409
CF Senior Member

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,724
Thanked 120 Times in 113 Posts
Default

C409 is offline
Old 02-08-2019, 12:40 PM
  #9
Mike Holmen
CF Senior Member

Member Since: Nov 2015
Location: Airdrie Alberta
Posts: 504
Thanked 37 Times in 34 Posts
Default

Wow looks like a decent set-up, I'm not much of a powerglide fan for a street car.

Rob, you going to use an iron ford 9in? Not sure if you have seen the dutchman aluminum ford 9in housing. They have an option of using cv or spline stubs. I think you could build a batwing pretty easy for the rear axle.
https://dutchmanaxles.com/9-inch-for...oke-style.html

What a sweet car, keep us posted on your development.
Mike Holmen is offline
Old 02-08-2019, 02:25 PM
  #10
DGXR
CF Senior Member

DGXR's Avatar

Member Since: May 2013
Location: Sacramento California
Posts: 1,937
Thanked 157 Times in 147 Posts
Default

Dang that is a beast! I love to see people building up super beefy C4s... nice job.
This probably isn't an issue, probably... but I noticed the tire on the right front wheel is mounted reverse tread direction. I guess those aftermarket wheels can be rotated positions?
DGXR is offline
Old 02-18-2019, 09:02 AM
  #11
Rob Burich
Junior Member
Thread Starter

Member Since: Dec 2018
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
Default



Yes mate. Steel housing. Only bcos i can weld brackets to it to connect up the c channel. Just mocking things up at the moment. Making sure everything connects together. Yeah. So far so good. Dont jinx me👍
Rob Burich is offline
Old 02-18-2019, 01:44 PM
  #12
JoeNova
CF Senior Member

Member Since: Sep 2016
Location: Ohio
Posts: 184
Thanks: 0
Thanked 15 Times in 14 Posts
Default

Seems like a major conversion just to keep the leave spring?
JoeNova is offline
Old 02-18-2019, 08:53 PM
  #13
Rob Burich
Junior Member
Thread Starter

Member Since: Dec 2018
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
Default

Yes Joe. Its pretty basic. Well keep in mind. What we are doing is the drive train only.. nothing wrong with the suspension irs itself. So why touch it. Alot of people are doing half shafts/spindles but eventually there centre will say enough enough pls.😊 amazingly. This housing lines up perfectly within the tunnel. All fun mate
Rob Burich is offline
Old 02-19-2019, 07:06 AM
  #14
Rob Burich
Junior Member
Thread Starter

Member Since: Dec 2018
Posts: 18
Thanks: 0
Thanked 1 Time in 1 Post
Default

Hey bro. You had me going for a while with the directional tires. But i checked they seem the right
Rob Burich is offline
Old 02-19-2019, 09:30 AM
  #15
C409
CF Senior Member

C409's Avatar

Member Since: Feb 2005
Location: Clearwater Florida
Posts: 4,724
Thanked 120 Times in 113 Posts
Default

Originally Posted by Mike Holmen View Post
Wow looks like a decent set-up, I'm not much of a powerglide fan for a street car.

….. I posted the video because of the 9" IRS diff that he is pointing at (around the 4:00 mark) … not because of the Powerglide … Someone is making compact 9" IRS housings …..

Last edited by C409; 02-19-2019 at 09:38 AM.
C409 is offline
Old 02-19-2019, 11:15 AM
  #16
JoeNova
CF Senior Member

Member Since: Sep 2016
Location: Ohio
Posts: 184
Thanks: 0
Thanked 15 Times in 14 Posts
Default

What do you plan to do about the axles?
This is my main concern when swapping over to an IRS 8.8.
C-beam adapter and batwing aren't an issue. Its the fact that the axles act as the upper control arms.
Finding an inner axle stub that will work and accept a 1350 or 1410 U-joint is becoming a struggle.

And what about the hubs? Do you plan to upgrade the hubs to accept larger spline outer axle stubs?
JoeNova is offline
