Inside an LT1 intake

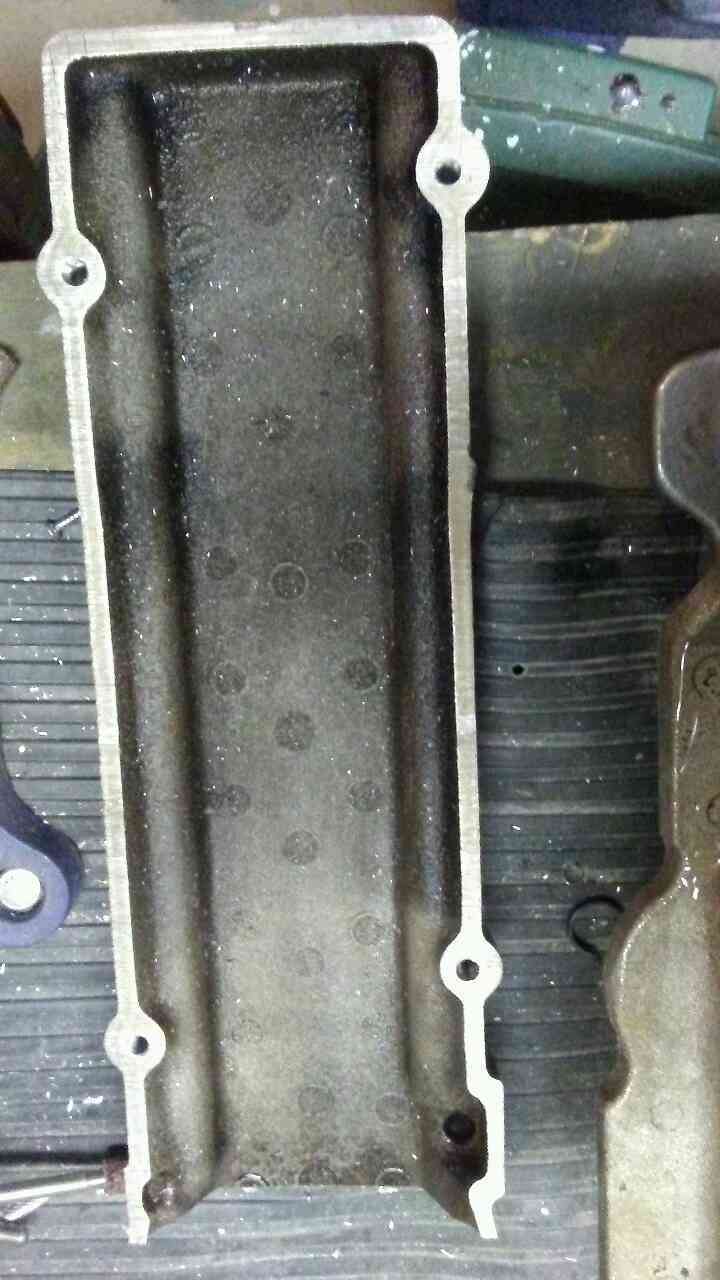

Boredom kicked in awhile back so this got cut open
Runners measure 3 inches, note the twist. (roof of heads do also)
EGR passages in floor of runners (small holes), behind TB
Cyl 8 has no radius on back wall ; cyls 3, 7, 4 & 8 have a little more width to them, guessing its tougher for the air to make that turn relying on the divider wall rather than a nice radius-
See how far it can be taken short of being paper thin or welding (using some shape not a big gaping hole)
-When theres time
These have a lot of potential & can move lots of air.
Runners measure 3 inches, note the twist. (roof of heads do also)
EGR passages in floor of runners (small holes), behind TB
Cyl 8 has no radius on back wall ; cyls 3, 7, 4 & 8 have a little more width to them, guessing its tougher for the air to make that turn relying on the divider wall rather than a nice radius-
See how far it can be taken short of being paper thin or welding (using some shape not a big gaping hole)
-When theres time
These have a lot of potential & can move lots of air.
Last edited by cv67; 02-06-2019 at 04:43 PM.
The following users liked this post:
Tom400CFI (04-07-2019)
#3
Le Mans Master
The LT4 cars didn't use EGR from the factory. I wonder if the LT4 intake has the EGR holes.
#4
Team Owner
Thread Starter
Member Since: Oct 2004
Location: altered state
Posts: 81,242
Received 3,043 Likes
on
2,602 Posts
St. Jude Donor '05
https://www.corvetteforum.com/forums...ine-build.html
Couldnt find pics to see if the runners have the holes in them. Dont think the rear of the intake has the same ones (LT4)
Couldnt find pics to see if the runners have the holes in them. Dont think the rear of the intake has the same ones (LT4)
#5
The holes at the runners are used by the IAC also. The IAC dumps into the small passages. If it didn't use the passages, at idle the front cylinders would run lean and the rear cylinders would run rich. The air comes in the front, of the intake and goes for the closest vacuum source, cylinders 1 and 2. The aftermarket minirams have this issue. Some of the aftermarket throttle bodies have a gaping hole at the IAC and will cause an LT1 to have this problem. I think the BBK and holley TBs were good.
If I remember correctly, the GM RAMJET intake uses a LS1 style throttle body with the IAC up top. The IAC passages run through the top of the manifold.
If I remember correctly, the GM RAMJET intake uses a LS1 style throttle body with the IAC up top. The IAC passages run through the top of the manifold.
The following users liked this post:
MatthewMiller (02-07-2019)
#7
Team Owner
Thread Starter
Member Since: Oct 2004
Location: altered state
Posts: 81,242
Received 3,043 Likes
on
2,602 Posts
St. Jude Donor '05
Fun stuff. Been laid up again due to yet (another) head injury, was hoping to have a few ports finished by now. WIll update as I can..
This will be taken to its limit short of welding. Once the top is stitched back on it will be polished and wind up on (hopefully) someones track car.
Or better yet hide the seam and give it a nice fresh cast as stock look.
This will be taken to its limit short of welding. Once the top is stitched back on it will be polished and wind up on (hopefully) someones track car.
Or better yet hide the seam and give it a nice fresh cast as stock look.
Last edited by cv67; 04-06-2019 at 01:33 PM.
#8
Le Mans Master
Not sure if you're talking about the intake here or your head. But seriously, I hope you get better quickly!
#9
Team Owner
Thread Starter
Member Since: Oct 2004
Location: altered state
Posts: 81,242
Received 3,043 Likes
on
2,602 Posts
St. Jude Donor '05
Both! lol
#10
Team Owner
Pro Mechanic
Cool pics....thanks for sharing. I've always thought that if you made the plenum bigger, you'd cut velocity past 1,2,3&4, reducing that front/rear mix problem. Now that you've chopped the top, I wonder if you could make a "super ram" type, big box plenum for it?
Sorry to hear about the head...get well soon.
Sorry to hear about the head...get well soon.
Last edited by Tom400CFI; 04-07-2019 at 11:09 PM.
#11
Safety Car
Cool pics....thanks for sharing. I've always thought that if you made the plenum bigger, you'd cut velocity past 1,2,3&4, reducing that front/rear mix problem. Now that you've chopped the top, I wonder if you could make a "super ram" type, big box plenum for it?
Sorry to hear about the head...get well soon.
Sorry to hear about the head...get well soon.
I second the motion about "get well soon".
