rad fan


Old 03-09-2019, 01:49 PM
  #1
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default rad fan

when i got my 84 i had to replace the fan relay and the fusible link. 3 months later it wont turn off even with the key off. I was hoping you guys/gals could help me avoid the trial and error treadmill.
84lover is online now
Old 03-09-2019, 02:53 PM
  #2
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

The fan relay and its connector was a weak spot in the '84. Did you replace the relay with an original style relay? Is the connector in good shape, and not melted? Your relay, or the connector, has failed, and is providing a continual connection (short circuit) between the red (continuous 12 v.) and red (to the fan motor).

This relay is a common SPST configuration, so using the factory relay is not a requirement. Find a relay with a higher amperage rating (with mounting tab), even if you must rewire the harness with a different connector or spade lug terminals:
Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-09-2019, 07:09 PM
  #3
84 4+3
CF Senior Member

Member Since: Aug 2017
Location: New Jersey
Posts: 1,525
Thanked 182 Times in 160 Posts
Default

Originally Posted by Hot Rod Roy View Post
The fan relay and its connector was a weak spot in the '84. Did you replace the relay with an original style relay? Is the connector in good shape, and not melted? Your relay, or the connector, has failed, and is providing a continual connection (short circuit) between the red (continuous 12 v.) and red (to the fan motor).

This relay is a common SPST configuration, so using the factory relay is not a requirement. Find a relay with a higher amperage rating (with mounting tab), even if you must rewire the harness with a different connector or spade lug terminals:
took the words right out of my mouth. There are nice weather pack style ones available on line if they make you feel better as well.

Last edited by 84 4+3; 03-09-2019 at 07:10 PM.
84 4+3 is online now
The Following User Says Thank You to 84 4+3 For This Useful Post:
84lover (03-13-2019)
Old 03-09-2019, 08:34 PM
  #4
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

I was thinking the relay was making the connection but i also thought because it was new I might be wrong. It's actually good news.
Thank you for your help. I knew there is good people here. Just to take time to reply to my problem is awesome.
Thank you again
84lover is online now
Old 03-09-2019, 08:38 PM
  #5
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

I will have to put my head on to figure out how to solve this problem permanently but it could be much worse.
84lover is online now
Old 03-11-2019, 10:13 PM
  #6
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

its not the relay i changed it three times. I'll just have to keep diggin
84lover is online now
Old 03-12-2019, 01:11 AM
  #7
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

Originally Posted by 84lover View Post
It's not the relay. I changed it three times. I'll just have to keep digging.
Does the fan run with the relay removed from the connector?

Hot Rod Roy is offline
Old 03-13-2019, 01:26 AM
  #8
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

no...which to me makes the relay the issue but three new relays didn't fix it. Hot Rod Roy suggested a different setup to avoid this relay...different plug and different relay
84lover is online now
Old 03-13-2019, 02:33 AM
  #9
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

The relay is NOT the problem! The problem is the CTS, or the wire from the CTS to the relay, or the switch in the a/c compressor. I've been taking these questions very slowly to minimize confusion.

With the relay plugged in, and the CTS unplugged, does the fan run? I presume you've figured out how to remove that tricky CTS connector? Squeeze the fat sides of the connector just right, and the connector will pull off easily.

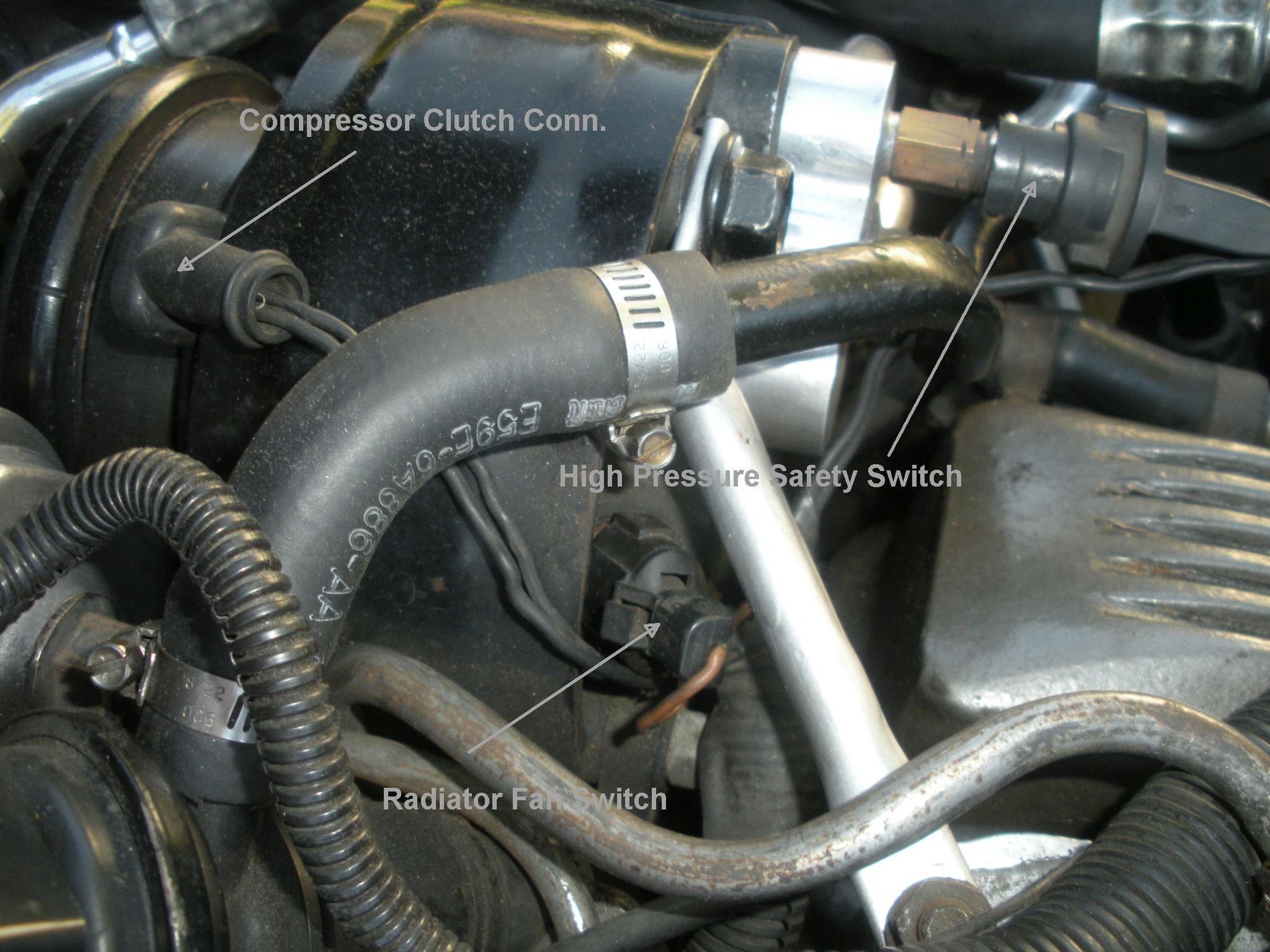

If the fan runs, unplug the radiator fan switch connector in the top of the a/c compressor. If the fan still runs, you've got a short circuit to ground in the wire to the CTS or the compressor radiator fan switch.

If the fan doesn't run, you've got a bad CTS or pressure switch in your compressor. Please report back.

Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-13-2019, 10:36 AM
  #10
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

I disconnected everything at the ac compressor and the fan is still running....a short might explain why my dash dims
84lover is online now
Old 03-13-2019, 02:14 PM
  #11
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

Did you disconnect the CTS ( coolant temp switch )? RH head, between plugs 6 & 8?

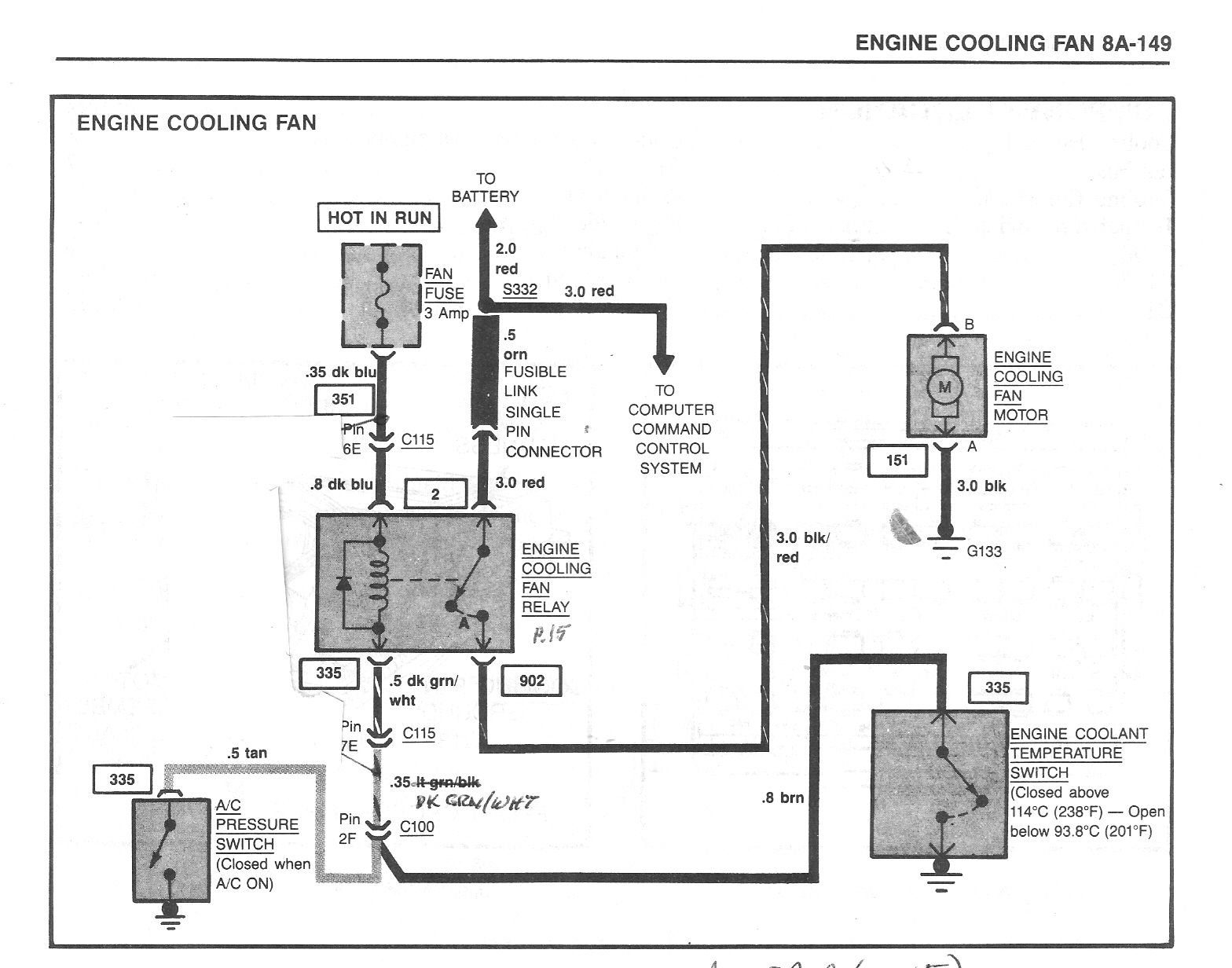

Can you understand this diagram?

Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-13-2019, 03:06 PM
  #12
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

ok... i se there is something on the drive side head with a plug lol...i wil try that and look for something on the pas side
84lover is online now
Old 03-13-2019, 03:11 PM
  #13
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

ok...found the one betwen 6 and 8
disconected that and the one betwen 1 and 3 and fan still runs...no master but i understand most of the diagram

Last edited by 84lover; 03-13-2019 at 03:12 PM.
84lover is online now
Old 03-13-2019, 03:26 PM
  #14
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

In our '84's, the sensor between plugs 1 & 3 is for the instrument panel temp. gauge, and has nothing to do with the radiator fan.

Let's try a test to be sure we're on the right track: Pull the "fan" fuse from the fuse panel on the RH end of your dashboard. The "fan" fuse is in the second row, at the right end of the panel. Does your fan still run? You did pull all three connectors from the a/c compressor?

Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-13-2019, 03:30 PM
  #15
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

pulled cfan fuse and it still runs to my amazement....yes i have disconnected everything
84lover is online now
Old 03-13-2019, 03:41 PM
  #16
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

Originally Posted by 84lover View Post
pulled cfan fuse and it still runs to my amazement.
Very interesting! We were about to go down the wrong path!

Do you have a volt meter/multimeter? The only way this makes any sense is if you have a wiring problem. How many terminals does your fan relay have?
Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-13-2019, 03:46 PM
  #17
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

yes i have one...three prong
84lover is online now
Old 03-13-2019, 04:12 PM
  #18
Hot Rod Roy
CF Senior Member

Hot Rod Roy's Avatar

Member Since: Sep 2004
Location: Mission Viejo CA
Posts: 2,945
Thanked 276 Times in 260 Posts
Default

Originally Posted by 84lover View Post
three prong
Bingo! That's the wrong relay. You need a four prong. A five prong will work, but only if you use the correct four prongs! Please refer to my wiring diagram. Be sure you observe NO ( normally open ) and NC ( normally closed ) contacts in the relay description. Your new relay should have a diode across the coil, as shown in the diagram. Be sure the cathode is connected to the +12 v. source. You may still have another problem, but let's fix one at a time!

Hot Rod Roy is offline
The Following User Says Thank You to Hot Rod Roy For This Useful Post:
84lover (03-13-2019)
Old 03-13-2019, 04:21 PM
  #19
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

i rechecked its four prong sorry...so its making a conection like A is closed...but if its not the relay why doesn't it run without the relay

Last edited by 84lover; 03-13-2019 at 04:32 PM.
84lover is online now
Old 03-13-2019, 04:25 PM
  #20
84lover
Junior Member
Thread Starter

Member Since: Jan 2019
Location: Asheville, NC
Posts: 25
Thanked 1 Time in 1 Post
Default

yes it has the diagram like your image i printedfrom your image i think the open a is closed due to another connection somewhere besides the relay....is that correct?
somehow that doesnt make sense since i have to plug it in

Last edited by 84lover; 03-13-2019 at 05:14 PM.
