Transmission filter change
Thread Starter
Safety Car
Joined: Mar 2017
Posts: 4,206
Likes: 1,325
From: LeClaire Iowa
OP - since you're waiting for bolts how about confirming for others (I have no interest) the actual capacity of the pan. A person knowing the capacity of the pan might be able to better assume what they've pumped from the tube. Did you find an obstruction that kept the pumping device from pan bottom? You could save many your aggravation likely.
**I believe there's 'stop' on the valve body that the stick hits on most 4L60E because of various installs including maybe the early 'other than C4' applications.
GM # 8684890 I'm quite sure is used in the C4 -4L60E
You did use a 'genuine' GM/ACD filter?
**I believe there's 'stop' on the valve body that the stick hits on most 4L60E because of various installs including maybe the early 'other than C4' applications.
GM # 8684890 I'm quite sure is used in the C4 -4L60E
You did use a 'genuine' GM/ACD filter?
Team Owner
Joined: Sep 2003
Posts: 25,394
Likes: 2,741
I don't believe it's important to attempt to bypass it so long as a '94+ owner expects something near 3 QTS of fluid likely in the pan that will need the 'DUMP'. Pump before the pull and DUMP certainly keeps the job less of a nuisance.
Thread Starter
Safety Car
Joined: Mar 2017
Posts: 4,206
Likes: 1,325
From: LeClaire Iowa

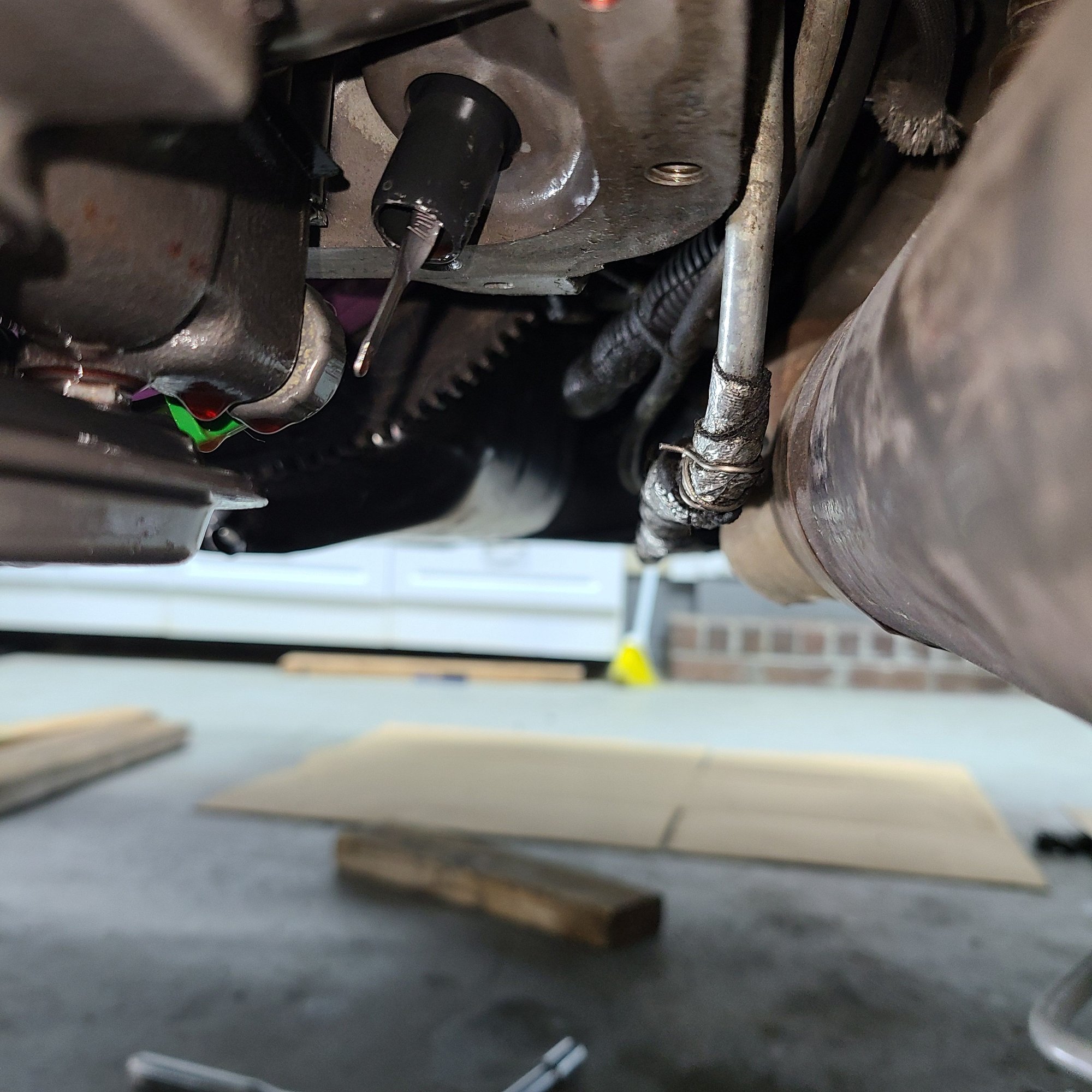

Ok, I have an update that might help someone. My 1/2" hose from my pump would not go past the dipstick stop. I went and bought some 1/4" clear tube that fit right inside the 1/2" tube. It still would not go past the stop until I cut the end at a 45 degree angle. Now it slides right by. If I want in the future I can easily suck out 3 quart and replace.
Thread Starter
Safety Car
Joined: Mar 2017
Posts: 4,206
Likes: 1,325
From: LeClaire Iowa
Did anyone else notice that the end of the tube aligns perfectly with the COLD/FULL level on the dipstick? So if overfilled, suck on the tube itself and flow will cease when the level reaches the bottom of the tube and it sucks air.

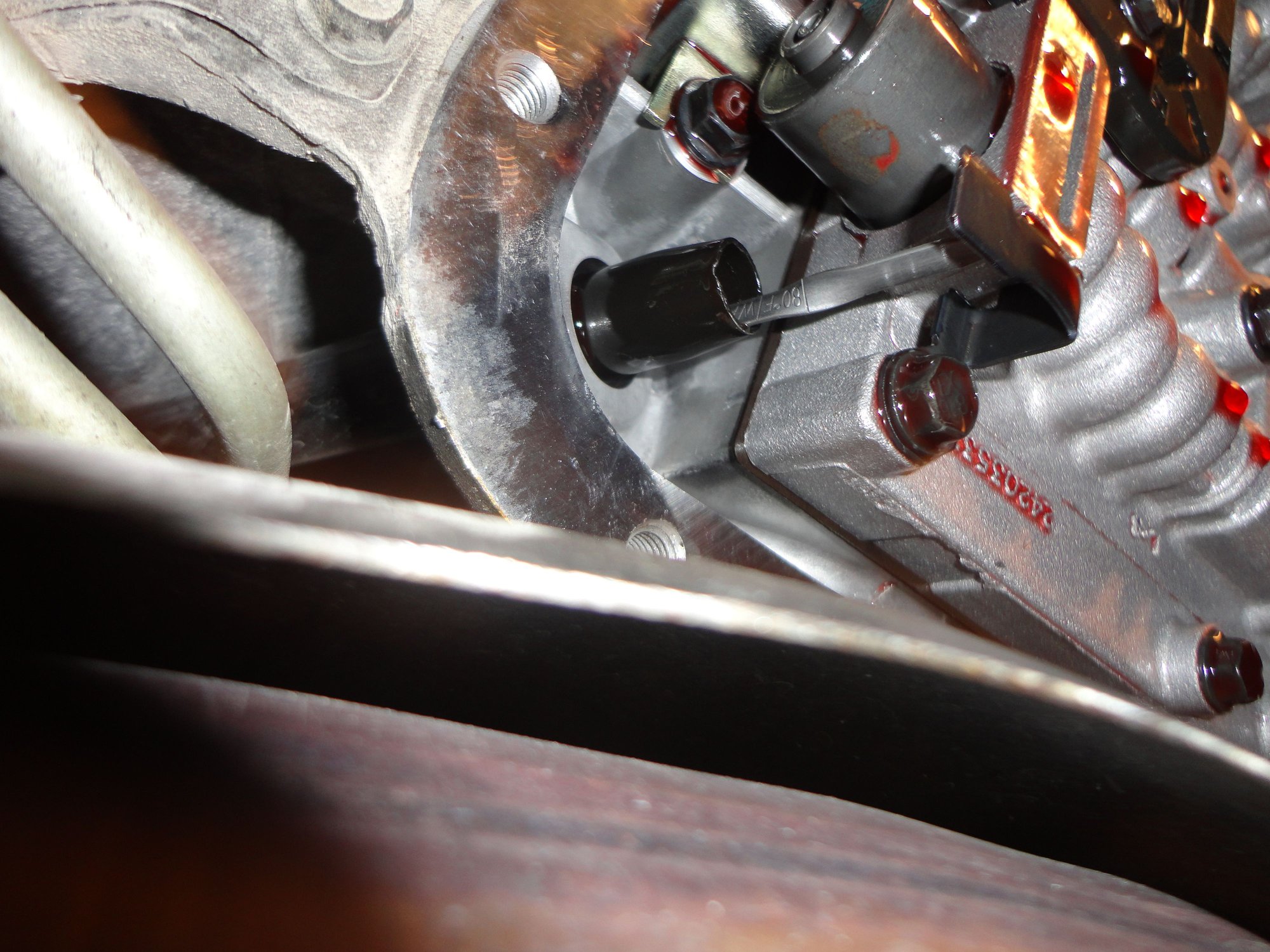

EDIT II: I have a better thought: It is to prevent service personnel "flush equipment" from being inserted into the tube and knocking the filter/pickup out of the pump snout. Because the pan isn't removed during a "flush", a dislodged filter wouldn't be detected until the trans was burned up. Dan: take a look after the filter is installed. I'm pretty sure the forward corner of the filter is under the filler pipe. You should evaluate whether removing the stop, or even your tapered 1/4" tube will get to the bottom with the filter installed.
Cheers
