mystery Connector

Good morning all,

I have a 92 vert, LT1. I was checking my vac lines and came across

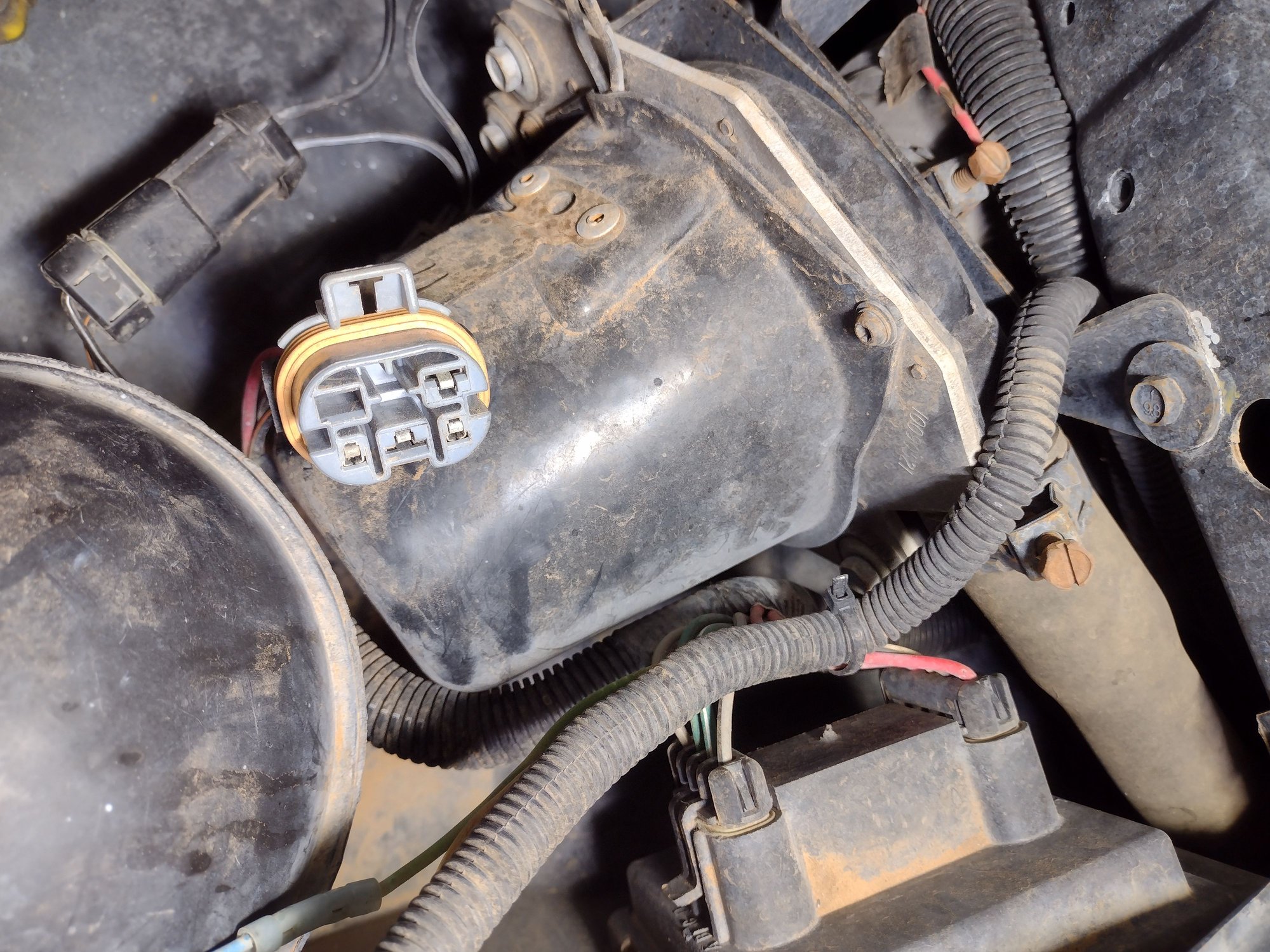

this connector with out a home. All systems seem to function within parameters, but the connector looks important.. Any ideas? BTW Drivers side front, near air pump and vac ball.

Aug 17, 2022 | 07:50 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,357

Likes: 2,729

Are you missing a cooling fan relay that on a '92 there should be 2 of attached to the fan shroud? What are the wire colors? Do you have the FSM? 8A-201-7 there would be a good image.

Aug 17, 2022 | 07:56 AM

rberge12

Thread Starter

Advanced

Joined: Mar 2022

Posts: 63

Likes: 7

From: Lubbock, Texas

I have 2 relays on the shroud and both are connected, I have the FSM, and I can't find any information on the mystery connector

Aug 17, 2022 | 08:24 AM

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,357

Likes: 2,729

The 'air pump' relay is missing. The retainer for it is in both of your snapshots, See FSM 8A-22-1 for wiring diagram. There's no images in the 8A-201 section.

Aug 17, 2022 | 08:54 AM

rberge12

Thread Starter

Advanced

Joined: Mar 2022

Posts: 63

Likes: 7

From: Lubbock, Texas

Thank you, I had a spare relay and put it in! Not sure what it's going to do for the car, but it makes me feel better
