Help identifying electrical connectors

Thread Tools

Search this Thread

Old Sep 7, 2022 | 06:40 AM
Share
  #1
NickPSI's Avatar
NickPSI
Thread Starter
Instructor
10 Year Member
All Eyes On Me
Liked
Loved

Joined: Jul 2015
Posts: 104
Likes: 20
From: Syracuse NY
Default Help identifying electrical connectors

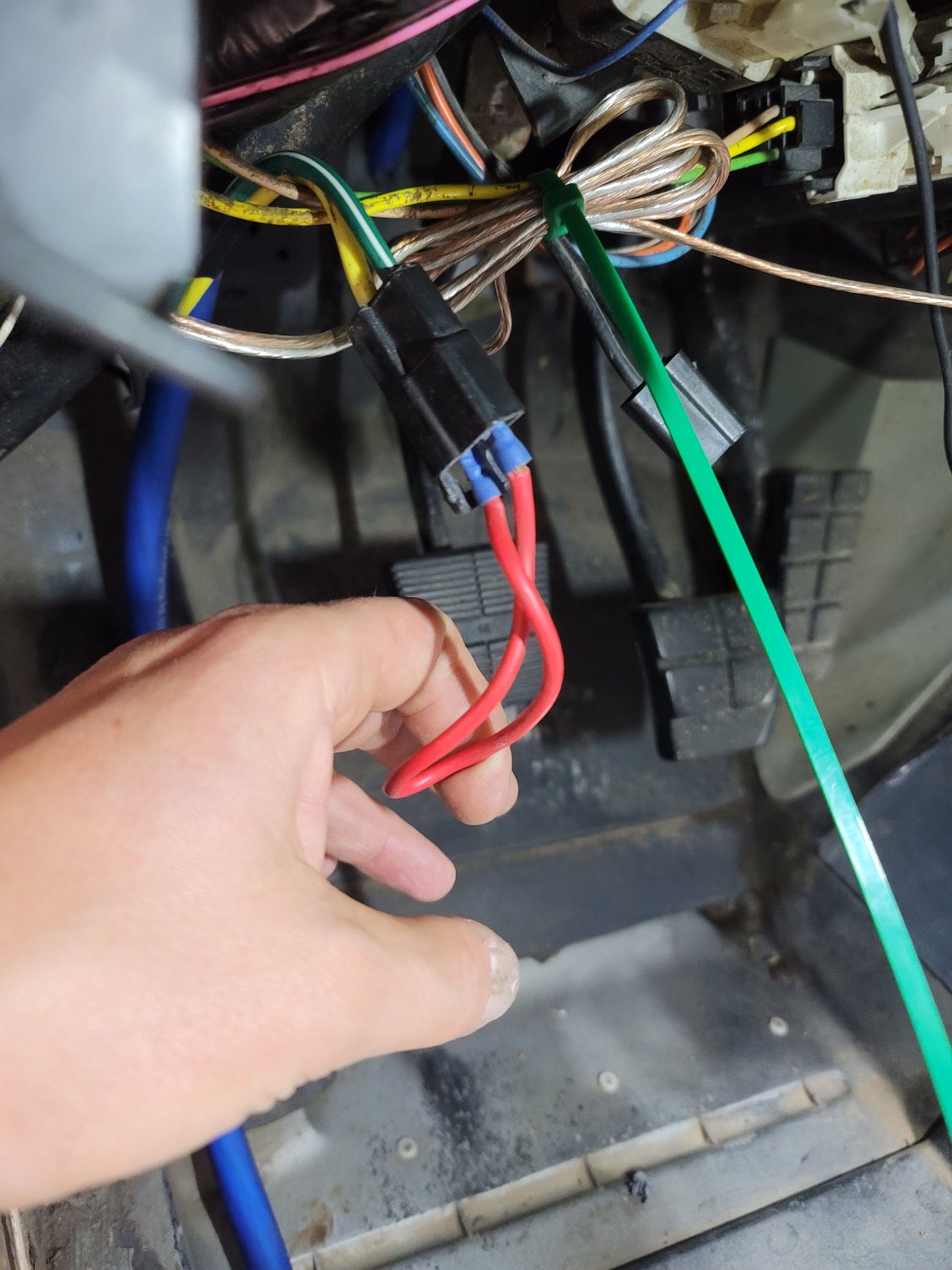

Hello, 1985 4+3 disaster rehab of a car. Under the driver side dash and the majority of the wiring is hacked up for what may have been an old alarm system. There is alot spliced or not connected. Here, the spade connector looks like a ground but I don't know what these other two are. These are on the drivers side hanging under the cluster/column


​​​​
Reply
0
Old Sep 7, 2022 | 07:31 AM
Share
  #2
s carter's Avatar
s carter
Melting Slicks
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2014
Posts: 2,894
Likes: 592
From: New Port Richey FL
Default
Cruise control flat plug goes into the square connector with white tab.

Do your Hazard lights or directionals blink because the other looks like a timer plug
Reply
0
Old Sep 7, 2022 | 08:33 AM
Share
  #3
NickPSI's Avatar
NickPSI
Thread Starter
Instructor
10 Year Member
All Eyes On Me
Liked
Loved

Joined: Jul 2015
Posts: 104
Likes: 20
From: Syracuse NY
Default
Originally Posted by s carter
Cruise control flat plug goes into the square connector with white tab.

Do your Hazard lights or directionals blink because the other looks like a timer plug
Hazards work, I just replaced the flasher for the directionals so they work now that was on the passenger side behind the breadbox.
Reply
0
Old Sep 7, 2022 | 12:41 PM
Share
  #4
s carter's Avatar
s carter
Melting Slicks
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2014
Posts: 2,894
Likes: 592
From: New Port Richey FL
Default
Since all the other plugs you are showing are Cruise, that might be a Cruise disconnect switch wire on the clutch pedal or possibly on brake pedal
Reply
0
Old Sep 7, 2022 | 12:55 PM
Share
  #5
WVZR-1's Avatar
WVZR-1
Team Owner
20 Year Member
Veteran: Army
Active Streak: 30 Days
Liked

Joined: Sep 2003
Posts: 25,393
Likes: 2,741
Default
The connector @ your 'index finger' looks to be an early CSS (Clutch Safety Switch) connector. That would be from the switch. Wire colors are?
Last edited by WVZR-1; Sep 7, 2022 at 01:53 PM.
Reply
0
Old Sep 7, 2022 | 12:59 PM
Share
  #6
NickPSI's Avatar
NickPSI
Thread Starter
Instructor
10 Year Member
All Eyes On Me
Liked
Loved

Joined: Jul 2015
Posts: 104
Likes: 20
From: Syracuse NY
Default
Originally Posted by WVZR-1
The connector @ your 'index finger' looks to be an early CSS (Clutch Safety Switch) connector. That would be from the harness in the car. The CSS would have a mating connector. Wire colors are?
That makes sense, as the car can be started without the clutch depressed. I'll see if I can find where it plugs in.
Reply
0
Old Sep 7, 2022 | 01:14 PM
Share
  #7
WVZR-1's Avatar
WVZR-1
Team Owner
20 Year Member
Veteran: Army
Active Streak: 30 Days
Liked

Joined: Sep 2003
Posts: 25,393
Likes: 2,741
Default
Originally Posted by NickPSI
That makes sense, as the car can be started without the clutch depressed. I'll see if I can find where it plugs in.
Do you have the FSM? What are the wire colors.


Reply
0
Old Sep 7, 2022 | 01:45 PM
Share
  #8
NickPSI's Avatar
NickPSI
Thread Starter
Instructor
10 Year Member
All Eyes On Me
Liked
Loved

Joined: Jul 2015
Posts: 104
Likes: 20
From: Syracuse NY
Default
Originally Posted by WVZR-1
Do you have the FSM? What are the wire colors.
The connector on the right is 3 blues, a green and pink. Center is black (duh) left is black/black.

I do have the fsm

There's also this heavy green/yellow that is jumped out:

Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-1

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-2

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-3

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-4

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-5

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-6

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
story-7

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

 Joe Kucinski
story-8

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

 Joe Kucinski
story-9

8 Coolest Corvette Pace Cars (and Replicas) of All Time

 Verdad Gallardo
Old Sep 7, 2022 | 01:52 PM
Share
  #9
WVZR-1's Avatar
WVZR-1
Team Owner
20 Year Member
Veteran: Army
Active Streak: 30 Days
Liked

Joined: Sep 2003
Posts: 25,393
Likes: 2,741
Default
The jumper is CSS to the body harness 'jumped'. The first one in your 1st post is from the switch with likely 2 black wires. I fixed post #5.
Reply
0
Old Sep 7, 2022 | 02:20 PM
Share
  #10
s carter's Avatar
s carter
Melting Slicks
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2014
Posts: 2,894
Likes: 592
From: New Port Richey FL
Default
I was suspecting the Clutch Switch but since he Didn't mention a bypass all that wiring was connected and functioning, OP anytime you have Creative wiring its kind of important to mention. Because all you needed to do is look up and trace 4" to clutch switch
Reply
0
