Mar 20, 2023 | 09:27 AM

#21

WVZR-1

Team Owner

Joined: Sep 2003

Posts: 25,381

Likes: 2,735

I image those are from a '90 FSM but all years vary somewhat. A quick glance at an '89 FSM mentions 11 N-m & 8 lbs. ft.

Mar 20, 2023 | 09:46 AM

#22

Vets-Vet

Drifting

Joined: Jul 2022

Posts: 1,805

Likes: 365

From: Central Florida

In my 86-87 FSM it says to clean off tranny and use spray foot powder to find leak. It also list the torque as 12ft lbs.
.
.

.

Mar 20, 2023 | 09:54 AM

#23

Tom454

Thread Starter

Le Mans Master

Joined: Apr 1999

Posts: 6,134

Likes: 46

From: Raleigh North Carolina

Quote:

Originally Posted by WVZR-1

I image those are from a '90 FSM but all years vary somewhat. A quick glance at an '89 FSM mentions 11 N-m & 8 lbs. ft.

I just went through a bunch of FSM for various years and found a variance as well....

8ft lbs (96in lbs)
9ft lbs (108in lbs)
12ft lbs (144in lbs)
The aftermarket manual such as ATSG seem to favor 9ft lbs depending on year.
Edit: I also looked in a 1986 Chevy Truck FSM and that manual has both: 12ftlbs p.700R4-48, 8 ftlbs p.700R4-56

I didn't realize there was was so much variance. Plus I did find some "typos".
They are 8mm 1.25 but you can't go by standard torque charts because these are in an aluminum case.

Last edited by Tom454; Mar 20, 2023 at 10:00 AM.

Mar 20, 2023 | 10:49 AM

#24

Natty C

Melting Slicks

Joined: May 2019

Posts: 3,197

Likes: 1,382

From: Mid-Atlantic

2025 C4 of the Year Finalist - Unmodified

2023 C4 of the Year Finalist - Unmodified

2022 C4 of the Year Finalist - Unmodified

2021 C4 of the Year - Unmodified Finalist

Quote:

Originally Posted by Tom454

Which specific vehicle, year and transmission are those specs for? I am definitely curious.

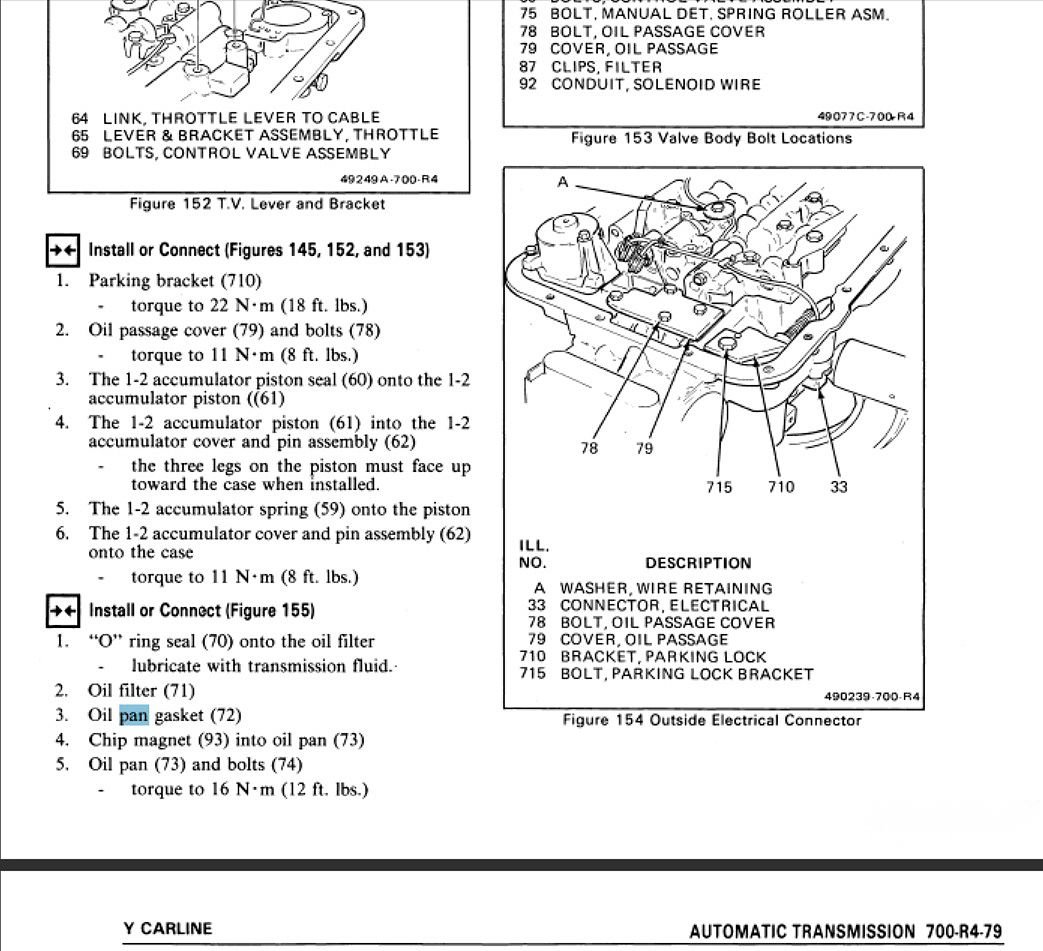

As WVZR-1 mentioned, that's out of the FSM for my '90. 700R4...

Mar 20, 2023 | 11:30 AM

#25

Natty C

Melting Slicks

Joined: May 2019

Posts: 3,197

Likes: 1,382

From: Mid-Atlantic

2025 C4 of the Year Finalist - Unmodified

2023 C4 of the Year Finalist - Unmodified

2022 C4 of the Year Finalist - Unmodified

2021 C4 of the Year - Unmodified Finalist

Anyway. Seeing as how that gasket is sliced up the way it is, I'd say it's just over-torqued. But that's just from where I'm sitting, looking at a picture. If that's the case, then obviously the pan would need another look to see if it's also been pulled in. Seeing where those bolts dug in lends to that. Occam's razor and whatnot...

Last edited by Natty C; Mar 20, 2023 at 11:36 AM. Reason: typos

Mar 24, 2023 | 09:32 AM

#26

Tom454

Thread Starter

Le Mans Master

Joined: Apr 1999

Posts: 6,134

Likes: 46

From: Raleigh North Carolina

Quote:

Originally Posted by Natty C

As I said previously- the torque never went past 108 inch-lbs. On the last pass- the pan was aluminum- thick rail- no flex, no bending. The gasket was supposed to be re-usable- that's all I was trying to point out. It was $40.

Mar 24, 2023 | 09:42 AM

#27

Tom454

Thread Starter

Le Mans Master

Joined: Apr 1999

Posts: 6,134

Likes: 46

From: Raleigh North Carolina

Quote:

Originally Posted by Vets-Vet

This is an informative video by a guy that does a lot of corvettes, maybe it will help.

https://www.youtube.com/watch?v=K-SWBhXr7Ew

He used Permatex 81158 so I tried that with a Summit aluminum pan, 25mm UHL stainless steel cap screws, split lock washers, and a Fel-Pro gasket.
I coated the gasket on one side and coated the pan rail, then installed it 3/18/23.
I added 4qts/8pts synthetic fluid 3/22/23
So far 3/24/23 no leaks.
Thanks
